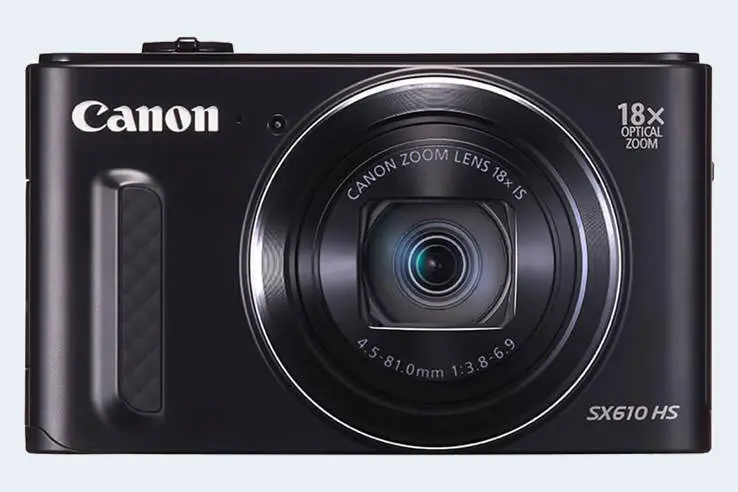

What is the pixel pitch of the Canon SX610?
The Canon PowerShot SX610 HS provides 20.2 megapixels from a 1/2.3-inch sensor. This pixel density gives rise to a size of the individual pixel of 1.18µm.
The pixel size or pixel pitch can be calculated by dividing the sensor area by the pixel count and then taking the square root. In particular, the sensor in the Canon SX610 measures 6.17mm in width and 4.55mm in height, so that the total imaging area of the sensor amounts to 28 mm2. Moreover, the SX610 has 5 184 horizontal pixels and 3 888 vertical pixels, for a total of 20.2 megapixels. Then, the size (height or width) of each individual pixel can be calculated as the square root of the ratio of the sensor area (28 mm2) to the MP count (20 155 392).
Larger pixels provide advantages with respect to gathering light, particularly in low-light situations. Large pixels notably have a better signal to noise ratio, meaning that they can better differentiate between incoming photons and the noisy signals that the internal processes of the camera create. As a result, big pixels are particularly helpful to the photographer when shooting with high ISO settings.
Sensor specs and performance
The table below compares the sensor specs of the Canon SX610 to those of several similar cameras. The reported DXO values are indicators of the sensor's imaging quality (higher is better), covering color depth (DXO Portrait), dynamic range (DXO Landscape), and high-ISO noise (DXO Sports). Larger sensor cameras tend to outperform cameras of the same generation that are equipped with a smaller imager. On the other hand, larger sensors are more expensive and require bigger and heavier lenses than smaller light receptors.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX610 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/30p | 20.2 | 11.6 | 712 | 47 | |
2. | Canon SX420 | 1/2.3 | 19.9 | 5152 | 3864 | 720/25p | 20.3 | 11.7 | 806 | 48 | |
3. | Canon SX540 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.7 | 806 | 48 | |
4. | Canon SX620 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/30p | 20.4 | 11.8 | 838 | 49 | |
5. | Canon SX720 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.8 | 817 | 48 | |
6. | Canon G9 X | 1-inch | 20.0 | 5472 | 3648 | 1080/60p | 21.5 | 12.3 | 495 | 63 | |
7. | Canon SX410 | 1/2.3 | 19.9 | 5152 | 3864 | 720/30p | 20.2 | 11.6 | 720 | 47 | |
8. | Canon SX710 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.2 | 11.6 | 712 | 47 | |
9. | Canon SX600 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.0 | 11.4 | 620 | 45 | |
10. | Canon SX400 | 1/2.3 | 15.9 | 4608 | 3456 | 720/30p | 20.1 | 11.5 | 672 | 46 | |
11. | Sony H300 | 1/2.3 | 19.9 | 5152 | 3864 | 720/30p | 20.1 | 11.4 | 630 | 45 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Further information on the sensor in the Canon SX610 and the camera's operation can be found in the camera manual.
In the United States, the SX610 was initially launched in January 2015 at a price of $249.
Camera to camera comparisons
If you would like to see a side-by-side review with another camera, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1100D vs Nikon Z6
- Canon 1D Mark IV vs Canon SX610
- Canon SX610 vs Fujifilm X-T10
- Canon SX610 vs Nikon B700
- Canon SX610 vs Nikon D5100
- Canon SX610 vs Nikon D70
- Canon SX610 vs Nikon D80
- Fujifilm X20 vs Nikon Z6
- Leica X Vario vs Nikon Z6
- Nikon Z6 vs Panasonic G110
- Nikon Z6 vs Panasonic GF2
- Nikon Z6 vs Panasonic LX15
Camera Model | Canon SX610 | |
---|---|---|
Camera Type | Fixed lens compact camera | |
Camera Lens | 25-450mm f/3.8-6.9 | |
Launch Date | January 2015 | |
Launch Price | USD 249 | |
Sensor Specs | ||
Sensor Technology | BSI-CMOS | |
Sensor Format | 1/2.3" Sensor | |
Sensor Size | 6.17 x 4.55 mm | |
Sensor Area | 28 mm2 | |
Sensor Diagonal | 7.7 mm | |
Crop Factor | 5.6x | |
Sensor Resolution | 20.2 Megapixels | |
Image Resolution | 5 184 x 3 888 pixels | |
Pixel Pitch | 1.18 μm | |
Pixel Density | 71.80 MP/cm2 | |
Moiré control | no AA filter | |
Movie Capability | 1080/30p Video | |
ISO Setting | 80 - 3 200 ISO | |
Image Processor | DIGIC 4+ | |
Screen Specs | ||
Viewfinder Type | No viewfinder | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 922k dots | |
LCD Attachment | Fixed screen | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/2000s | |
Continuous Shooting | 2.5 shutter flaps/s | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Fill Flash | Built-in Flash | |
Storage Medium | SDXC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | no | |
Connectivity Specs | ||
External Flash | no Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | micro HDMI | |
Wifi Support | Wifi built-in | |
Near-Field Communication | NFC built-in | |
Body Specs | ||
Battery Type | Canon NB-6LH power pack | |
Battery Life (CIPA) | 270 shots per charge | |
Body Dimensions |
105 x 61 x 27 mm (4.1 x 2.4 x 1.1 in) |
|
Camera Weight | 191 g (6.7 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
