Panasonic G100 PDF User Manual

Did you lose or misplace the instruction manual that came with your Panasonic Lumix DC-G100? It happens all too easily, but fortunately Panasonic makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the G100 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Panasonic Lumix DC-G100 below.

camera

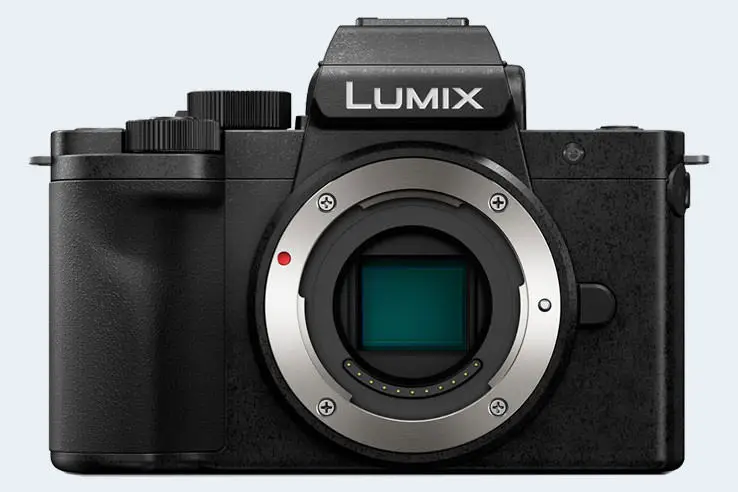

In any case, the G100 (called Panasonic G110 in some regions) is an advanced imaging tool, whose many features merit serious attention. This mirrorless interchangeable lens camera was announced on June 24th, 2020, which means that, as of today, the camera is 831 days old (young?). Given that the G100 is a relatively recent model, it forms part of the current Panasonic product line-up.

Panasonic's owner manual for the G100

The camera's owner manual is 511 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the G100 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Panasonic Lumix DC-G100 manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Panasonic's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Panasonic G100 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

Video tutorial for the Panasonic Lumix DC-G100

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your G100 by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Panasonic G100 is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find G100 guide book at
amazon.com

Panasonic G100 FAQ

Below are some additional questions and answers concerning some particular features of the G100.

What technology is the imaging sensor in the G100 based on?

The camera is build around a Live MOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used to convert the raw signal into an image file and perform noise reduction and image sharpening?

Panasonic equipped the G100 with the Venus image processor.

What is the ISO sensitivity range of the G100?

The camera has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600.

Does the camera have a selfie-friendly screen?

Yes, the LCD-screen of the G100 is flexible and can be turned to be front-facing for capturing selfies.

What is the life expectancy of the shutter in the Panasonic Lumix DC-G100?

Panasonic does not publish a shutter rating for the G100. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

Is completely silent shooting possible with the Panasonic G100?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences?

No, the Panasonic Lumix DC-G100 has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Panasonic G100?

The G100 offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Panasonic G100 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with flash?

The G100's flash sync speed is 1/200 sec.

Does the Panasonic G100 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the G100 use?

The camera gets its power from the DMW-BLG10 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Further reading

How does the G100 stack up against available alternatives? If you would like to see a side-by-side review with another camera, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Panasonic Lumix DC-G100.

    Specifications Summary
    Camera Model Panasonic G100
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date June 2020
    Launch Price USD 649
    Sensor Specs
    Sensor Technology Live MOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 20.2 Megapixels
    Image Resolution 5 184 x 3 888 pixels
    Pixel Pitch 3.34 μm
    Pixel Density 8.96 MP/cm2
    Moiré control no AA filter
    Movie Capability 4K/30p Video
    ISO Setting 200 - 25 600 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor Venus
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.73x
    Viewfinder Resolution 3680k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1840k dots
    LCD Attachment Swivel screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/500s
    Continuous Shooting 10 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Microphone Port External MIC port
    Headphone Socket Headphone port
    Wifi Support Wifi built-in
    Bluetooth Support Bluetooth built-in
    Body Specs
    Battery Type DMW-BLG10 power pack
    Battery Life (CIPA)270 shots per charge
    In-Camera Charging USB charging
    Body Dimensions 116 x 83 x 54 mm
    (4.6 x 3.3 x 2.1 in)
    Camera Weight 352 g (12.4 oz)
