Panasonic LX5 vs Pentax KP

The Panasonic Lumix DMC-LX5 and the Pentax KP are two digital cameras that were revealed to the public, respectively, in July 2010 and January 2017. The LX5 is a fixed lens compact, while the KP is a DSLR. The cameras are based on a 1/1.7-inch (LX5) and an APS-C (KP) sensor. The Panasonic has a resolution of 10 megapixels, whereas the Pentax provides 24.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic LX5		Pentax KP
Fixed lens compact camera		Digital single lens reflex
24-90mm f/2.0-3.3		Pentax K mount lenses
10 MP – 1/1.7" sensor		24.1 MP – APS-C sensor
720/60p Video		1080/60i Video
ISO 80-3,200 (80 - 12,800)		ISO 100-819,200
Viewfinder optional		Optical viewfinder
3.0" LCD – 460k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
2.5 shutter flaps per second		7 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
400 shots per battery charge		390 shots per battery charge
110 x 65 x 43 mm, 271 g		132 x 101 x 76 mm, 703 g

Check LX5 offers at
ebay.com
Check KP offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-LX5 and the Pentax KP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

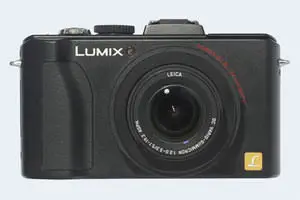

The side-by-side display below illustrates the physical size and weight of the Panasonic LX5 and the Pentax KP. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The LX5 can be obtained in two different colors (black, white), while the KP is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax KP is considerably larger (86 percent) than the Panasonic LX5. It is noteworthy in this context that the KP is splash and dust-proof, while the LX5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the KP is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the LX5 gets 400 shots out of its Panasonic DMW-BCJ13 battery, while the KP can take 390 images on a single charge of its Pentax D-LI109 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	499	ebay.com
2.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	1,099	ebay.com
3.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	499	ebay.com
4.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
5.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	699	ebay.com
6.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
7.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
8.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	599	ebay.com
9.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
10.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	499	ebay.com
11.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	549	ebay.com
12.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	549	ebay.com
13.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	649	ebay.com
14.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	749	ebay.com
15.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	1,099	ebay.com
16.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	1,299	ebay.com
17.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	1,099	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The LX5 was launched at a lower price than the KP, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Panasonic LX5 features a 1/1.7-inch sensor and the Pentax KP an APS-C sensor. The sensor area in the KP is 698 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.4 and 1.5. The sensor in the LX5 has a native 4:3 aspect ratio, while the one in the KP offers a 3:2 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

With 24.1MP, the KP offers a higher resolution than the LX5 (10MP), but the KP nevertheless has larger individual pixels (pixel pitch of 3.90μm versus 2.14μm for the LX5) due to its larger sensor. Moreover, the KP is a much more recent model (by 6 years and 6 months) than the LX5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the KP has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax KP implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the KP for good quality output (200 dots per inch) amounts to 30.1 x 20 inches or 76.4 x 50.8 cm, for very good quality (250 dpi) 24.1 x 16 inches or 61.1 x 40.6 cm, and for excellent quality (300 dpi) 20.1 x 13.3 inches or 50.9 x 33.9 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

Unlike the LX5, the KP has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Panasonic Lumix DMC-LX5 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-12800. The corresponding ISO settings for the Pentax KP are ISO 100 to ISO 819200 (no boost).

In terms of underlying technology, the LX5 is build around a CCD sensor, while the KP uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
2.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
3.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
4.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
5.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
6.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
7.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
8.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
9.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
10.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
11.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
12.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
13.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
14.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
15.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
16.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
17.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the KP provides a better video resolution than the LX5. It can shoot movie footage at 1080/60i, while the Panasonic is limited to 720/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the KP has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Panasonic LX5 and Pentax KP in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
2.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
3.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
4.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
5.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
6.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
7.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
8.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
9.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
10.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
11.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
12.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
13.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
14.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
15.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
16.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
17.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the KP is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Pentax KP has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the LX5 and the KP write their files to SDXC cards. The KP supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the LX5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-LX5 and Pentax KP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
3.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
7.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
15.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
17.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the KP offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the LX5 does not provide wifi capability.

Both the LX5 and the KP have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the KP does not have a direct successor. Further information on the features and operation of the LX5 and KP can be found, respectively, in the Panasonic LX5 Manual (free pdf) or the online Pentax KP Manual.

Review summary

So what conclusions can be drawn? Is the Panasonic LX5 better than the Pentax KP or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Panasonic Lumix DMC-LX5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Ready to shoot: Comes with a built-in lens, while the KP requires a separate lens.
• More compact: Is smaller (110x65mm vs 132x101mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the KP).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in July 2010).

Advantages of the Pentax KP:

• More detail: Has more megapixels (24.1 vs 10MP), which boosts linear resolution by 58%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (1080/60i vs 720/60p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 2.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 6 years and 6 months of technical progress since the LX5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the KP is the clear winner of the contest (21 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic LX5 and the Pentax KP place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the LX5 or the KP. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	499	ebay.com
2.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	1,099	ebay.com
3.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	499	ebay.com
4.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
5.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	699	ebay.com
6.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
7.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	449	ebay.com
8.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	599	ebay.com
9.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
10.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	499	ebay.com
11.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	549	ebay.com
12.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	549	ebay.com
13.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	649	ebay.com
14.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	749	ebay.com
15.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	1,099	ebay.com
16.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	1,299	ebay.com
17.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	1,099	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check LX5 offers at
ebay.com
Check KP offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check LX5 offers at
ebay.com
Check KP offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
