Nikon D5200 vs Olympus TG-6
The Nikon D5200 and the Olympus Tough TG-6 are two digital cameras that were announced, respectively, in November 2012 and May 2019. The D5200 is a DSLR, while the TG-6 is a fixed lens compact. The cameras are based on an APS-C (D5200) and a 1/2.3-inch (TG-6) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5200 and the Olympus Tough TG-6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

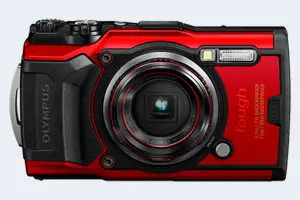

The side-by-side display below illustrates the physical size and weight of the Nikon D5200 and the Olympus TG-6. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, red).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-6 is considerably smaller (41 percent) than the Nikon D5200. It is noteworthy in this context that the TG-6 is splash and dust-proof, while the D5200 does not feature any corresponding weather-sealing. More than that, the TG-6 is water-proof up to 15m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-6 has a lens built in, whereas the D5200 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5200 and their specifications in the Nikon Lens Catalog.
Concerning battery life, the D5200 gets 500 shots out of its EN-EL14 battery, while the TG-6 can take 340 images on a single charge of its LI-92B power pack. The power pack in the TG-6 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|2.||Olympus TG-6||113 mm||66 mm||32 mm||253 g||340||Y||May 2019||449|
|3.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389|
|4.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|5.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|6.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899|
|7.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|8.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|9.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|10.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|11.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|12.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|13.||Nikon D60||126 mm||94 mm||64 mm||522 g||500||n||Jan 2008||629|
|14.||Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|15.||Olympus TG-4||112 mm||66 mm||31 mm||247 g||380||Y||Apr 2015||379|
|16.||Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|17.||Ricoh WG-6||118 mm||66 mm||33 mm||246 g||340||Y||Feb 2019||399|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-6 was launched at a lower price than the D5200, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D5200 features an APS-C sensor and the Olympus TG-6 a 1/2.3-inch sensor. The sensor area in the TG-6 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the D5200 has a native 3:2 aspect ratio, while the one in the TG-6 offers a 4:3 aspect.
With 24MP, the D5200 offers a higher resolution than the TG-6 (12MP), but the D5200 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.53μm for the TG-6) due to its larger sensor. However, the TG-6 is a much more recent model (by 6 years and 6 months) than the D5200, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Nikon D5200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus TG-6 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Nikon D5200 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Tough TG-6 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TG-6 provides a better video resolution than the D5200. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D5200 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TG-6 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon D5200, the Olympus TG-6, and comparable cameras.
|1.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0||Y||n|
|2.||Olympus TG-6||none||n||3.0 / 1040||fixed||n||1/2000s||20.0||Y||Y|
|3.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0||Y||Y|
|4.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|5.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|6.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0||Y||n|
|7.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0||Y||n|
|8.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0||Y||n|
|9.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0||Y||n|
|10.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0||Y||n|
|11.||Nikon D5100||optical||n||3.0 / 921||swivel||n||1/4000s||4.0||Y||n|
|12.||Nikon D5000||optical||n||2.7 / 230||full-flex||n||1/4000s||4.0||Y||n|
|13.||Nikon D60||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|14.||Olympus TG-5||none||n||3.0 / 460||fixed||n||1/2000s||20.0||Y||Y|
|15.||Olympus TG-4||none||n||3.0 / 460||fixed||n||1/2000s||5.0||Y||Y|
|16.||Olympus XZ-1||optional||n||3.0 / 614||fixed||n||1/2000s||2.0||Y||Y|
|17.||Ricoh WG-6||none||n||3.0 / 1040||fixed||n||1/4000s||1.0||Y||n|
The Nikon D5200 and the Olympus TG-6 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5200 and the TG-6 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5200 and Olympus Tough TG-6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus TG-6||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|4.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|5.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|6.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|7.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|9.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|10.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Nikon D5100||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5000||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Nikon D60||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus TG-5||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus TG-4||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|16.||Olympus XZ-1||Y||mono / -||-||-||mini||2.0||-||-||-|
|17.||Ricoh WG-6||-||mono / mono||-||-||micro||3.0||-||-||-|
It is notable that the D5200 has a hotshoe, while the TG-6 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Travel and landscape photographers will find it useful that the TG-6 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The TG-6 is a recent model that features in the current product line-up of Olympus. In contrast, the D5200 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5200 was succeeded by the Nikon D5300. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is the Nikon D5200 better than the Olympus TG-6 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D5200:
- More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (500 versus 340) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in November 2012).
Reasons to prefer the Olympus Tough TG-6:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the D5200 requires a separate lens.
- More compact: Is smaller (113x66mm vs 129x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D5200).
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 6 months of technical progress since the D5200 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (14 points each). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5200 and the Olympus TG-6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D5200 or the TG-6 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749|
|2.||Olympus TG-6||..||+ +||4.5/5||76/100||4/5||4/5||May 2019||449|
|3.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389|
|4.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699|
|5.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499|
|6.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899|
|7.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499|
|8.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|9.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799|
|10.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599|
|11.||Nikon D5100||5/5||+ +||..||76/100||4.5/5||4.5/5||Apr 2011||749|
|12.||Nikon D5000||..||+ +||..||75/100||4/5||4.5/5||Apr 2009||749|
|13.||Nikon D60||..||80/100||..||+ +||4/5||4.5/5||Jan 2008||629|
|14.||Olympus TG-5||..||+ +||..||..||4/5||4/5||May 2017||449|
|15.||Olympus TG-4||..||+||..||79/100||4/5||4/5||Apr 2015||379|
|16.||Olympus XZ-1||4/5||..||..||74/100||4.5/5||4.5/5||Jan 2011||499|
|17.||Ricoh WG-6||..||..||..||..||3.5/5||3.5/5||Feb 2019||399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D Mark IV vs Olympus TG-6
- Canon 7D vs Olympus TG-6
- Canon R6 vs Nikon D5200
- Nikon 1 J4 vs Olympus TG-6
- Nikon D3500 vs Nikon D5200
- Nikon D5200 vs Panasonic G3
- Nikon D5200 vs Panasonic G90
- Nikon D5200 vs Panasonic ZS80
- Nikon D5200 vs Zeiss ZX1
- Olympus E-3 vs Olympus TG-6
- Olympus E-5 vs Olympus TG-6
- Olympus TG-6 vs Pentax K-S2
Specifications: Nikon D5200 vs Olympus TG-6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5200||Olympus TG-6|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||25-100mm f/2.0-4.9|
|Launch Date||November 2012||May 2019|
|Launch Price||USD 749||USD 449|
|Sensor Specs||Nikon D5200||Olympus TG-6|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.5 x 15.6 mm||6.17 x 4.55 mm|
|Sensor Area||366.6 mm2||28.0735 mm2|
|Sensor Diagonal||28.2 mm||7.7 mm|
|Sensor Resolution||24 Megapixels||12 Megapixels|
|Image Resolution||6000 x 4000 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.91 μm||1.53 μm|
|Pixel Density||6.55 MP/cm2||42.74 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60i Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||EXPEED 3||TruePic VIII|
|DXO Sensor Quality (score)||84||..|
|DXO Color Depth (bits)||24.2||..|
|DXO Dynamic Range (EV)||13.9||..|
|DXO Low Light (ISO)||1284||..|
|Screen Specs||Nikon D5200||Olympus TG-6|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||1040k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Nikon D5200||Olympus TG-6|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/2000s|
|Continuous Shooting||5 shutter flaps/s||20 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon D5200||Olympus TG-6|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Nikon D5200||Olympus TG-6|
|Environmental Sealing||not weather sealed||Waterproof body (15m)|
|Battery Life (CIPA)||500 shots per charge||340 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
129 x 98 x 78 mm
(5.1 x 3.9 x 3.1 in)
113 x 66 x 32 mm
(4.4 x 2.6 x 1.3 in)
|Camera Weight||555 g (19.6 oz)||253 g (8.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
