Nikon D3 vs D300

The Nikon D3 and the Nikon D300 are two digital cameras that were announced in August 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D3) and an APS-C (D300) sensor. The D3 has a resolution of 12.1 megapixels, whereas the D300 provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3		Nikon D300
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
12.1 MP – Full Frame sensor		12.2 MP – APS-C sensor
no Video		no Video
ISO 200-6,400 (100 - 25,600)		ISO 200-3,200 (100 - 6,400)
Optical viewfinder		Optical viewfinder
3.0" LCD – 922k dots		3.0" LCD – 922k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
11 shutter flaps per second		6 shutter flaps per second
Weathersealed body		Weathersealed body
4300 shots per battery charge		1000 shots per battery charge
160 x 157 x 88 mm, 1300 g		147 x 114 x 74 mm, 925 g

Check D3 offers at
ebay.com
Check D300 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3 and the Nikon D300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

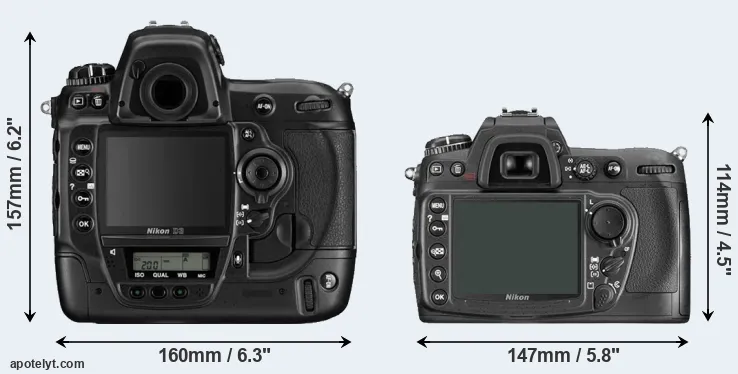

The physical size and weight of the Nikon D3 and the Nikon D300 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D300 is considerably smaller (33 percent) than the Nikon D3. Moreover, the D300 is markedly lighter (29 percent) than the D3. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D3) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D300). You can compare the optics available in the Nikon Lens Catalog.

Concerning battery life, the D3 gets 4300 shots out of its Nikon EN-EL4a battery, while the D300 can take 1000 images on a single charge of its Nikon EN-EL3e power pack. As can be seen in the images above, the D3 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the D300, Nikon provides the MB-D10 vertical grip as an optional accessory (see here on ebay).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	4,999	ebay.com
2.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	1,799	ebay.com
3.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	4,499	ebay.com
4.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	4,999	ebay.com
5.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	4,699	ebay.com
6.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
7.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	7,999	ebay.com
8.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
9.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
10.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	6,499	ebay.com
11.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	1,699	ebay.com
12.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	1,799	ebay.com
13.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	2,999	ebay.com
14.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	1,499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D300 was launched at a markedly lower price (by 64 percent) than the D3, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3 features a full frame sensor and the Nikon D300 an APS-C sensor. The sensor area in the D300 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the D300 offers a slightly higher resolution of 12.2 megapixels, compared with 12.1 MP of the D3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.53μm versus 8.43μm for the D3). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The Nikon D3 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D300 are ISO 200 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D3 provides substantially higher image quality than the D300, with an overall score that is 14 points higher. This advantage is based on 1.4 bits higher color depth, 0.2 EV in additional dynamic range, and 1.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
2.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
3.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
4.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
5.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
6.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
7.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
8.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
9.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
10.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
11.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
12.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
13.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
14.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The D3 and the D300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D3 has a higher magnification than the one of the D300 (0.70x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D3 and Nikon D300 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
2.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
3.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
4.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
5.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
6.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
7.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
8.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
9.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
11.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
12.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
13.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
14.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D300 has one, while the D3 does not. While the built-in flash of the D300 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D3 and the Nikon D300 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D3 and the D300 write their files to Compact Flash cards. The D3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D300 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3 and Nikon D300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
2.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
4.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
6.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
8.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
9.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
10.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
11.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D3 and the D300 have been discontinued, but can regularly be found used on ebay. The D3 was replaced by the Nikon D4, while the D300 was followed by the Nikon D300S. Further information on the features and operation of the D3 and D300 can be found, respectively, in the Nikon D3 Manual (free pdf) or the online Nikon D300 Manual.

Review summary

So what is the bottom line? Is the Nikon D3 better than the Nikon D300 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Nikon D3:

• Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.63x).
• Faster burst: Shoots at higher frequency (11 vs 6 flaps/sec) to capture the decisive moment.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Can take more shots (4300 versus 1000) on a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.

Arguments in favor of the Nikon D300:

• More compact: Is smaller (147x114mm vs 160x157mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 375g or 29 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (64 percent cheaper at launch).

If the count of individual advantages (bullet points above) is taken as a guide, the D3 is the clear winner of the match-up (8 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3 and the Nikon D300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D3 and the D300 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	4,999	ebay.com
2.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	1,799	ebay.com
3.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	4,499	ebay.com
4.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	4,999	ebay.com
5.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	4,699	ebay.com
6.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
7.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	7,999	ebay.com
8.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
9.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
10.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	6,499	ebay.com
11.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	1,699	ebay.com
12.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	1,799	ebay.com
13.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	2,999	ebay.com
14.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	1,499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
