Leica D-LUX 5 vs V-LUX 1

The Leica D-LUX 5 and the Leica V-LUX 1 are two digital cameras that were revealed to the public, respectively, in September 2010 and September 2006. Both the D-LUX 5 and the V-LUX 1 are fixed lens compact cameras that are based on a 1/1.7-inch (D-LUX 5) and a 1/1.8-inch (V-LUX 1) sensor. Both cameras offer a resolution of 10 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX 5		Leica V-LUX 1
Fixed lens compact camera		Fixed lens compact camera
24-90mm f/2.0-3.3		35-420mm f/2.8-3.7
10 MP – 1/1.7" sensor		10 MP – 1/1.8" sensor
720/60p Video		480/30p Video
ISO 80-3,200 (80 - 12,800)		ISO 100-1,600 (100 - 3,200)
Viewfinder optional		Electronic viewfinder (235k dots)
3.0" LCD – 460k dots		2.0" LCD – 207k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
2.5 shutter flaps per second		2 shutter flaps per second
400 shots per battery charge		360 shots per battery charge
110 x 65 x 43 mm, 271 g		141 x 86 x 142 mm, 734 g

Check D-LUX 5 offers at
ebay.com
Check V-LUX 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX 5 and the Leica V-LUX 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

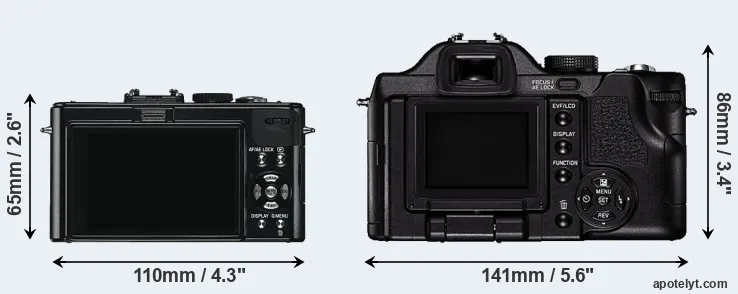

An illustration of the physical size and weight of the Leica D-LUX 5 and the Leica V-LUX 1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica V-LUX 1 is considerably larger (70 percent) than the Leica D-LUX 5. Moreover, the V-LUX 1 is substantially heavier (171 percent) than the D-LUX 5. In this context, it is worth noting that neither the D-LUX 5 nor the V-LUX 1 are weather-sealed.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 5	110 mm	65 mm	43 mm	271 g	400	n	Sep 2010	699	ebay.com
2.		Leica V-LUX 1	141 mm	86 mm	142 mm	734 g	360	n	Sep 2006	849	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
4.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
5.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
6.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
7.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	849	ebay.com
8.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	949	ebay.com
9.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	949	ebay.com
10.		Leica X1	124 mm	60 mm	32 mm	306 g	260	n	Sep 2009	1,995	ebay.com
11.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	999	ebay.com
12.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
13.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D-LUX 5 was launched at a somewhat lower price (by 18 percent) than the V-LUX 1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

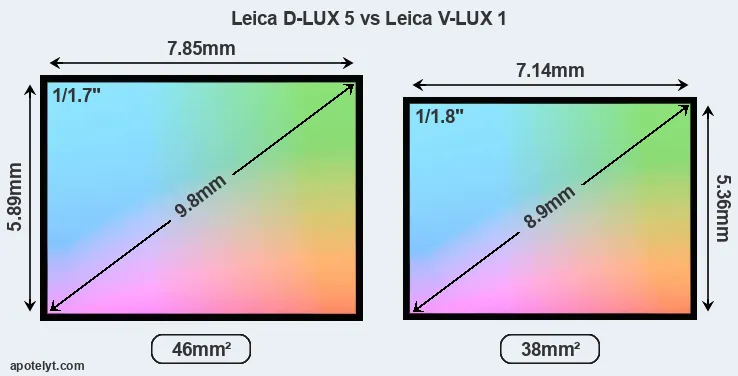

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica D-LUX 5 features a 1/1.7-inch sensor and the Leica V-LUX 1 a 1/1.8-inch sensor. The sensor area in the V-LUX 1 is 17 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.4 and 4.8. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3. The D-LUX 5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Even though the D-LUX 5 has a larger sensor, both cameras offer the same resolution of 10 megapixels. This implies that the D-LUX 5 has a lower pixel density and larger individual pixels (with a pixel pitch of 2.14μm versus 1.95μm for the V-LUX 1), which gives it a potential advantage in terms of light gathering capacity. In addition, the D-LUX 5 is much more recent (by 4 years) than the V-LUX 1, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the V-LUX 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Leica D-LUX 5 has a native sensitivity range from ISO 80 to ISO 3200, which can be extended to ISO 80-12800. The corresponding ISO settings for the Leica V-LUX 1 are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the D-LUX 5 is build around a CCD sensor, while the V-LUX 1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX 5	1/1.7	10.0	3648	2736	720/60p	19.5	10.4	-583	39
2.		Leica V-LUX 1	1/1.8	10.0	3648	2736	480/30p	18.4	9.5	-727	29
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
5.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
6.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
7.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
8.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
9.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
10.		Leica X1	APS-C	12.2	4272	2856	none	22.6	11.8	1037	69
11.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
12.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
13.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D-LUX 5 provides a higher video resolution than the V-LUX 1. It can shoot video footage at 720/60p, while the V-LUX 1 is limited to 480/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 1 has an electronic viewfinder (235k dots), which can be very helpful when shooting in bright sunlight. In contrast, the D-LUX 5 relies on live view and the rear LCD for framing. That said, the D-LUX 5 can be equipped with an optional viewfinder – the EVF1. The following table reports on some other key feature differences and similarities of the Leica D-LUX 5, the Leica V-LUX 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX 5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
2.		Leica V-LUX 1	235	n	2.0 / 207	tilting	n	1/2000s	2.0/s	Y	Y
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
5.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
6.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
7.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
8.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
9.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
10.		Leica X1	none	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	n
11.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
13.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the D-LUX 5 and the V-LUX 1 have zoom lenses built in. The D-LUX 5 has a 24-90mm f/2.0-3.3 optic and the V-LUX 1 offers a 35-420mm f/2.8-3.7 (focal lengths in full frame equivalent terms). Hence, the D-LUX 5 provides a wider angle of view at the short end than the V-LUX 1, but less tele-photo reach at the long end. The D-LUX 5 offers the faster maximum aperture.

The D-LUX 5 writes its imaging data to SDXC cards, while the V-LUX 1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX 5 and Leica V-LUX 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX 5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Leica V-LUX 1	Y	mono / mono	-	-	-	2.0	-	-	-
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Leica X1	Y	- / -	-	-	mini	2.0	-	-	-
11.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
13.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

Both the D-LUX 5 and the V-LUX 1 have been discontinued, but can regularly be found used on ebay. The V-LUX 1 was replaced by the Leica V-LUX 2, while the D-LUX 5 was followed by the Leica D-LUX 6. Further information on the features and operation of the D-LUX 5 and V-LUX 1 can be found, respectively, in the Leica D-LUX 5 Manual (free pdf) or the online Leica V-LUX 1 Manual.

Review summary

So how do things add up? Is the Leica D-LUX 5 better than the Leica V-LUX 1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Leica D-LUX 5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (720/60p vs 480/30p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 207k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (2.5 vs 2 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/2.8).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More compact: Is smaller (110x65mm vs 141x86mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 463g or 63 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (400 versus 360) on a single battery charge.
• More affordable: Was introduced into a lower priced segment (18 percent cheaper at launch).
• More modern: Reflects 4 years of technical progress since the V-LUX 1 launch.

Reasons to prefer the Leica V-LUX 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More heavily discounted: Has been around for much longer (launched in September 2006).

If the number of relative strengths (bullet points above) is taken as a guide, the D-LUX 5 is the clear winner of the match-up (18 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica D-LUX 5 and the Leica V-LUX 1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D-LUX 5 and the V-LUX 1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX 5	..	..	..	..	4.5/5	4/5	Sep 2010	699	ebay.com
2.		Leica V-LUX 1	..	..	..	..	..	..	Sep 2006	849	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
4.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
5.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
6.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
7.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	849	ebay.com
8.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	949	ebay.com
9.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	949	ebay.com
10.		Leica X1	3/5	..	..	+	..	4/5	Sep 2009	1,995	ebay.com
11.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	999	ebay.com
12.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
13.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
