Canon XS vs XSi

The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Canon EOS Rebel XSi (labelled Canon 450D in some countries) are two digital cameras that were announced, respectively, in June 2008 and January 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The XS has a resolution of 10.1 megapixels, whereas the XSi provides 12.2 MP.

As their names suggest, both the Canon EOS Rebel XS and the Canon EOS Rebel XSi belong to Canon's Rebel line of DSLR cameras. This range of APS-C cameras, which started out with the Canon EOS Digital Rebel in 2003, has been a big commercial success and the backbone of Canon's dominance in the digital camera market. The popularity of the Rebel cameras is the result of them inheriting much of the sensor and shooting technology from earlier released professional DSLRs, while being sold at a much more budget-friendly price point. The strong brand reputation of Canon and the comprehensive EOS system of compatible lenses and accessories further contributes to the appeal of the Rebel cams, including the Canon XS and Canon XSi. Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XS		Canon XSi
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
10.1 MP – APS-C sensor		12.2 MP – APS-C sensor
no Video		no Video
ISO 100-800 (100 - 1,600)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
2.5" LCD – 230k dots		3.0" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		3.5 shutter flaps per second
500 shots per battery charge		500 shots per battery charge
126 x 98 x 65 mm, 502 g		129 x 98 x 62 mm, 524 g

Check XS offers at
ebay.com
Check XSi offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Canon EOS Rebel XSi? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

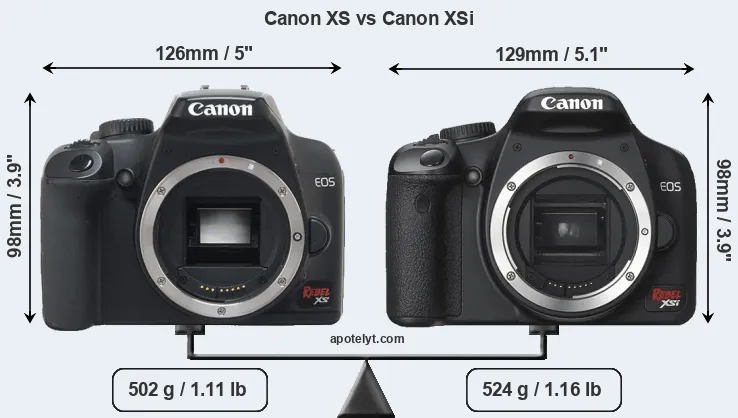

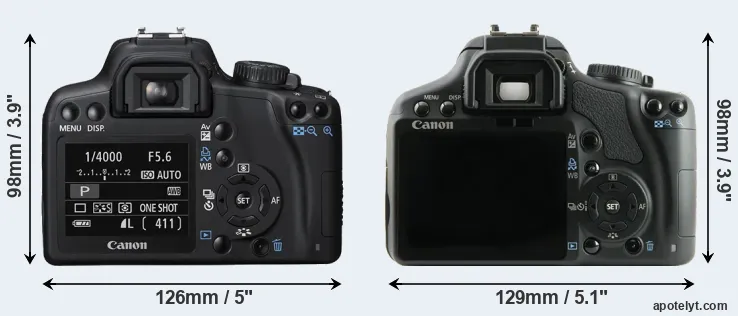

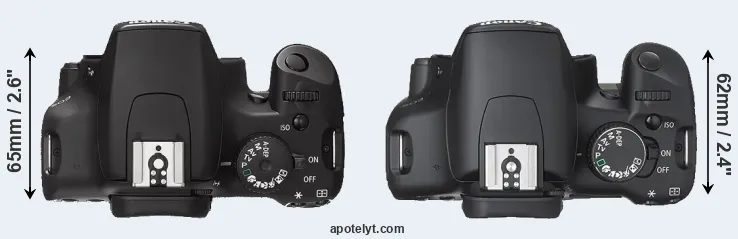

An illustration of the physical size and weight of the Canon XS and the Canon XSi is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XSi is somewhat larger (2 percent) than the Canon XS. Moreover, the XSi is slightly heavier (4 percent) than the XS. In this context, it is worth noting that neither the XS nor the XSi are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
2.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
4.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	399	ebay.com
5.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
7.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
10.		Canon T7	129 mm	101 mm	78 mm	475 g	500	n	Feb 2018	449	amazon.com
11.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XS was launched at a markedly lower price (by 44 percent) than the XSi, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

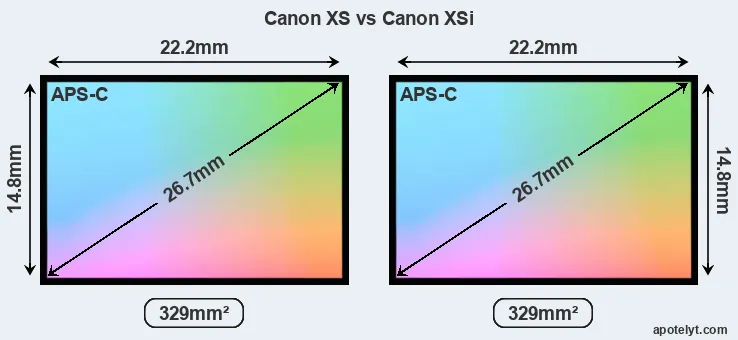

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

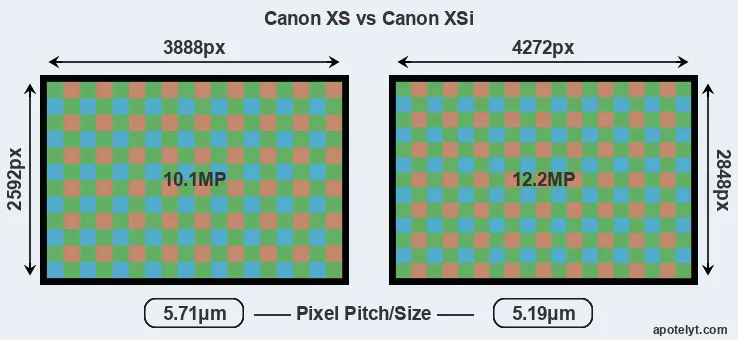

While the two cameras under review share the same sensor size, the XSi offers a higher resolution of 12.2 megapixels, compared with 10.1 MP of the XS. This megapixels advantage translates into a 10 percent gain in linear resolution. On the other hand, these sensor specs imply that the XSi has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.19μm versus 5.71μm for the XS). Moreover, it should be noted, that the XS is a somewhat more recent model (by 4 months) than the XSi, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels.

The resolution advantage of the Canon XSi implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XSi for good quality output (200 dots per inch) amounts to 21.4 x 14.2 inches or 54.3 x 36.2 cm, for very good quality (250 dpi) 17.1 x 11.4 inches or 43.4 x 28.9 cm, and for excellent quality (300 dpi) 14.2 x 9.5 inches or 36.2 x 24.1 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.

The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Canon EOS Rebel XSi are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
2.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
5.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
10.		Canon T7	APS-C	24.0	6000	4000	1080/30p	23.8	13.3	1684	81
11.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The XS and the XSi are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the XSi has a higher magnification than the one of the XS (0.54x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon XS, the Canon XSi, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
5.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon T7	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the XS and the XSi write their files to SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Canon EOS Rebel XSi and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
2.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
5.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T7	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-

Both the XS and the XSi have been discontinued, but can regularly be found used on ebay. The XSi was replaced by the Canon T1i, while the XS was followed by the Canon T3. Further information on the features and operation of the XS and XSi can be found, respectively, in the Canon XS Manual (free pdf) or the online Canon XSi Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon XS or the Canon XSi – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS Rebel XS:

• More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 4 months after the XSi).

Reasons to prefer the Canon EOS Rebel XSi:

• More detail: Has more megapixels (12.2 vs 10.1MP), which boosts linear resolution by 10%.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.51x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• Faster burst: Shoots at higher frequency (3.5 vs 3 flaps/sec) to capture the decisive moment.
• More heavily discounted: Has been on the market for longer (launched in January 2008).

If the count of relative strengths (bullet points above) is taken as a measure, the XSi emerges as the winner of the match-up (5 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XS and the Canon XSi place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XS or the XSi perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
2.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
4.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	399	ebay.com
5.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
7.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
10.		Canon T7	..	o	3.5/5	..	3.5/5	3.5/5	Feb 2018	449	amazon.com
11.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
