Canon M vs Leica M10-R

The Canon EOS M and the Leica M10-R are two digital cameras that were officially introduced, respectively, in July 2012 and July 2020. The Canon M is a mirrorless interchangeable lens camera, while the M10-R is a rangefinder-focusing mirrorless. The cameras are based on an APS-C (Canon M) and a full frame (M10-R) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 40.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon M		Leica M10-R
Mirrorless system camera		Rangefinder camera
Canon EF-M mount lenses		Leica M mount lenses
17.9 MP – APS-C sensor		40.9 MP – Full Frame sensor
1080/30p Video		no Video
ISO 100-12,800 (100 - 25,600)		ISO 100-50,000
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 1037k dots
Fixed touchscreen		Fixed touchscreen
4.3 shutter flaps per second		4.5 shutter flaps per second
not weather sealed		Weathersealed body
230 shots per battery charge		210 shots per battery charge
109 x 66 x 32 mm, 298 g		139 x 80 x 39 mm, 660 g

Check Canon M offers at
ebay.com
Check M10-R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS M and the Leica M10-R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

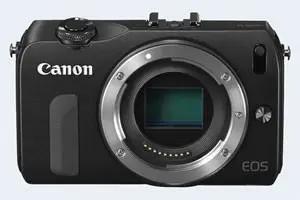

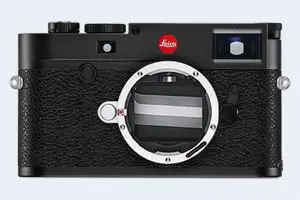

An illustration of the physical size and weight of the Canon M and the Leica M10-R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The Canon M can be obtained in two different colors (black, white), while the M10-R is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10-R is considerably larger (55 percent) than the Canon M. Moreover, the M10-R is substantially heavier (121 percent) than the Canon M. It is noteworthy in this context that the M10-R is splash and dust-proof, while the Canon M does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Canon M gets 230 shots out of its Canon LP-E12 battery, while the M10-R can take 210 images on a single charge of its Leica BP-SCL5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
2.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	8,295	ebay.com
3.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	499	ebay.com
4.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	699	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
8.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
9.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
10.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	8,995	amazon.com
11.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	4,995	amazon.com
12.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	3,999	ebay.com
13.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	7,995	ebay.com
14.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	6,950	ebay.com
15.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	499	ebay.com
16.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	599	ebay.com
17.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Canon M was launched at a markedly lower price (by 93 percent) than the M10-R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon M features an APS-C sensor and the Leica M10-R a full frame sensor. The sensor area in the M10-R is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 40.9MP, the M10-R offers a higher resolution than the Canon M (17.9MP), but the M10-R nevertheless has larger individual pixels (pixel pitch of 4.57μm versus 4.31μm for the Canon M) due to its larger sensor. Moreover, the M10-R is a much more recent model (by 7 years and 11 months) than the Canon M, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M10-R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica M10-R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-R for good quality output (200 dots per inch) amounts to 39.3 x 26 inches or 99.9 x 66 cm, for very good quality (250 dpi) 31.5 x 20.8 inches or 79.9 x 52.8 cm, and for excellent quality (300 dpi) 26.2 x 17.3 inches or 66.6 x 44 cm. The corresponding values for the Canon M are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon M has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS M has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M10-R are ISO 100 to ISO 50000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
2.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
3.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
4.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
9.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
10.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
11.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
12.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
13.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
14.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
15.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
16.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
17.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The Canon M indeed provides movie recording capabilities, while the M10-R does not. The highest resolution format that the Canon M can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the M10-R has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Canon M relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon M, the Leica M10-R, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
2.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
3.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
4.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
10.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
11.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
13.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
14.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
15.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
16.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
17.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Leica M10-R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Canon M and the M10-R write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS M and Leica M10-R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
3.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
11.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
12.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
13.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
14.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
15.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-

It is notable that the M10-R offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Canon M does not provide wifi capability.

Both the Canon M and the M10-R have been discontinued, but can regularly be found used on ebay. The Canon M was replaced by the Canon EOS M3, while the M10-R does not have a direct successor. Further information on the features and operation of the Canon M and M10-R can be found, respectively, in the Canon M Manual (free pdf) or the online Leica M10-R Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon M or the Leica M10-R – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon EOS M:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More compact: Is smaller (109x66mm vs 139x80mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 362g or 55 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (93 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in July 2012).

Reasons to prefer the Leica M10-R:

• More detail: Has more megapixels (40.9 vs 17.9MP), which boosts linear resolution by 51%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More modern: Reflects 7 years and 11 months of technical progress since the Canon M launch.

If the count of individual advantages (bullet points above) is taken as a guide, the M10-R is the clear winner of the contest (12 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the Canon M or the M10-R perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
2.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	8,295	ebay.com
3.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	499	ebay.com
4.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	699	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
8.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
9.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
10.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	8,995	amazon.com
11.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	4,995	amazon.com
12.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	3,999	ebay.com
13.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	7,995	ebay.com
14.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	6,950	ebay.com
15.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	499	ebay.com
16.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	599	ebay.com
17.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
