Canon 1D Mark II vs 1D Mark III

The Canon EOS-1D Mark II and the Canon EOS-1D Mark III are two professional cameras that were revealed to the public, respectively, in January 2004 and February 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-H sensor. The 1D Mark II has a resolution of 8.2 megapixels, whereas the 1D Mark III provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 1D Mark II   Canon 1D Mark III
Canon 1D Mark II Canon 1D Mark III
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
8.2 MP, APS-H Sensor 10.1 MP, APS-H Sensor
no Video no Video
ISO 100-1600 (50-3200) ISO 100-3200 (50-6400)
Optical viewfinder Optical viewfinder
2.0" LCD, 230k dots 3.0" LCD, 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
8.3 shutter flaps per second 10 shutter flaps per second
Weathersealed bodyWeathersealed body
1200 shots per battery charge2200 shots per battery charge
156 x 158 x 80 mm, 1535 g 156 x 157 x 80 mm, 1155 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS-1D Mark II and the Canon EOS-1D Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison: Canon 1D Mark II vs 1D Mark III

The physical size and weight of the Canon 1D Mark II and the Canon 1D Mark III are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

Size Canon 1D Mark II vs Canon 1D Mark III
Compare 1D Mark II versus 1D Mark III top
Comparison 1D Mark II or 1D Mark III rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon 1D Mark II and the Canon 1D Mark III are of equal size. However, the 1D Mark III is markedly lighter (25 percent) than the 1D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the 1D Mark III can take 2200 images on a single charge of its LP-E4 power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 1D Mark II» 6.1 in 6.2 in 3.1 in 54.1 oz 1200 Y Jan 2004 4,499- i Canon 1D Mark II

Canon 1D Mark III« 6.1 in 6.2 in 3.1 in 40.7 oz 2200 Y Feb 2007 4,499- i Canon 1D Mark III

Canon 5DS« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS

Canon 5DS R« » 6.0 in 4.6 in 3.0 in 32.8 oz 700 Y Feb 2015 3,699 i i Canon 5DS R

Canon 1D Mark IV« » 6.1 in 6.2 in 3.1 in 43.4 oz 1500 Y Oct 2009 4,999- i Canon 1D Mark IV

Canon 1Ds Mark III« » 5.9 in 6.3 in 3.1 in 48.9 oz 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III

Canon 1D Mark II N« » 6.1 in 6.2 in 3.1 in 55.2 oz 1200 Y Aug 2005 3,999- i Canon 1D Mark II N

Canon 5D« » 6.0 in 4.4 in 3.0 in 31.6 oz 400 Y Aug 2005 3,299- i Canon 5D

Canon 1Ds Mark II« » 6.1 in 6.2 in 3.1 in 42.9 oz 1200 Y Sep 2004 7,999- i Canon 1Ds Mark II

Canon 1Ds« » 6.1 in 6.2 in 3.1 in 44.6 oz 600 Y Sep 2002 8,999- i Canon 1Ds

Canon 1D« » 6.1 in 6.2 in 3.1 in 55.9 oz 500 Y Sep 2001 6,499- i Canon 1D

Nikon D3« » 6.3 in 6.2 in 3.5 in 45.9 oz 4300 Y Aug 2007 4,999- i Nikon D3
Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 1D Mark II vs 1D Mark III

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-H sensor, but their sensors differ slightly in size. The sensor area in the 1D Mark III is 4 percent smaller. They nevertheless have the same format factor of 1.3. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the 1D Mark III uses a more advanced image processing engine (DIGIC III) than the 1D Mark II (DIGIC II), with benefits for noise reduction, color accuracy, and processing speed.

Canon 1D Mark II and Canon 1D Mark III sensor measures

Despite having a slightly smaller sensor, the 1D Mark III offers a higher resolution of 10.1 megapixels, compared with 8.2 MP of the 1D Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 7.21μm versus 8.17μm for the 1D Mark II). However, it should be noted that the 1D Mark III is much more recent (by 3 years) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon 1D Mark III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 1D Mark III for good quality output (200 dots per inch) amounts to 19.4 x 13 inch or 49.4 x 32.9 cm, for very good quality (250 dpi) 15.6 x 10.4 inch or 39.5 x 26.3 cm, and for excellent quality (300 dpi) 13 x 8.6 inch or 32.9 x 21.9 cm. The corresponding values for the Canon 1D Mark II are 17.5 x 11.7 inch or 44.5 x 29.7 cm for good quality, 14 x 9.3 inch or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inch or 29.7 x 19.8 cm for excellent quality prints.

The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Canon EOS-1D Mark III are ISO 100 to ISO 3200, with the possibility to increase the ISO range to 50-6400.

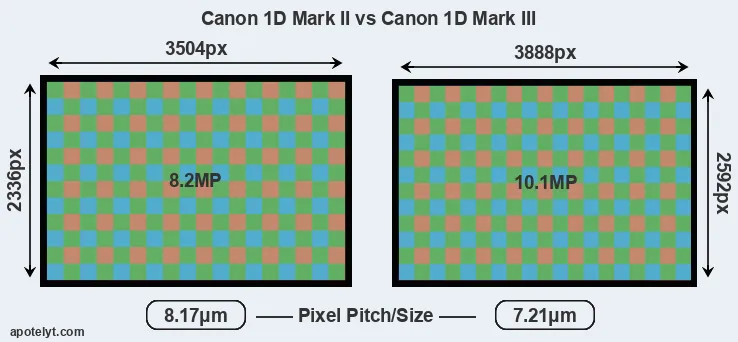

1D Mark II versus 1D Mark III MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the 1D Mark III has a markedly higher DXO score than the 1D Mark II (overall score 5 points higher), which will translate into better image quality. The advantage is based on 0.4 bits higher color depth, 0.6 EV in additional dynamic range, and 0.1 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model

Canon 1D Mark II» APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II

Canon 1D Mark III« APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III

Canon 5DS« » Full Frame 50.3 8688 57921080/30p24.712.4238187Canon 5DS

Canon 5DS R« » Full Frame 50.3 8688 57921080/30p24.612.4230886Canon 5DS R

Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV

Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III

Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N

Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D

Canon 1Ds Mark II« » Full Frame 16.6 4992 3328-23.311.3148074Canon 1Ds Mark II

Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds

Canon 1D« » APS-H 4.1 2496 1662-----Canon 1D

Nikon D3« » Full Frame 12.1 4256 2832-23.512.2229081Nikon D3
The 1D Mark III offers Live View, so that it can project the live image that the sensor receives onto the rear screen for framing. The 1D Mark II lacks this capability. Both cameras are still-image focused and cannot record videos.


Feature comparison: Canon 1D Mark II vs 1D Mark III

Apart from body and sensor, cameras can and do differ across a variety of features. The 1D Mark II and the 1D Mark III are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 1D Mark III has a higher magnification than the one of the 1D Mark II (0.58x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 1D Mark II and Canon 1D Mark III along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model

Canon 1D Mark II»optical Y 2.0 230 fixed n 1/8000s 8.3 n n Canon 1D Mark II

Canon 1D Mark III«optical Y 3.0 230 fixed n 1/8000s 10.0 n n Canon 1D Mark III

Canon 5DS« »optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS

Canon 5DS R« »optical Y 3.2 1040 fixed n 1/8000s 5.0 n n Canon 5DS R

Canon 1D Mark IV« »optical Y 3.0 920 fixed n 1/8000s 10.0 n n Canon 1D Mark IV

Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 1/8000s 5.0 n n Canon 1Ds Mark III

Canon 1D Mark II N« »optical Y 2.5 230 fixed n 1/8000s 8.5 n n Canon 1D Mark II N

Canon 5D« »optical Y 2.5 230 fixed n 1/8000s 3.0 n n Canon 5D

Canon 1Ds Mark II« »optical Y 2.0 230 fixed n 1/8000s 4.0 n n Canon 1Ds Mark II

Canon 1Ds« »optical Y 2.0 120 fixed n 1/8000s 3.0 n n Canon 1Ds

Canon 1D« »optical Y 2.0 120 fixed n 1/16000s 8.0 n n Canon 1D

Nikon D3« »optical Y 3.0 922 fixed n 1/8000s 11.0 n n Nikon D3

The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the 1D Mark III uses Compact Flash or SDHC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.



Connectivity comparison: Canon 1D Mark II vs 1D Mark III

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Canon EOS-1D Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model

Canon 1D Mark II»Y-----1.1---Canon 1D Mark II

Canon 1D Mark III«Y-----2.0---Canon 1D Mark III

Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS

Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R

Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV

Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III

Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N

Canon 5D« »Y-----2.0---Canon 5D

Canon 1Ds Mark II« »Y-----2.0---Canon 1Ds Mark II

Canon 1Ds« »Y-----FW---Canon 1Ds

Canon 1D« »Y-----FW---Canon 1D

Nikon D3« »Y----mini2.0---Nikon D3

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the 1D Mark II and the 1D Mark III have been discontinued, but can regularly be found used on eBay. The 1D Mark II was replaced by the Canon 1D Mark II N, while the 1D Mark III was followed by the Canon 1D Mark IV. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.


Review summary: Canon 1D Mark II vs 1D Mark III

So how do things add up? Which of the two cameras – the Canon 1D Mark II or the Canon 1D Mark III – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Advantages of the Canon EOS-1D Mark II:

  • More heavily discounted: Has been available for much longer (launched in January 2004).


Arguments in favor of the Canon EOS-1D Mark III:

  • More detail: Has more megapixels (10.1 vs 8.2MP), which boosts linear resolution by 11%.
  • Better image quality: Scores markedly higher (5 points) in the DXO overall evaluation.
  • More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
  • Better jpgs: Has a more modern image processing engine (DIGIC III vs DIGIC II).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.55x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
  • Faster burst: Shoots at higher frequency (10 vs 8.3 flaps/sec) to capture the decisive moment.
  • Less heavy: Has a lower weight (by 380g or 25 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (2200 versus 1200) out of a single battery charge.
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
  • More modern: Reflects 3 years of technical progress since the 1D Mark II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the 1D Mark III is the clear winner of the contest (11 : 1 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

1D Mark II 01:11 1D Mark III

How about other alternatives? Do the specifications of the Canon 1D Mark II and the Canon 1D Mark III place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 1D Mark II and the 1D Mark III in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews: Canon 1D Mark II vs 1D Mark III

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model

Canon 1D Mark II»-+ +-o- Jan 2004 4,499- i Canon 1D Mark II

Canon 1D Mark III«---o- Feb 2007 4,499- i Canon 1D Mark III

Canon 5DS« »+83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS

Canon 5DS R« »+83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R

Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV

Canon 1Ds Mark III« »-+ +4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III

Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N

Canon 5D« »88/100+ +oo- Aug 2005 3,299- i Canon 5D

Canon 1Ds Mark II« »-+ +--- Sep 2004 7,999- i Canon 1Ds Mark II

Canon 1Ds« »-+ +--- Sep 2002 8,999- i Canon 1Ds

Canon 1D« »-+ +--- Sep 2001 6,499- i Canon 1D

Nikon D3« »-+ +5/5o4.5/5 Aug 2007 4,999- i Nikon D3
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon 1D Mark II:
Check Ebay offers
Canon 1D Mark III:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon 1D Mark II vs Canon 1D Mark III

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 1D Mark II Canon 1D Mark III
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date January 2004 February 2007
    Launch Price USD 4499 USD 4499
    Sensor Specs Canon 1D Mark II Canon 1D Mark III
    Sensor Technology CMOS CMOS
    Sensor Format APS-H Sensor APS-H Sensor
    Sensor Size 28.7 x 19.1 mm 28.1 x 18.7 mm
    Sensor Area 548.17 mm2 525.47 mm2
    Sensor Diagonal 34.5 mm 33.8 mm
    Crop Factor 1.3x 1.3x
    Sensor Resolution 8.2 Megapixels 10.1 Megapixels
    Image Resolution 3504 x 2336 pixels 3888 x 2592 pixels
    Pixel Pitch 8.17 μm 7.21 μm
    Pixel Density 1.49 MP/cm2 1.92 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video no Video
    ISO Setting 100-1600 ISO 100-3200 ISO
    ISO Boost 50-3200 ISO 50-6400 ISO
    Image Processor DIGIC II DIGIC III
    DXO Sensor Quality (score) 66 71
    DXO Color Depth (bits) 22.3 22.7
    DXO Dynamic Range (EV) 11.1 11.7
    DXO Low Light (ISO) 1003 1078
    Screen Specs Canon 1D Mark II Canon 1D Mark III
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.55x 0.58x
    Top-Level Screen Control Panel Control Panel
    LCD Framing Live View
    Rear LCD Size 2.0 inch 3.0 inch
    LCD Resolution 230k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon 1D Mark II Canon 1D Mark III
    Autofocus System Phase-detect AF Phase-detect AF
    Continuous Shooting 8.3 shutter flaps/s 10 shutter flaps/s
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF or SD cards CF or SDHC cards
    Second Storage Option Dual card slots Dual card slots
    UHS card support no no
    Connectivity Specs Canon 1D Mark II Canon 1D Mark III
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 1.1 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Canon 1D Mark II Canon 1D Mark III
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type NP-E3 power pack LP-E4 power pack
    Battery Life (CIPA)1200 shots per charge2200 shots per charge
    Body Dimensions 156 x 158 x 80 mm
    (6.1 x 6.2 x 3.1 in)
    156 x 157 x 80 mm
    (6.1 x 6.2 x 3.1 in)
    Camera Weight 1535 g (54.1 oz) 1155 g (40.7 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
