Canon 100D vs Pentax K-3 II

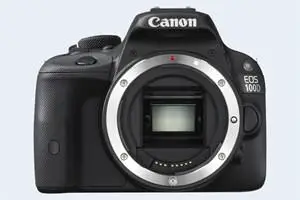

The Canon EOS 100D (called Canon SL1 in some regions) and the Pentax K-3 II are two digital cameras that were officially introduced, respectively, in March 2013 and April 2015. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Pentax provides 24.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 100D and the Pentax K-3 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon 100D and the Pentax K-3 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The 100D can be obtained in two different colors (black, white), while the K-3 II is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-3 II is notably larger (23 percent) than the Canon 100D. Moreover, the K-3 II is substantially heavier (97 percent) than the 100D. It is noteworthy in this context that the K-3 II is splash and dust-proof, while the 100D does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon 100D||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|2.||Pentax K-3 II||131 mm||100 mm||77 mm||800 g||720||Y||Apr 2015||1,099|
|3.||Canon 4000D||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|6.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|7.||Canon 700D||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|8.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|9.||Canon 650D||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|10.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|11.||Canon 600D||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|12.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|13.||Pentax KP||132 mm||101 mm||76 mm||703 g||390||Y||Jan 2017||1,099|
|14.||Pentax K-70||126 mm||93 mm||74 mm||688 g||410||Y||Jun 2016||649|
|15.||Pentax K-S2||123 mm||91 mm||73 mm||678 g||410||Y||Feb 2015||749|
|16.||Pentax K-3||131 mm||100 mm||77 mm||800 g||560||Y||Oct 2013||1,299|
|17.||Pentax K-5||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2010||1,099|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 100D was launched at a markedly lower price (by 50 percent) than the K-3 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the K-3 II is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (100D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24.1MP, the K-3 II offers a higher resolution than the 100D (17.9MP), but the K-3 II has smaller individual pixels (pixel pitch of 3.90μm versus 4.31μm for the 100D). Yet, the K-3 II is a much more recent model (by 2 years and 1 month) than the 100D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-3 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-3 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-3 II for good quality output (200 dots per inch) amounts to 30.1 x 20 inches or 76.4 x 50.8 cm, for very good quality (250 dpi) 24.1 x 16 inches or 61.1 x 40.6 cm, and for excellent quality (300 dpi) 20.1 x 13.3 inches or 50.9 x 33.9 cm. The corresponding values for the Canon 100D are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The 100D has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the 100D, the K-3 II has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 100D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax K-3 II are ISO 100 to ISO 51200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the K-3 II offers substantially better image quality than the 100D (overall score 17 points higher). The advantage is based on 1.8 bits higher color depth, 2.3 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
|5.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|12.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the K-3 II provides a faster frame rate than the 100D. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 100D and the K-3 II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-3 II offers a wider field of view (100%) than the one in the 100D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-3 II has a higher magnification (0.63x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 100D and Pentax K-3 II in connection with corresponding information for a sample of similar cameras.
|2.||Pentax K-3 II||optical||Y||3.2||1037||fixed||n||1/8000s||8.3||n||Y|
|5.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The 100D has one, while the K-3 II does not. While the built-in flash of the 100D is not very powerful, it can at times be useful as a fill-in light.
The Pentax K-3 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 100D and the K-3 II write their files to SDXC cards. The K-3 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the 100D only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 100D and Pentax K-3 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Pentax K-3 II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|5.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
It is notable that the K-3 II has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The 100D lacks such a headphone port.
Studio photographers will appreciate that the Pentax K-3 II (unlike the 100D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the K-3 II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The K-3 II is a recent model that features in the current product line-up of Pentax. In contrast, the 100D has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the 100D was succeeded by the Canon 200D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Which of the two cameras – the Canon 100D or the Pentax K-3 II – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 100D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (117x91mm vs 131x100mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 393g or 49 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Advantages of the Pentax K-3 II:
- More detail: Has more megapixels (24.1 vs 17.9MP), which boosts linear resolution by 16%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.8 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.3 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.54x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (8.3 vs 4.9 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (720 versus 380) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 2 years and 1 month of technical progress since the 100D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the K-3 II is the clear winner of the contest (24 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 100D and the Pentax K-3 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 100D or the K-3 II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 100D||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|2.||Pentax K-3 II||4.5/5||..||..||5/5||5/5||Apr 2015||1,099|
|3.||Canon 4000D||..||o||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|6.||Canon 1200D||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|7.||Canon 700D||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|8.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|9.||Canon 650D||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|10.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|11.||Canon 600D||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|12.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|13.||Pentax KP||4/5||..||82/100||5/5||4.5/5||Jan 2017||1,099|
|14.||Pentax K-70||4.5/5||..||79/100||4.5/5||4.5/5||Jun 2016||649|
|15.||Pentax K-S2||4.5/5||..||..||5/5||4.5/5||Feb 2015||749|
|16.||Pentax K-3||4/5||..||83/100||5/5||5/5||Oct 2013||1,299|
|17.||Pentax K-5||4/5||..||83/100||5/5||4.5/5||Sep 2010||1,099|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon 100D vs Pentax K-3 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 100D||Pentax K-3 II|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||March 2013||April 2015|
|Launch Price||USD 549||USD 1,099|
|Sensor Specs||Canon 100D||Pentax K-3 II|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.6 mm|
|Sensor Area||332.27 mm2||366.6 mm2|
|Sensor Diagonal||26.8 mm||28.2 mm|
|Sensor Resolution||17.9 Megapixels||24.1 Megapixels|
|Image Resolution||5184 x 3456 pixels||6016 x 4000 pixels|
|Pixel Pitch||4.31 μm||3.90 μm|
|Pixel Density||5.39 MP/cm2||6.56 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||100 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 5||PRIME III|
|DXO Sensor Quality (score)||63||80|
|DXO Color Depth (bits)||21.8||23.6|
|DXO Dynamic Range (EV)||11.3||13.6|
|DXO Low Light (ISO)||843||1106|
|Screen Specs||Canon 100D||Pentax K-3 II|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon 100D||Pentax K-3 II|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||4.9 shutter flaps/s||8.3 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon 100D||Pentax K-3 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon 100D||Pentax K-3 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||380 shots per charge||720 shots per charge|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
131 x 100 x 77 mm
(5.2 x 3.9 x 3.0 in)
|Camera Weight||407 g (14.4 oz)||800 g (28.2 oz)|
