Pentax MX-1 vs Sony NEX-3N

The Pentax MX-1 and the Sony Alpha NEX-3N are two digital cameras that were revealed to the public, respectively, in January 2013 and February 2013. The MX-1 is a fixed lens compact, while the NEX-3N is a mirrorless interchangeable lens camera. The cameras are based on a 1/1.7-inch (MX-1) and an APS-C (NEX-3N) sensor. The Pentax has a resolution of 12 megapixels, whereas the Sony provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax MX-1		Sony NEX-3N
Fixed lens compact camera		Mirrorless system camera
28-112mm f/1.8-2.5		Sony E mount lenses
12 MP – 1/1.7" sensor		16 MP – APS-C sensor
1080/30p Video		1080/60i Video
ISO 100-12,800		ISO 200-16,000
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Tilting screen (no touchscreen)		Tilting screen (no touchscreen)
1 shutter flaps per second		4 shutter flaps per second
In-body stabilization		Lens stabilization only
290 shots per battery charge		480 shots per battery charge
122 x 61 x 51 mm, 391 g		110 x 62 x 35 mm, 269 g

Check MX-1 offers at
ebay.com
Check NEX-3N offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax MX-1 and the Sony Alpha NEX-3N? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Pentax MX-1 and the Sony NEX-3N is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The NEX-3N can be obtained in two different colors (black, white), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-3N is notably smaller (8 percent) than the Pentax MX-1. In this context, it is worth noting that neither the MX-1 nor the NEX-3N are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the NEX-3N is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the NEX-3N and their specifications in the Sony E-Mount Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	499	ebay.com
2.		Sony NEX-3N	110 mm	62 mm	35 mm	269 g	480	n	Feb 2013	499	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	449	ebay.com
5.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
6.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
8.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
9.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	549	ebay.com
10.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	699	ebay.com
11.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	599	ebay.com
12.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	499	ebay.com
13.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	449	ebay.com
14.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	549	ebay.com
15.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
16.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
17.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Pentax MX-1 features a 1/1.7-inch sensor and the Sony NEX-3N an APS-C sensor. The sensor area in the NEX-3N is 749 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 1.5. The sensor in the MX-1 has a native 4:3 aspect ratio, while the one in the NEX-3N offers a 3:2 aspect.

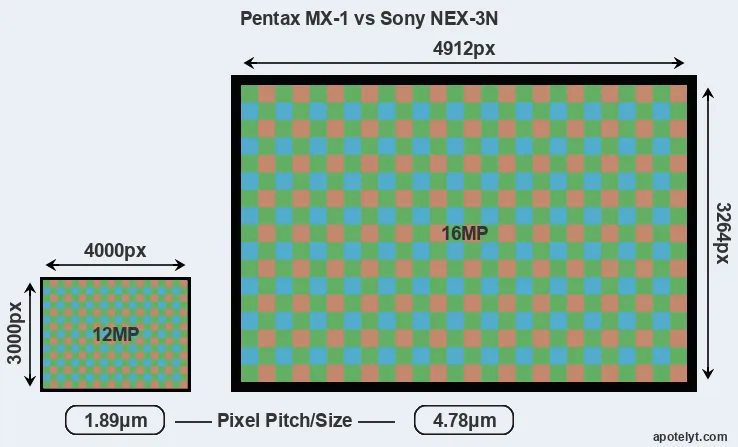

With 16MP, the NEX-3N offers a higher resolution than the MX-1 (12MP), but the NEX-3N nevertheless has larger individual pixels (pixel pitch of 4.78μm versus 1.89μm for the MX-1) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The resolution advantage of the Sony NEX-3N implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-3N for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Pentax MX-1 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Sony Alpha NEX-3N are ISO 200 to ISO 16000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-3N offers substantially better image quality than the MX-1 (overall score 25 points higher). The advantage is based on 2.4 bits higher color depth, 1.2 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
2.		Sony NEX-3N	APS-C	16.0	4912	3264	1080/60i	22.8	12.5	1067	74
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
5.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
6.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
9.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
10.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
11.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
12.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
13.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
14.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
15.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
16.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
17.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NEX-3N provides a faster frame rate than the MX-1. It can shoot movie footage at 1080/60i, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The MX-1 and the NEX-3N are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the NEX-3N can be equipped with an optional viewfinder – the FDA-SV1. The following table reports on some other key feature differences and similarities of the Pentax MX-1, the Sony NEX-3N, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
2.		Sony NEX-3N	optional	n	3.0 / 460	tilting	n	1/4000s	4.0/s	Y	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
5.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
6.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
9.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
10.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
11.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
12.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
13.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
14.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
15.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
16.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
17.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The MX-1 writes its imaging data to SDXC cards, while the NEX-3N uses SDXC or Memory Stick PRO Duo cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax MX-1 and Sony Alpha NEX-3N and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Sony NEX-3N	-	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the MX-1 and the NEX-3N have been discontinued, but can regularly be found used on ebay. The NEX-3N was replaced by the Sony A5000, while the MX-1 does not have a direct successor. Further information on the features and operation of the MX-1 and NEX-3N can be found, respectively, in the Pentax MX-1 Manual (free pdf) or the online Sony NEX-3N Manual.

Review summary

So what is the bottom line? Is the Pentax MX-1 better than the Sony NEX-3N or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Pentax MX-1:

• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has a lens built-in, whereas the NEX-3N requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.

Arguments in favor of the Sony Alpha NEX-3N:

• More detail: Has more megapixels (16 vs 12MP), which boosts linear resolution by 18%.
• Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.4 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (4 vs 1 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (480 versus 290) out of a single battery charge.

If the number of relative strengths (bullet points above) is taken as a guide, the NEX-3N is the clear winner of the contest (11 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax MX-1 and the Sony NEX-3N place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the MX-1 or the NEX-3N. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	499	ebay.com
2.		Sony NEX-3N	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	499	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	449	ebay.com
5.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
6.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
8.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
9.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	549	ebay.com
10.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	699	ebay.com
11.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
12.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	499	ebay.com
13.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	449	ebay.com
14.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	549	ebay.com
15.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
16.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
17.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
