Pentax K-70 vs Samsung NX1

The Pentax K-70 and the Samsung NX1 are two digital cameras that were officially introduced, respectively, in June 2016 and September 2014. The K-70 is a DSLR, while the NX1 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Pentax has a resolution of 24 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-70		Samsung NX1
Digital single lens reflex		Mirrorless system camera
Pentax K mount lenses		Samsung NX mount lenses
24 MP – APS-C sensor		28 MP – APS-C sensor
1080/60i Video		4K/30p Video
ISO 100-102,400		ISO 100-25,600 (100 - 51,200)
Optical viewfinder		Electronic viewfinder (2360k dots)
3.0" LCD – 921k dots		3.0" LCD – 1036k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
6 shutter flaps per second		15 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		Weathersealed body
410 shots per battery charge		500 shots per battery charge
126 x 93 x 74 mm, 688 g		139 x 102 x 66 mm, 550 g

Check K-70 offers at
ebay.com
Check NX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-70 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

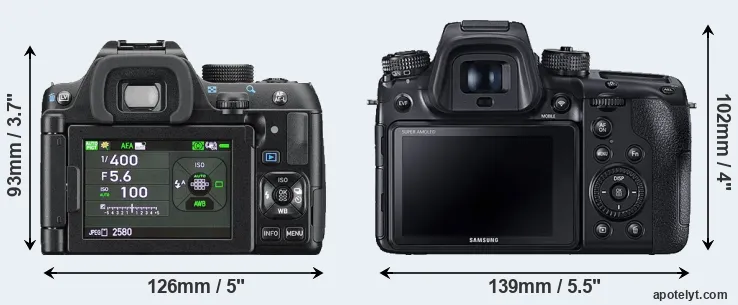

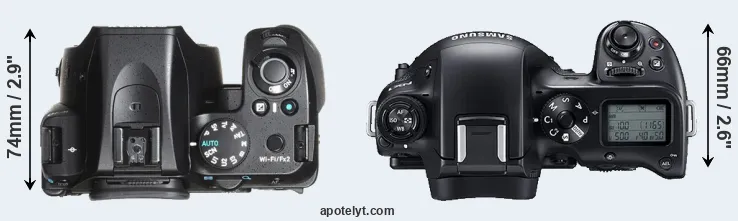

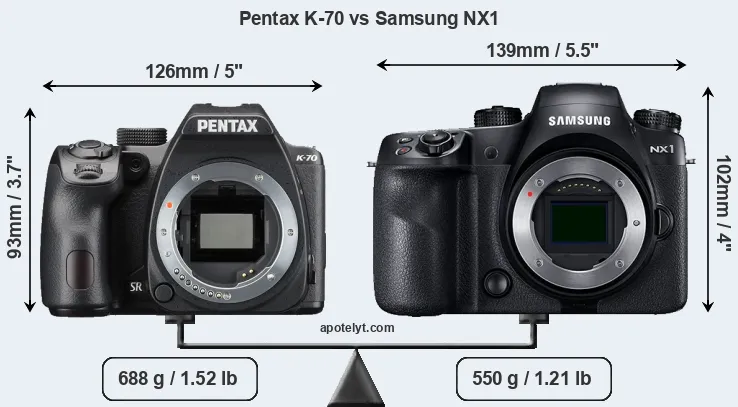

The side-by-side display below illustrates the physical size and weight of the Pentax K-70 and the Samsung NX1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The K-70 can be obtained in two different colors (black, silver), while the NX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably larger (21 percent) than the Pentax K-70. However, the NX1 is markedly lighter (20 percent) than the K-70. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	649	ebay.com
2.		Samsung NX1	139 mm	102 mm	66 mm	550 g	500	Y	Sep 2014	1,499	ebay.com
3.		Fujifilm X-Pro2	141 mm	83 mm	46 mm	495 g	350	Y	Jan 2016	1,699	ebay.com
4.		Fujifilm X-T2	133 mm	92 mm	49 mm	507 g	340	Y	Jul 2016	1,599	ebay.com
5.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
6.		Pentax K-3 III	135 mm	104 mm	74 mm	820 g	800	Y	Mar 2021	1,999	amazon.com
7.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	1,099	ebay.com
8.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	749	ebay.com
9.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	1,099	ebay.com
10.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	749	ebay.com
11.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	599	ebay.com
12.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	549	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	1,299	ebay.com
14.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	1,099	ebay.com
15.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	799	ebay.com
16.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	699	ebay.com
17.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	1,699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The K-70 was launched at a markedly lower price (by 57 percent) than the NX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

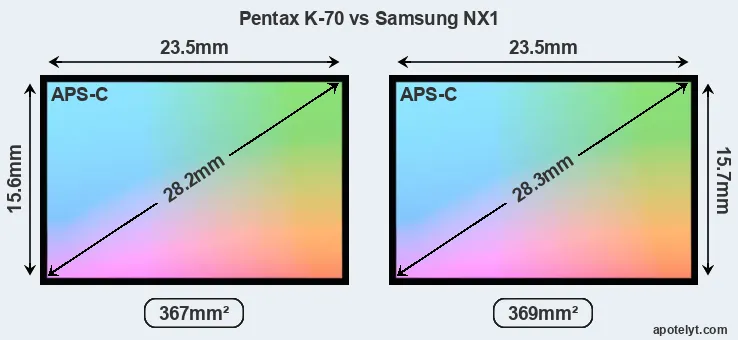

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX1 is 1 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 28MP, the NX1 offers a higher resolution than the K-70 (24MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 3.91μm for the K-70). It is noteworthy in this context that the K-70 is a somewhat more recent model (by 1 year and 8 months) than the NX1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Pentax K-70 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

Unlike the NX1, the K-70 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Pentax K-70 has a native sensitivity range from ISO 100 to ISO 102400. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the K-70 is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
2.		Samsung NX1	APS-C	28.0	6480	4320	4K/30p	24.2	13.2	1363	83
3.		Fujifilm X-Pro2	APS-C	24.0	6000	4000	1080/60p	23.7	13.0	1608	80
4.		Fujifilm X-T2	APS-C	24.0	6000	4000	4K/30p	23.8	13.1	1653	81
5.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
6.		Pentax K-3 III	APS-C	25.6	6192	4128	4K/30p	24.2	13.7	2083	85
7.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
8.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
9.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
10.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
11.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
12.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
15.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
16.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
17.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the NX1 provides a better video resolution than the K-70. It can shoot movie footage at 4K/30p, while the Pentax is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX1 has an electronic viewfinder (2360k dots), while the K-70 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the NX1 has a higher magnification than the one of the K-70 (0.69x vs 0.63x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Pentax K-70 and Samsung NX1 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
2.		Samsung NX1	2360	Y	3.0 / 1036	tilting	Y	1/8000s	15.0/s	Y	n
3.		Fujifilm X-Pro2	2360	n	3.0 / 1620	fixed	n	1/8000s	8.0/s	n	n
4.		Fujifilm X-T2	2360	n	3.0 / 1040	full-flex	n	1/8000s	8.0/s	n	n
5.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
6.		Pentax K-3 III	optical	Y	3.2 / 1620	fixed	Y	1/8000s	12.0/s	n	Y
7.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
8.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
9.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
10.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
11.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
12.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
15.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
16.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
17.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the K-70 and the NX1 is in-body image stabilization (IBIS). The K-70 reduces the risk of handshake-induced blur with all attached lenses, while the NX1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the NX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Pentax K-70 and the Samsung NX1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the K-70 and the NX1 write their files to SDXC cards. The NX1 supports UHS-II cards (on its first slot), while the K-70 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-70 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
2.		Samsung NX1	Y	stereo / mono	Y	Y	micro	3.0	Y	Y	Y
3.		Fujifilm X-Pro2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Fujifilm X-T2	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
5.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
6.		Pentax K-3 III	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
7.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
8.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
9.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
10.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-
11.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
12.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-
17.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the NX1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The K-70 lacks such a headphone port.

Both the K-70 and the NX1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Pentax and Samsung. Further information on the features and operation of the K-70 and NX1 can be found, respectively, in the Pentax K-70 Manual (free pdf) or the online Samsung NX1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Pentax K-70 and the Samsung NX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Pentax K-70:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (126x93mm vs 139x102mm) and thus needs less room in the bag.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced into a lower priced category (57 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 8 months after the NX1).

Advantages of the Samsung NX1:

• More detail: Has more megapixels (28 vs 24MP), which boosts linear resolution by 8%.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.63x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 921k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Faster burst: Shoots at higher frequency (15 vs 6 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Less heavy: Has a lower weight (by 138g or 20 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (500 versus 410) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been on the market for longer (launched in September 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the NX1 is the clear winner of the contest (20 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-70 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the K-70 or the NX1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	649	ebay.com
2.		Samsung NX1	5/5	..	..	87/100	5/5	5/5	Sep 2014	1,499	ebay.com
3.		Fujifilm X-Pro2	..	+	..	83/100	4.5/5	4.5/5	Jan 2016	1,699	ebay.com
4.		Fujifilm X-T2	5/5	+ +	..	86/100	4.5/5	5/5	Jul 2016	1,599	ebay.com
5.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
6.		Pentax K-3 III	4/5	..	3/5	..	4.5/5	..	Mar 2021	1,999	amazon.com
7.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	1,099	ebay.com
8.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	749	ebay.com
9.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	1,099	ebay.com
10.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	749	ebay.com
11.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	599	ebay.com
12.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	549	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	1,299	ebay.com
14.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	1,099	ebay.com
15.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	799	ebay.com
16.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	699	ebay.com
17.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	1,699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check K-70 offers at
ebay.com
Check NX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check K-70 offers at
ebay.com
Check NX1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
