Pentax K-5 II vs Ricoh WG-60
The Pentax K-5 II and the Ricoh WG-60 are two digital cameras that were announced, respectively, in September 2012 and October 2018. The K-5 II is a DSLR, while the WG-60 is a fixed lens compact. The cameras are based on an APS-C (K-5 II) and a 1/2.3-inch (WG-60) sensor. The Pentax has a resolution of 16.1 megapixels, whereas the Ricoh provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-5 II and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

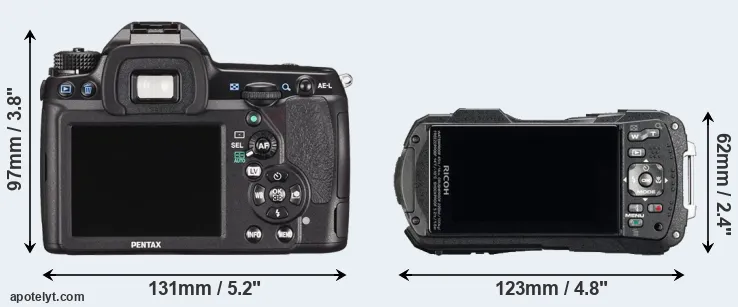

An illustration of the physical size and weight of the Pentax K-5 II and the Ricoh WG-60 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The WG-60 can be obtained in two different colors (black, red), while the K-5 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is considerably smaller (40 percent) than the Pentax K-5 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the WG-60 is water-proof up to 14m and can, thus, be used for underwater photography.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-60 has a lens built in, whereas the K-5 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Pentax K-5 II||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2012||1,099||ebay.com|
|2.||Ricoh WG-60||123 mm||62 mm||30 mm||193 g||300||Y||Oct 2018||279||ebay.com|
|3.||Fujifilm XP140||110 mm||71 mm||28 mm||207 g||240||Y||Feb 2019||229||amazon.com|
|4.||Fujifilm XP130||110 mm||71 mm||28 mm||207 g||240||Y||Jan 2018||229||ebay.com|
|5.||Fujifilm XP120||110 mm||71 mm||28 mm||203 g||210||Y||Jan 2017||229||ebay.com|
|6.||Nikon W300||112 mm||66 mm||29 mm||231 g||280||Y||May 2017||389||amazon.com|
|7.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199||ebay.com|
|8.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299||ebay.com|
|9.||Pentax KP||132 mm||101 mm||76 mm||703 g||390||Y||Jan 2017||1,099||ebay.com|
|10.||Pentax K-70||126 mm||93 mm||74 mm||688 g||410||Y||Jun 2016||649||amazon.com|
|11.||Pentax K-3 II||131 mm||100 mm||77 mm||800 g||720||Y||Apr 2015||1,099||ebay.com|
|12.||Pentax K-50||130 mm||97 mm||71 mm||650 g||410||Y||Jun 2013||599||ebay.com|
|13.||Pentax K-500||130 mm||97 mm||71 mm||646 g||710||n||Jun 2013||549||ebay.com|
|14.||Pentax K-3||131 mm||100 mm||77 mm||800 g||560||Y||Oct 2013||1,299||ebay.com|
|15.||Pentax K-30||130 mm||97 mm||71 mm||650 g||410||Y||May 2012||849||ebay.com|
|16.||Pentax K-5||131 mm||97 mm||73 mm||760 g||740||Y||Sep 2010||1,099||ebay.com|
|17.||Sony WX800||102 mm||58 mm||36 mm||233 g||370||n||Oct 2018||399||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-60 was launched at a lower price than the K-5 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Pentax K-5 II features an APS-C sensor and the Ricoh WG-60 a 1/2.3-inch sensor. The sensor area in the WG-60 is 92 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 5.6. The sensor in the K-5 II has a native 3:2 aspect ratio, while the one in the WG-60 offers a 4:3 aspect.
With 16.1MP, the K-5 II offers a slightly higher resolution than the WG-60 (15.9MP), but the K-5 II nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 1.33μm for the WG-60) due to its larger sensor. However, the WG-60 is a much more recent model (by 6 years and 1 month) than the K-5 II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the WG-60 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Pentax K-5 II has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Pentax K-5 II||APS-C||16.1||4928||3264||1080/25p||23.8||14.1||1235||82|
|8.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|11.||Pentax K-3 II||APS-C||24.1||6016||4000||1080/60i||23.6||13.6||1106||80|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the WG-60 provides a faster frame rate than the K-5 II. It can shoot movie footage at 1080/60p, while the Pentax is limited to 1080/25p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the K-5 II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the WG-60 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Pentax K-5 II and Ricoh WG-60 in connection with corresponding information for a sample of similar cameras.
|1.||Pentax K-5 II||optical||Y||3.0 / 921||fixed||n||1/8000s||7.0/s||Y||Y|
|2.||Ricoh WG-60||none||n||2.7 / 230||fixed||n||1/4000s||8.0/s||Y||n|
|3.||Fujifilm XP140||none||n||3.0 / 920||fixed||n||1/2000s||10.0/s||Y||Y|
|4.||Fujifilm XP130||none||n||3.0 / 920||fixed||n||1/2000s||10.0/s||Y||Y|
|5.||Fujifilm XP120||none||n||3.0 / 920||fixed||n||1/2000s||10.0/s||Y||Y|
|6.||Nikon W300||none||n||3.0 / 921||fixed||n||1/4000s||7.0/s||Y||Y|
|7.||Nikon D7100||optical||Y||3.2 / 1229||fixed||n||1/8000s||6.0/s||Y||n|
|8.||Olympus E-M5||1440||n||3.0 / 610||tilting||Y||1/4000s||9.0/s||n||Y|
|9.||Pentax KP||optical||n||3.0 / 921||tilting||n||1/6000s||7.0/s||Y||Y|
|10.||Pentax K-70||optical||n||3.0 / 921||swivel||n||1/6000s||6.0/s||Y||Y|
|11.||Pentax K-3 II||optical||Y||3.2 / 1037||fixed||n||1/8000s||8.3/s||n||Y|
|12.||Pentax K-50||optical||n||3.0 / 921||fixed||n||1/6000s||6.0/s||Y||Y|
|13.||Pentax K-500||optical||n||3.0 / 921||fixed||n||1/6000s||6.0/s||Y||Y|
|14.||Pentax K-3||optical||Y||3.2 / 1037||fixed||n||1/8000s||8.3/s||Y||Y|
|15.||Pentax K-30||optical||n||3.0 / 921||fixed||n||1/6000s||6.0/s||Y||Y|
|16.||Pentax K-5||optical||Y||3.0 / 921||fixed||n||1/8000s||7.0/s||Y||Y|
|17.||Sony WX800||none||n||3.0 / 922||tilting||Y||1/2000s||10.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the K-5 II, but is missing on the WG-60 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Pentax K-5 II and the Ricoh WG-60 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the K-5 II and the WG-60 write their files to SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-5 II and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Pentax K-5 II||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Ricoh WG-60||-||mono / mono||-||-||micro||2.0||-||-||-|
|3.||Fujifilm XP140||-||mono / mono||-||-||micro||2.0||Y||-||Y|
|4.||Fujifilm XP130||-||mono / mono||-||-||micro||2.0||Y||-||Y|
|5.||Fujifilm XP120||-||mono / mono||-||-||micro||2.0||Y||-||-|
|6.||Nikon W300||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|7.||Nikon D7100||Y||stereo / mono||Y||Y||mini||2.0||-||-||-|
|8.||Olympus E-M5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Pentax KP||Y||stereo / mono||Y||-||-||2.0||Y||-||-|
|10.||Pentax K-70||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|11.||Pentax K-3 II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|12.||Pentax K-50||Y||mono / mono||-||-||micro||2.0||-||-||-|
|13.||Pentax K-500||Y||mono / mono||-||-||-||2.0||-||-||-|
|14.||Pentax K-3||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|15.||Pentax K-30||Y||mono / mono||-||-||-||2.0||-||-||-|
|16.||Pentax K-5||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|17.||Sony WX800||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
It is notable that the K-5 II has a hotshoe, while the WG-60 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Pentax K-5 II (unlike the WG-60) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the K-5 II and the WG-60 have been discontinued, but can regularly be found used on ebay. The K-5 II was replaced by the Pentax K-3, while the WG-60 does not have a direct successor. Further information on the features and operation of the K-5 II and WG-60 can be found, respectively, in the Pentax K-5 II Manual (free pdf) or the online Ricoh WG-60 Manual.
So what conclusions can be drawn? Which of the two cameras – the Pentax K-5 II or the Ricoh WG-60 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Pentax K-5 II:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (740 versus 300) on a single battery charge.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2012).
Advantages of the Ricoh WG-60:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/25p).
- Faster burst: Shoots at higher frequency (8 vs 7 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with an integrated lens, while the K-5 II requires a separate lens.
- More compact: Is smaller (123x62mm vs 131x97mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the K-5 II).
- Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 14m).
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 1 month of technical progress since the K-5 II launch.
If the count of individual advantages (bullet points above) is taken as a guide, the K-5 II is the clear winner of the match-up (17 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Pentax K-5 II and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the K-5 II and the WG-60 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Pentax K-5 II||5/5||..||..||80/100||5/5||4.5/5||Sep 2012||1,099||ebay.com|
|2.||Ricoh WG-60||..||..||..||..||..||..||Oct 2018||279||ebay.com|
|3.||Fujifilm XP140||..||+||..||..||3.5/5||4/5||Feb 2019||229||amazon.com|
|4.||Fujifilm XP130||..||o||..||..||3.5/5||4/5||Jan 2018||229||ebay.com|
|5.||Fujifilm XP120||..||o||..||..||3.5/5||4/5||Jan 2017||229||ebay.com|
|6.||Nikon W300||..||+||..||..||4/5||4/5||May 2017||389||amazon.com|
|7.||Nikon D7100||5/5||+ +||..||85/100||4.5/5||4.5/5||Feb 2013||1,199||ebay.com|
|8.||Olympus E-M5||4/5||+ +||..||80/100||4.5/5||5/5||Feb 2012||1,299||ebay.com|
|9.||Pentax KP||4/5||..||3/5||82/100||5/5||4.5/5||Jan 2017||1,099||ebay.com|
|10.||Pentax K-70||4.5/5||..||4/5||79/100||4.5/5||4.5/5||Jun 2016||649||amazon.com|
|11.||Pentax K-3 II||4.5/5||..||..||..||5/5||5/5||Apr 2015||1,099||ebay.com|
|12.||Pentax K-50||5/5||..||..||..||5/5||4.5/5||Jun 2013||599||ebay.com|
|13.||Pentax K-500||..||..||..||..||4.5/5||4.5/5||Jun 2013||549||ebay.com|
|14.||Pentax K-3||4/5||..||..||83/100||5/5||5/5||Oct 2013||1,299||ebay.com|
|15.||Pentax K-30||4/5||..||..||78/100||4.5/5||4.5/5||May 2012||849||ebay.com|
|16.||Pentax K-5||4/5||..||..||83/100||5/5||4.5/5||Sep 2010||1,099||ebay.com|
|17.||Sony WX800||..||..||..||..||..||..||Oct 2018||399||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 4000D vs Pentax K-5 II
- Canon 70D vs Pentax K-5 II
- Canon 77D vs Ricoh WG-60
- Canon Rebel vs Ricoh WG-60
- Nikon D7000 vs Pentax K-5 II
- Nikon D7200 vs Pentax K-5 II
- Panasonic G5 vs Ricoh WG-60
- Panasonic G95 vs Pentax K-5 II
- Panasonic GX7 vs Ricoh WG-60
- Pentax K-3 vs Ricoh WG-60
- Pentax K-5 II vs Sony A7R IV
- Ricoh WG-60 vs Sony A77 II
Specifications: Pentax K-5 II vs Ricoh WG-60
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Pentax K-5 II||Ricoh WG-60|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Pentax K mount lenses||28-140mm f/3.5-5.5|
|Launch Date||September 2012||October 2018|
|Launch Price||USD 1,099||USD 279|
|Sensor Specs||Pentax K-5 II||Ricoh WG-60|
|Sensor Format||APS-C Sensor||1/2.3" Sensor|
|Sensor Size||23.7 x 15.7 mm||6.17 x 4.55 mm|
|Sensor Area||372.09 mm2||28.0735 mm2|
|Sensor Diagonal||28.4 mm||7.7 mm|
|Sensor Resolution||16.1 Megapixels||15.9 Megapixels|
|Image Resolution||4928 x 3264 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.81 μm||1.33 μm|
|Pixel Density||4.32 MP/cm2||56.73 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/25p Video||1080/60p Video|
|ISO Setting||100 - 12,800 ISO||125 - 6,400 ISO|
|ISO Boost||80 - 51,200 ISO||no Enhancement|
|DXO Sensor Quality (score)||82||..|
|DXO Color Depth (bits)||23.8||..|
|DXO Dynamic Range (EV)||14.1||..|
|DXO Low Light (ISO)||1235||..|
|Screen Specs||Pentax K-5 II||Ricoh WG-60|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||921k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Pentax K-5 II||Ricoh WG-60|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||7 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||no handshake reduction|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Pentax K-5 II||Ricoh WG-60|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Pentax K-5 II||Ricoh WG-60|
|Environmental Sealing||Weathersealed body||Waterproof body (14m)|
|Battery Life (CIPA)||740 shots per charge||300 shots per charge|
131 x 97 x 73 mm
(5.2 x 3.8 x 2.9 in)
123 x 62 x 30 mm
(4.8 x 2.4 x 1.2 in)
|Camera Weight||760 g (26.8 oz)||193 g (6.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
