Panasonic GM5 vs Sony A6300
The Panasonic Lumix DMC-GM5 and the Sony Alpha A6300 are two digital cameras that were revealed to the public, respectively, in September 2014 and February 2016. Both the GM5 and the A6300 are mirrorless interchangeable lens cameras that are based on a Four Thirds (GM5) and an APS-C (A6300) sensor. The Panasonic has a resolution of 15.8 megapixels, whereas the Sony provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Panasonic GM5||Sony A6300|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Sony E mount lenses|
|15.8 MP, Four Thirds Sensor||24 MP, APS-C Sensor|
|1080/60p Video||4K/30p Video|
|ISO 200-25,600||ISO 100-25,600 (100 - 51,200)|
|Electronic viewfinder (1166k dots)||Electronic viewfinder (2359k dots)|
|3.0 LCD, 921k dots||3.0 LCD, 922k dots|
|Fixed touchscreen||Tilting screen (not touch-sensitive)|
|5.8 shutter flaps per second||11 shutter flaps per second|
|not weather sealed||Weathersealed body|
|220 shots per battery charge||400 shots per battery charge|
|99 x 60 x 36 mm, 211 g||120 x 67 x 49 mm, 404 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GM5 and the Sony Alpha A6300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Panasonic GM5 and the Sony A6300 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A6300 is notably larger (35 percent) than the Panasonic GM5. Moreover, the A6300 is substantially heavier (91 percent) than the GM5. It is noteworthy in this context that the A6300 is splash and dust-proof, while the GM5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (GM5) and the Sony E-Mount Lens Catalog (A6300). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the GM5 gets 220 shots out of its DMW-BLH7 battery, while the A6300 can take 400 images on a single charge of its NP-FW50 power pack. The power pack in the A6300 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|Sony A6300||120 mm||67 mm||49 mm||404 g||400||Y||Feb 2016||999|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|Panasonic FZ1000||137 mm||99 mm||131 mm||831 g||360||n||Jun 2014||899|
|Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|Panasonic GM1||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749|
|Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|Ricoh GR II||117 mm||63 mm||35 mm||251 g||320||n||Jun 2015||699|
|Ricoh GR||117 mm||61 mm||35 mm||245 g||290||n||Apr 2013||799|
|Sony A6400||120 mm||67 mm||50 mm||403 g||410||n||Jan 2019||899|
|Sony A6500||120 mm||67 mm||53 mm||453 g||350||Y||Oct 2016||1,399|
|Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|Sony A6000||120 mm||67 mm||45 mm||344 g||360||n||Feb 2014||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GM5 was launched at a somewhat lower price (by 25 percent) than the A6300, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Panasonic GM5 features a Four Thirds sensor and the Sony A6300 an APS-C sensor. The sensor area in the A6300 is 63 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the GM5 has a native 4:3 aspect ratio, while the one in the A6300 offers a 3:2 aspect.

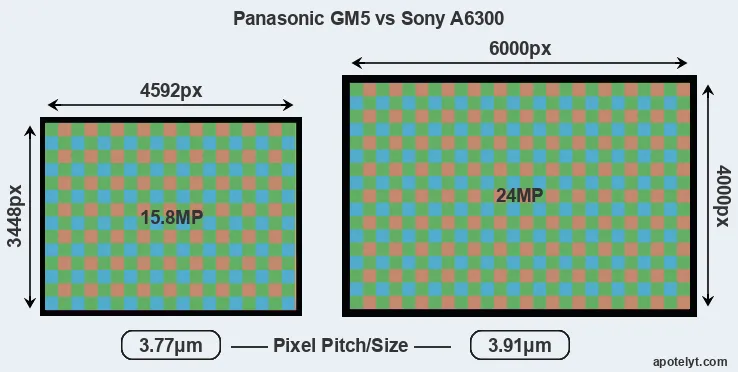

With 24MP, the A6300 offers a higher resolution than the GM5 (15.8MP), but the A6300 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.77μm for the GM5) due to its larger sensor. Moreover, the A6300 is a somewhat more recent model (by 1 year and 4 months) than the GM5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony A6300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A6300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GM5 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The A6300 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Panasonic Lumix DMC-GM5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha A6300 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the A6300 offers substantially better image quality than the GM5 (overall score 19 points higher). The advantage is based on 2.3 bits higher color depth, 2 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
|Ricoh GR II||APS-C||16.1||4928||3264||1080/30p||23.6||13.7||1078||80|
|Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the A6300 provides a better video resolution than the GM5. It can shoot movie footage at 4K/30p, while the Panasonic is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the A6300 offers a substantially higher resolution than the one in the GM5 (2359k vs 1166k dots). The adjacent table lists some of the other core features of the Panasonic GM5 and Sony A6300 along with similar information for a selection of comparators.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|Ricoh GR II||optional||n||3.0||1230||fixed||n||1/4000s||4.0||Y||n|
|Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GM5 has a touchscreen, while the A6300 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GM5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The GM5 writes its imaging data to SDXC cards, while the A6300 uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GM5 and Sony Alpha A6300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Ricoh GR II||Y||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the A6300 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The GM5 does not feature such a mic input.
Both the GM5 and the A6300 have been discontinued, but can regularly be found used on eBay. The A6300 was replaced by the Sony A6500, while the GM5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Panasonic and Sony websites.
So how do things add up? Which of the two cameras – the Panasonic GM5 or the Sony A6300 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Panasonic Lumix DMC-GM5:
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (99x60mm vs 120x67mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 193g or 48 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2014).
Arguments in favor of the Sony Alpha A6300:
- More detail: Has more megapixels (24 vs 15.8MP), which boosts linear resolution by 26%.
- Better image quality: Scores substantially higher (19 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (2359k vs 1166k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.46x).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/500s) to freeze action.
- Faster burst: Shoots at higher frequency (11 vs 5.8 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (400 versus 220) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More modern: Was introduced somewhat (1 year and 4 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the A6300 is the clear winner of the contest (18 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Panasonic GM5 and the Sony A6300 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the GM5 and the A6300 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Panasonic GM5||+||77/100||5/5||5/5||4.5/5||Sep 2014||749|
|Sony A6300||+||85/100||5/5||5/5||5/5||Feb 2016||999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Panasonic G7||+ +||80/100||5/5||4.5/5||4.5/5||May 2015||649|
|Panasonic FZ1000||+ +||82/100||4.5/5||4.5/5||4.5/5||Jun 2014||899|
|Panasonic G6||+ +||..||5/5||..||4.5/5||Apr 2013||599|
|Panasonic GM1||+||78/100||5/5||4.5/5||4.5/5||Oct 2013||749|
|Panasonic GX1||+||77/100||4.5/5||4.5/5||4.5/5||Nov 2011||699|
|Panasonic GH2||+ +||79/100||4.5/5||4.5/5||5/5||Sep 2010||899|
|Ricoh GR II||..||..||4.5/5||4.5/5||4.5/5||Jun 2015||699|
|Ricoh GR||..||79/100||4.5/5||4.5/5||4.5/5||Apr 2013||799|
|Sony A6400||+||85/100||4.5/5||..||4/5||Jan 2019||899|
|Sony A6500||+ +||85/100||4.5/5||5/5||4.5/5||Oct 2016||1,399|
|Sony RX100 IV||+ +||85/100||4/5||4.5/5||4.5/5||Jun 2015||999|
|Sony A6000||+||80/100||4.5/5||5/5||5/5||Feb 2014||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon G7 X Mark III vs Sony A6300
- Canon M6 vs Sony A6300
- Fujifilm X-Pro3 vs Panasonic GM5
- Fujifilm X10 vs Sony A6300
- Leica S Typ 007 vs Panasonic GM5
- Nikon 1 V2 vs Sony A6300
- Olympus E-3 vs Sony A6300
- Panasonic FZ200 vs Sony A6300
- Panasonic G80 vs Sony A6300
- Panasonic GH4 vs Panasonic GM5
- Panasonic GM5 vs Sony RX10 II
- Sony A6300 vs Sony A77
Specifications: Panasonic GM5 vs Sony A6300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Panasonic GM5||Sony A6300|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Sony E mount lenses|
|Launch Date||September 2014||February 2016|
|Launch Price||USD 749||USD 999|
|Sensor Specs||Panasonic GM5||Sony A6300|
|Sensor Format||Four Thirds Sensor||APS-C Sensor|
|Sensor Size||17.3 x 13.0 mm||23.5 x 15.6 mm|
|Sensor Area||224.9 mm2||366.6 mm2|
|Sensor Diagonal||21.6 mm||28.2 mm|
|Sensor Resolution||15.8 Megapixels||24 Megapixels|
|Image Resolution||4592 x 3448 pixels||6000 x 4000 pixels|
|Pixel Pitch||3.77 μm||3.91 μm|
|Pixel Density||7.04 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||Venus||BIONZ X|
|DXO Sensor Quality (score)||66||85|
|DXO Color Depth (bits)||22.1||24.4|
|DXO Dynamic Range (EV)||11.7||13.7|
|DXO Low Light (ISO)||721||1437|
|Screen Specs||Panasonic GM5||Sony A6300|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||1166k dots||2359k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||921k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Panasonic GM5||Sony A6300|
|Focus System||Contrast-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/500s||1/4000s|
|Continuous Shooting||5.8 shutter flaps/s||11 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||YES|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Panasonic GM5||Sony A6300|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Panasonic GM5||Sony A6300|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||220 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
99 x 60 x 36 mm
(3.9 x 2.4 x 1.4 in)
120 x 67 x 49 mm
(4.7 x 2.6 x 1.9 in)
|Camera Weight||211 g (7.4 oz)||404 g (14.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
