Panasonic GH5s vs GM5

The Panasonic Lumix DC-GH5s and the Panasonic Lumix DMC-GM5 are two digital cameras that were officially introduced, respectively, in January 2018 and September 2014. Both the GH5s and the GM5 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The GH5s has a resolution of 9.9 megapixels, whereas the GM5 provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Panasonic GH5s
versus
Panasonic GM5
Panasonic GH5s   Panasonic GM5
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
9.9 MP – Four Thirds sensor 15.8 MP – Four Thirds sensor
4K/60p Video 1080/60p Video
ISO 160-51,200 (80 - 204,800) ISO 200-25,600
Electronic viewfinder (3680k dots) Electronic viewfinder (1166k dots)
3.2" LCD – 1620k dots 3.0" LCD – 921k dots
Swivel touchscreen Fixed touchscreen
12 shutter flaps per second 5.8 shutter flaps per second
Weathersealed bodynot weather sealed
440 shots per battery charge220 shots per battery charge
139 x 98 x 87 mm, 660 g 99 x 60 x 36 mm, 211 g
logo
Check GH5s price at
amazon.com
logo
Check GM5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-GH5s and the Panasonic Lumix DMC-GM5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Panasonic GH5s and the Panasonic GM5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The GM5 can be obtained in two different colors (black, silver), while the GH5s is only available in black.

Size Panasonic GH5s vs Panasonic GM5
Compare GH5s versus GM5 top

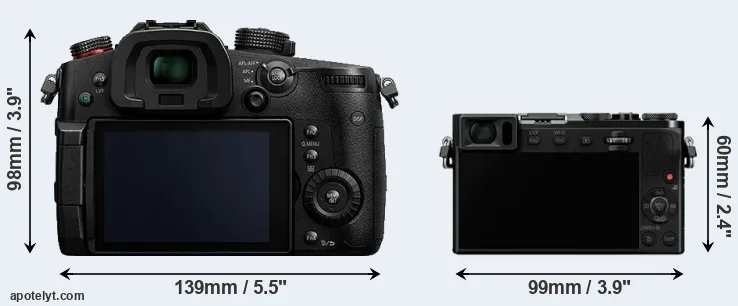

Comparison GH5s or GM5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM5 is considerably smaller (56 percent) than the Panasonic GH5s. Moreover, the GM5 is substantially lighter (68 percent) than the GH5s. It is worth mentioning in this context that the GH5s is splash and dust resistant, while the GM5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the GH5s gets 440 shots out of its Panasonic DMW-BLF19 battery, while the GM5 can take 220 images on a single charge of its Panasonic DMW-BLH7 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Panasonic GH5s 139 mm 98 mm 87 mm 660 g 440 Y Jan 2018 2,499 amazon.com
2.

Panasonic GM5 99 mm 60 mm 36 mm 211 g 220 n Sep 2014 749ebay.com
3.

Canon R 139 mm 98 mm 84 mm 660 g 370 Y Sep 2018 2,299ebay.com
4.

Panasonic G9 137 mm 97 mm 92 mm 658 g 400 Y Nov 2017 1,699ebay.com
5.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
6.

Panasonic FZ300 132 mm 92 mm 117 mm 691 g 380 Y Jul 2015 599 amazon.com
7.

Panasonic G7 125 mm 86 mm 77 mm 410 g 350 n May 2015 649ebay.com
8.

Panasonic GH4 133 mm 93 mm 84 mm 560 g 500 Y Feb 2014 1,499ebay.com
9.

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 n Apr 2013 599ebay.com
10.

Panasonic GM1 99 mm 55 mm 30 mm 204 g 230 n Oct 2013 749ebay.com
11.

Panasonic GF5 108 mm 67 mm 37 mm 267 g 360 n Apr 2012 499ebay.com
12.

Panasonic GH3 133 mm 93 mm 82 mm 550 g 540 Y Sep 2012 1,299ebay.com
13.

Panasonic GF3 108 mm 67 mm 32 mm 264 g 300 n Jun 2011 549ebay.com
14.

Panasonic GX1 116 mm 68 mm 39 mm 318 g 320 n Nov 2011 699ebay.com
15.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 n Mar 2010 499ebay.com
16.

Panasonic G2 124 mm 84 mm 74 mm 428 g 360 n Mar 2010 599ebay.com
17.

Panasonic GH2 124 mm 90 mm 76 mm 442 g 330 n Sep 2010 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GM5 was launched at a markedly lower price (by 70 percent) than the GH5s, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Panasonic GH5s and Panasonic GM5 sensor measures

While the two cameras under review share the same sensor size, the GM5 offers a higher resolution of 15.8 megapixels, compared with 9.9 MP of the GH5s. This megapixels advantage translates into a 25 percent gain in linear resolution. On the other hand, these sensor specs imply that the GM5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 4.77μm for the GH5s). Moreover, it should be noted, that the GH5s is much more recent (by 3 years and 3 months) than the GM5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Panasonic GM5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GM5 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.

The Panasonic Lumix DC-GH5s has a native sensitivity range from ISO 160 to ISO 51200, which can be extended to ISO 80-204800. The corresponding ISO settings for the Panasonic Lumix DMC-GM5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

GH5s versus GM5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Panasonic GH5s Four Thirds 9.9 3680 27004K/60p23.112.8115474
2.

Panasonic GM5 Four Thirds 15.8 4592 34481080/60p22.111.772166
3.

Canon R Full Frame 30.1 6720 44804K/30p24.513.5274289
4.

Panasonic G9 Four Thirds 20.2 5184 38884K/60p23.112.8113874
5.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
6.

Panasonic FZ300 1/2.3 12.0 4000 30004K/30p19.311.09738
7.

Panasonic G7 Four Thirds 15.8 4592 34484K/30p22.812.490471
8.

Panasonic GH4 Four Thirds 15.9 4608 34564K/30p23.212.879174
9.

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961
10.

Panasonic GM1 Four Thirds 15.8 4592 34481080/60i22.311.766066
11.

Panasonic GF5 Four Thirds 12.0 4000 30001080/60i20.510.057350
12.

Panasonic GH3 Four Thirds 15.9 4608 34561080/60p22.712.481271
13.

Panasonic GF3 Four Thirds 12.0 4000 30001080/60i20.610.145950
14.

Panasonic GX1 Four Thirds 15.8 4592 34481080/60p20.810.670355
15.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
16.

Panasonic G2 Four Thirds 12.0 4000 3000720/30p21.210.349353
17.

Panasonic GH2 Four Thirds 15.9 4608 34561080/60i21.211.365560
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GH5s provides a higher video resolution than the GM5. It can shoot video footage at 4K/60p, while the GM5 is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the GH5s offers a substantially higher resolution than the one in the GM5 (3680k vs 1166k dots). The following table reports on some other key feature differences and similarities of the Panasonic GH5s, the Panasonic GM5, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Panasonic GH5s3680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n n
2.

Panasonic GM51166 n3.0 / 921 fixed Y 1/500s 5.8/s n n
3.

Canon R3690 Y3.2 / 2100 swivel Y 1/8000s 8.0/s n n
4.

Panasonic G93680 Y3.0 / 1040 swivel Y 1/8000s 20.0/s n Y
5.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
6.

Panasonic FZ3001440 n3.0 / 1040 swivel Y 1/4000s 12.0/s Y Y
7.

Panasonic G72360 n3.0 / 1040 swivel Y 1/4000s 7.0/s Y n
8.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
9.

Panasonic G61440 n3.0 / 1036 swivel Y 1/4000s 7.0/s Y n
10.

Panasonic GM1none n3.0 / 1036 fixed Y 1/500s 5.0/s Y n
11.

Panasonic GF5none n3.0 / 920 fixed Y 1/4000s 4.0/s Y n
12.

Panasonic GH31746 n3.0 / 614 swivel Y 1/4000s 6.0/s Y n
13.

Panasonic GF3none n3.0 / 460 fixed Y 1/4000s 3.2/s Y n
14.

Panasonic GX1optional n3.0 / 460 fixed Y 1/4000s 4.2/s Y n
15.

Panasonic G10202 n3.0 / 460 fixed n 1/4000s 2.6/s Y n
16.

Panasonic G21440 n3.0 / 460 swivel Y 1/4000s 2.6/s Y n
17.

Panasonic GH21534 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding
The GH5s has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the GM5 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH5s and the Panasonic GM5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GH5s and the GM5 write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the GM5 only has one slot. The GH5s supports UHS-II cards (on both slots), while the GM5 can use UHS-I cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-GH5s and Panasonic Lumix DMC-GM5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Panasonic GH5sYstereo / monoYYfull3.1Y-Y
2.

Panasonic GM5Ystereo / mono--micro2.0Y--
3.

Canon RYstereo / monoYYmini3.1Y-Y
4.

Panasonic G9Ystereo / monoYYfull3.0Y-Y
5.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
6.

Panasonic FZ300Ystereo / monoY-mini2.0Y--
7.

Panasonic G7Ystereo / monoY-micro2.0Y--
8.

Panasonic GH4Ystereo / monoYYmicro2.0YY-
9.

Panasonic G6Ystereo / monoY-mini2.0YY-
10.

Panasonic GM1-stereo / mono--micro2.0Y--
11.

Panasonic GF5-stereo / mono--mini2.0---
12.

Panasonic GH3Ystereo / monoYYmini2.0Y--
13.

Panasonic GF3-stereo / mono--mini2.0---
14.

Panasonic GX1Ystereo / mono--mini2.0---
15.

Panasonic G10Ymono / ---mini2.0---
16.

Panasonic G2Ystereo / mono--mini2.0---
17.

Panasonic GH2Ystereo / monoY-mini2.0---
padding

It is notable that the GH5s has a microphone port, which is missing on the GM5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Panasonic GH5s (unlike the GM5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the GM5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the GM5 from Panasonic. Further information on the features and operation of the GH5s and GM5 can be found, respectively, in the Panasonic GH5s Manual (free pdf) or the online Panasonic GM5 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Panasonic GH5s and the Panasonic GM5? Which camera is better? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Panasonic Lumix DC-GH5s:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 1166k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.46x).
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 921k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/500s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 5.8 flaps/sec) to capture the decisive moment.
  • Longer lasting: Can take more shots (440 versus 220) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 3 years and 3 months of technical progress since the GM5 launch.


Reasons to prefer the Panasonic Lumix DMC-GM5:

  • More detail: Has more megapixels (15.8 vs 9.9MP), which boosts linear resolution by 26%.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More compact: Is smaller (99x60mm vs 139x98mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 449g or 68 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in September 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the GH5s is the clear winner of the match-up (21 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

GH5s 21:06 GM5

How about other alternatives? Do the specifications of the Panasonic GH5s and the Panasonic GM5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the GH5s and the GM5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Panasonic GH5s....4.5/584/1004.5/54.5/5 Jan 2018 2,499 amazon.com
2.

Panasonic GM53.5/5+..77/1005/54.5/5 Sep 2014 749ebay.com
3.

Canon R4/5o4/579/1004.5/54/5 Sep 2018 2,299ebay.com
4.

Panasonic G9..+ +5/585/1005/55/5 Nov 2017 1,699ebay.com
5.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
6.

Panasonic FZ300..+ +....4.5/54.5/5 Jul 2015 599 amazon.com
7.

Panasonic G74/5+ +3.5/580/1005/54.5/5 May 2015 649ebay.com
8.

Panasonic GH45/5+ +..85/1005/55/5 Feb 2014 1,499ebay.com
9.

Panasonic G64/5+ +....5/54.5/5 Apr 2013 599ebay.com
10.

Panasonic GM13/5+..78/1005/54.5/5 Oct 2013 749ebay.com
11.

Panasonic GF53/5......4.5/54.5/5 Apr 2012 499ebay.com
12.

Panasonic GH35/5+ +..79/1004.5/54.5/5 Sep 2012 1,299ebay.com
13.

Panasonic GF33/582/100..71/1004.5/54/5 Jun 2011 549ebay.com
14.

Panasonic GX13/5+..77/1004.5/54.5/5 Nov 2011 699ebay.com
15.

Panasonic G103/5....70/1004/54/5 Mar 2010 499ebay.com
16.

Panasonic G2......72/1004/54.5/5 Mar 2010 599ebay.com
17.

Panasonic GH25/5+ +..79/1004.5/55/5 Sep 2010 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check GH5s price at
amazon.com
logo
Check GM5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Panasonic GH5s vs Panasonic GM5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Panasonic GH5s Panasonic GM5
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
    Launch Date January 2018 September 2014
    Launch Price USD 2,499 USD 749
    Sensor Specs Panasonic GH5s Panasonic GM5
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
    Sensor Area 224.9 mm2 224.9 mm2
    Sensor Diagonal 21.6 mm 21.6 mm
    Crop Factor 2.0x 2.0x
    Sensor Resolution 9.9 Megapixels 15.8 Megapixels
    Image Resolution 3680 x 2700 pixels 4592 x 3448 pixels
    Pixel Pitch 4.77 μm 3.77 μm
    Pixel Density 4.42 MP/cm2 7.04 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 4K/60p Video 1080/60p Video
    ISO Setting 160 - 51,200 ISO 200 - 25,600 ISO
    ISO Boost 80 - 204,800 ISO 100 - 25,600 ISO
    Image Processor Venus 10 Venus
    DXO Sensor Quality (score) .. 66
    DXO Color Depth (bits) .. 22.1
    DXO Dynamic Range (EV) .. 11.7
    DXO Low Light (ISO) .. 721
    Screen Specs Panasonic GH5s Panasonic GM5
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.76x 0.46x
    Viewfinder Resolution 3680k dots 1166k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 1620k dots 921k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Panasonic GH5s Panasonic GM5
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/500s
    Continuous Shooting 12 shutter flaps/s 5.8 shutter flaps/s
    Electronic Shutterup to 1/16000sup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support Dual UHS-II UHS-I
    Connectivity Specs Panasonic GH5s Panasonic GM5
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.1 USB 2.0
    HDMI Port full HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Panasonic GH5s Panasonic GM5
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Panasonic DMW-BLF19 Panasonic DMW-BLH7
    Battery Life (CIPA)440 shots per charge220 shots per charge
    Body Dimensions 139 x 98 x 87 mm
    (5.5 x 3.9 x 3.4 in)
    99 x 60 x 36 mm
    (3.9 x 2.4 x 1.4 in)
    Camera Weight 660 g (23.3 oz) 211 g (7.4 oz)
    logo
    Check GH5s price at
    amazon.com
    logo
    Check GM5 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Panasonic GH5s vs Panasonic GM5
