Panasonic GH5s vs GM1
The Panasonic Lumix DC-GH5s and the Panasonic Lumix DMC-GM1 are two digital cameras that were announced, respectively, in January 2018 and October 2013. Both the GH5s and the GM1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The GH5s has a resolution of 9.9 megapixels, whereas the GM1 provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-GH5s and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

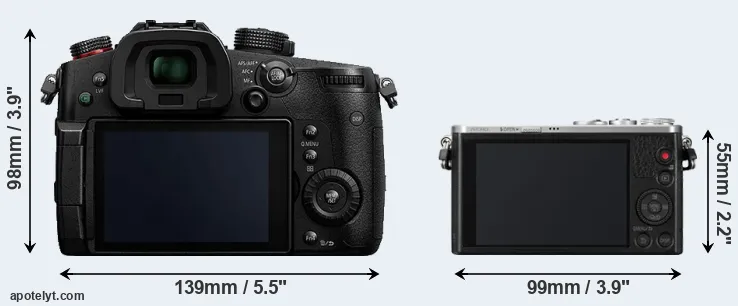

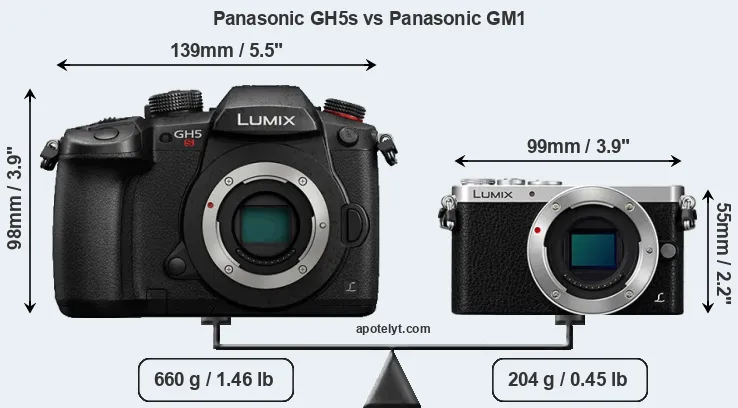

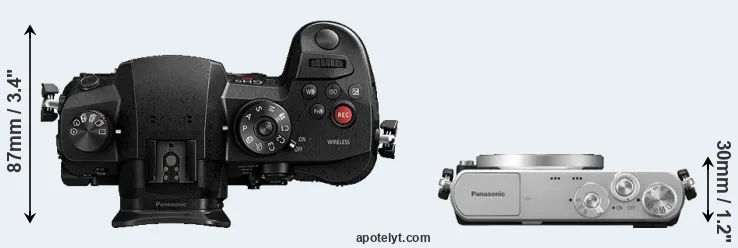

The side-by-side display below illustrates the physical size and weight of the Panasonic GH5s and the Panasonic GM1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The GM1 can be obtained in three different colors (black, silver, red), while the GH5s is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is considerably smaller (60 percent) than the Panasonic GH5s. Moreover, the GM1 is substantially lighter (69 percent) than the GH5s. It is worth mentioning in this context that the GH5s is splash and dust resistant, while the GM1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Panasonic GH5s||139 mm||98 mm||87 mm||660 g||440||Y||Jan 2018||2,499|
|2.||Panasonic GM1||99 mm||55 mm||30 mm||204 g||230||n||Oct 2013||749|
|3.||Canon R||139 mm||98 mm||84 mm||660 g||370||Y||Sep 2018||2,299|
|4.||Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|5.||Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|6.||Panasonic FZ300||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599|
|7.||Panasonic GH4||133 mm||93 mm||84 mm||560 g||500||Y||Feb 2014||1,499|
|8.||Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|9.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|10.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|11.||Panasonic GF5||108 mm||67 mm||37 mm||267 g||360||n||Apr 2012||499|
|12.||Panasonic GH3||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299|
|13.||Panasonic GF3||108 mm||67 mm||32 mm||264 g||300||n||Jun 2011||549|
|14.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|15.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|16.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|17.||Panasonic GH2||124 mm||90 mm||76 mm||442 g||330||n||Sep 2010||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GM1 was launched at a markedly lower price (by 70 percent) than the GH5s, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

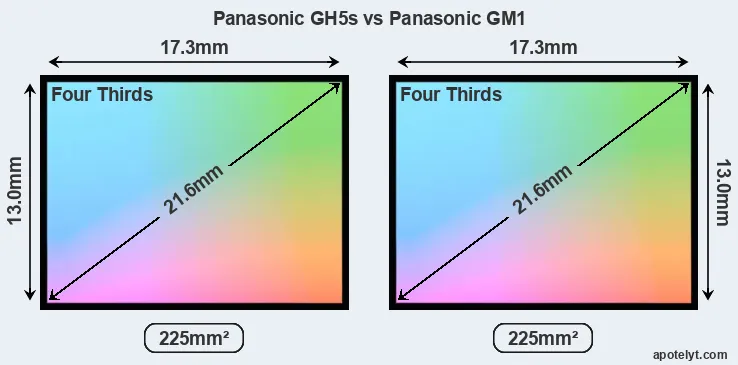

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

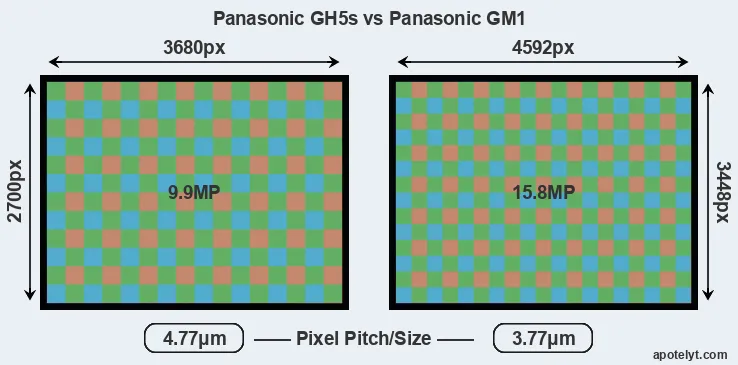

While the two cameras under review share the same sensor size, the GM1 offers a higher resolution of 15.8 megapixels, compared with 9.9 MP of the GH5s. This megapixels advantage translates into a 25 percent gain in linear resolution. On the other hand, these sensor specs imply that the GM1 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 4.77μm for the GH5s). Moreover, it should be noted, that the GH5s is much more recent (by 4 years and 2 months) than the GM1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the GH5s has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GM1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GM1 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.
The Panasonic Lumix DC-GH5s has a native sensitivity range from ISO 160 to ISO 51200, which can be extended to ISO 80-204800. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Panasonic GH5s||Four Thirds||9.9||3680||2700||4K/60p||..||..||..||..|
|2.||Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|3.||Canon R||Full Frame||30.1||6720||4480||4K/30p||24.5||13.5||2742||89|
|4.||Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|5.||Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|7.||Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|8.||Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|9.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|10.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|11.||Panasonic GF5||Four Thirds||12.0||4000||3000||1080/60i||21.4||11.6||618||61|
|12.||Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|13.||Panasonic GF3||Four Thirds||12.0||4000||3000||1080/60i||20.6||10.0||458||49|
|14.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|15.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|16.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
|17.||Panasonic GH2||Four Thirds||15.9||4608||3456||1080/60i||21.2||11.3||655||60|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5s provides a higher video resolution than the GM1. It can shoot video footage at 4K/60p, while the GM1 is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH5s has an electronic viewfinder (3680k dots), which can be very helpful when shooting in bright sunlight. In contrast, the GM1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Panasonic GH5s, the Panasonic GM1, and comparable cameras.
One difference between the cameras concerns the presence of an on-board flash. The GM1 has one, while the GH5s does not. While the built-in flash of the GM1 is not very powerful, it can at times be useful as a fill-in light.The GH5s has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the GM1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GH5s and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the GH5s and the GM1 write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the GM1 only has one slot. The GH5s supports UHS-II cards (on both slots), while the GM1 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-GH5s and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the GH5s has a hotshoe, while the GM1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Studio photographers will appreciate that the Panasonic GH5s (unlike the GM1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the GM1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the GM1 was succeeded by the Panasonic GM5. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Panasonic website.
So how do things add up? Is the Panasonic GH5s better than the Panasonic GM1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Panasonic Lumix DC-GH5s:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60i).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1036k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/500s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 5 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (440 versus 230) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 4 years and 2 months of technical progress since the GM1 launch.
Arguments in favor of the Panasonic Lumix DMC-GM1:
- More detail: Has more megapixels (15.8 vs 9.9MP), which boosts linear resolution by 26%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (99x55mm vs 139x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 456g or 69 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in October 2013).
If the count of relative strengths (bullet points above) is taken as a measure, the GH5s is the clear winner of the match-up (21 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Panasonic GH5s and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the GH5s or the GM1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Panasonic GH5s||..||..||84/100||4.5/5||4.5/5||Jan 2018||2,499|
|2.||Panasonic GM1||3/5||+||78/100||5/5||4.5/5||Oct 2013||749|
|3.||Canon R||4/5||o||79/100||4.5/5||4/5||Sep 2018||2,299|
|4.||Panasonic G9||..||+ +||85/100||5/5||5/5||Nov 2017||1,699|
|5.||Panasonic GH5||4.5/5||+ +||85/100||4.5/5||5/5||Jan 2017||1,999|
|6.||Panasonic FZ300||..||+ +||..||4.5/5||4.5/5||Jul 2015||599|
|7.||Panasonic GH4||5/5||+ +||85/100||5/5||5/5||Feb 2014||1,499|
|8.||Panasonic GM5||3.5/5||+||77/100||5/5||4.5/5||Sep 2014||749|
|9.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|10.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|11.||Panasonic GF5||3/5||..||..||4.5/5||4.5/5||Apr 2012||499|
|12.||Panasonic GH3||5/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||1,299|
|13.||Panasonic GF3||3/5||82/100||71/100||4.5/5||4/5||Jun 2011||549|
|14.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|15.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|16.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|17.||Panasonic GH2||5/5||+ +||79/100||4.5/5||5/5||Sep 2010||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Panasonic GH5s vs Panasonic GM1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Panasonic GH5s||Panasonic GM1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||January 2018||October 2013|
|Launch Price||USD 2,499||USD 749|
|Sensor Specs||Panasonic GH5s||Panasonic GM1|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||9.9 Megapixels||15.8 Megapixels|
|Image Resolution||3680 x 2700 pixels||4592 x 3448 pixels|
|Pixel Pitch||4.77 μm||3.77 μm|
|Pixel Density||4.42 MP/cm2||7.04 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/60p Video||1080/60i Video|
|ISO Setting||160 - 51,200 ISO||200 - 25,600 ISO|
|ISO Boost||80 - 204,800 ISO||125 - 25,600 ISO|
|Image Processor||Venus 10||Venus IX|
|DXO Sensor Quality (score)||..||66|
|DXO Color Depth (bits)||..||22.3|
|DXO Dynamic Range (EV)||..||11.7|
|DXO Low Light (ISO)||..||660|
|Screen Specs||Panasonic GH5s||Panasonic GM1|
|Viewfinder Type||Electronic viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1620k dots||1036k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Panasonic GH5s||Panasonic GM1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/500s|
|Continuous Shooting||12 shutter flaps/s||5 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Dual UHS-II||UHS-I|
|Connectivity Specs||Panasonic GH5s||Panasonic GM1|
|External Flash||Hotshoe||no Hotshoe|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.1||USB 2.0|
|HDMI Port||full HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Panasonic GH5s||Panasonic GM1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||440 shots per charge||230 shots per charge|
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
99 x 55 x 30 mm
(3.9 x 2.2 x 1.2 in)
|Camera Weight||660 g (23.3 oz)||204 g (7.2 oz)|
