Panasonic GH4 vs Samsung NX1
The Panasonic Lumix DMC-GH4 and the Samsung NX1 are two enthusiast cameras that were revealed to the public, respectively, in February 2014 and September 2014. Both the GH4 and the NX1 are mirrorless interchangeable lens cameras that are based on a Four Thirds (GH4) and an APS-C (NX1) sensor. The Panasonic has a resolution of 15.9 megapixels, whereas the Samsung provides 28 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Panasonic GH4||Samsung NX1|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Samsung NX mount lenses|
|15.9 MP, Four Thirds Sensor||28 MP, APS-C Sensor|
|4K/30p Video||4K/30p Video|
|ISO 200-25,600||ISO 100-25,600 (100 - 51,200)|
|Electronic viewfinder (2359k dots)||Electronic viewfinder (2360k dots)|
|3.0 LCD, 1036k dots||3.0 LCD, 1036k dots|
|Swivel touchscreen||Tilting touchscreen|
|12 shutter flaps per second||15 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|500 shots per battery charge||500 shots per battery charge|
|133 x 93 x 84 mm, 560 g||139 x 102 x 66 mm, 550 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GH4 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

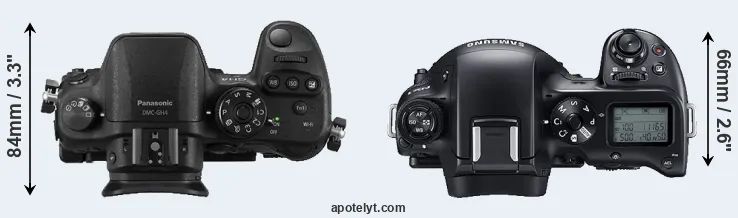

The physical size and weight of the Panasonic GH4 and the Samsung NX1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is notably larger (15 percent) than the Panasonic GH4. However, the NX1 is slightly lighter (2 percent) than the GH4. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Panasonic GH4||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499|
|Samsung NX1||5.5 in||4.0 in||2.6 in||19.4 oz||500||Y||Sep 2014||1,499|
|Fujifilm X-Pro2||5.6 in||3.3 in||1.8 in||17.5 oz||350||Y||Jan 2016||1,699|
|Fujifilm X-T2||5.2 in||3.6 in||1.9 in||17.9 oz||340||Y||Jul 2016||1,599|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic G85||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GX8||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199|
|Panasonic GM5||3.9 in||2.4 in||1.4 in||7.4 oz||220||n||Sep 2014||749|
|Panasonic G6||4.8 in||3.3 in||2.8 in||13.8 oz||340||n||Apr 2013||599|
|Panasonic GM1||3.9 in||2.2 in||1.2 in||7.2 oz||230||n||Oct 2013||749|
|Panasonic GH3||5.2 in||3.7 in||3.2 in||19.4 oz||540||Y||Sep 2012||1,299|
|Samsung NX500||4.7 in||2.5 in||1.7 in||10.1 oz||370||n||Feb 2015||799|
|Sony A7||5.0 in||3.7 in||1.9 in||16.7 oz||340||Y||Oct 2013||1,699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

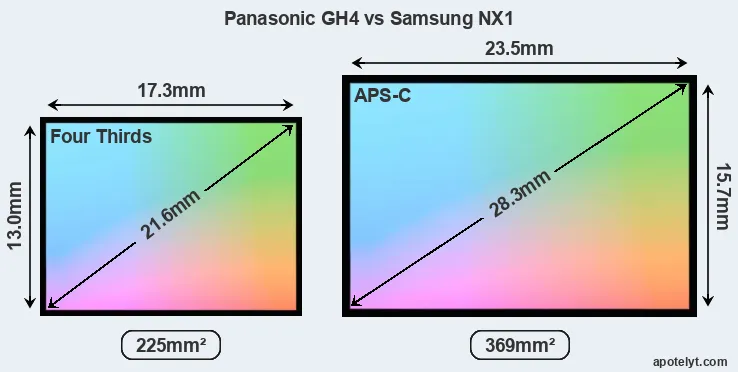

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Panasonic GH4 features a Four Thirds sensor and the Samsung NX1 an APS-C sensor. The sensor area in the NX1 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the GH4 has a native 4:3 aspect ratio, while the one in the NX1 offers a 3:2 aspect.

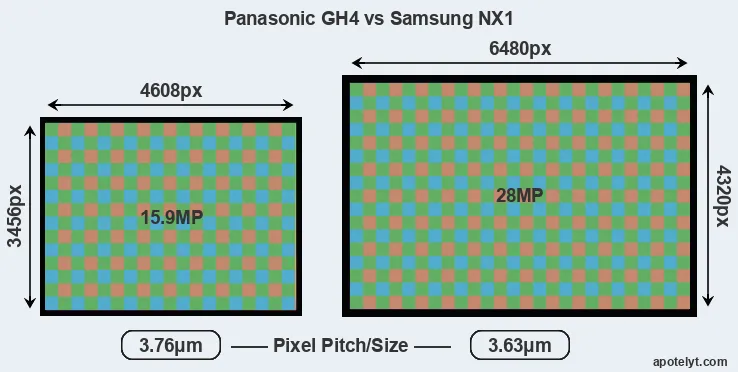

With 28MP, the NX1 offers a higher resolution than the GH4 (15.9MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 3.76μm for the GH4). Yet, the NX1 is a somewhat more recent model (by 7 months) than the GH4, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Panasonic GH4 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Panasonic Lumix DMC-GH4 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NX1 has a markedly higher DXO score than the GH4 (overall score 9 points higher), which will translate into better image quality. The advantage is based on 1 bits higher color depth, 0.4 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|Panasonic GM1||Four Thirds||15.8||4592||3448||1080/60i||22.3||11.7||660||66|
|Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|Sony A7||Full Frame||24.0||6000||4000||1080/60p||24.8||14.2||2248||90|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the NX1 offers a slightly higher resolution than the one in the GH4 (2360k vs 2359k dots). The table below summarizes some of the other core capabilities of the Panasonic GH4 and Samsung NX1 in connection with corresponding information for a sample of similar cameras.
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that is present on the NX1, but is missing on the GH4 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The GH4 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the NX1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH4 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GH4 and the Samsung NX1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the GH4 and the NX1 write their files to SDXC cards. The NX1 supports UHS-II cards (on its first slot), while the GH4 can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GH4 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
Studio photographers will appreciate that the Panasonic GH4 (unlike the NX1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the GH4 and the NX1 have been discontinued, but can regularly be found used on eBay. The GH4 was replaced by the Panasonic GH5, while the NX1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Panasonic and Samsung websites.
So how do things add up? Is the Panasonic GH4 better than the Samsung NX1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Panasonic Lumix DMC-GH4:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (133x93mm vs 139x102mm) and thus needs less room in the bag.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in February 2014).
Advantages of the Samsung NX1:
- More detail: Has more megapixels (28 vs 15.9MP), which boosts linear resolution by 35%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
- Better low-light sensitivity: Can shoot in dim conditions (0.8 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.69x vs 0.67x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster burst: Shoots at higher frequency (15 vs 12 flaps/sec) to capture the decisive moment.
- Easier travel charging: Can be conveniently charged via its USB port.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Was introduced somewhat (7 months) more recently.
If the count of individual advantages (bullet points above) is taken as a guide, the NX1 is the clear winner of the contest (12 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Panasonic GH4 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the GH4 or the NX1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Samsung NX1||..||87/100||5/5||4.5/5||5/5||Sep 2014||1,499|
|Fujifilm X-Pro2||+||83/100||4.5/5||4.5/5||4.5/5||Jan 2016||1,699|
|Fujifilm X-T2||+ +||86/100||4.5/5||5/5||5/5||Jul 2016||1,599|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic G85||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Panasonic GM5||+||77/100||5/5||5/5||4.5/5||Sep 2014||749|
|Panasonic G6||+ +||..||5/5||..||4.5/5||Apr 2013||599|
|Panasonic GM1||+||78/100||5/5||4.5/5||4.5/5||Oct 2013||749|
|Panasonic GH3||+ +||79/100||4.5/5||5/5||4.5/5||Sep 2012||1,299|
|Samsung NX500||..||81/100||5/5||4.5/5||4.5/5||Feb 2015||799|
|Sony A7||+ +||80/100||5/5||4.5/5||5/5||Oct 2013||1,699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 550D vs Panasonic GH4
- Canon M100 vs Panasonic GH4
- Fujifilm X-A10 vs Samsung NX1
- Fujifilm X-E1 vs Panasonic GH4
- Fujifilm X20 vs Samsung NX1
- Nikon 1 J5 vs Panasonic GH4
- Nikon L840 vs Panasonic GH4
- Olympus E-5 vs Panasonic GH4
- Olympus XZ-2 vs Samsung NX1
- Panasonic FZ1000 II vs Panasonic GH4
- Panasonic G7 vs Samsung NX1
- Panasonic LF1 vs Samsung NX1
Specifications: Panasonic GH4 vs Samsung NX1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Panasonic GH4||Samsung NX1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Samsung NX mount lenses|
|Launch Date||February 2014||September 2014|
|Launch Price||USD 1,499||USD 1,499|
|Sensor Specs||Panasonic GH4||Samsung NX1|
|Sensor Format||Four Thirds Sensor||APS-C Sensor|
|Sensor Size||17.3 x 13.0 mm||23.5 x 15.7 mm|
|Sensor Area||224.9 mm2||368.95 mm2|
|Sensor Diagonal||21.6 mm||28.3 mm|
|Sensor Resolution||15.9 Megapixels||28 Megapixels|
|Image Resolution||4608 x 3456 pixels||6480 x 4320 pixels|
|Pixel Pitch||3.76 μm||3.63 μm|
|Pixel Density||7.08 MP/cm2||7.59 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 51,200 ISO|
|Image Processor||Venus IX||DRIMe 5|
|DXO Sensor Quality (score)||74||83|
|DXO Color Depth (bits)||23.2||24.2|
|DXO Dynamic Range (EV)||12.8||13.2|
|DXO Low Light (ISO)||791||1363|
|Screen Specs||Panasonic GH4||Samsung NX1|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2359k dots||2360k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1036k dots||1036k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Panasonic GH4||Samsung NX1|
|Focus System||Contrast-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||12 shutter flaps/s||15 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations||150 000 actuations|
|Electronic Shutter||up to 1/8000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||Single UHS-II|
|Connectivity Specs||Panasonic GH4||Samsung NX1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Panasonic GH4||Samsung NX1|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||500 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
133 x 93 x 84 mm
(5.2 x 3.7 x 3.3 in)
139 x 102 x 66 mm
(5.5 x 4.0 x 2.6 in)
|Camera Weight||560 g (19.8 oz)||550 g (19.4 oz)|
