Olympus TG-5 vs Samsung NX30

The Olympus Tough TG-5 and the Samsung NX30 are two digital cameras that were officially introduced, respectively, in May 2017 and January 2014. The TG-5 is a fixed lens compact, while the NX30 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (TG-5) and an APS-C (NX30) sensor. The Olympus has a resolution of 12 megapixels, whereas the Samsung provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus TG-5		Samsung NX30
Fixed lens compact camera		Mirrorless system camera
25-100mm f/2.0-4.9		Samsung NX mount lenses
12 MP – 1/2.3" sensor		20 MP – APS-C sensor
4K/30p Video		1080/60p Video
ISO 100-12,800		ISO 100-25,600
No viewfinder, LCD framing		Electronic viewfinder (2359k dots)
3.0" LCD – 460k dots		3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
20 shutter flaps per second		9 shutter flaps per second
In-body stabilization		Lens stabilization only
Waterproof body (15m)		not weather sealed
340 shots per battery charge		360 shots per battery charge
113 x 66 x 32 mm, 250 g		127 x 96 x 58 mm, 375 g

Check TG-5 offers at
ebay.com
Check NX30 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Samsung NX30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

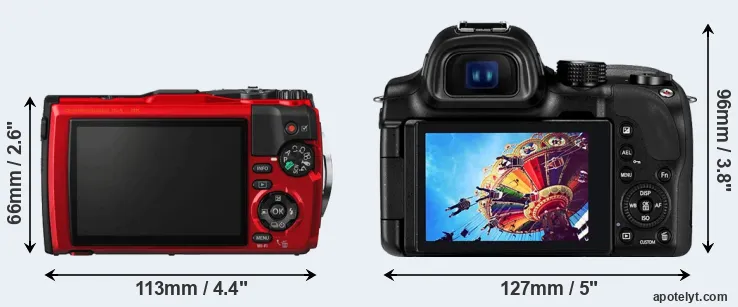

The side-by-side display below illustrates the physical size and weight of the Olympus TG-5 and the Samsung NX30. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the NX30 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX30 is considerably larger (63 percent) than the Olympus TG-5. It is worth mentioning in this context that the TG-5 is splash and dust resistant, while the NX30 does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the NX30 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
2.		Samsung NX30	127 mm	96 mm	58 mm	375 g	360	n	Jan 2014	999	ebay.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
4.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	679	ebay.com
5.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	979	ebay.com
6.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
7.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	229	ebay.com
8.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	499	ebay.com
9.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
10.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	ebay.com
11.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	1,999	ebay.com
12.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
13.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
14.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	ebay.com
15.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
16.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	549	amazon.com
17.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-5 was launched at a lower price than the NX30, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus TG-5 features a 1/2.3-inch sensor and the Samsung NX30 an APS-C sensor. The sensor area in the NX30 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the TG-5 has a native 4:3 aspect ratio, while the one in the NX30 offers a 3:2 aspect.

With 20MP, the NX30 offers a higher resolution than the TG-5 (12MP), but the NX30 nevertheless has larger individual pixels (pixel pitch of 4.30μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a much more recent model (by 3 years and 4 months) than the NX30, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX30 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX30 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The NX30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Samsung NX30 are ISO 100 to ISO 25600 (no boost).

In terms of underlying technology, the TG-5 is build around a BSI-CMOS sensor, while the NX30 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
2.		Samsung NX30	APS-C	20.0	5472	3648	1080/60p	23.5	12.4	1014	76
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
5.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
6.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
7.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
8.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
9.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
10.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
11.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
12.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
13.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
14.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
15.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
16.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
17.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the TG-5 provides a higher video resolution than the NX30. It can shoot video footage at 4K/30p, while the Samsung is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX30 has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the TG-5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus TG-5 and Samsung NX30 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
2.		Samsung NX30	2359	n	3.0 / 1036	swivel	Y	1/8000s	9.0/s	Y	n
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
5.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
7.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
8.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
9.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
10.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
11.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
12.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
13.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
14.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
15.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
16.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
17.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX30 has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus TG-5 and the Samsung NX30 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TG-5 and the NX30 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Samsung NX30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Samsung NX30	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
8.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
10.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
12.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
16.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the NX30 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The TG-5 does not feature such an accessory-socket.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the TG-5 and the NX30 have been discontinued, but can regularly be found used on ebay. The TG-5 was replaced by the Olympus TG-6, while the NX30 does not have a direct successor. Further information on the features and operation of the TG-5 and NX30 can be found, respectively, in the Olympus TG-5 Manual (free pdf) or the online Samsung NX30 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Olympus TG-5 or the Samsung NX30 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Olympus Tough TG-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Faster burst: Shoots at higher frequency (20 vs 9 flaps/sec) to capture the decisive moment.
• Ready to shoot: Has a lens built-in, whereas the NX30 requires a separate lens.
• More compact: Is smaller (113x66mm vs 127x96mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the NX30).
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 3 years and 4 months of technical progress since the NX30 launch.

Reasons to prefer the Samsung NX30:

• More detail: Has more megapixels (20 vs 12MP), which boosts linear resolution by 32%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been around for much longer (launched in January 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the NX30 is the clear winner of the contest (17 : 12 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus TG-5 and the Samsung NX30 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the TG-5 and the NX30 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
2.		Samsung NX30	3/5	..	..	77/100	4.5/5	4.5/5	Jan 2014	999	ebay.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
4.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	679	ebay.com
5.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	979	ebay.com
6.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
7.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	229	ebay.com
8.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	499	ebay.com
9.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
10.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	ebay.com
11.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	1,999	ebay.com
12.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
13.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
14.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	ebay.com
15.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
16.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	549	amazon.com
17.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check TG-5 offers at
ebay.com
Check NX30 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check TG-5 offers at
ebay.com
Check NX30 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
