Olympus TG-5 vs Panasonic GX1

The Olympus Tough TG-5 and the Panasonic Lumix DMC-GX1 are two digital cameras that were officially introduced, respectively, in May 2017 and November 2011. The TG-5 is a fixed lens compact, while the GX1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (TG-5) and a Four Thirds (GX1) sensor. The Olympus has a resolution of 12 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus TG-5		Panasonic GX1
Fixed lens compact camera		Mirrorless system camera
25-100mm f/2.0-4.9		Micro Four Thirds lenses
12 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
4K/30p Video		1080/60p Video
ISO 100-12,800		ISO 160-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 460k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
20 shutter flaps per second		4.2 shutter flaps per second
In-body stabilization		Lens stabilization only
Waterproof body (15m)		not weather sealed
340 shots per battery charge		320 shots per battery charge
113 x 66 x 32 mm, 250 g		116 x 68 x 39 mm, 318 g

Check TG-5 offers at
ebay.com
Check GX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Panasonic Lumix DMC-GX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Olympus TG-5 and the Panasonic GX1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the GX1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX1 is notably larger (6 percent) than the Olympus TG-5. It is worth mentioning in this context that the TG-5 is splash and dust resistant, while the GX1 does not feature any corresponding weather-sealing. More than that, the TG-5 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-5 has a lens built in, whereas the GX1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GX1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the TG-5 gets 340 shots out of its Olympus LI-92B battery, while the GX1 can take 320 images on a single charge of its Panasonic DMW-BLD10 power pack. The power pack in the TG-5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	449	ebay.com
2.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	699	ebay.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
4.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
5.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	229	ebay.com
6.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	ebay.com
7.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	449	ebay.com
8.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	1,999	ebay.com
9.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	379	ebay.com
10.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
11.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
12.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	549	amazon.com
13.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	749	ebay.com
14.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
15.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	599	ebay.com
16.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	599	ebay.com
17.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-5 was launched at a lower price than the GX1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus TG-5 features a 1/2.3-inch sensor and the Panasonic GX1 a Four Thirds sensor. The sensor area in the GX1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

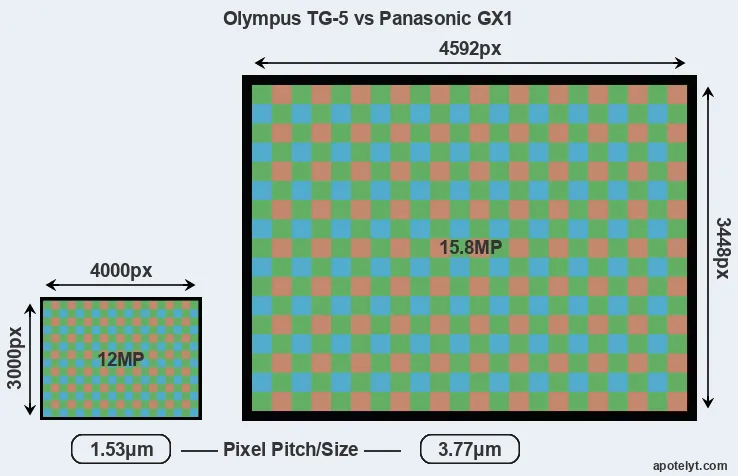

With 15.8MP, the GX1 offers a higher resolution than the TG-5 (12MP), but the GX1 nevertheless has larger individual pixels (pixel pitch of 3.77μm versus 1.53μm for the TG-5) due to its larger sensor. However, the TG-5 is a much more recent model (by 5 years and 6 months) than the GX1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Panasonic GX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX1 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-GX1 are ISO 160 to ISO 12800 (no boost).

In terms of underlying technology, the TG-5 is build around a BSI-CMOS sensor, while the GX1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
2.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
5.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
6.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
7.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
8.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
9.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
10.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
11.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
12.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
13.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
14.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
15.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
16.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
17.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the TG-5 provides a higher video resolution than the GX1. It can shoot video footage at 4K/30p, while the Panasonic is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The TG-5 and the GX1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the GX1 can be equipped with an optional viewfinder – the DMW-LVF2. The table below summarizes some of the other core capabilities of the Olympus TG-5 and Panasonic GX1 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
2.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
5.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
6.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
7.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
8.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
9.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
10.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
11.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
12.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
13.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
14.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
15.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
16.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
17.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GX1 has a touchscreen, while the TG-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TG-5 and the GX1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Panasonic Lumix DMC-GX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
6.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
9.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
12.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the TG-5 offers wifi support, while the GX1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the TG-5 and the GX1 have been discontinued, but can regularly be found used on ebay. The GX1 was replaced by the Panasonic GX7, while the TG-5 was followed by the Olympus TG-6. Further information on the features and operation of the TG-5 and GX1 can be found, respectively, in the Olympus TG-5 Manual (free pdf) or the online Panasonic GX1 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Olympus TG-5 and the Panasonic GX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus Tough TG-5:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Faster burst: Shoots at higher frequency (20 vs 4.2 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the GX1 requires a separate lens.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the GX1).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 6 months of technical progress since the GX1 launch.

Reasons to prefer the Panasonic Lumix DMC-GX1:

• More detail: Has more megapixels (15.8 vs 12MP), which boosts linear resolution by 15%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in November 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the TG-5 emerges as the winner of the contest (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus TG-5 and the Panasonic GX1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TG-5 or the GX1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	449	ebay.com
2.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	699	ebay.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
4.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
5.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	229	ebay.com
6.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	ebay.com
7.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	449	ebay.com
8.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	1,999	ebay.com
9.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	379	ebay.com
10.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
11.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
12.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	549	amazon.com
13.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	749	ebay.com
14.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
15.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	599	ebay.com
16.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	599	ebay.com
17.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check TG-5 offers at
ebay.com
Check GX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check TG-5 offers at
ebay.com
Check GX1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
