Olympus PEN-F vs Sony RX100 V
The Olympus PEN-F and the Sony Cyber-shot DSC-RX100 V are two digital cameras that were officially introduced, respectively, in January 2016 and October 2016. The PEN-F is a mirrorless interchangeable lens camera, while the RX100 V is a fixed lens compact. The cameras are based on a Four Thirds (PEN-F) and an one-inch (RX100 V) sensor. The Olympus has a resolution of 20.2 megapixels, whereas the Sony provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN-F and the Sony Cyber-shot DSC-RX100 V? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Olympus PEN-F and the Sony RX100 V. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The PEN-F can be obtained in two different colors (black, silver), while the RX100 V is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX100 V is considerably smaller (34 percent) than the Olympus PEN-F. In this context, it is worth noting that neither the PEN-F nor the RX100 V are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the RX100 V has a lens built in, whereas the PEN-F is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the PEN-F and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the PEN-F gets 330 shots out of its BLN-1 battery, while the RX100 V can take 220 images on a single charge of its NP-BX1 power pack. The power pack in the RX100 V can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|2.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|3.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|5.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799|
|6.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|7.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|8.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|9.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|10.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|11.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|12.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|13.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|14.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|15.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|16.||Sony RX100 VII||102 mm||58 mm||43 mm||302 g||260||n||Jul 2019||1,199|
|17.||Sony RX100 IV||102 mm||58 mm||41 mm||298 g||280||n||Jun 2015||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The RX100 V was launched at a lower price than the PEN-F, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

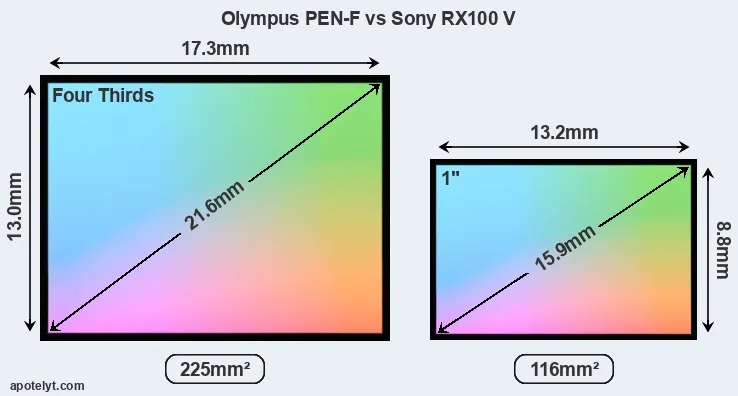

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus PEN-F features a Four Thirds sensor and the Sony RX100 V an one-inch sensor. The sensor area in the RX100 V is 48 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 2.7. The sensor in the PEN-F has a native 4:3 aspect ratio, while the one in the RX100 V offers a 3:2 aspect.

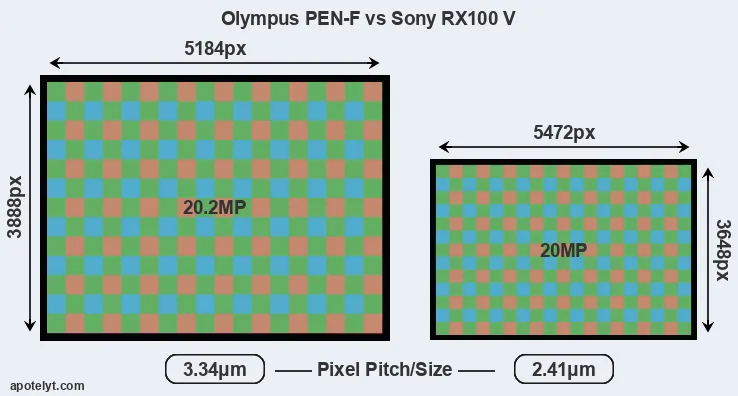

With 20.2MP, the PEN-F offers a slightly higher resolution than the RX100 V (20MP), but the PEN-F nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 2.41μm for the RX100 V) due to its larger sensor. However, the RX100 V is a somewhat more recent model (by 8 months) than the PEN-F, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
Unlike the RX100 V, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus PEN-F has a native sensitivity range from ISO 80 to ISO 25600. The corresponding ISO settings for the Sony Cyber-shot DSC-RX100 V are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the PEN-F has a notably higher overall DXO score than the RX100 V (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.3 bits higher color depth, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|1.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|2.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
|3.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|5.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|6.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|7.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|8.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|9.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|10.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|11.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|12.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|13.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|14.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|15.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|16.||Sony RX100 VII||1-inch||20.0||5472||3648||4K/30p||21.8||12.4||418||63|
|17.||Sony RX100 IV||1-inch||20.0||5472||3648||4K/30p||22.8||12.6||591||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the RX100 V provides a better video resolution than the PEN-F. It can shoot movie footage at 4K/30p, while the Olympus is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the PEN-F offers a slightly higher resolution than the one in the RX100 V (2360k vs 2359k dots). The table below summarizes some of the other core capabilities of the Olympus PEN-F and Sony RX100 V in connection with corresponding information for a sample of similar cameras.
|2.||Sony RX100 V||2359||n||3.0||1229||tilting||n||1/2000s||24.0||Y||Y|
|3.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|4.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
|5.||Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|6.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|8.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|9.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|16.||Sony RX100 VII||2359||n||3.0||921||tilting||Y||1/2000s||90.0||Y||Y|
|17.||Sony RX100 IV||2359||n||3.0||1228||tilting||n||1/2000s||16.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The PEN-F has a touchscreen, while the RX100 V has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus PEN-F has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The PEN-F writes its imaging data to SDXC cards, while the RX100 V uses SDXC or Memory Stick PRO Duo cards. The PEN-F supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the RX100 V can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN-F and Sony Cyber-shot DSC-RX100 V and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Sony RX100 V||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|4.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
|5.||Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|6.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|8.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|9.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|16.||Sony RX100 VII||-||stereo||mono||Y||-||micro||2.0||Y||Y||Y|
|17.||Sony RX100 IV||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the PEN-F has a hotshoe, while the RX100 V does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The RX100 V is a recent model that features in the current product line-up of Sony. In contrast, the PEN-F has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the PEN-F from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Sony websites.
So how do things add up? Is the Olympus PEN-F better than the Sony RX100 V or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus PEN-F:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
- Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.59x).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Longer lasting: Can take more shots (330 versus 220) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in January 2016).
Reasons to prefer the Sony Cyber-shot DSC-RX100 V:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- More detailed LCD: Has a higher resolution rear screen (1229k vs 1037k dots).
- Faster burst: Shoots at higher frequency (24 vs 10 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has an integrated lens, whereas the PEN-F necessitates an extra lens.
- More compact: Is smaller (102x58mm vs 125x72mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the PEN-F).
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Was introduced somewhat (8 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the PEN-F emerges as the winner of the contest (14 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus PEN-F and the Sony RX100 V place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the PEN-F or the RX100 V. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|2.||Sony RX100 V||4.5/5||+ +||83/100||4/5||4.5/5||Oct 2016||999|
|3.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|4.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|5.||Canon G5 X||5/5||+ +||78/100||4.5/5||4.5/5||Oct 2015||799|
|6.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|7.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|8.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|9.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|10.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|11.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|12.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|13.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|14.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|15.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|16.||Sony RX100 VII||4.5/5||..||..||4/5||5/5||Jul 2019||1,199|
|17.||Sony RX100 IV||4.5/5||+ +||85/100||4/5||4.5/5||Jun 2015||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Olympus PEN-F vs Sony RX100 V
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus PEN-F||Sony RX100 V|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Micro Four Thirds lenses||24-70mm f/1.8-2.8|
|Launch Date||January 2016||October 2016|
|Launch Price||USD 1,199||USD 999|
|Sensor Specs||Olympus PEN-F||Sony RX100 V|
|Sensor Format||Four Thirds Sensor||1" Sensor|
|Sensor Size||17.3 x 13.0 mm||13.2 x 8.8 mm|
|Sensor Area||224.9 mm2||116.16 mm2|
|Sensor Diagonal||21.6 mm||15.9 mm|
|Sensor Resolution||20.2 Megapixels||20 Megapixels|
|Image Resolution||5184 x 3888 pixels||5472 x 3648 pixels|
|Pixel Pitch||3.34 μm||2.41 μm|
|Pixel Density||8.96 MP/cm2||17.18 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||80 - 25,600 ISO||125 - 12,800 ISO|
|ISO Boost||no Enhancement||80 - 25,600 ISO|
|Image Processor||TruePic VII||BIONZ X|
|DXO Sensor Quality (score)||74||70|
|DXO Color Depth (bits)||23.1||22.8|
|DXO Dynamic Range (EV)||12.4||12.4|
|DXO Low Light (ISO)||894||586|
|Screen Specs||Olympus PEN-F||Sony RX100 V|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2359k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||1229k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus PEN-F||Sony RX100 V|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/2000s|
|Continuous Shooting||10 shutter flaps/s||24 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens-based stabilization|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Olympus PEN-F||Sony RX100 V|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Olympus PEN-F||Sony RX100 V|
|Battery Life (CIPA)||330 shots per charge||220 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
125 x 72 x 37 mm
(4.9 x 2.8 x 1.5 in)
102 x 58 x 41 mm
(4.0 x 2.3 x 1.6 in)
|Camera Weight||427 g (15.1 oz)||299 g (10.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
