Olympus E-PM2 vs Panasonic LX15

The Olympus PEN E-PM2 and the Panasonic Lumix DMC-LX15 (labelled Panasonic LX10 in some countries) are two digital cameras that were announced, respectively, in September 2012 and September 2016. The E-PM2 is a mirrorless interchangeable lens camera, while the LX15 is a fixed lens compact. The cameras are based on a Four Thirds (E-PM2) and an one-inch (LX15) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PM2		Panasonic LX15
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		24-72mm f/1.4-2.8
15.9 MP – Four Thirds sensor		20 MP – 1" sensor
1080/30p Video		4K/30p Video
ISO 100-25,600		ISO 125-12,800 (80 - 25,600)
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Tilting touchscreen
8 shutter flaps per second		10 shutter flaps per second
In-body stabilization		In-body stabilization
360 shots per battery charge		260 shots per battery charge
110 x 64 x 34 mm, 269 g		106 x 60 x 42 mm, 310 g

Check E-PM2 offers at
ebay.com
Check LX15 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PM2 and the Panasonic Lumix DMC-LX15? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

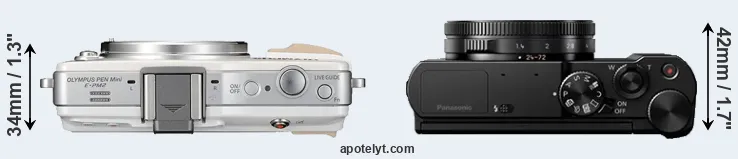

The physical size and weight of the Olympus E-PM2 and the Panasonic LX15 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PM2 can be obtained in four different colors (black, silver, red, white), while the LX15 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX15 is notably smaller (10 percent) than the Olympus E-PM2. In this context, it is worth noting that neither the E-PM2 nor the LX15 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX15 has a lens built in, whereas the E-PM2 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PM2 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PM2 gets 360 shots out of its Olympus BLS-5 battery, while the LX15 can take 260 images on a single charge of its Panasonic DMW-BLH7 power pack. The power pack in the LX15 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
2.		Panasonic LX15	106 mm	60 mm	42 mm	310 g	260	n	Sep 2016	699	amazon.com
3.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	799	ebay.com
5.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	599	ebay.com
6.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
7.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
8.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
9.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
10.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
12.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
13.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
14.		Panasonic TZ200	111 mm	65 mm	45 mm	340 g	370	n	Feb 2018	799	amazon.com
15.		Panasonic GX850	107 mm	65 mm	33 mm	269 g	210	n	Jan 2017	549	ebay.com
16.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
17.		Panasonic TZ100	111 mm	65 mm	44 mm	312 g	300	n	Jan 2016	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PM2 features a Four Thirds sensor and the Panasonic LX15 an one-inch sensor. The sensor area in the LX15 is 48 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 2.7. The sensor in the E-PM2 has a native 4:3 aspect ratio, while the one in the LX15 offers a 3:2 aspect. The LX15 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

Despite having a smaller sensor, the LX15 offers a higher resolution of 20 megapixels, compared with 15.9 MP of the E-PM2. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 3.76μm for the E-PM2). However, it should be noted that the LX15 is much more recent (by 4 years) than the E-PM2, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic LX15 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the LX15 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Olympus E-PM2 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Olympus PEN E-PM2 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-LX15 are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

In terms of underlying technology, the E-PM2 is build around a CMOS sensor, while the LX15 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
2.		Panasonic LX15	1-inch	20.0	5472	3648	4K/30p	21.9	12.0	315	62
3.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
6.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
7.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
8.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
9.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
10.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
13.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
14.		Panasonic TZ200	1-inch	20.0	5472	3648	4K/30p	22.0	12.2	449	64
15.		Panasonic GX850	Four Thirds	15.8	4592	3448	4K/30p	23.2	13.3	586	73
16.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
17.		Panasonic TZ100	1-inch	20.0	5472	3648	4K/30p	22.8	12.5	559	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the LX15 provides a better video resolution than the E-PM2. It can shoot movie footage at 4K/30p, while the Olympus is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The E-PM2 and the LX15 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PM2 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Olympus E-PM2 and Panasonic LX15 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
2.		Panasonic LX15	none	n	3.0 / 1040	tilting	Y	1/4000s	10.0/s	Y	Y
3.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
6.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
7.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
8.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
10.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
13.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
14.		Panasonic TZ200	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
15.		Panasonic GX850	none	n	3.0 / 1040	tilting	Y	1/500s	10.0/s	Y	n
16.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Panasonic TZ100	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The LX15 has one, while the E-PM2 does not. While the built-in flash of the LX15 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the LX15 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic LX15 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PM2 and the LX15 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PM2 and Panasonic Lumix DMC-LX15 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Panasonic LX15	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
6.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic TZ200	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Panasonic GX850	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic TZ100	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the E-PM2 has a hotshoe, while the LX15 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

The LX15 is a recent model that features in the current product line-up of Panasonic. In contrast, the E-PM2 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the E-PM2 from Olympus. Further information on the features and operation of the E-PM2 and LX15 can be found, respectively, in the Olympus E-PM2 Manual (free pdf) or the online Panasonic LX15 Manual.

Review summary

So what is the bottom line? Is the Olympus E-PM2 better than the Panasonic LX15 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus PEN E-PM2:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (360 versus 260) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been available for much longer (launched in September 2012).

Arguments in favor of the Panasonic Lumix DMC-LX15:

• More detail: Has more megapixels (20 vs 15.9MP), which boosts linear resolution by 14%.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the E-PM2 necessitates an extra lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 4 years of technical progress since the E-PM2 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the LX15 is the clear winner of the contest (14 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PM2 and the Panasonic LX15 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-PM2 and the LX15 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
2.		Panasonic LX15	..	+ +	4/5	81/100	4/5	4.5/5	Sep 2016	699	amazon.com
3.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	799	ebay.com
5.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	599	ebay.com
6.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
7.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
8.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
9.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
10.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
12.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
13.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
14.		Panasonic TZ200	..	+ +	4.5/5	81/100	4.5/5	4.5/5	Feb 2018	799	amazon.com
15.		Panasonic GX850	..	+	..	76/100	4.5/5	4.5/5	Jan 2017	549	ebay.com
16.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	449	ebay.com
17.		Panasonic TZ100	4.5/5	+ +	..	82/100	4.5/5	4.5/5	Jan 2016	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
