Olympus E-PL9 vs Pentax K-1
The Olympus PEN E-PL9 and the Pentax K-1 are two digital cameras that were announced, respectively, in February 2018 and February 2016. The E-PL9 is a mirrorless interchangeable lens camera, while the K-1 is a DSLR. The cameras are based on a Four Thirds (E-PL9) and a full frame (K-1) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL9 and the Pentax K-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

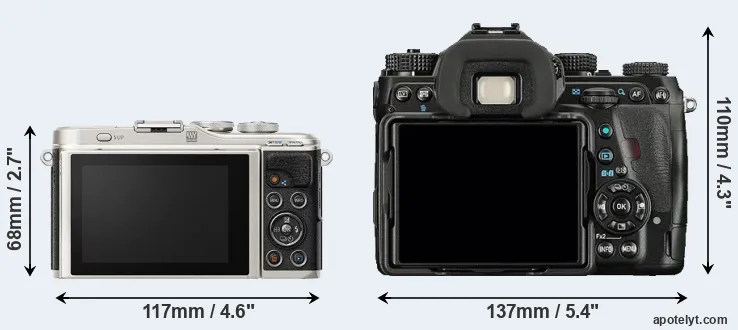

The physical size and weight of the Olympus E-PL9 and the Pentax K-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL9 can be obtained in four different colors (black, brown, blue, white), while the K-1 is available in two color-versions (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 is considerably larger (89 percent) than the Olympus E-PL9. Moreover, the K-1 is substantially heavier (166 percent) than the E-PL9. It is noteworthy in this context that the K-1 is splash and dust-proof, while the E-PL9 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|2.||Pentax K-1||137 mm||110 mm||86 mm||1010 g||760||Y||Feb 2016||1,799|
|3.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|4.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|5.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|6.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|7.||Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|8.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|9.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|10.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|11.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|12.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|13.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|14.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Pentax K-1 II||137 mm||110 mm||86 mm||1010 g||670||Y||Feb 2018||1,999|
|17.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL9 was launched at a markedly lower price (by 67 percent) than the K-1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Olympus E-PL9 features a Four Thirds sensor and the Pentax K-1 a full frame sensor. The sensor area in the K-1 is 283 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-PL9 has a native 4:3 aspect ratio, while the one in the K-1 offers a 3:2 aspect.
With 36.2MP, the K-1 offers a higher resolution than the E-PL9 (15.9MP), but the K-1 nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 3.76μm for the E-PL9) due to its larger sensor. However, the E-PL9 is a somewhat more recent model (by 1 year and 11 months) than the K-1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Olympus E-PL9 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
Unlike the E-PL9, the K-1 has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus PEN E-PL9 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax K-1 are ISO 100 to ISO 204800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|2.||Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|3.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|5.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|6.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|7.||Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|8.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|9.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|10.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|11.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|12.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|13.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|14.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|17.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL9 provides a higher video resolution than the K-1. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the K-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL9 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus E-PL9, the Pentax K-1, and comparable cameras.
|3.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|6.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|7.||Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|9.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|16.||Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|17.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The E-PL9 has one, while the K-1 does not. While the built-in flash of the E-PL9 is not very powerful, it can at times be useful as a fill-in light.The E-PL9 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the K-1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL9 and the Pentax K-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-PL9 and the K-1 write their files to SDXC cards. The K-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL9 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL9 and Pentax K-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|6.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|7.||Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|9.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|16.||Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|17.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The E-PL9 lacks such a headphone port.
Studio photographers will appreciate that the Pentax K-1 (unlike the E-PL9) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the K-1 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the E-PL9 and the K-1 have been discontinued, but can regularly be found used on eBay. The K-1 was replaced by the Pentax K-1 II, while the E-PL9 was followed by the Olympus E-PL10. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Pentax websites.
So what conclusions can be drawn? Is there a clear favorite between the Olympus E-PL9 and the Pentax K-1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Olympus PEN E-PL9:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8.6 vs 4.4 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (117x68mm vs 137x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 630g or 62 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (67 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year and 11 months after the K-1).
Arguments in favor of the Pentax K-1:
- More detail: Has more megapixels (36.2 vs 15.9MP), which boosts linear resolution by 54%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Gets more shots (760 versus 350) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in February 2016).
If the count of individual advantages (bullet points above) is taken as a guide, the K-1 is the clear winner of the contest (20 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL9 and the Pentax K-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL9 or the K-1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|2.||Pentax K-1||5/5||..||84/100||5/5||5/5||Feb 2016||1,799|
|3.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|4.||Nikon D500||5/5||+ +||91/100||4.5/5||5/5||Jan 2016||1,999|
|5.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|6.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|7.||Olympus E-M1 II||5/5||+ +||85/100||4.5/5||4.5/5||Sep 2016||1,999|
|8.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|9.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|10.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|11.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|12.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|13.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|14.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|15.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Pentax K-1 II||..||..||79/100||4.5/5||4.5/5||Feb 2018||1,999|
|17.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Olympus E-PL9 vs Pentax K-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL9||Pentax K-1|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Micro Four Thirds lenses||Pentax K mount lenses|
|Launch Date||February 2018||February 2016|
|Launch Price||USD 599||USD 1,799|
|Sensor Specs||Olympus E-PL9||Pentax K-1|
|Sensor Format||Four Thirds Sensor||Full Frame Sensor|
|Sensor Size||17.3 x 13.0 mm||35.9 x 24.0 mm|
|Sensor Area||224.9 mm2||861.6 mm2|
|Sensor Diagonal||21.6 mm||43.2 mm|
|Sensor Resolution||15.9 Megapixels||36.2 Megapixels|
|Image Resolution||4608 x 3456 pixels||7360 x 4912 pixels|
|Pixel Pitch||3.76 μm||4.88 μm|
|Pixel Density||7.08 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60i Video|
|ISO Setting||200 - 6,400 ISO||100 - 204,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VIII||PRIME IV|
|DXO Sensor Quality (score)||..||96|
|DXO Color Depth (bits)||..||25.4|
|DXO Dynamic Range (EV)||..||14.6|
|DXO Low Light (ISO)||..||3280|
|Screen Specs||Olympus E-PL9||Pentax K-1|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1037k dots|
|LCD Attachment||Tilting screen||Fully flexible screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus E-PL9||Pentax K-1|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8.6 shutter flaps/s||4.4 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-PL9||Pentax K-1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Olympus E-PL9||Pentax K-1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||350 shots per charge||760 shots per charge|
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||380 g (13.4 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
