Olympus E-PL7 vs E-PM2
The Olympus PEN E-PL7 and the Olympus PEN E-PM2 are two digital cameras that were announced, respectively, in August 2014 and September 2012. Both the E-PL7 and the E-PM2 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-PL7||Olympus E-PM2|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|15.9 MP, Four Thirds Sensor||15.9 MP, Four Thirds Sensor|
|1080/30p Video||1080/30p Video|
|ISO 200-25600||ISO 100-25600|
|Viewfinder optional||Viewfinder optional|
|3.0" LCD, 1037k dots||3.0" LCD, 460k dots|
|Tilting touchscreen||Fixed touchscreen|
|8 shutter flaps per second||8 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|350 shots per battery charge||360 shots per battery charge|
|115 x 67 x 38 mm, 357 g||110 x 64 x 34 mm, 269 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL7 and the Olympus PEN E-PM2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Olympus E-PL7 vs E-PM2

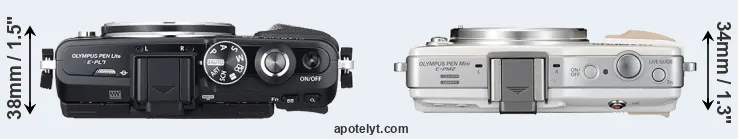

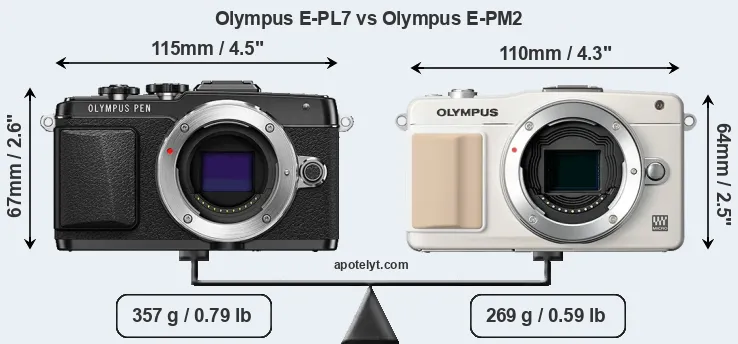

An illustration of the physical size and weight of the Olympus E-PL7 and the Olympus E-PM2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL7 can be obtained in two different colors (black, silver), while the E-PM2 is available in four color-versions (black, silver, red, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM2 is notably smaller (9 percent) than the Olympus E-PL7. Moreover, the E-PM2 is markedly lighter (25 percent) than the E-PL7. In this context, it is worth noting that neither the E-PL7 nor the E-PM2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus E-PL7»||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-PM2«||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499||-||Olympus E-PM2|
|Olympus E-PL9« »||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649||Olympus E-M10 III|
|Olympus E-PL8« »||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549||-||Olympus E-PL8|
|Olympus E-M10 II« »||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M10« »||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||-||Olympus E-M10|
|Olympus E-P5« »||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999||-||Olympus E-P5|
|Olympus E-PL6« »||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599||-||Olympus E-PL6|
|Olympus E-PL5« »||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599||-||Olympus E-PL5|
|Olympus E-PM1« »||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||-||Olympus E-PM1|
|Panasonic G6« »||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599||-||Panasonic G6|
|Panasonic GX7« »||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999||-||Panasonic GX7|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PM2 was launched at a somewhat lower price (by 17 percent) than the E-PL7, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Olympus E-PL7 vs E-PM2

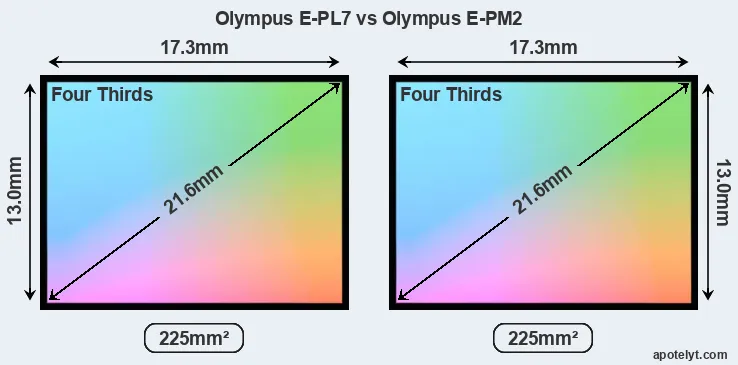

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of chip-set technology, the E-PL7 uses a more advanced image processing engine (TruePic VII) than the E-PM2 (TruePic VI), with benefits for noise reduction, color accuracy, and processing speed.

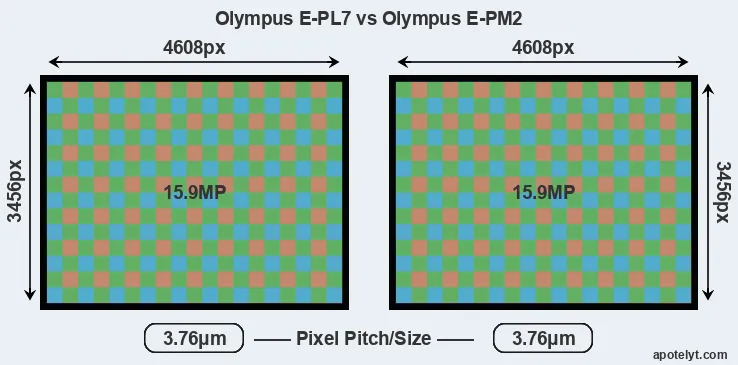

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-PL7 and the E-PM2 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL7 is a somewhat more recent model (by 1 year and 11 months) than the E-PM2, and its sensor might have benefitted from technological advances during this time.
The Olympus PEN E-PL7 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PM2 are ISO 100 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-PL7»||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-PM2«||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72||Olympus E-PM2|
|Olympus E-PL9« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-PL9|
|Olympus E-M10 III« »||Four Thirds||15.9||4608||3456||4K/30p||-||-||-||-||Olympus E-M10 III|
|Olympus E-PL8« »||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL8|
|Olympus E-M10 II« »||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-P5« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72||Olympus E-P5|
|Olympus E-PL6« »||Four Thirds||15.9||4608||3456||1080/30p||-||-||-||-||Olympus E-PL6|
|Olympus E-PL5« »||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72||Olympus E-PL5|
|Olympus E-PM1« »||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52||Olympus E-PM1|
|Panasonic G6« »||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61||Panasonic G6|
|Panasonic GX7« »||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70||Panasonic GX7|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).
Feature comparison: Olympus E-PL7 vs E-PM2
Beyond body and sensor, cameras can and do differ across a range of features. The E-PL7 and the E-PM2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-4 for the E-PL7 and the VF-4 for the E-PM2 – are available as accessories. The table below summarizes some of the other core capabilities of the Olympus E-PL7 and Olympus E-PM2 in connection with corresponding information for a sample of similar cameras.
|Olympus E-PL7»||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-PM2«||-||n||3.0||460||fixed||Y||1/4000s||8.0||n||Y||Olympus E-PM2|
|Olympus E-PL9« »||-||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-PL9|
|Olympus E-M10 III« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y||Olympus E-M10 III|
|Olympus E-PL8« »||-||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL8|
|Olympus E-M10 II« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10« »||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-P5« »||-||n||3.0||1037||tilting||Y||1/8000s||9.0||Y||Y||Olympus E-P5|
|Olympus E-PL6« »||-||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL6|
|Olympus E-PL5« »||-||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL5|
|Olympus E-PM1« »||-||n||3.0||460||fixed||n||1/4000s||5.5||n||Y||Olympus E-PM1|
|Panasonic G6« »||1440||n||3.0||1036||swivel||Y||1/4000s||7.0||Y||n||Panasonic G6|
|Panasonic GX7« »||2760||n||3.0||1040||tilting||Y||1/8000s||5.0||Y||Y||Panasonic GX7|
The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-PL7 and the E-PM2 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
Connectivity comparison: Olympus E-PL7 vs E-PM2
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL7 and Olympus PEN E-PM2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Olympus E-PL7»||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-PM2«||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM2|
|Olympus E-PL9« »||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||Olympus E-PL9|
|Olympus E-M10 III« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 III|
|Olympus E-PL8« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL8|
|Olympus E-M10 II« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-P5« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-P5|
|Olympus E-PL6« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL6|
|Olympus E-PL5« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL5|
|Olympus E-PM1« »||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM1|
|Panasonic G6« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Panasonic G6|
|Panasonic GX7« »||Y||stereo||mono||-||-||mini||2.0||Y||Y||-||Panasonic GX7|
It is notable that the E-PL7 offers wifi support, while the E-PM2 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the E-PL7 and the E-PM2 have been discontinued, but can regularly be found used on eBay. The E-PL7 was replaced by the Olympus E-PL8, while the E-PM2 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
Review summary: Olympus E-PL7 vs E-PM2
So what conclusions can be drawn? Is the Olympus E-PL7 better than the Olympus E-PM2 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Olympus PEN E-PL7:
- Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic VI).
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Is somewhat more recent (announced 1 year and 11 months after the E-PM2).
Reasons to prefer the Olympus PEN E-PM2:
- Less heavy: Has a lower weight (by 88g or 25 percent) and is thus easier to take along.
- More affordable: Was released into a lower priced segment (17 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2012).
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL7 is the clear winner of the match-up (7 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL7 and the Olympus E-PM2 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL7 or the E-PM2. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews: Olympus E-PL7 vs E-PM2
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-PL7»||+||-||5/5||4.5/5||4/5||Aug 2014||599||-||Olympus E-PL7|
|Olympus E-PM2«||-||77/100||5/5||4.5/5||4.5/5||Sep 2012||499||-||Olympus E-PM2|
|Olympus E-PL9« »||+||-||4.5/5||-||4/5||Feb 2018||549||Olympus E-PL9|
|Olympus E-M10 III« »||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649||Olympus E-M10 III|
|Olympus E-PL8« »||-||-||4.5/5||-||4/5||Sep 2016||549||-||Olympus E-PL8|
|Olympus E-M10 II« »||+ +||80/100||5/5||5/5||5/5||Aug 2015||649||-||Olympus E-M10 II|
|Olympus E-M10« »||-||80/100||5/5||4.5/5||5/5||Jan 2014||699||-||Olympus E-M10|
|Olympus E-P5« »||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999||-||Olympus E-P5|
|Olympus E-PL6« »||-||-||-||-||-||May 2013||599||-||Olympus E-PL6|
|Olympus E-PL5« »||+ +||-||4.5/5||4.5/5||4.5/5||Sep 2012||599||-||Olympus E-PL5|
|Olympus E-PM1« »||86/100||71/100||4.5/5||-||4.5/5||Jun 2011||499||-||Olympus E-PM1|
|Panasonic G6« »||+ +||-||5/5||-||4.5/5||Apr 2013||599||-||Panasonic G6|
|Panasonic GX7« »||+||79/100||5/5||4.5/5||5/5||Aug 2013||999||-||Panasonic GX7|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 70D vs Olympus E-PM2
- Canon G1 X Mark II vs Olympus E-PL7
- Fujifilm X-A2 vs Olympus E-PL7
- Nikon 1 V2 vs Olympus E-PL7
- Olympus E-P5 vs Olympus E-PM2
- Olympus E-PL7 vs Olympus PEN-F
- Olympus E-PL7 vs Panasonic FZ300
- Olympus E-PL7 vs Panasonic GM5
- Olympus E-PL7 vs Panasonic GX1
- Olympus E-PM2 vs Panasonic GF5
- Olympus E-PM2 vs Panasonic GX800
- Olympus E-PM2 vs Sony A6500
Specifications: Olympus E-PL7 vs Olympus E-PM2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL7||Olympus E-PM2|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||August 2014||September 2012|
|Launch Price||USD 599||USD 499|
|Sensor Specs||Olympus E-PL7||Olympus E-PM2|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||15.9 Megapixels|
|Image Resolution||4608 x 3456 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.76 μm||3.76 μm|
|Pixel Density||7.08 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||200-25600 ISO||100-25600 ISO|
|ISO Boost||100-25600 ISO||no Enhancement|
|Image Processor||TruePic VII||TruePic VI|
|DXO Sensor Quality (score)||72||72|
|DXO Color Depth (bits)||22.7||22.7|
|DXO Dynamic Range (EV)||12.4||12.2|
|DXO Low Light (ISO)||873||932|
|Screen Specs||Olympus E-PL7||Olympus E-PM2|
|Viewfinder Type||Viewfinder optional||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Olympus E-PL7||Olympus E-PM2|
|Autofocus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||No Peaking Feature|
|Continuous Shooting||8 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Olympus E-PL7||Olympus E-PM2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-PL7||Olympus E-PM2|
|Battery Type||BLS-50 power pack||BLS-5 power pack|
|Battery Life (CIPA)||350 shots per charge||360 shots per charge|
115 x 67 x 38 mm
(4.5 x 2.6 x 1.5 in)
110 x 64 x 34 mm
(4.3 x 2.5 x 1.3 in)
|Camera Weight||357 g (12.6 oz)||269 g (9.5 oz)|
