Olympus E-PL2 vs Pentax Q

The Olympus PEN E-PL2 and the Pentax Q are two digital cameras that were officially introduced, respectively, in January 2011 and June 2011. Both the E-PL2 and the Pentax Q are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-PL2) and a 1/2.3-inch (Pentax Q) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Pentax provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL2		Pentax Q
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Pentax Q mount lenses
12.2 MP – Four Thirds sensor		12 MP – 1/2.3" sensor
720/30p Video		1080/30p Video
ISO 200-6,400		ISO 125-6,400
Viewfinder optional		Viewfinder optional
3.0" LCD – 460k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		1.5 shutter flaps per second
In-body stabilization		In-body stabilization
280 shots per battery charge		230 shots per battery charge
114 x 72 x 42 mm, 362 g		98 x 57 x 31 mm, 180 g

Check E-PL2 offers at
ebay.com
Check Pentax Q offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL2 and the Pentax Q? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

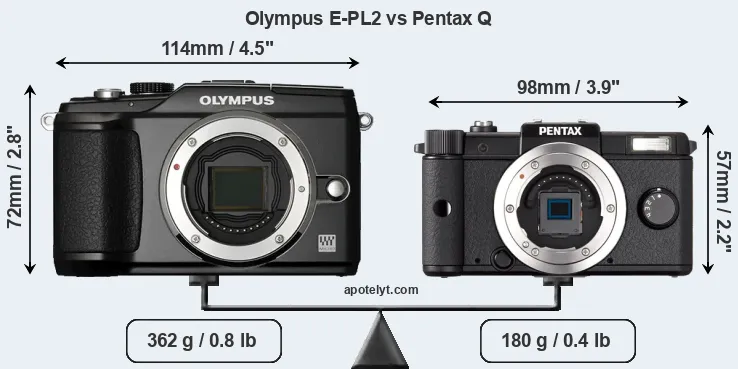

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL2 and the Pentax Q. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The E-PL2 can be obtained in four different colors (black, silver, red, white), while the Pentax Q is available in two color-versions (black, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax Q is considerably smaller (32 percent) than the Olympus E-PL2. Moreover, the Pentax Q is substantially lighter (50 percent) than the E-PL2. In this context, it is worth noting that neither the E-PL2 nor the Pentax Q are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
2.		Pentax Q	98 mm	57 mm	31 mm	180 g	230	n	Jun 2011	US$ 649	ebay.com
3.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
4.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
5.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
6.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
8.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
9.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
10.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
11.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
12.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
13.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL2 was somewhat cheaper (by 8 percent) than the Pentax Q at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

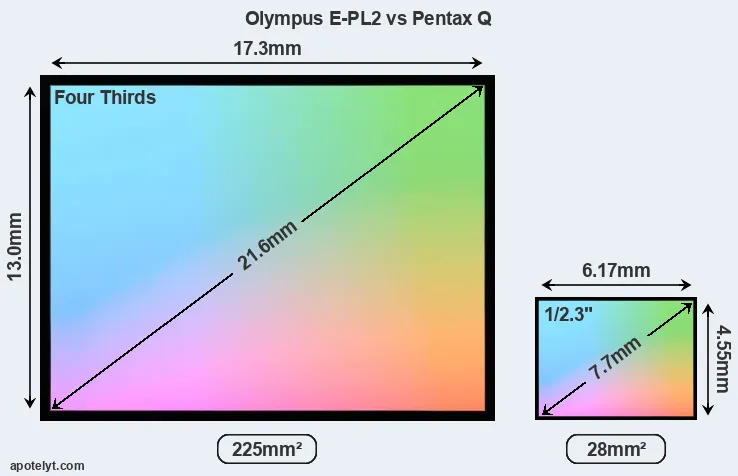

Of the two cameras under consideration, the Olympus E-PL2 features a Four Thirds sensor and the Pentax Q a 1/2.3-inch sensor. The sensor area in the Pentax Q is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 12.2MP, the E-PL2 offers a slightly higher resolution than the Pentax Q (12MP), but the E-PL2 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 1.53μm for the Pentax Q) due to its larger sensor. However, the Pentax Q is a somewhat more recent model (by 5 months) than the E-PL2, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The Olympus PEN E-PL2 has a native sensitivity range from ISO 200 to ISO 6400. The corresponding ISO settings for the Pentax Q are ISO 125 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the E-PL2 has a notably higher overall DXO score than the Pentax Q (overall score 8 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 1.2 bits higher color depth, 0.9 EV of lower dynamic range, and 1.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
2.		Pentax Q	1/2.3	12.0	4000	3000	1080/30p	20.2	11.1	189	47
3.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
4.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
5.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
6.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
7.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
8.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
9.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
10.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
11.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
12.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
13.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Pentax Q provides a better video resolution than the E-PL2. It can shoot movie footage at 1080/30p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-PL2 and the Pentax Q are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-2 for the E-PL2 and the O-VF1 for the Pentax Q – are available as accessories. The adjacent table lists some of the other core features of the Olympus E-PL2 and Pentax Q along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
2.		Pentax Q	optional	n	3.0 / 460	fixed	n	1/2000s	1.5/s	Y	Y
3.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
4.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
5.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
6.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
7.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
8.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
9.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
11.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
12.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
13.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Pentax Q has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-PL2 writes its imaging data to SDHC cards, while the Pentax Q uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL2 and Pentax Q and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Pentax Q	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
13.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the E-PL2 and the Pentax Q have been discontinued, but can regularly be found used on ebay. The E-PL2 was replaced by the Olympus E-PL3, while the Pentax Q was followed by the Pentax Q10. Further information on the features and operation of the E-PL2 and Pentax Q can be found, respectively, in the Olympus E-PL2 Manual (free pdf) or the online Pentax Q Manual.

Review summary

So how do things add up? Which of the two cameras – the Olympus E-PL2 or the Pentax Q – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Olympus PEN E-PL2:

• Better image quality: Scores markedly higher (8 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.2 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.6 stops ISO advantage).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 1.5 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (280 versus 230) on a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in January 2011).

Advantages of the Pentax Q:

• More dynamic range: Captures a broader range of light and dark details (0.9 EV of extra DR).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (98x57mm vs 114x72mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 182g or 50 percent) and is thus easier to take along.
• More modern: Was introduced somewhat (5 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL2 comes out slightly ahead of the Pentax Q (7 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL2 and the Pentax Q place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-PL2 or the Pentax Q. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
2.		Pentax Q	3/5	..	..	..	4/5	3.5/5	Jun 2011	US$ 649	ebay.com
3.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
4.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
5.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
6.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
8.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
9.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
10.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
11.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
12.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
13.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
