Olympus E-PL1 vs Sony HX80
The Olympus PEN E-PL1 and the Sony Cyber-shot DSC-HX80 are two digital cameras that were officially introduced, respectively, in February 2010 and March 2016. The E-PL1 is a mirrorless interchangeable lens camera, while the HX80 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL1) and a 1/2.3-inch (HX80) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 18 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Sony Cyber-shot DSC-HX80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

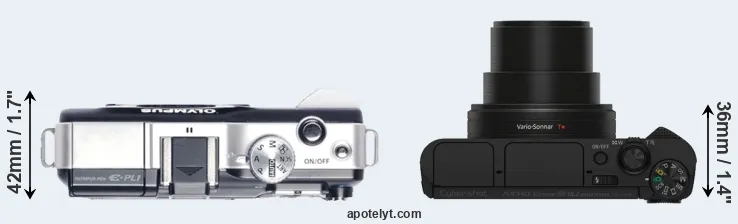

The physical size and weight of the Olympus E-PL1 and the Sony HX80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the HX80 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony HX80 is notably smaller (29 percent) than the Olympus E-PL1. In this context, it is worth noting that neither the E-PL1 nor the HX80 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the HX80 has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the E-PL1 gets 290 shots out of its BLS-1 battery, while the HX80 can take 390 images on a single charge of its NP-BX1 power pack. The power pack in the HX80 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|2.||Sony HX80||102 mm||58 mm||36 mm||245 g||390||n||Mar 2016||349|
|3.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|4.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|5.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|6.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|7.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|8.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|9.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|10.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|11.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|12.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|13.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|14.||Panasonic GF2||113 mm||68 mm||33 mm||310 g||300||n||Nov 2010||549|
|15.||Sony WX800||102 mm||58 mm||36 mm||233 g||370||n||Oct 2018||399|
|16.||Sony RX100 V||102 mm||58 mm||41 mm||299 g||220||n||Oct 2016||999|
|17.||Sony HX90V||102 mm||58 mm||36 mm||245 g||360||n||Apr 2015||429|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The HX80 was launched at a lower price than the E-PL1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Olympus E-PL1 features a Four Thirds sensor and the Sony HX80 a 1/2.3-inch sensor. The sensor area in the HX80 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the HX80 offers a higher resolution of 18 megapixels, compared with 12.2 MP of the E-PL1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.25μm versus 4.29μm for the E-PL1). However, it should be noted that the HX80 is much more recent (by 6 years and 1 month) than the E-PL1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the HX80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Sony HX80 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the HX80 for good quality output (200 dots per inch) amounts to 24.5 x 18.4 inches or 62.2 x 46.6 cm, for very good quality (250 dpi) 19.6 x 14.7 inches or 49.7 x 37.3 cm, and for excellent quality (300 dpi) 16.3 x 12.2 inches or 41.5 x 31.1 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-HX80 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|5.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|6.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|7.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|8.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|9.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|10.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|11.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|12.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|13.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|14.||Panasonic GF2||Four Thirds||12.0||4000||3000||1080/60i||21.2||10.3||506||54|
|16.||Sony RX100 V||1-inch||20.0||5472||3648||4K/30p||22.8||12.4||586||70|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the HX80 provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/60p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the HX80 has an electronic viewfinder (638k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus E-PL1 and Sony HX80 in connection with corresponding information for a sample of similar cameras.
|16.||Sony RX100 V||2359||n||3.0||1229||tilting||n||1/2000s||24.0||Y||Y|
The E-PL1 writes its imaging data to SDHC cards, while the HX80 uses SDXC or Memory Stick PRO Duo cards. The HX80 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PL1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Sony Cyber-shot DSC-HX80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|16.||Sony RX100 V||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the E-PL1 has a hotshoe, while the HX80 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
The HX80 is a recent model that features in the current product line-up of Sony. In contrast, the E-PL1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL1 was succeeded by the Olympus E-PL2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Sony websites.
So how do things add up? Is the Olympus E-PL1 better than the Sony HX80 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Olympus PEN E-PL1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in February 2010).
Advantages of the Sony Cyber-shot DSC-HX80:
- More detail: Has more megapixels (18 vs 12.2MP), which boosts linear resolution by 21%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has an integrated lens, whereas the E-PL1 necessitates an extra lens.
- More compact: Is smaller (102x58mm vs 115x72mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the E-PL1).
- Longer lasting: Gets more shots (390 versus 290) out of a single battery charge.
- Easier travel charging: Can be conveniently charged via its USB port.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 1 month of technical progress since the E-PL1 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the HX80 is the clear winner of the contest (19 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-PL1 and the Sony HX80 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-PL1 or the HX80 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-PL1||..||86/100||69/100||4/5||4.5/5||Feb 2010||599|
|2.||Sony HX80||..||..||..||..||..||Mar 2016||349|
|3.||Canon SX720||..||+||..||4/5||4.5/5||Feb 2016||379|
|4.||Canon SX710||..||+||..||4/5||3.5/5||Jan 2015||349|
|5.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|6.||Olympus E-P3||..||83/100||74/100||4.5/5||4.5/5||Jun 2011||799|
|7.||Olympus E-PL2||3/5||83/100||71/100||4.5/5||4.5/5||Jan 2011||599|
|8.||Olympus E-PL3||3/5||+ +||72/100||4.5/5||4/5||Jun 2011||599|
|9.||Olympus E-PM1||..||86/100||71/100||4.5/5||4.5/5||Jun 2011||499|
|10.||Olympus E-620||3/5||88/100||72/100||4.5/5||5/5||Feb 2009||699|
|11.||Olympus E-P1||..||+||66/100||4/5||4.5/5||Jun 2009||799|
|12.||Olympus E-P2||3/5||+||69/100||4/5||4.5/5||Nov 2009||799|
|13.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|14.||Panasonic GF2||3/5||82/100||70/100||4.5/5||4.5/5||Nov 2010||549|
|15.||Sony WX800||..||..||..||..||..||Oct 2018||399|
|16.||Sony RX100 V||4.5/5||+ +||83/100||4/5||4.5/5||Oct 2016||999|
|17.||Sony HX90V||4/5||+ +||..||4/5||4.5/5||Apr 2015||429|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Olympus E-PL1 vs Sony HX80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-PL1||Sony HX80|
|Camera Type||Mirrorless system camera||Fixed lens compact camera|
|Camera Lens||Micro Four Thirds lenses||24-720mm f/3.5-6.4|
|Launch Date||February 2010||March 2016|
|Launch Price||USD 599||USD 349|
|Sensor Specs||Olympus E-PL1||Sony HX80|
|Sensor Format||Four Thirds Sensor||1/2.3" Sensor|
|Sensor Size||17.3 x 13.0 mm||6.17 x 4.55 mm|
|Sensor Area||224.9 mm2||28.0735 mm2|
|Sensor Diagonal||21.6 mm||7.7 mm|
|Sensor Resolution||12.2 Megapixels||18 Megapixels|
|Image Resolution||4032 x 3024 pixels||4896 x 3672 pixels|
|Pixel Pitch||4.29 μm||1.25 μm|
|Pixel Density||5.42 MP/cm2||64.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||720/30p Video||1080/60p Video|
|ISO Setting||200 - 3,200 ISO||80 - 3,200 ISO|
|ISO Boost||no Enhancement||80 - 12,800 ISO|
|Image Processor||Truepic V||BIONZ X|
|DXO Sensor Quality (score)||54||..|
|DXO Color Depth (bits)||21.5||..|
|DXO Dynamic Range (EV)||10.1||..|
|DXO Low Light (ISO)||487||..|
|Screen Specs||Olympus E-PL1||Sony HX80|
|Viewfinder Type||Viewfinder optional||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||638k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.7inch||3.0inch|
|LCD Resolution||230k dots||922k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Olympus E-PL1||Sony HX80|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||10 shutter flaps/s|
|Image Stabilization||In-body stabilization||Lens-based stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDHC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Olympus E-PL1||Sony HX80|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Olympus E-PL1||Sony HX80|
|Battery Life (CIPA)||290 shots per charge||390 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
115 x 72 x 42 mm
(4.5 x 2.8 x 1.7 in)
102 x 58 x 36 mm
(4.0 x 2.3 x 1.4 in)
|Camera Weight||334 g (11.8 oz)||245 g (8.6 oz)|
