Olympus E-P3 vs Sony NEX-5

The Olympus PEN E-P3 and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in June 2011 and May 2010. Both the E-P3 and the NEX-5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-P3) and an APS-C (NEX-5) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-P3		Sony NEX-5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Sony E mount lenses
12.2 MP – Four Thirds sensor		14 MP – APS-C sensor
1080/60i Video		1080/60i Video
ISO 200-12,800		ISO 200-12,800
Viewfinder optional		Viewfinder optional
3.0" LCD – 614k dots		3.0" LCD – 920k dots
Fixed touchscreen		Tilting screen (no touchscreen)
3 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens stabilization only
330 shots per battery charge		330 shots per battery charge
122 x 69 x 34 mm, 369 g		111 x 59 x 38 mm, 287 g

Check E-P3 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P3 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

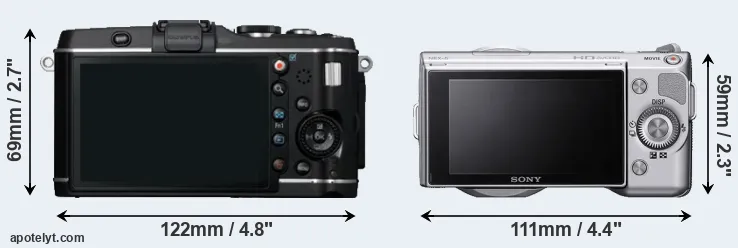

An illustration of the physical size and weight of the Olympus E-P3 and the Sony NEX-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The E-P3 can be obtained in three different colors (black, silver, white), while the NEX-5 is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is notably smaller (22 percent) than the Olympus E-P3. Moreover, the NEX-5 is markedly lighter (22 percent) than the E-P3. In this context, it is worth noting that neither the E-P3 nor the NEX-5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-P3) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
2.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	699	ebay.com
3.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
4.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
5.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
6.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	599	ebay.com
7.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
8.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
9.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
10.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
11.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
12.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	799	ebay.com
13.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
14.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
15.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
17.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-5 was launched at a somewhat lower price (by 13 percent) than the E-P3, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-P3 features a Four Thirds sensor and the Sony NEX-5 an APS-C sensor. The sensor area in the NEX-5 is 62 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-P3 has a native 4:3 aspect ratio, while the one in the NEX-5 offers a 3:2 aspect.

With 14MP, the NEX-5 offers a higher resolution than the E-P3 (12.2MP), but the NEX-5 nevertheless has larger individual pixels (pixel pitch of 5.11μm versus 4.29μm for the E-P3) due to its larger sensor. However, the E-P3 is a somewhat more recent model (by 1 year and 1 month) than the NEX-5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony NEX-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5 for good quality output (200 dots per inch) amounts to 23 x 15.3 inches or 58.3 x 38.8 cm, for very good quality (250 dpi) 18.4 x 12.2 inches or 46.7 x 31 cm, and for excellent quality (300 dpi) 15.3 x 10.2 inches or 38.9 x 25.9 cm. The corresponding values for the Olympus E-P3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus PEN E-P3 has a native sensitivity range from ISO 200 to ISO 12800. The Sony Alpha NEX-5 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-5 offers substantially better image quality than the E-P3 (overall score 18 points higher). The advantage is based on 1.4 bits higher color depth, 2.1 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
2.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
3.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
4.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
5.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
6.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
7.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
8.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
9.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
10.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
11.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
12.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
13.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
14.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
15.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60i).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-P3 and the NEX-5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the VF-3 for the E-P3 and the FDA-SV1 for the NEX-5 – are available as accessories. The adjacent table lists some of the other core features of the Olympus E-P3 and Sony NEX-5 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
2.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
3.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
4.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
6.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
7.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
8.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
9.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
10.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
11.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
13.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
14.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
15.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-P3 has one, while the NEX-5 does not. While the built-in flash of the E-P3 is not very powerful, it can at times be useful as a fill-in light.

The E-P3 writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The E-P3 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P3 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
14.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the E-P3 and the NEX-5 have been discontinued, but can regularly be found used on ebay. The NEX-5 was replaced by the Sony NEX-5N, while the E-P3 was followed by the Olympus E-P5. Further information on the features and operation of the E-P3 and NEX-5 can be found, respectively, in the Olympus E-P3 Manual (free pdf) or the online Sony NEX-5 Manual.

Review summary

So what is the bottom line? Is the Olympus E-P3 better than the Sony NEX-5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus PEN E-P3:

• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Is somewhat more recent (announced 1 year and 1 month after the NEX-5).

Advantages of the Sony Alpha NEX-5:

• More detail: Has more megapixels (14 vs 12.2MP), which boosts linear resolution by 9%.
• Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.1 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.6 stops ISO advantage).
• More detailed LCD: Has a higher resolution rear screen (920k vs 614k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 122x69mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 82g or 22 percent) and is thus easier to take along.
• More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in May 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the NEX-5 is the clear winner of the contest (13 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-P3 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-P3 or the NEX-5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
2.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	699	ebay.com
3.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
4.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
5.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
6.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
7.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
8.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
9.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
10.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
11.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
12.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	799	ebay.com
13.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
14.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
15.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
17.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
