Olympus E-M5 vs Sony A77 II
The Olympus OM-D E-M5 and the Sony Alpha SLT-A77 II are two enthusiast cameras that were revealed to the public, respectively, in February 2012 and May 2014. The E-M5 is a mirrorless interchangeable lens camera, while the A77 II is a DSLR. The cameras are based on a Four Thirds (E-M5) and an APS-C (A77 II) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Sony provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 and the Sony Alpha SLT-A77 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

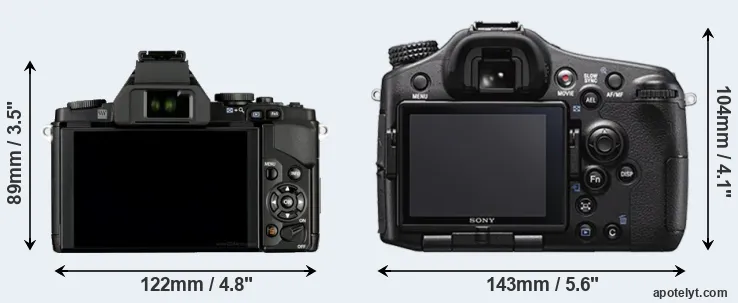

The side-by-side display below illustrates the physical size and weight of the Olympus E-M5 and the Sony A77 II. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The E-M5 can be obtained in two different colors (black, silver), while the A77 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 II is notably larger (37 percent) than the Olympus E-M5. Moreover, the A77 II is substantially heavier (52 percent) than the E-M5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the E-M5 gets 360 shots out of its Olympus BLN-1 battery, while the A77 II can take 480 images on a single charge of its Sony NP-FM500H power pack.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M5 | 122 mm | 89 mm | 43 mm | 425 g | 360 | Y | Feb 2012 | 1,299 | ebay.com | |
2. | Sony A77 II | 143 mm | 104 mm | 81 mm | 647 g | 480 | Y | May 2014 | 1,199 | ebay.com | |
3. | Nikon D7100 | 136 mm | 107 mm | 76 mm | 765 g | 950 | Y | Feb 2013 | 1,199 | ebay.com | |
4. | Olympus PEN-F | 125 mm | 72 mm | 37 mm | 427 g | 330 | n | Jan 2016 | 1,199 | ebay.com | |
5. | Olympus E-M5 II | 124 mm | 85 mm | 45 mm | 469 g | 310 | Y | Feb 2015 | 1,099 | ebay.com | |
6. | Olympus E-PL7 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Aug 2014 | 599 | ebay.com | |
7. | Olympus E-M1 | 130 mm | 94 mm | 63 mm | 497 g | 350 | Y | Sep 2013 | 1,399 | ebay.com | |
8. | Olympus E-P5 | 122 mm | 69 mm | 37 mm | 420 g | 330 | n | May 2013 | 999 | ebay.com | |
9. | Olympus E-PL5 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | Sep 2012 | 599 | ebay.com | |
10. | Olympus E-PM2 | 110 mm | 64 mm | 34 mm | 269 g | 360 | n | Sep 2012 | 499 | ebay.com | |
11. | Panasonic GX8 | 133 mm | 78 mm | 63 mm | 487 g | 330 | Y | Jul 2015 | 1,199 | ebay.com | |
12. | Panasonic GX7 | 123 mm | 71 mm | 55 mm | 402 g | 350 | n | Aug 2013 | 999 | ebay.com | |
13. | Panasonic GH3 | 133 mm | 93 mm | 82 mm | 550 g | 540 | Y | Sep 2012 | 1,299 | ebay.com | |
14. | Sony A6600 | 120 mm | 67 mm | 69 mm | 503 g | 810 | Y | Aug 2019 | 1,399 | amazon.com | |
15. | Sony A68 | 143 mm | 104 mm | 81 mm | 610 g | 540 | n | Nov 2015 | 699 | ebay.com | |
16. | Sony A58 | 129 mm | 95 mm | 78 mm | 492 g | 690 | n | Feb 2013 | 599 | ebay.com | |
17. | Sony A77 | 143 mm | 104 mm | 81 mm | 732 g | 470 | Y | Aug 2011 | 1,399 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The A77 II was somewhat cheaper (by 8 percent) than the E-M5 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Olympus E-M5 features a Four Thirds sensor and the Sony A77 II an APS-C sensor. The sensor area in the A77 II is 63 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-M5 has a native 4:3 aspect ratio, while the one in the A77 II offers a 3:2 aspect.
With 24MP, the A77 II offers a higher resolution than the E-M5 (15.9MP), but the A77 II nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.76μm for the E-M5) due to its larger sensor. Moreover, the A77 II is a much more recent model (by 2 years and 2 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony A77 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A77 II for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Olympus OM-D E-M5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Sony Alpha SLT-A77 II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the A77 II offers substantially better image quality than the E-M5 (overall score 11 points higher). The advantage is based on 1.6 bits higher color depth, 1.1 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60i | 22.8 | 12.3 | 826 | 71 | |
2. | Sony A77 II | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.4 | 13.4 | 1013 | 82 | |
3. | Nikon D7100 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.2 | 13.7 | 1256 | 83 | |
4. | Olympus PEN-F | Four Thirds | 20.2 | 5184 | 3888 | 1080/60p | 23.1 | 12.4 | 894 | 74 | |
5. | Olympus E-M5 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.0 | 12.5 | 842 | 73 | |
6. | Olympus E-PL7 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.4 | 873 | 72 | |
7. | Olympus E-M1 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 23.0 | 12.7 | 757 | 73 | |
8. | Olympus E-P5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.4 | 895 | 72 | |
9. | Olympus E-PL5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 889 | 72 | |
10. | Olympus E-PM2 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.2 | 932 | 72 | |
11. | Panasonic GX8 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.5 | 12.6 | 806 | 75 | |
12. | Panasonic GX7 | Four Thirds | 15.8 | 4592 | 3448 | 1080/60p | 22.6 | 12.2 | 718 | 70 | |
13. | Panasonic GH3 | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 22.7 | 12.4 | 812 | 71 | |
14. | Sony A6600 | APS-C | 24.0 | 6000 | 4000 | 4K/30p | 23.8 | 13.4 | 1497 | 82 | |
15. | Sony A68 | APS-C | 24.0 | 6000 | 4000 | 1080/60i | 24.1 | 13.5 | 701 | 79 | |
16. | Sony A58 | APS-C | 19.8 | 5456 | 3632 | 1080/60i | 23.3 | 12.5 | 753 | 74 | |
17. | Sony A77 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 24.0 | 13.2 | 801 | 78 |
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the A77 II provides a faster frame rate than the E-M5. It can shoot movie footage at 1080/60p, while the Olympus is limited to 1080/60i.
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the A77 II offers a substantially higher resolution than the one in the E-M5 (2359k vs 1440k dots). The adjacent table lists some of the other core features of the Olympus E-M5 and Sony A77 II along with similar information for a selection of comparators.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M5 | 1440 | n | 3.0 / 610 | tilting | Y | 1/4000s | 9.0/s | n | Y | |
2. | Sony A77 II | 2359 | Y | 3.0 / 1229 | full-flex | n | 1/8000s | 12.0/s | Y | Y | |
3. | Nikon D7100 | optical | Y | 3.2 / 1229 | fixed | n | 1/8000s | 6.0/s | Y | n | |
4. | Olympus PEN-F | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
5. | Olympus E-M5 II | 2360 | n | 3.0 / 1037 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
6. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
7. | Olympus E-M1 | 2360 | n | 3.0 / 1037 | tilting | Y | 1/8000s | 10.0/s | n | Y | |
8. | Olympus E-P5 | optional | n | 3.0 / 1037 | tilting | Y | 1/8000s | 9.0/s | Y | Y | |
9. | Olympus E-PL5 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
10. | Olympus E-PM2 | optional | n | 3.0 / 460 | fixed | Y | 1/4000s | 8.0/s | n | Y | |
11. | Panasonic GX8 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
12. | Panasonic GX7 | 2760 | n | 3.0 / 1040 | tilting | Y | 1/8000s | 5.0/s | Y | Y | |
13. | Panasonic GH3 | 1746 | n | 3.0 / 614 | swivel | Y | 1/4000s | 6.0/s | Y | n | |
14. | Sony A6600 | 2359 | n | 3.0 / 922 | tilting | Y | 1/4000s | 11.0/s | n | Y | |
15. | Sony A68 | 1440 | Y | 2.7 / 460 | tilting | n | 1/4000s | 8.0/s | Y | Y | |
16. | Sony A58 | 1440 | n | 2.7 / 460 | tilting | n | 1/4000s | 5.0/s | Y | Y | |
17. | Sony A77 | 2359 | Y | 3.0 / 921 | full-flex | n | 1/8000s | 12.0/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M5 has a touchscreen, while the A77 II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The A77 II has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-M5 does not have a selfie-screen.The E-M5 writes its imaging data to SDXC cards, while the A77 II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 and Sony Alpha SLT-A77 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
2. | Sony A77 II | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
3. | Nikon D7100 | Y | stereo / mono | Y | Y | mini | 2.0 | - | - | - | |
4. | Olympus PEN-F | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
5. | Olympus E-M5 II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
6. | Olympus E-PL7 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
7. | Olympus E-M1 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | - | |
8. | Olympus E-P5 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
9. | Olympus E-PL5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
10. | Olympus E-PM2 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
11. | Panasonic GX8 | Y | stereo / mono | Y | - | micro | 2.0 | Y | Y | - | |
12. | Panasonic GX7 | Y | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
13. | Panasonic GH3 | Y | stereo / mono | Y | Y | mini | 2.0 | Y | - | - | |
14. | Sony A6600 | Y | stereo / mono | Y | Y | YES | 2.0 | Y | Y | Y | |
15. | Sony A68 | Y | stereo / mono | Y | - | micro | 2.0 | - | - | - | |
16. | Sony A58 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
17. | Sony A77 | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - |
It is notable that the A77 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-M5 does not provide wifi capability.
Studio photographers will appreciate that the Sony A77 II (unlike the E-M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M5 and the A77 II have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the A77 II does not have a direct successor. Further information on the features and operation of the E-M5 and A77 II can be found, respectively, in the Olympus E-M5 Manual (free pdf) or the online Sony A77 II Manual.
Review summary
So what is the bottom line? Which of the two cameras – the Olympus E-M5 or the Sony A77 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Olympus OM-D E-M5:
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (122x89mm vs 143x104mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 222g or 34 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- More heavily discounted: Has been available for much longer (launched in February 2012).
Advantages of the Sony Alpha SLT-A77 II:
- More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
- Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.1 EV of extra DR).
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (2359k vs 1440k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.58x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 610k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (480 versus 360) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 2 years and 2 months of technical progress since the E-M5 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the A77 II is the clear winner of the contest (20 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M5 and the Sony A77 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-M5 and the A77 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-M5 | 4/5 | + + | .. | 80/100 | 4.5/5 | 5/5 | Feb 2012 | 1,299 | ebay.com | |
2. | Sony A77 II | 4/5 | .. | .. | 80/100 | 4.5/5 | 5/5 | May 2014 | 1,199 | ebay.com | |
3. | Nikon D7100 | 5/5 | + + | .. | 85/100 | 4.5/5 | 4.5/5 | Feb 2013 | 1,199 | ebay.com | |
4. | Olympus PEN-F | .. | .. | 4/5 | 82/100 | 4.5/5 | 5/5 | Jan 2016 | 1,199 | ebay.com | |
5. | Olympus E-M5 II | 5/5 | + + | 4.5/5 | 81/100 | 5/5 | 5/5 | Feb 2015 | 1,099 | ebay.com | |
6. | Olympus E-PL7 | 4/5 | + | .. | .. | 5/5 | 4/5 | Aug 2014 | 599 | ebay.com | |
7. | Olympus E-M1 | 5/5 | + + | .. | 84/100 | 4.5/5 | 4.5/5 | Sep 2013 | 1,399 | ebay.com | |
8. | Olympus E-P5 | 5/5 | + + | .. | 78/100 | 4.5/5 | 5/5 | May 2013 | 999 | ebay.com | |
9. | Olympus E-PL5 | 3/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Sep 2012 | 599 | ebay.com | |
10. | Olympus E-PM2 | 3/5 | .. | .. | 77/100 | 5/5 | 4.5/5 | Sep 2012 | 499 | ebay.com | |
11. | Panasonic GX8 | 5/5 | + | .. | 82/100 | 4.5/5 | 4.5/5 | Jul 2015 | 1,199 | ebay.com | |
12. | Panasonic GX7 | 4/5 | + | .. | 79/100 | 5/5 | 5/5 | Aug 2013 | 999 | ebay.com | |
13. | Panasonic GH3 | 5/5 | + + | .. | 79/100 | 4.5/5 | 4.5/5 | Sep 2012 | 1,299 | ebay.com | |
14. | Sony A6600 | 4/5 | + | 4/5 | 83/100 | 4.5/5 | 4/5 | Aug 2019 | 1,399 | amazon.com | |
15. | Sony A68 | 3/5 | .. | .. | .. | 4/5 | 4/5 | Nov 2015 | 699 | ebay.com | |
16. | Sony A58 | 3/5 | .. | .. | .. | 4.5/5 | 4.5/5 | Feb 2013 | 599 | ebay.com | |
17. | Sony A77 | 5/5 | 91/100 | .. | 81/100 | .. | 5/5 | Aug 2011 | 1,399 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon G5 X Mark II vs Olympus E-M5
- Fujifilm X-Pro2 vs Olympus E-M5
- Leica M-E Typ 240 vs Sony A77 II
- Nikon 1 V2 vs Sony A77 II
- Nikon 1 V3 vs Sony A77 II
- Nikon D3200 vs Olympus E-M5
- Nikon D3400 vs Olympus E-M5
- Olympus E-M5 vs Panasonic FZ82
- Olympus E-M5 vs Panasonic G10
- Panasonic GH5s vs Sony A77 II
- Sony A77 II vs Sony A9
- Sony A77 II vs Sony RX100
Specifications: Olympus E-M5 vs Sony A77 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Olympus E-M5 | Sony A77 II |
---|---|---|
Camera Type | Mirrorless system camera | Digital single lens reflex |
Camera Lens | Micro Four Thirds lenses | Sony A mount lenses |
Launch Date | February 2012 | May 2014 |
Launch Price | USD 1,299 | USD 1,199 |
Sensor Specs | Olympus E-M5 | Sony A77 II |
Sensor Technology | CMOS | CMOS |
Sensor Format | Four Thirds Sensor | APS-C Sensor |
Sensor Size | 17.3 x 13.0 mm | 23.5 x 15.6 mm |
Sensor Area | 224.9 mm2 | 366.6 mm2 |
Sensor Diagonal | 21.6 mm | 28.2 mm |
Crop Factor | 2.0x | 1.5x |
Sensor Resolution | 15.9 Megapixels | 24 Megapixels |
Image Resolution | 4608 x 3456 pixels | 6000 x 4000 pixels |
Pixel Pitch | 3.76 μm | 3.91 μm |
Pixel Density | 7.08 MP/cm2 | 6.55 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 1080/60i Video | 1080/60p Video |
ISO Setting | 200 - 25,600 ISO | 100 - 25,600 ISO |
ISO Boost | no Enhancement | 50 - 51,200 ISO |
Image Processor | TruePic VI | BIONZ X |
DXO Sensor Quality (score) | 71 | 82 |
DXO Color Depth (bits) | 22.8 | 24.4 |
DXO Dynamic Range (EV) | 12.3 | 13.4 |
DXO Low Light (ISO) | 826 | 1013 |
Screen Specs | Olympus E-M5 | Sony A77 II |
Viewfinder Type | Electronic viewfinder | Electronic viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.58x | 0.73x |
Viewfinder Resolution | 1440k dots | 2359k dots |
Top-Level Screen | no Top Display | Control Panel |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 610k dots | 1229k dots |
LCD Attachment | Tilting screen | Fully flexible screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Olympus E-M5 | Sony A77 II |
Focus System | Contrast-detect AF | Phase-detect AF |
Manual Focusing Aid | no Peaking Feature | Focus Peaking |
Max Shutter Speed (mechanical) | 1/4000s | 1/8000s |
Continuous Shooting | 9 shutter flaps/s | 12 shutter flaps/s |
Shutter Life Expectancy | 100 000 actuations | 150 000 actuations |
Image Stabilization | In-body stabilization | In-body stabilization |
Fill Flash | no On-Board Flash | Built-in Flash |
Storage Medium | SDXC cards | MS or SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | UHS-I |
Connectivity Specs | Olympus E-M5 | Sony A77 II |
External Flash | Hotshoe | Hotshoe |
Studio Flash | no PC Sync | PC Sync socket |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Microphone Port | no MIC socket | External MIC port |
Wifi Support | no Wifi | Wifi built-in |
Near-Field Communication | no NFC | NFC built-in |
Body Specs | Olympus E-M5 | Sony A77 II |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | Olympus BLN-1 | Sony NP-FM500H |
Battery Life (CIPA) | 360 shots per charge | 480 shots per charge |
Body Dimensions |
122 x 89 x 43 mm (4.8 x 3.5 x 1.7 in) |
143 x 104 x 81 mm (5.6 x 4.1 x 3.2 in) |
Camera Weight | 425 g (15.0 oz) | 647 g (22.8 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
