Olympus E-M5 vs Panasonic GF1
The Olympus OM-D E-M5 and the Panasonic Lumix DMC-GF1 are two digital cameras that were announced, respectively, in February 2012 and September 2009. Both the E-M5 and the GF1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 and the Panasonic Lumix DMC-GF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Olympus E-M5 and the Panasonic GF1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-M5 can be obtained in two different colors (black, silver), while the GF1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF1 is notably smaller (22 percent) than the Olympus E-M5. Moreover, the GF1 is markedly lighter (9 percent) than the E-M5. It is worth mentioning in this context that the E-M5 is splash and dust resistant, while the GF1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|2.||Panasonic GF1||119 mm||71 mm||36 mm||385 g||380||n||Sep 2009||749|
|3.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|4.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|5.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|6.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|7.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|8.||Olympus E-PL5||111 mm||64 mm||38 mm||325 g||360||n||Sep 2012||599|
|9.||Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|10.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|11.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|12.||Panasonic GH3||133 mm||93 mm||82 mm||550 g||540||Y||Sep 2012||1,299|
|13.||Panasonic GX1||116 mm||68 mm||39 mm||318 g||320||n||Nov 2011||699|
|14.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499|
|15.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599|
|16.||Panasonic GH1||124 mm||90 mm||45 mm||385 g||300||n||Mar 2009||899|
|17.||Panasonic G1||124 mm||84 mm||45 mm||360 g||410||n||Sep 2008||599|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GF1 was launched at a markedly lower price (by 42 percent) than the E-M5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

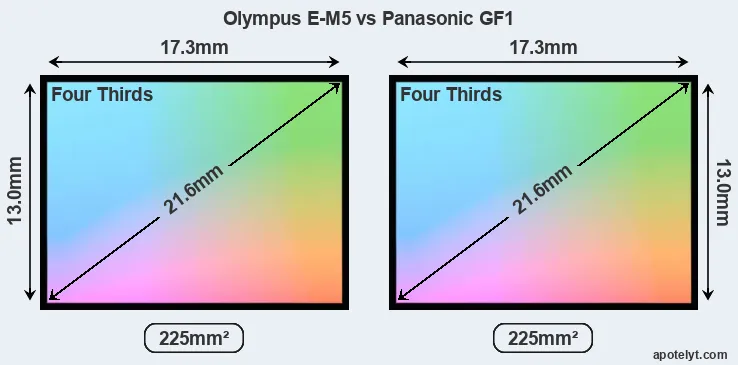

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

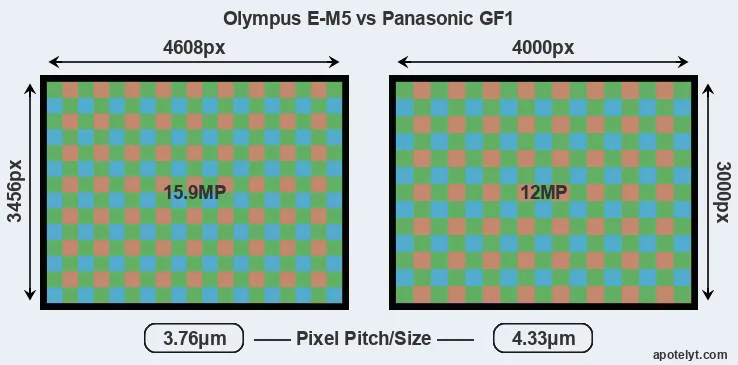

While the two cameras under review share the same sensor size, the E-M5 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the GF1. This megapixels advantage translates into a 15 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.33μm for the GF1). In this context, it should be noted, however, that the E-M5 is much more recent (by 2 years and 5 months) than the GF1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.
The resolution advantage of the Olympus E-M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic GF1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Olympus OM-D E-M5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DMC-GF1 are ISO 100 to ISO 3200 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the E-M5 provides substantially higher image quality than the GF1, with an overall score that is 17 points higher. This advantage is based on 1.6 bits higher color depth, 2 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|2.||Panasonic GF1||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||513||54|
|3.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|4.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|5.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|6.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|7.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|8.||Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|9.||Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|10.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|11.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
|12.||Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|13.||Panasonic GX1||Four Thirds||15.8||4592||3448||1080/60p||20.8||10.6||703||55|
|14.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|15.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
|16.||Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
|17.||Panasonic G1||Four Thirds||12.0||4000||3000||none||21.1||10.3||463||53|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-M5 provides a higher video resolution than the GF1. It can shoot video footage at 1080/60i, while the Panasonic is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the GF1 relies on live view and the rear LCD for framing. That said, the GF1 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Olympus E-M5, the Panasonic GF1, and comparable cameras.
|4.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that differentiates the E-M5 and the GF1 is in-body image stabilization (IBIS). The E-M5 reduces the risk of handshake-induced blur with all attached lenses, while the GF1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.
The E-M5 writes its imaging data to SDXC cards, while the GF1 uses SDHC cards. The E-M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GF1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 and Panasonic Lumix DMC-GF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|4.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
Both the E-M5 and the GF1 have been discontinued, but can regularly be found used on eBay. The GF1 was replaced by the Panasonic DMC-GF2, while the E-M5 was followed by the Olympus E-M5 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what is the bottom line? Is the Olympus E-M5 better than the Panasonic GF1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Olympus OM-D E-M5:
- More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
- Better image quality: Scores substantially higher (17 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.6 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/60i vs 720/30p).
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (610k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (9 vs 3 flaps/sec) to capture the decisive moment.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 5 months of technical progress since the GF1 launch.
Arguments in favor of the Panasonic Lumix DMC-GF1:
- More compact: Is smaller (119x71mm vs 122x89mm) and will fit more readily into a bag.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in September 2009).
If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 is the clear winner of the match-up (15 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M5 and the Panasonic GF1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M5 or the GF1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|2.||Panasonic GF1||..||85/100||69/100||4.5/5||4.5/5||Sep 2009||749|
|3.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|4.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|5.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|6.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|7.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|8.||Olympus E-PL5||3/5||+ +||..||4.5/5||4.5/5||Sep 2012||599|
|9.||Olympus E-PM2||3/5||..||77/100||5/5||4.5/5||Sep 2012||499|
|10.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|11.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|12.||Panasonic GH3||5/5||+ +||79/100||4.5/5||4.5/5||Sep 2012||1,299|
|13.||Panasonic GX1||3/5||+||77/100||4.5/5||4.5/5||Nov 2011||699|
|14.||Panasonic G10||3/5||..||70/100||4/5||4/5||Mar 2010||499|
|15.||Panasonic G2||..||..||72/100||4/5||4.5/5||Mar 2010||599|
|16.||Panasonic GH1||..||+ +||72/100||4.5/5||4.5/5||Mar 2009||899|
|17.||Panasonic G1||..||+ +||70/100||4/5||4.5/5||Sep 2008||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Olympus E-M5 vs Panasonic GF1
|Camera Model||Olympus E-M5||Panasonic GF1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||February 2012||September 2009|
|Launch Price||USD 1,299||USD 749|
|Sensor Specs||Olympus E-M5||Panasonic GF1|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||12 Megapixels|
|Image Resolution||4608 x 3456 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.76 μm||4.33 μm|
|Pixel Density||7.08 MP/cm2||5.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60i Video||720/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 3,200 ISO|
|Image Processor||TruePic VI||Venus HD|
|DXO Sensor Quality (score)||71||54|
|DXO Color Depth (bits)||22.8||21.2|
|DXO Dynamic Range (EV)||12.3||10.3|
|DXO Low Light (ISO)||826||513|
|Screen Specs||Olympus E-M5||Panasonic GF1|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||1440k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||610k dots||460k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus E-M5||Panasonic GF1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||9 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Olympus E-M5||Panasonic GF1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-M5||Panasonic GF1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||360 shots per charge||380 shots per charge|
122 x 89 x 43 mm
(4.8 x 3.5 x 1.7 in)
119 x 71 x 36 mm
(4.7 x 2.8 x 1.4 in)
|Camera Weight||425 g (15.0 oz)||385 g (13.6 oz)|
