Olympus E-M5 vs TG-6

The Olympus OM-D E-M5 and the Olympus Tough TG-6 are two digital cameras that were officially introduced, respectively, in February 2012 and May 2019. The E-M5 is a mirrorless interchangeable lens camera, while the TG-6 is a fixed lens compact. The cameras are based on a Four Thirds (E-M5) and a 1/2.3-inch (TG-6) sensor. The E-M5 has a resolution of 15.9 megapixels, whereas the TG-6 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-M5
versus
Olympus TG-6
Olympus E-M5   Olympus TG-6
Mirrorless system camera Fixed lens compact camera
Micro Four Thirds lenses 25-100mm f/2.0-4.9
15.9 MP – Four Thirds sensor 12 MP – 1/2.3" sensor
1080/60i Video 4K/30p Video
ISO 200-25,600 ISO 100-12,800
Electronic viewfinder (1440k dots) No viewfinder, LCD framing
3.0" LCD – 610k dots 3.0" LCD – 1040k dots
Tilting touchscreen Fixed screen (not touch-sensitive)
9 shutter flaps per second 20 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodyWaterproof body (15m)
360 shots per battery charge340 shots per battery charge
122 x 89 x 43 mm, 425 g 113 x 66 x 32 mm, 253 g
logo
Check E-M5 offers at
ebay.com
logo
Check TG-6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 and the Olympus Tough TG-6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-M5 and the Olympus TG-6. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-M5 can be obtained in two different colors (black, silver), while the TG-6 is also available in two color-versions, but different ones (black, red).

Size Olympus E-M5 vs Olympus TG-6
Compare E-M5 versus TG-6 top
Comparison E-M5 or TG-6 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-6 is considerably smaller (31 percent) than the Olympus E-M5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TG-6 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-6 has a lens built in, whereas the E-M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-M5 gets 360 shots out of its Olympus BLN-1 battery, while the TG-6 can take 340 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-6 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
2.

Olympus TG-6 113 mm 66 mm 32 mm 253 g 340 Y May 2019 449ebay.com
3.

Olympus TG-5 113 mm 66 mm 32 mm 250 g 340 Y May 2017 449ebay.com
4.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
5.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
6.

Olympus TG-4 112 mm 66 mm 31 mm 247 g 380 Y Apr 2015 379ebay.com
7.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 599ebay.com
8.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
9.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
10.

Olympus E-PL5 111 mm 64 mm 38 mm 325 g 360 n Sep 2012 599ebay.com
11.

Olympus E-PM2 110 mm 64 mm 34 mm 269 g 360 n Sep 2012 499ebay.com
12.

Olympus XZ-1 111 mm 65 mm 42 mm 275 g 320 n Jan 2011 499ebay.com
13.

OM System TG-7 114 mm 66 mm 33 mm 249 g 330 Y Sep 2023 549 amazon.com
14.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
15.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
16.

Panasonic GH3 133 mm 93 mm 82 mm 550 g 540 Y Sep 2012 1,299ebay.com
17.

Ricoh WG-6 118 mm 66 mm 33 mm 246 g 340 Y Feb 2019 399 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The TG-6 was launched at a lower price than the E-M5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-M5 features a Four Thirds sensor and the Olympus TG-6 a 1/2.3-inch sensor. The sensor area in the TG-6 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the TG-6 uses a more advanced image processing engine (TruePic VIII) than the E-M5 (TruePic VI), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-M5 and Olympus TG-6 sensor measures

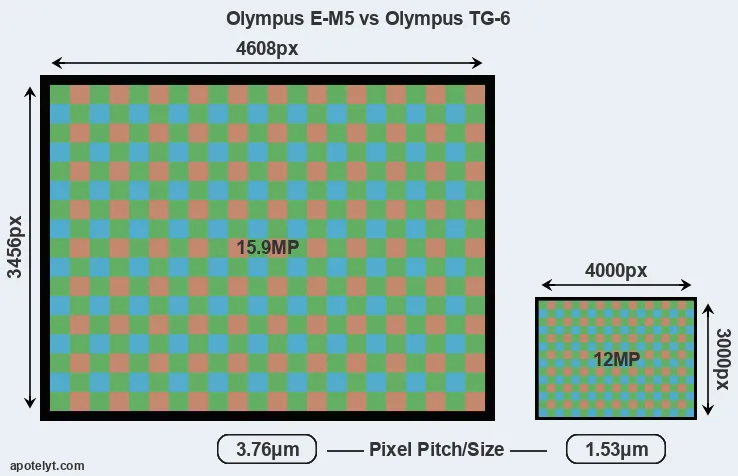

With 15.9MP, the E-M5 offers a higher resolution than the TG-6 (12MP), but the E-M5 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 1.53μm for the TG-6) due to its larger sensor. However, the TG-6 is a much more recent model (by 7 years and 3 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Olympus E-M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus TG-6 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Olympus OM-D E-M5 has a native sensitivity range from ISO 200 to ISO 25600. The corresponding ISO settings for the Olympus Tough TG-6 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-M5 is build around a CMOS sensor, while the TG-6 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-M5 versus TG-6 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
2.

Olympus TG-6 1/2.3 12.0 4000 30004K/30p20.712.2112752
3.

Olympus TG-5 1/2.3 12.0 4000 30004K/30p20.511.993450
4.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
5.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
6.

Olympus TG-4 1/2.3 15.9 4608 34561080/30p20.211.673747
7.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
8.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
9.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
10.

Olympus E-PL5 Four Thirds 15.9 4608 34561080/30p22.812.388972
11.

Olympus E-PM2 Four Thirds 15.9 4608 34561080/30p22.712.293272
12.

Olympus XZ-1 1/1.7 10.1 3664 2752720/30p18.810.411734
13.

OM System TG-7 1/2.3 12.0 4000 30004K/30p20.912.7155354
14.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
15.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
16.

Panasonic GH3 Four Thirds 15.9 4608 34561080/60p22.712.481271
17.

Ricoh WG-6 1/2.3 20.2 5184 38884K/30p20.712.2110452
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the TG-6 provides a better video resolution than the E-M5. It can shoot movie footage at 4K/30p, while the E-M5 is limited to 1080/60i.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the TG-6 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-M5 and Olympus TG-6 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
2.

Olympus TG-6none n3.0 / 1040 fixed n 1/2000s 20.0/s Y Y
3.

Olympus TG-5none n3.0 / 460 fixed n 1/2000s 20.0/s Y Y
4.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
5.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
6.

Olympus TG-4none n3.0 / 460 fixed n 1/2000s 5.0/s Y Y
7.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
8.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
9.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
10.

Olympus E-PL5optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
11.

Olympus E-PM2optional n3.0 / 460 fixed Y 1/4000s 8.0/s n Y
12.

Olympus XZ-1optional n3.0 / 614 fixed n 1/2000s 2.0/s Y Y
13.

OM System TG-7none n3.0 / 1040 fixed n 1/2000s 20.0/s Y Y
14.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
15.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
16.

Panasonic GH31746 n3.0 / 614 swivel Y 1/4000s 6.0/s Y n
17.

Ricoh WG-6none n3.0 / 1040 fixed n 1/4000s 1.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M5 has a touchscreen, while the TG-6 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus TG-6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M5 and the TG-6 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 and Olympus Tough TG-6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-M5Ystereo / mono--mini2.0---
2.

Olympus TG-6-stereo / mono--micro2.0Y--
3.

Olympus TG-5-stereo / mono--micro2.0Y--
4.

Olympus PEN-FYstereo / mono--micro2.0Y--
5.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
6.

Olympus TG-4-stereo / mono--micro2.0Y--
7.

Olympus E-PL7Ystereo / mono--micro2.0Y--
8.

Olympus E-M1Ystereo / monoY-micro2.0Y--
9.

Olympus E-P5Ystereo / mono--micro2.0Y--
10.

Olympus E-PL5Ystereo / mono--mini2.0---
11.

Olympus E-PM2Ystereo / mono--mini2.0---
12.

Olympus XZ-1Ymono / ---mini2.0---
13.

OM System TG-7-stereo / mono--micro2.0Y--
14.

Panasonic GX8Ystereo / monoY-micro2.0YY-
15.

Panasonic GX7Ystereo / mono--mini2.0YY-
16.

Panasonic GH3Ystereo / monoYYmini2.0Y--
17.

Ricoh WG-6-mono / mono--micro3.0---
padding

It is notable that the E-M5 has a hotshoe, while the TG-6 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-6 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-M5 and the TG-6 have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the TG-6 was followed by the OM System TG-7. Further information on the features and operation of the E-M5 and TG-6 can be found, respectively, in the Olympus E-M5 Manual (free pdf) or the online Olympus TG-6 Manual.

ad

Review summary

So what conclusions can be drawn? Is the Olympus E-M5 better than the Olympus TG-6 or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Olympus OM-D E-M5:

  • More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been available for much longer (launched in February 2012).


Advantages of the Olympus Tough TG-6:

  • Better jpgs: Has a more modern image processing engine (TruePic VIII vs TruePic VI).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 610k dots).
  • Faster burst: Shoots at higher frequency (20 vs 9 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Ready to shoot: Has an integrated lens, whereas the E-M5 necessitates an extra lens.
  • More compact: Is smaller (113x66mm vs 122x89mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the E-M5).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 7 years and 3 months of technical progress since the E-M5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the TG-6 emerges as the winner of the match-up (15 : 12 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-M5 12:15 TG-6

How about other alternatives? Do the specifications of the Olympus E-M5 and the Olympus TG-6 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-M5 and the TG-6 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
2.

Olympus TG-64/5+ +4.5/576/1004/54/5 May 2019 449ebay.com
3.

Olympus TG-5..+ +4.5/5..4/54/5 May 2017 449ebay.com
4.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
5.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
6.

Olympus TG-4..+..79/1004/54/5 Apr 2015 379ebay.com
7.

Olympus E-PL74/5+....5/54/5 Aug 2014 599ebay.com
8.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
9.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
10.

Olympus E-PL53/5+ +....4.5/54.5/5 Sep 2012 599ebay.com
11.

Olympus E-PM23/5....77/1005/54.5/5 Sep 2012 499ebay.com
12.

Olympus XZ-14/5....74/1004.5/54.5/5 Jan 2011 499ebay.com
13.

OM System TG-74/5..4.5/5..4/54/5 Sep 2023 549 amazon.com
14.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
15.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
16.

Panasonic GH35/5+ +..79/1004.5/54.5/5 Sep 2012 1,299ebay.com
17.

Ricoh WG-6........3.5/53.5/5 Feb 2019 399 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-M5 offers at
ebay.com
logo
Check TG-6 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Olympus E-M5 vs Olympus TG-6

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-M5 Olympus TG-6
    Camera Type Mirrorless system camera Fixed lens compact camera
    Camera Lens Micro Four Thirds lenses 25-100mm f/2.0-4.9
    Launch Date February 2012 May 2019
    Launch Price USD 1,299 USD 449
    Sensor Specs Olympus E-M5 Olympus TG-6
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Four Thirds Sensor 1/2.3" Sensor
    Sensor Size 17.3 x 13.0 mm 6.17 x 4.55 mm
    Sensor Area 224.9 mm2 28.0735 mm2
    Sensor Diagonal 21.6 mm 7.7 mm
    Crop Factor 2.0x 5.6x
    Sensor Resolution 15.9 Megapixels 12 Megapixels
    Image Resolution 4608 x 3456 pixels 4000 x 3000 pixels
    Pixel Pitch 3.76 μm 1.53 μm
    Pixel Density 7.08 MP/cm2 42.74 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60i Video 4K/30p Video
    ISO Setting 200 - 25,600 ISO 100 - 12,800 ISO
    Image Processor TruePic VI TruePic VIII
    DXO Sensor Quality (score) 71 ..
    DXO Color Depth (bits) 22.8 ..
    DXO Dynamic Range (EV) 12.3 ..
    DXO Low Light (ISO) 826 ..
    Screen Specs Olympus E-M5 Olympus TG-6
    Viewfinder Type Electronic viewfinder no viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.58x
    Viewfinder Resolution 1440k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 610k dots 1040k dots
    LCD Attachment Tilting screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Olympus E-M5 Olympus TG-6
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/2000s
    Continuous Shooting 9 shutter flaps/s 20 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Olympus E-M5 Olympus TG-6
    External Flash Hotshoe no Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Geotagging no internal GPS GPS built-in
    Body Specs Olympus E-M5 Olympus TG-6
    Environmental SealingWeathersealed bodyWaterproof body (15m)
    Battery Type Olympus BLN-1 Olympus LI-92B
    Battery Life (CIPA)360 shots per charge340 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 122 x 89 x 43 mm
    (4.8 x 3.5 x 1.7 in)
    113 x 66 x 32 mm
    (4.4 x 2.6 x 1.3 in)
    Camera Weight 425 g (15.0 oz) 253 g (8.9 oz)
    logo
    Check E-M5 offers at
    ebay.com
    logo
    Check TG-6 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-M5 vs Olympus TG-6
