Olympus E-M5 III vs E-PL10
The Olympus OM-D E-M5 Mark III and the Olympus PEN E-PL10 are two digital cameras that were revealed to the public in October 2019. Both the E-M5 III and the E-PL10 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M5 III has a resolution of 20.2 megapixels, whereas the E-PL10 provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 Mark III and the Olympus PEN E-PL10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

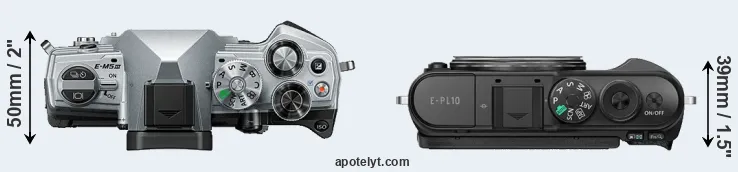

The side-by-side display below illustrates the physical size and weight of the Olympus E-M5 III and the Olympus E-PL10. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-M5 III can be obtained in two different colors (black, silver), while the E-PL10 is available in four color-versions (black, brown, blue, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL10 is notably smaller (25 percent) than the Olympus E-M5 III. Moreover, the E-PL10 is markedly lighter (8 percent) than the E-M5 III. It is worth mentioning in this context that the E-M5 III is splash and dust resistant, while the E-PL10 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The power pack in the E-M5 III can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|2.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|3.||Olympus E-M1 III||134 mm||91 mm||69 mm||580 g||420||Y||Feb 2020||1,799|
|4.||Olympus E-M10 IV||122 mm||84 mm||49 mm||383 g||360||n||Aug 2020||699|
|5.||Olympus E-M1X||144 mm||147 mm||75 mm||997 g||870||Y||Jan 2019||2,999|
|6.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|7.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|8.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|9.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|10.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|11.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|12.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|13.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|14.||Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|15.||Panasonic G90||130 mm||94 mm||77 mm||536 g||290||Y||Apr 2019||999|
|16.||Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|17.||Sony A6600||120 mm||67 mm||69 mm||503 g||810||Y||Aug 2019||1,399|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL10 was launched at a markedly lower price (by 50 percent) than the E-M5 III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
While the two cameras under review share the same sensor size, the E-M5 III offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the E-PL10. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M5 III has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.76μm for the E-PL10). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the E-M5 III has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M5 III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M5 III for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-PL10 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The E-M5 III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the E-PL10, the E-M5 III has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M5 Mark III has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Olympus PEN E-PL10 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|2.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|3.||Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|4.||Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|5.||Olympus E-M1X||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|6.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|7.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|8.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|9.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|10.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|11.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|12.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|13.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|14.||Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|15.||Panasonic G90||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|16.||Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL10 provides a faster frame rate than the E-M5 III. It can shoot movie footage at 4K/30p, while the E-M5 III is limited to 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M5 III has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL10 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-M5 III and Olympus E-PL10 in connection with corresponding information for a sample of similar cameras.
|1.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|3.||Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|4.||Olympus E-M10 IV||2360||n||3.0||1040||tilting||Y||1/4000s||15.0||Y||Y|
|7.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|10.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|11.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The E-PL10 has one, while the E-M5 III does not. While the built-in flash of the E-PL10 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M5 III and the Olympus E-PL10 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M5 III and the E-PL10 write their files to SDXC cards. The E-M5 III supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the E-PL10 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 Mark III and Olympus PEN E-PL10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|1.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|3.||Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
|4.||Olympus E-M10 IV||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|7.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|10.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|11.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-M5 III has a microphone port, which is missing on the E-PL10. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the E-M5 III and the E-PL10 are recent models that are part of the current product line-up. The E-M5 III replaced the earlier Olympus E-M5 II, while the E-PL10 followed on from the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So what conclusions can be drawn? Which of the two cameras – the Olympus E-M5 III or the Olympus E-PL10 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Olympus OM-D E-M5 Mark III:
- More detail: Offers more megapixels (20.2 vs 15.9MP) with a 13% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 8.6 flaps/sec) to capture the decisive moment.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
Reasons to prefer the Olympus PEN E-PL10:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better video: Provides higher movie framerates (4K/30p versus 4K/30p).
- More compact: Is smaller (117x68mm vs 125x85mm) and will fit more readily into a bag.
- Longer lasting: Gets more shots (350 versus 310) out of a single battery charge.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
If the number of relative strengths (bullet points above) is taken as a guide, the E-M5 III is the clear winner of the match-up (12 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M5 III and the Olympus E-PL10 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-M5 III and the E-PL10 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|2.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|3.||Olympus E-M1 III||5/5||..||83/100||4.5/5||4/5||Feb 2020||1,799|
|4.||Olympus E-M10 IV||4.5/5||..||81/100||4.5/5||4.5/5||Aug 2020||699|
|5.||Olympus E-M1X||4.5/5||o||..||4.5/5||..||Jan 2019||2,999|
|6.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|7.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|8.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|9.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|10.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|11.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|12.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|13.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|14.||Olympus E-M5||4/5||+ +||80/100||4.5/5||5/5||Feb 2012||1,299|
|15.||Panasonic G90||4.5/5||+||83/100||4.5/5||4.5/5||Apr 2019||999|
|16.||Panasonic GX8||5/5||+||82/100||4.5/5||4.5/5||Jul 2015||1,199|
|17.||Sony A6600||4/5||+||83/100||4.5/5||4/5||Aug 2019||1,399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Olympus E-M5 III vs Olympus E-PL10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M5 III||Olympus E-PL10|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||October 2019||October 2019|
|Launch Price||USD 1,199||USD 599|
|Sensor Specs||Olympus E-M5 III||Olympus E-PL10|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3888 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.34 μm||3.76 μm|
|Pixel Density||8.96 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||200 - 25,600 ISO||200 - 6,400 ISO|
|ISO Boost||64 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||TruePic VIII||TruePic VIII|
|Screen Specs||Olympus E-M5 III||Olympus E-PL10|
|Viewfinder Type||Electronic viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Olympus E-M5 III||Olympus E-PL10|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||10 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Olympus E-M5 III||Olympus E-PL10|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Olympus E-M5 III||Olympus E-PL10|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||310 shots per charge||350 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
125 x 85 x 50 mm
(4.9 x 3.3 x 2.0 in)
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
|Camera Weight||414 g (14.6 oz)||380 g (13.4 oz)|
