Olympus E-M5 II vs Sony NEX-C3
The Olympus OM-D E-M5 Mark II and the Sony Alpha NEX-C3 are two digital cameras that were announced, respectively, in February 2015 and June 2011. Both the E-M5 II and the NEX-C3 are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-M5 II) and an APS-C (NEX-C3) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M5 II||Sony NEX-C3|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Sony E mount lenses|
|15.9 MP, Four Thirds Sensor||16 MP, APS-C Sensor|
|1080/60p Video||720/30p Video|
|ISO 200-25,600||ISO 100-12,800|
|Electronic viewfinder (2360k dots)||Viewfinder optional|
|3.0 LCD, 1037k dots||3.0 LCD, 920k dots|
|Swivel touchscreen||Tilting screen (not touch-sensitive)|
|10 shutter flaps per second||5.5 shutter flaps per second|
|In-body stabilization||Lens stabilization only|
|Weathersealed body||not weather sealed|
|310 shots per battery charge||400 shots per battery charge|
|124 x 85 x 45 mm, 469 g||110 x 60 x 33 mm, 225 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M5 Mark II and the Sony Alpha NEX-C3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

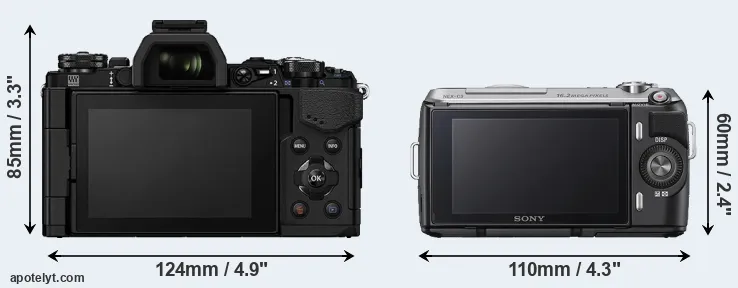

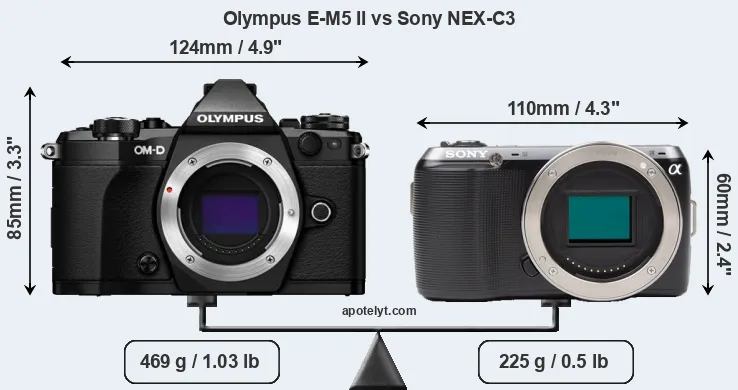

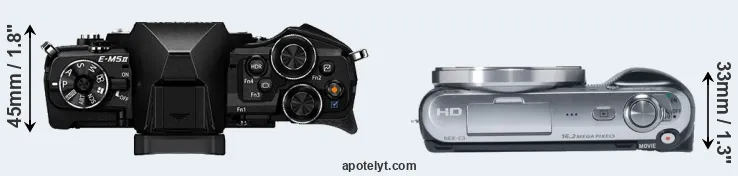

An illustration of the physical size and weight of the Olympus E-M5 II and the Sony NEX-C3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-M5 II can be obtained in two different colors (black, silver), while the NEX-C3 is available in three color-versions (black, silver, pink).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-C3 is considerably smaller (37 percent) than the Olympus E-M5 II. Moreover, the NEX-C3 is substantially lighter (52 percent) than the E-M5 II. It is worth mentioning in this context that the E-M5 II is splash and dust resistant, while the NEX-C3 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (E-M5 II) and the Sony E-Mount Lens Catalog (NEX-C3). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|Sony NEX-C3||110 mm||60 mm||33 mm||225 g||400||n||Jun 2011||599|
|Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|Olympus E-M1 II||134 mm||91 mm||67 mm||574 g||440||Y||Sep 2016||1,999|
|Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|Olympus E-M5||122 mm||89 mm||43 mm||425 g||360||Y||Feb 2012||1,299|
|Panasonic G80||128 mm||89 mm||74 mm||505 g||330||Y||Sep 2016||899|
|Panasonic GX8||133 mm||78 mm||63 mm||487 g||330||Y||Jul 2015||1,199|
|Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599|
|Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The NEX-C3 was launched at a markedly lower price (by 45 percent) than the E-M5 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

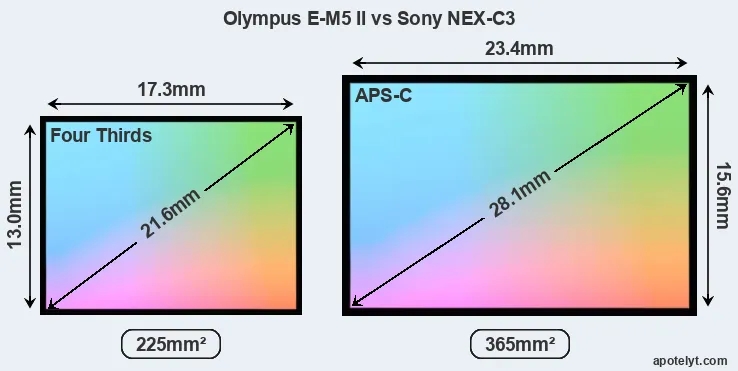

Of the two cameras under consideration, the Olympus E-M5 II features a Four Thirds sensor and the Sony NEX-C3 an APS-C sensor. The sensor area in the NEX-C3 is 62 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-M5 II has a native 4:3 aspect ratio, while the one in the NEX-C3 offers a 3:2 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

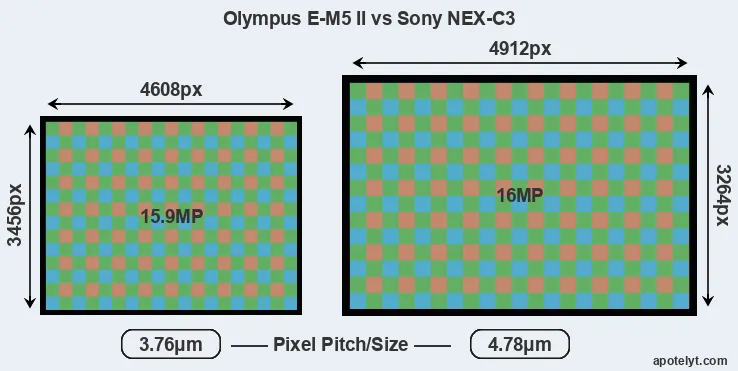

With 16MP, the NEX-C3 offers a higher resolution than the E-M5 II (15.9MP), but the NEX-C3 nevertheless has larger individual pixels (pixel pitch of 4.78μm versus 3.76μm for the E-M5 II) due to its larger sensor. However, the E-M5 II is a much more recent model (by 3 years and 7 months) than the NEX-C3, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
Unlike the NEX-C3, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M5 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Sony Alpha NEX-C3 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M5 III||Four Thirds||20.2||5184||3888||4k/24p||..||..||..||..|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Olympus E-M5||Four Thirds||15.9||4608||3456||1080/60i||22.8||12.3||826||71|
|Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M5 II provides a higher video resolution than the NEX-C3. It can shoot video footage at 1080/60p, while the Sony is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NEX-C3 relies on live view and the rear LCD for framing. That said, the NEX-C3 can be equipped with an optional viewfinder – the FDA-SV1. The adjacent table lists some of the other core features of the Olympus E-M5 II and Sony NEX-C3 along with similar information for a selection of comparators.
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that differentiates the E-M5 II and the NEX-C3 is in-body image stabilization (IBIS). The E-M5 II reduces the risk of handshake-induced blur with all attached lenses, while the NEX-C3 offers no blur reduction with lenses that themselves do not provide optical image stabilization.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M5 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-M5 II writes its imaging data to SDXC cards, while the NEX-C3 uses SDXC or Memory Stick PRO Duo cards. The E-M5 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the NEX-C3 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M5 Mark II and Sony Alpha NEX-C3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-M5 II has a microphone port, which is missing on the NEX-C3. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M5 II (unlike the NEX-C3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-M5 II and the NEX-C3 have been discontinued, but can regularly be found used on eBay. The E-M5 II was replaced by the Olympus E-M5 III, while the NEX-C3 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Sony websites.
So how do things add up? Is there a clear favorite between the Olympus E-M5 II and the Sony NEX-C3? Which camera is better? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Olympus OM-D E-M5 Mark II:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 5.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
- More modern: Reflects 3 years and 7 months of technical progress since the NEX-C3 launch.
Advantages of the Sony Alpha NEX-C3:
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- More compact: Is smaller (110x60mm vs 124x85mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 244g or 52 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (400 versus 310) out of a single battery charge.
- More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in June 2011).
If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 II is the clear winner of the match-up (17 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M5 II and the Sony NEX-C3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-M5 II or the NEX-C3 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Sony NEX-C3||+ +||74/100||4.5/5||4.5/5||4/5||Jun 2011||599|
|Olympus E-M5 III||+||82/100||4.5/5||5/5||4.5/5||Oct 2019||1,199|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Olympus E-M5||+ +||80/100||4.5/5||5/5||5/5||Feb 2012||1,299|
|Panasonic G80||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Sony NEX-3N||..||..||4.5/5||4/5||4.5/5||Feb 2013||499|
|Sony NEX-F3||..||74/100||4.5/5||4.5/5||4.5/5||May 2012||599|
|Sony NEX-5N||+ +||79/100||4.5/5||5/5||4.5/5||Aug 2011||699|
|Sony NEX-3||..||70/100||4.5/5||5/5||4/5||May 2010||599|
|Sony NEX-5||+ +||71/100||4.5/5||4/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 2000D vs Olympus E-M5 II
- Canon 650D vs Sony NEX-C3
- Canon 700D vs Olympus E-M5 II
- Canon G3 X vs Sony NEX-C3
- Epson R-D1 vs Olympus E-M5 II
- Fujifilm XF10 vs Olympus E-M5 II
- Nikon 1 J5 vs Olympus E-M5 II
- Nikon D3500 vs Sony NEX-C3
- Olympus E-M5 II vs Olympus TG-6
- Panasonic LX100 vs Sony NEX-C3
- Samsung NX30 vs Sony NEX-C3
- Sony NEX-3N vs Sony NEX-C3
Specifications: Olympus E-M5 II vs Sony NEX-C3
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M5 II||Sony NEX-C3|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Sony E mount lenses|
|Launch Date||February 2015||June 2011|
|Launch Price||USD 1,099||USD 599|
|Sensor Specs||Olympus E-M5 II||Sony NEX-C3|
|Sensor Format||Four Thirds Sensor||APS-C Sensor|
|Sensor Size||17.3 x 13.0 mm||23.4 x 15.6 mm|
|Sensor Area||224.9 mm2||365.04 mm2|
|Sensor Diagonal||21.6 mm||28.1 mm|
|Sensor Resolution||15.9 Megapixels||16 Megapixels|
|Image Resolution||4608 x 3456 pixels||4912 x 3264 pixels|
|Pixel Pitch||3.76 μm||4.78 μm|
|Pixel Density||7.08 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/30p Video|
|ISO Setting||200 - 25,600 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||TruePic VII||BIONZ|
|DXO Sensor Quality (score)||73||73|
|DXO Color Depth (bits)||23.0||22.7|
|DXO Dynamic Range (EV)||12.5||12.2|
|DXO Low Light (ISO)||842||1083|
|Screen Specs||Olympus E-M5 II||Sony NEX-C3|
|Viewfinder Type||Electronic viewfinder||Viewfinder optional|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||920k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Olympus E-M5 II||Sony NEX-C3|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||10 shutter flaps/s||5.5 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-II||no|
|Connectivity Specs||Olympus E-M5 II||Sony NEX-C3|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Olympus E-M5 II||Sony NEX-C3|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||310 shots per charge||400 shots per charge|
124 x 85 x 45 mm
(4.9 x 3.3 x 1.8 in)
110 x 60 x 33 mm
(4.3 x 2.4 x 1.3 in)
|Camera Weight||469 g (16.5 oz)||225 g (7.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
