Olympus E-M10 II vs Panasonic GH5s
The Olympus OM-D E-M10 Mark II and the Panasonic Lumix DC-GH5s are two digital cameras that were announced, respectively, in August 2015 and January 2018. Both the E-M10 II and the GH5s are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 9.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-M10 II||Panasonic GH5s|
|Mirrorless system camera||Mirrorless system camera|
|Micro Four Thirds lenses||Micro Four Thirds lenses|
|15.9 MP, Four Thirds Sensor||9.9 MP, Four Thirds Sensor|
|1080/60p Video||4K/60p Video|
|ISO 200-25,600||ISO 160-51,200 (80 - 204,800)|
|Electronic viewfinder (2360k dots)||Electronic viewfinder (3680k dots)|
|3.0 LCD, 1040k dots||3.2 LCD, 1620k dots|
|Tilting touchscreen||Swivel touchscreen|
|8 shutter flaps per second||12 shutter flaps per second|
|In-body stabilization||Lens stabilization only|
|not weather sealed||Weathersealed body|
|320 shots per battery charge||440 shots per battery charge|
|120 x 83 x 47 mm, 390 g||139 x 98 x 87 mm, 660 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M10 Mark II and the Panasonic Lumix DC-GH5s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Olympus E-M10 II and the Panasonic GH5s is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-M10 II can be obtained in three different colors (black, silver, brown), while the GH5s is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH5s is notably larger (37 percent) than the Olympus E-M10 II. Moreover, the GH5s is substantially heavier (69 percent) than the E-M10 II. It is noteworthy in this context that the GH5s is splash and dust-proof, while the E-M10 II does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Panasonic GH5s||5.5 in||3.9 in||3.4 in||23.3 oz||440||Y||Jan 2018||2,499|
|Olympus E-PL9||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Feb 2018||599|
|Olympus E-M10 III||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649|
|Olympus E-PL8||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549|
|Olympus PEN-F||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-PL7||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599|
|Olympus E-P5||4.8 in||2.7 in||1.5 in||14.8 oz||330||n||May 2013||999|
|Olympus E-PL6||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic GX85||4.8 in||2.8 in||1.7 in||15.0 oz||290||n||Apr 2016||799|
|Panasonic FZ300||5.2 in||3.6 in||4.6 in||24.4 oz||380||Y||Jul 2015||599|
|Panasonic GH4||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499|
|Panasonic GH3||5.2 in||3.7 in||3.2 in||19.4 oz||540||Y||Sep 2012||1,299|
|Panasonic G2||4.9 in||3.3 in||2.9 in||15.1 oz||360||n||Mar 2010||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-M10 II was launched at a markedly lower price (by 74 percent) than the GH5s, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

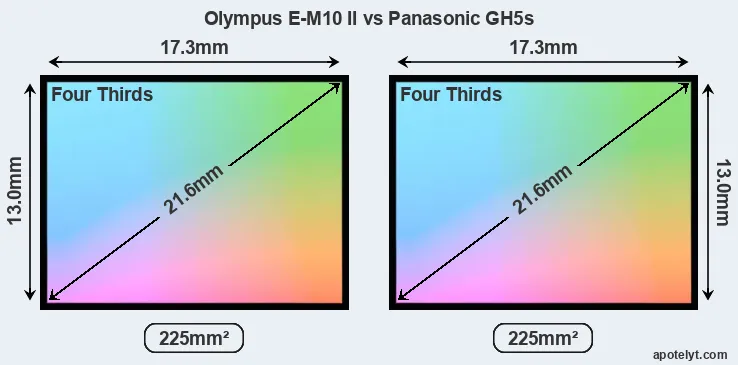

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
In terms of underlying technology, both cameras are build around CMOS sensors.

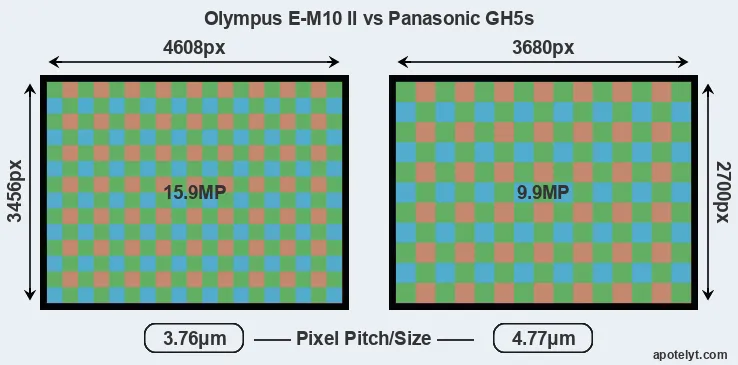

While the two cameras under review share the same sensor size, the E-M10 II offers a higher resolution of 15.9 megapixels, compared with 9.9 MP of the GH5s. This megapixels advantage translates into a 25 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M10 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.77μm for the GH5s). Moreover, it should be noted that the GH5s is much more recent (by 2 years and 4 months) than the E-M10 II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Olympus E-M10 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 II for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic GH5s are 18.4 x 13.5 inches or 46.7 x 34.3 cm for good quality, 14.7 x 10.8 inches or 37.4 x 27.4 cm for very good quality, and 12.3 x 9 inches or 31.2 x 22.9 cm for excellent quality prints.
The Olympus OM-D E-M10 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-GH5s are ISO 160 to ISO 51200, with the possibility to increase the ISO range to 80-204800.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Panasonic GH5s||Four Thirds||9.9||3680||2700||4K/60p||..||..||..||..|
|Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic GX85||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Panasonic GH3||Four Thirds||15.9||4608||3456||1080/60p||22.7||12.4||812||71|
|Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GH5s provides a better video resolution than the E-M10 II. It can shoot movie footage at 4K/60p, while the Olympus is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the GH5s offers a substantially higher resolution than the one in the E-M10 II (3680k vs 2360k dots). The adjacent table lists some of the other core features of the Olympus E-M10 II and Panasonic GH5s along with similar information for a selection of comparators.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The E-M10 II has one, while the GH5s does not. While the built-in flash of the E-M10 II is not very powerful, it can at times be useful as a fill-in light.The GH5s has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II and the Panasonic GH5s both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M10 II and the GH5s write their files to SDXC cards. The GH5s features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 II only has one slot. The GH5s supports UHS-II cards (on both slots), while the E-M10 II can use UHS-I cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M10 Mark II and Panasonic Lumix DC-GH5s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the GH5s has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The E-M10 II lacks such a headphone port.
Studio photographers will appreciate that the Panasonic GH5s (unlike the E-M10 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GH5s is a recent model that features in the current product line-up of Panasonic. In contrast, the E-M10 II has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-M10 II was succeeded by the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So how do things add up? Is there a clear favorite between the Olympus E-M10 II and the Panasonic GH5s? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus OM-D E-M10 Mark II:
- More detail: Offers more megapixels (15.9 vs 9.9MP) with a 26% higher linear resolution.
- More compact: Is smaller (120x83mm vs 139x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 270g or 41 percent) and hence easier to carry around.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2015).
Arguments in favor of the Panasonic Lumix DC-GH5s:
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2360k dots).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.62x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (12 vs 8 flaps/sec) to capture the decisive moment.
- Longer lasting: Gets more shots (440 versus 320) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 2 years and 4 months of technical progress since the E-M10 II launch.
If the number of relative strengths (bullet points above) is taken as a guide, the GH5s is the clear winner of the contest (20 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M10 II and the Panasonic GH5s place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-M10 II and the GH5s in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Panasonic GH5s||..||84/100||4.5/5||5/5||4.5/5||Jan 2018||2,499|
|Olympus E-PL9||+||..||4.5/5||4.5/5||4/5||Feb 2018||599|
|Olympus E-M10 III||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649|
|Olympus E-PL8||..||..||4.5/5||..||4/5||Sep 2016||549|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-PL7||+||..||5/5||4.5/5||4/5||Aug 2014||599|
|Olympus E-P5||+ +||78/100||4.5/5||4.5/5||5/5||May 2013||999|
|Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic GX85||+ +||82/100||5/5||4.5/5||5/5||Apr 2016||799|
|Panasonic FZ300||+ +||..||4.5/5||4.5/5||4.5/5||Jul 2015||599|
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Panasonic GH3||+ +||79/100||4.5/5||5/5||4.5/5||Sep 2012||1,299|
|Panasonic G2||..||72/100||4/5||4/5||4.5/5||Mar 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 800D vs Olympus E-M10 II
- Canon G9 X Mark II vs Panasonic GH5s
- Nikon D3000 vs Panasonic GH5s
- Nikon D3100 vs Panasonic GH5s
- Nikon P7800 vs Olympus E-M10 II
- Nikon P950 vs Panasonic GH5s
- Olympus E-M10 II vs Panasonic ZS100
- Olympus E-M10 II vs Sony A99
- Olympus E-PL9 vs Panasonic GH5s
- Panasonic FZ1000 II vs Panasonic GH5s
- Panasonic GH5s vs Panasonic GM1
- Panasonic GH5s vs Panasonic L10
Specifications: Olympus E-M10 II vs Panasonic GH5s
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M10 II||Panasonic GH5s|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||August 2015||January 2018|
|Launch Price||USD 649||USD 2,499|
|Sensor Specs||Olympus E-M10 II||Panasonic GH5s|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||15.9 Megapixels||9.9 Megapixels|
|Image Resolution||4608 x 3456 pixels||3680 x 2700 pixels|
|Pixel Pitch||3.76 μm||4.77 μm|
|Pixel Density||7.08 MP/cm2||4.42 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||4K/60p Video|
|ISO Setting||200 - 25,600 ISO||160 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||80 - 204,800 ISO|
|Image Processor||TruePic VII||Venus 10|
|DXO Sensor Quality (score)||73||..|
|DXO Color Depth (bits)||23.1||..|
|DXO Dynamic Range (EV)||12.5||..|
|DXO Low Light (ISO)||842||..|
|Screen Specs||Olympus E-M10 II||Panasonic GH5s|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||3680k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Shooting Specs||Olympus E-M10 II||Panasonic GH5s|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||8 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||up to 1/16000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||Lens stabilization only|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||Dual UHS-II|
|Connectivity Specs||Olympus E-M10 II||Panasonic GH5s|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Olympus E-M10 II||Panasonic GH5s|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||320 shots per charge||440 shots per charge|
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||390 g (13.8 oz)||660 g (23.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
