Olympus E-M1 vs E-PL8

The Olympus OM-D E-M1 and the Olympus PEN E-PL8 are two digital cameras that were announced, respectively, in September 2013 and September 2016. Both the E-M1 and the E-PL8 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-M1		Olympus E-PL8
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
15.9 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
1080/30p Video		1080/30p Video
ISO 200-25,600		ISO 200-6,400 (100 - 25,600)
Electronic viewfinder (2360k dots)		Viewfinder optional
3.0" LCD – 1037k dots		3.0" LCD – 1037k dots
Tilting touchscreen		Tilting touchscreen
10 shutter flaps per second		8 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
350 shots per battery charge		350 shots per battery charge
130 x 94 x 63 mm, 497 g		115 x 67 x 38 mm, 357 g

Check E-M1 offers at
ebay.com
Check E-PL8 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 and the Olympus PEN E-PL8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

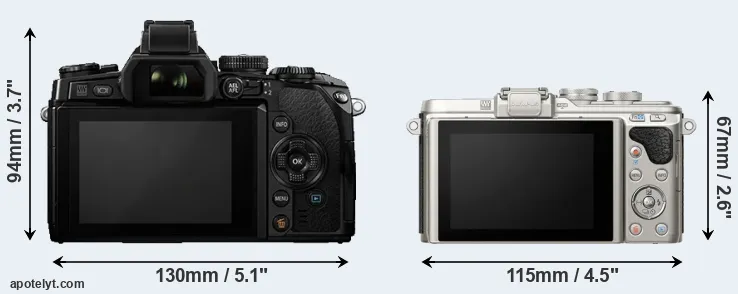

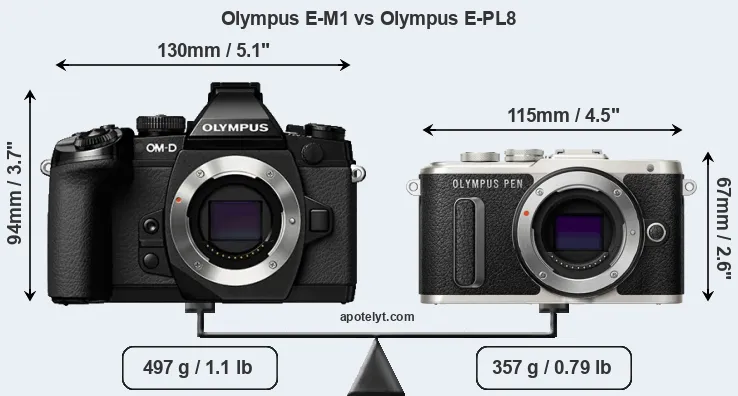

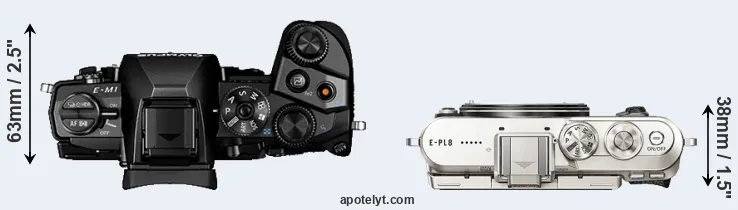

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1 and the Olympus E-PL8. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The E-M1 can be obtained in two different colors (black, silver), while the E-PL8 is available in three color-versions (black, brown, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL8 is considerably smaller (37 percent) than the Olympus E-M1. Moreover, the E-PL8 is markedly lighter (28 percent) than the E-M1. It is worth mentioning in this context that the E-M1 is splash and dust resistant, while the E-PL8 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
2.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
3.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	599	ebay.com
4.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	599	ebay.com
5.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	649	ebay.com
6.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	1,999	ebay.com
7.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
8.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
9.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
11.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
12.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	1,299	ebay.com
13.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
14.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	499	ebay.com
15.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	1,499	ebay.com
16.		Panasonic GH3	133 mm	93 mm	82 mm	550 g	540	Y	Sep 2012	1,299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL8 was launched at a markedly lower price (by 61 percent) than the E-M1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

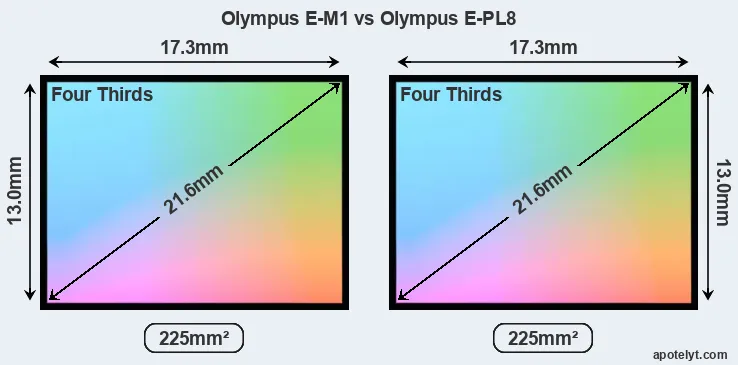

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

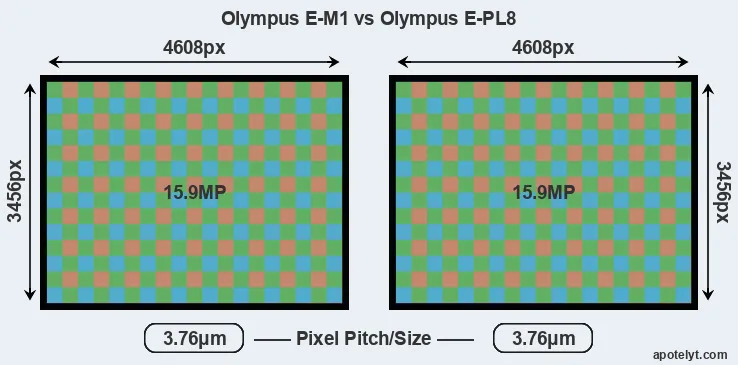

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 15.9 megapixels. This similarity in sensor specs implies that both the E-M1 and the E-PL8 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-PL8 is much more recent (by 3 years) than the E-M1, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus OM-D E-M1 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PL8 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
2.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
3.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
4.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
5.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
6.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
7.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
8.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
9.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
12.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
13.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
14.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
15.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
16.		Panasonic GH3	Four Thirds	15.9	4608	3456	1080/60p	22.7	12.4	812	71
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL8 relies on live view and the rear LCD for framing. That said, the E-PL8 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Olympus E-M1 and Olympus E-PL8 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
2.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
4.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
5.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
6.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
7.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
8.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
9.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
12.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
13.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
15.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
16.		Panasonic GH3	1746	n	3.0 / 614	swivel	Y	1/4000s	6.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 and the Olympus E-PL8 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M1 and the E-PL8 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 and Olympus PEN E-PL8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
2.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
5.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
7.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
16.		Panasonic GH3	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-

It is notable that the E-M1 has a microphone port, which is missing on the E-PL8. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Olympus E-M1 (unlike the E-PL8) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-M1 and the E-PL8 have been discontinued, but can regularly be found used on ebay. The E-M1 was replaced by the Olympus E-M1 II, while the E-PL8 was followed by the Olympus E-PL9. Further information on the features and operation of the E-M1 and E-PL8 can be found, respectively, in the Olympus E-M1 Manual (free pdf) or the online Olympus E-PL8 Manual.

Review summary

So how do things add up? Which of the two cameras – the Olympus E-M1 or the Olympus E-PL8 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus OM-D E-M1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in September 2013).

Advantages of the Olympus PEN E-PL8:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (115x67mm vs 130x94mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 140g or 28 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (61 percent cheaper at launch).
• More modern: Reflects 3 years of technical progress since the E-M1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-M1 is the clear winner of the match-up (10 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-M1 and the Olympus E-PL8 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-M1 and the E-PL8 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
2.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
3.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	599	ebay.com
4.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	599	ebay.com
5.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	649	ebay.com
6.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	1,999	ebay.com
7.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
8.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
9.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
11.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
12.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	1,299	ebay.com
13.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
14.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	499	ebay.com
15.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	1,499	ebay.com
16.		Panasonic GH3	5/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	1,299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
