Olympus E-M1 II vs E-M10 III
The Olympus OM-D E-M1 Mark II and the Olympus OM-D E-M10 Mark III are two digital cameras that were officially introduced, respectively, in September 2016 and August 2017. Both the E-M1 II and the E-M10 III are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The E-M1 II has a resolution of 20.2 megapixels, whereas the E-M10 III provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the Olympus OM-D E-M10 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

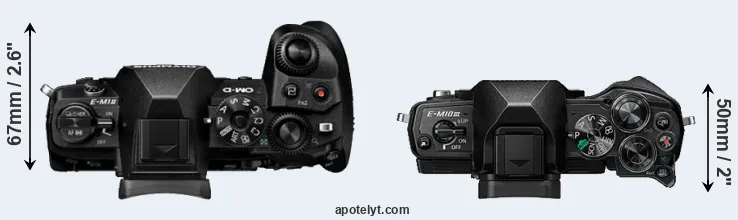

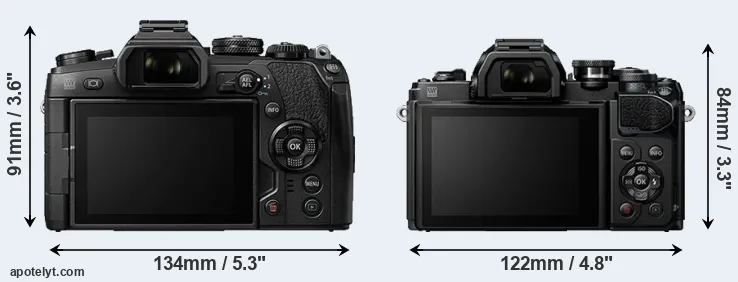

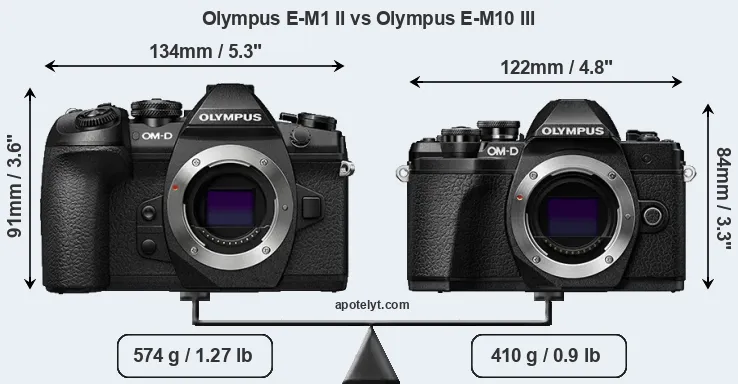

The physical size and weight of the Olympus E-M1 II and the Olympus E-M10 III are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-M10 III can be obtained in two different colors (black, silver), while the E-M1 II is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 III is notably smaller (16 percent) than the Olympus E-M1 II. Moreover, the E-M10 III is markedly lighter (29 percent) than the E-M1 II. It is worth mentioning in this context that the E-M1 II is splash and dust resistant, while the E-M10 III does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|Olympus E-M1 II||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999|
|Olympus E-M10 III||4.8 in||3.3 in||2.0 in||14.5 oz||330||n||Aug 2017||649|
|Olympus E-M1 III||5.3 in||3.6 in||2.7 in||20.5 oz||420||Y||Feb 2020||1,799|
|Olympus E-M10 IV||4.8 in||3.3 in||1.9 in||13.5 oz||360||n||Aug 2020||699|
|Olympus E-PL10||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Oct 2019||599|
|Olympus E-PL9||4.6 in||2.7 in||1.5 in||13.4 oz||350||n||Feb 2018||599|
|Olympus E-PL8||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Sep 2016||549|
|Olympus PEN-F||4.9 in||2.8 in||1.5 in||15.1 oz||330||n||Jan 2016||1,199|
|Olympus E-M5 II||4.9 in||3.3 in||1.8 in||16.5 oz||310||Y||Feb 2015||1,099|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M1||5.1 in||3.7 in||2.5 in||17.5 oz||350||Y||Sep 2013||1,399|
|Panasonic G9||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Panasonic G85||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GX8||5.2 in||3.1 in||2.5 in||17.2 oz||330||Y||Jul 2015||1,199|
|Sony A9||5.0 in||3.8 in||2.5 in||23.7 oz||650||Y||Apr 2017||4,499|
|Sony A7 II||5.0 in||3.8 in||2.4 in||21.1 oz||350||Y||Nov 2014||1,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M10 III was launched at a markedly lower price (by 68 percent) than the E-M1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

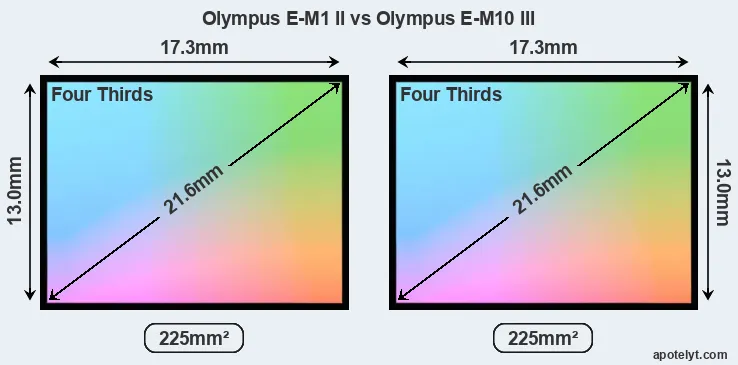

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

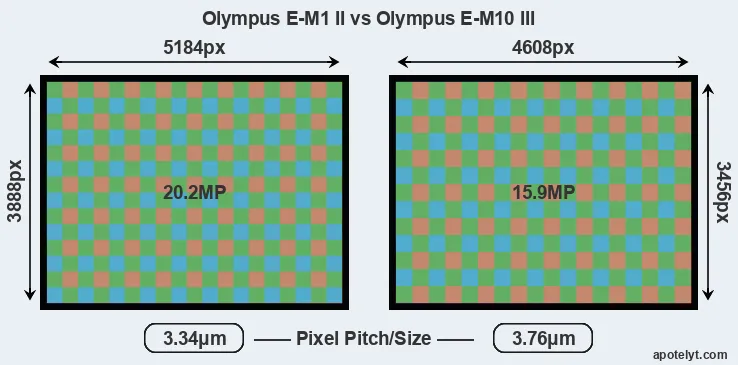

While the two cameras under review share the same sensor size, the E-M1 II offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the E-M10 III. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M1 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.76μm for the E-M10 III). Moreover, it should be noted that the E-M10 III is a somewhat more recent model (by 11 months) than the E-M1 II, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Olympus E-M1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 II for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-M10 III are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the E-M10 III, the E-M1 II has the capacity to capture high quality composite images (50MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-M1 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Olympus E-M10 IV||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX8||Four Thirds||20.2||5184||3888||4K/30p||23.5||12.6||806||75|
|Sony A9||Full Frame||24.0||6000||4000||4K/30p||24.9||13.3||3517||92|
|Sony A7 II||Full Frame||24.0||6000||4000||1080/60p||24.9||13.6||2449||90|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. The E-M1 II and the E-M10 III are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Olympus E-M1 II and Olympus E-M10 III in connection with corresponding information for a sample of similar cameras.
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|Olympus E-M1 III||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Olympus E-M10 IV||2360||n||3.0||1040||tilting||Y||1/4000s||15.0||Y||Y|
|Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|Sony A7 II||2400||n||3.0||1230||tilting||n||1/8000s||5.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The E-M10 III has one, while the E-M1 II does not. While the built-in flash of the E-M10 III is not very powerful, it can at times be useful as a fill-in light.The E-M1 II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 III does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M1 II and the Olympus E-M10 III both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the E-M1 II and the E-M10 III write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 III only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s (the second slot of the E-M1 II supports only UHS-I, though).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and Olympus OM-D E-M10 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Olympus E-M1 III||Y||stereo||mono||Y||Y||micro||3.1||Y||-||Y|
|Olympus E-M10 IV||Y||stereo||mono||-||-||micro||2.0||Y||-||Y|
|Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|Sony A7 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||-|
It is notable that the E-M1 II has a microphone port, which is missing on the E-M10 III. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-M1 II (unlike the E-M10 III) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The E-M1 II is a recent model that features in the current product line-up of Olympus. In contrast, the E-M10 III has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-M10 III was succeeded by the Olympus E-M10 IV. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus website.
So what is the bottom line? Which of the two cameras – the Olympus E-M1 II or the Olympus E-M10 III – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Olympus OM-D E-M1 Mark II:
- More detail: Offers more megapixels (20.2 vs 15.9MP) with a 13% higher linear resolution.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.62x).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (18 vs 8.6 flaps/sec) to capture the decisive moment.
- Longer lasting: Can take more shots (440 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been on the market for longer (launched in September 2016).
Advantages of the Olympus OM-D E-M10 Mark III:
- More compact: Is smaller (122x84mm vs 134x91mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 164g or 29 percent) and is thus easier to take along.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
- More modern: Was introduced somewhat (11 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 II is the clear winner of the match-up (16 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-M1 II and the Olympus E-M10 III place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-M1 II or the E-M10 III perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Olympus E-M10 III||+||80/100||4.5/5||4/5||4.5/5||Aug 2017||649|
|Olympus E-M1 III||..||83/100||4.5/5||..||4/5||Feb 2020||1,799|
|Olympus E-M10 IV||..||..||4.5/5||..||4.5/5||Aug 2020||699|
|Olympus E-PL10||..||77/100||..||..||4/5||Oct 2019||599|
|Olympus E-PL9||+||..||4.5/5||4.5/5||4/5||Feb 2018||599|
|Olympus E-PL8||..||..||4.5/5||..||4/5||Sep 2016||549|
|Olympus PEN-F||..||82/100||4.5/5||4.5/5||5/5||Jan 2016||1,199|
|Olympus E-M5 II||+ +||81/100||5/5||4.5/5||5/5||Feb 2015||1,099|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M1||+ +||84/100||4.5/5||4.5/5||4.5/5||Sep 2013||1,399|
|Panasonic G9||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic G85||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX8||+||82/100||4.5/5||5/5||4.5/5||Jul 2015||1,199|
|Sony A9||+ +||89/100||5/5||5/5||5/5||Apr 2017||4,499|
|Sony A7 II||+||82/100||4.5/5||5/5||5/5||Nov 2014||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Olympus E-M1 II vs Olympus E-M10 III
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-M1 II||Olympus E-M10 III|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Micro Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2016||August 2017|
|Launch Price||USD 1,999||USD 649|
|Sensor Specs||Olympus E-M1 II||Olympus E-M10 III|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||15.9 Megapixels|
|Image Resolution||5184 x 3888 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.34 μm||3.76 μm|
|Pixel Density||8.96 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||200 - 25,600 ISO||200 - 25,600 ISO|
|ISO Boost||64 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||TruePic VIII||TruePic VIII|
|DXO Sensor Quality (score)||80||..|
|DXO Color Depth (bits)||23.7||..|
|DXO Dynamic Range (EV)||12.8||..|
|DXO Low Light (ISO)||1312||..|
|Screen Specs||Olympus E-M1 II||Olympus E-M10 III|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1037k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Olympus E-M1 II||Olympus E-M10 III|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||18 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||Single UHS-II||UHS-II|
|Connectivity Specs||Olympus E-M1 II||Olympus E-M10 III|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Body Specs||Olympus E-M1 II||Olympus E-M10 III|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||440 shots per charge||330 shots per charge|
134 x 91 x 67 mm
(5.3 x 3.6 x 2.6 in)
122 x 84 x 50 mm
(4.8 x 3.3 x 2.0 in)
|Camera Weight||574 g (20.2 oz)||410 g (14.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
