Olympus E-510 vs Panasonic GF2

The Olympus E-510 and the Panasonic Lumix DMC-GF2 are two digital cameras that were officially introduced, respectively, in March 2007 and November 2010. The E-510 is a DSLR, while the GF2 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 10 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-510		Panasonic GF2
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		12 MP – Four Thirds sensor
no Video		1080/60i Video
ISO 100-1,600		ISO 100-6,400
Optical viewfinder		Viewfinder optional
2.5" LCD – 215k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
3 shutter flaps per second		2.6 shutter flaps per second
In-body stabilization		Lens stabilization only
750 shots per battery charge		300 shots per battery charge
136 x 92 x 68 mm, 538 g		113 x 68 x 33 mm, 310 g

Check E-510 offers at
ebay.com
Check GF2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-510 and the Panasonic Lumix DMC-GF2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Olympus E-510 and the Panasonic GF2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The GF2 can be obtained in four different colors (black, silver, red, white), while the E-510 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF2 is considerably smaller (39 percent) than the Olympus E-510. Moreover, the GF2 is substantially lighter (42 percent) than the E-510. In this context, it is worth noting that neither the E-510 nor the GF2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-510) and the Micro Four Thirds Lens Catalog (GF2). Mirrorless cameras, such as the GF2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-510 gets 750 shots out of its Olympus BLM-1 battery, while the GF2 can take 300 images on a single charge of its Panasonic DMW-BLD10 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
2.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	549	ebay.com
3.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
4.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	449	ebay.com
5.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
6.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
7.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
8.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
9.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	699	ebay.com
10.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	699	ebay.com
11.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	599	ebay.com
12.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	599	ebay.com
13.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	549	ebay.com
14.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	499	ebay.com
15.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	599	ebay.com
16.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	749	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GF2 was launched at a markedly lower price (by 31 percent) than the E-510, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

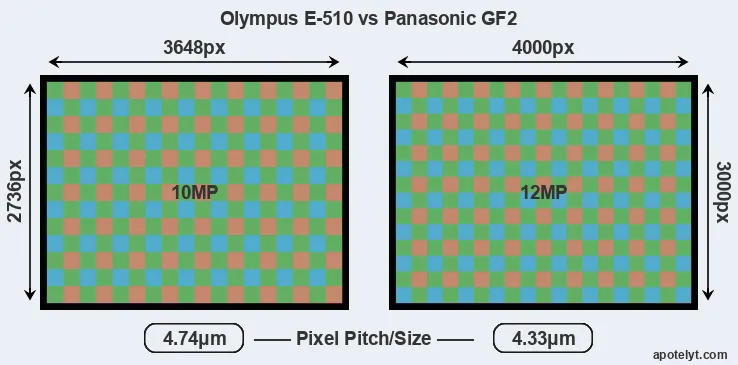

While the two cameras under review share the same sensor size, the GF2 offers a higher resolution of 12 megapixels, compared with 10 MP of the E-510. This megapixels advantage translates into a 10 percent gain in linear resolution. On the other hand, these sensor specs imply that the GF2 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.33μm versus 4.74μm for the E-510). However, it should be noted that the GF2 is much more recent (by 3 years and 8 months) than the E-510, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Panasonic GF2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GF2 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-510 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-GF2 are ISO 100 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
2.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
3.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
4.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
5.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
6.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
7.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
8.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
9.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
10.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
11.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
12.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
13.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
14.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
15.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
16.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The GF2 indeed provides for movie recording, while the E-510 does not. The highest resolution format that the GF2 can use is 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-510 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the GF2 relies on live view and the rear LCD for framing. That said, the GF2 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Olympus E-510 and Panasonic GF2 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
2.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
3.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
4.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
5.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
6.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
7.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
8.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
9.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
10.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
11.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
12.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
13.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
14.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
15.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
16.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-510 and the GF2 is in-body image stabilization (IBIS). The E-510 reduces the risk of handshake-induced blur with all attached lenses, while the GF2 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The E-510 writes its imaging data to Compact Flash or xD Picture cards, while the GF2 uses SDXC cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GF2 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-510 and Panasonic Lumix DMC-GF2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
4.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
12.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
15.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Both the E-510 and the GF2 have been discontinued, but can regularly be found used on ebay. The E-510 was replaced by the Olympus E-520, while the GF2 was followed by the Panasonic GF3. Further information on the features and operation of the E-510 and GF2 can be found, respectively, in the Olympus E-510 Manual (free pdf) or the online Panasonic GF2 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-510 and the Panasonic GF2? Which camera is better? The listing below highlights the relative strengths of the two models.

Advantages of the Olympus E-510:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (3 vs 2.6 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (750 versus 300) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in March 2007).

Reasons to prefer the Panasonic Lumix DMC-GF2:

• More detail: Has more megapixels (12 vs 10MP), which boosts linear resolution by 10%.
• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 215k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More compact: Is smaller (113x68mm vs 136x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 228g or 42 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
• More modern: Reflects 3 years and 8 months of technical progress since the E-510 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the GF2 is the clear winner of the contest (10 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-510 and the Panasonic GF2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-510 or the GF2 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
2.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	549	ebay.com
3.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
4.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	449	ebay.com
5.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
6.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
7.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
8.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
9.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	699	ebay.com
10.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	699	ebay.com
11.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	599	ebay.com
12.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	599	ebay.com
13.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	549	ebay.com
14.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	499	ebay.com
15.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	599	ebay.com
16.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	749	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
