Olympus E-5 vs Sony H300

The Olympus E-5 and the Sony Cyber-shot DSC-H300 are two digital cameras that were revealed to the public, respectively, in September 2010 and February 2014. The E-5 is a DSLR, while the H300 is a fixed lens compact. The cameras are based on a Four Thirds (E-5) and a 1/2.3-inch (H300) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 19.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-5		Sony H300
Digital single lens reflex		Fixed lens compact camera
Four Thirds lenses		25-875mm f/3.4-6.5
12.2 MP – Four Thirds sensor		19.9 MP – 1/2.3" sensor
720/30p Video		720/30p Video
ISO 100-6,400		ISO 80-3,200
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		0.8 shutter flaps per second
In-body stabilization		Lens-based stabilization
Weathersealed body		not weather sealed
750 shots per battery charge		350 shots per battery charge
142 x 117 x 75 mm, 873 g		128 x 89 x 92 mm, 590 g

Check E-5 offers at
ebay.com
Check H300 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Sony Cyber-shot DSC-H300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Olympus E-5 and the Sony H300 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony H300 is considerably smaller (31 percent) than the Olympus E-5. It is worth mentioning in this context that the E-5 is splash and dust resistant, while the H300 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the H300 has a lens built in, whereas the E-5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-5 and their specifications in the Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	1,699	ebay.com
2.		Sony H300	128 mm	89 mm	92 mm	590 g	350	n	Feb 2014	219	ebay.com
3.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	249	ebay.com
4.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
5.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	449	ebay.com
6.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
7.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	799	ebay.com
8.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	799	ebay.com
9.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	1,299	ebay.com
10.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
11.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	1,699	ebay.com
12.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	799	ebay.com
13.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	1,699	ebay.com
14.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
15.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	499	ebay.com
16.		Sony H400	130 mm	95 mm	122 mm	628 g	300	n	Feb 2014	319	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The H300 was launched at a lower price than the E-5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

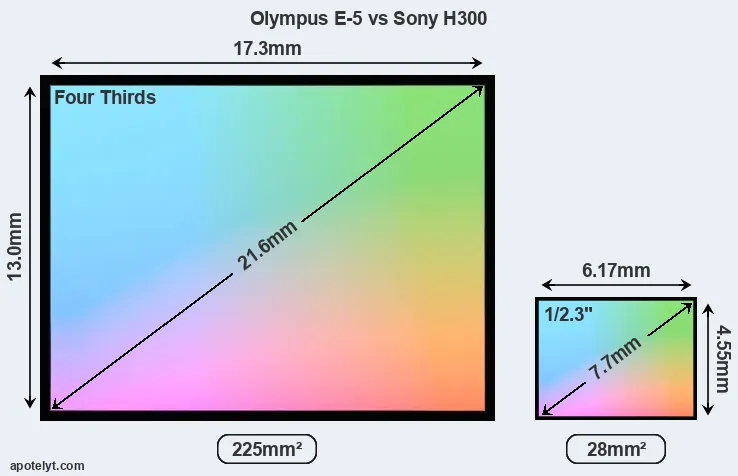

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-5 features a Four Thirds sensor and the Sony H300 a 1/2.3-inch sensor. The sensor area in the H300 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the H300 offers a higher resolution of 19.9 megapixels, compared with 12.2 MP of the E-5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 4.29μm for the E-5). However, it should be noted that the H300 is much more recent (by 3 years and 5 months) than the E-5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the H300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony H300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the H300 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Sony Cyber-shot DSC-H300 are ISO 80 to ISO 3200 (no boost).

In terms of underlying technology, the E-5 is build around a CMOS sensor, while the H300 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
2.		Sony H300	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
3.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
4.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
5.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
6.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
7.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
8.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
9.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
10.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
11.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
12.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
13.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
14.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
15.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
16.		Sony H400	1/2.3	19.9	5152	3864	720/30p	20.1	11.4	630	45
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (720/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the H300 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Olympus E-5 and Sony H300 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
2.		Sony H300	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
3.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
4.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
5.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
6.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
7.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
8.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
9.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
10.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
11.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
12.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
13.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
14.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
15.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
16.		Sony H400	210	n	3.0 / 460	fixed	n	1/2000s	0.7/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-5, but is missing on the H300 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the H300 uses SDXC or Memory Stick PRO Duo cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the H300 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Sony Cyber-shot DSC-H300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Sony H300	-	mono / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
4.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
14.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony H400	-	mono / mono	-	-	micro	2.0	Y	-	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the E-5 has a hotshoe, while the H300 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Olympus E-5 (unlike the H300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-5 and the H300 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Olympus and Sony. Further information on the features and operation of the E-5 and H300 can be found, respectively, in the Olympus E-5 Manual (free pdf) or the online Sony H300 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-5 and the Sony H300? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus E-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1500s) to freeze action.
• Faster burst: Shoots at higher frequency (5 vs 0.8 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 350) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2010).

Reasons to prefer the Sony Cyber-shot DSC-H300:

• More detail: Has more megapixels (19.9 vs 12.2MP), which boosts linear resolution by 28%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Comes with an integrated lens, while the E-5 requires a separate lens.
• More compact: Is smaller (128x89mm vs 142x117mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-5).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 3 years and 5 months of technical progress since the E-5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-5 is the clear winner of the match-up (19 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-5 and the Sony H300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-5 and the H300 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	1,699	ebay.com
2.		Sony H300	..	+	..	..	4.5/5	4/5	Feb 2014	219	ebay.com
3.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	249	ebay.com
4.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
5.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	449	ebay.com
6.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
7.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	799	ebay.com
8.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	799	ebay.com
9.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	1,299	ebay.com
10.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
11.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	1,699	ebay.com
12.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	799	ebay.com
13.		Olympus E-1	..	..	..	+	o	..	Jun 2003	1,699	ebay.com
14.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
15.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	499	ebay.com
16.		Sony H400	..	o	..	..	3.5/5	3.5/5	Feb 2014	319	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
