Olympus E-5 vs Sony A9

The Olympus E-5 and the Sony Alpha A9 are two professional cameras that were revealed to the public, respectively, in September 2010 and April 2017. The E-5 is a DSLR, while the A9 is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (E-5) and a full frame (A9) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-5
versus
Sony A9
Olympus E-5   Sony A9
Digital single lens reflex Mirrorless system camera
Four Thirds lenses Sony E mount lenses
12.2 MP – Four Thirds sensor 24 MP – Full Frame sensor
720/30p Video 4K/30p Video
ISO 100-6,400 ISO 100-51,200 (50 - 204,800)
Optical viewfinder Electronic viewfinder (3686k dots)
3.0" LCD – 920k dots 3.0" LCD – 1440k dots
Swivel screen (not touch-sensitive) Tilting touchscreen
5 shutter flaps per second 20 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodyWeathersealed body
750 shots per battery charge650 shots per battery charge
142 x 117 x 75 mm, 873 g 127 x 96 x 63 mm, 673 g
logo
Check E-5 offers at
ebay.com
logo
Check A9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Sony Alpha A9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Olympus E-5 and the Sony A9 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Size Olympus E-5 vs Sony A9

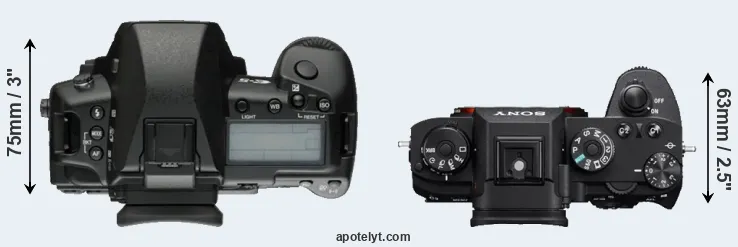

Compare E-5 versus A9 top
Comparison E-5 or A9 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A9 is notably smaller (27 percent) than the Olympus E-5. Moreover, the A9 is markedly lighter (23 percent) than the E-5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-5) and the Sony FE Lens Catalog (A9). Mirrorless cameras, such as the A9, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-5 gets 750 shots out of its Olympus BLM-5 battery, while the A9 can take 650 images on a single charge of its Sony NP-FZ100 power pack. The power pack in the A9 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-5 142 mm 117 mm 75 mm 873 g 750 Y Sep 2010 1,699ebay.com
2.

Sony A9 127 mm 96 mm 63 mm 673 g 650 Y Apr 2017 4,499ebay.com
3.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399ebay.com
4.

Olympus E-P3 122 mm 69 mm 34 mm 369 g 330 n Jun 2011 799ebay.com
5.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 n Jan 2011 599ebay.com
6.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 599ebay.com
7.

Olympus E-PM1 110 mm 64 mm 34 mm 265 g 330 n Jun 2011 499ebay.com
8.

Olympus E-450 130 mm 91 mm 53 mm 440 g 500 n Mar 2009 499ebay.com
9.

Olympus E-600 130 mm 94 mm 60 mm 535 g 500 n Aug 2009 449ebay.com
10.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 699ebay.com
11.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 Y Oct 2007 1,699ebay.com
12.

Sony A7R V 131 mm 97 mm 82 mm 723 g 530 Y Oct 2022 3,899 amazon.com
13.

Sony A9 II 129 mm 96 mm 76 mm 678 g 690 Y Oct 2019 4,499 amazon.com
14.

Sony A7 III 127 mm 96 mm 74 mm 650 g 610 Y Feb 2018 1,999 amazon.com
15.

Sony A7R III 127 mm 96 mm 74 mm 650 g 650 Y Oct 2017 3,199ebay.com
16.

Sony A7 II 127 mm 96 mm 60 mm 599 g 350 Y Nov 2014 1,999ebay.com
17.

Sony A77 143 mm 104 mm 81 mm 732 g 470 Y Aug 2011 1,399ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-5 was launched at a markedly lower price (by 62 percent) than the A9, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-5 features a Four Thirds sensor and the Sony A9 a full frame sensor. The sensor area in the A9 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-5 has a native 4:3 aspect ratio, while the one in the A9 offers a 3:2 aspect.

Olympus E-5 and Sony A9 sensor measures

With 24MP, the A9 offers a higher resolution than the E-5 (12.2MP), but the A9 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 4.29μm for the E-5) due to its larger sensor. Moreover, the A9 is a much more recent model (by 6 years and 7 months) than the E-5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony A9 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A9 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The A9 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Sony Alpha A9 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the E-5 is build around a CMOS sensor, while the A9 uses a Stacked BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-5 versus A9 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the A9 offers substantially better image quality than the E-5 (overall score 36 points higher). The advantage is based on 3.3 bits higher color depth, 2.8 EV in additional dynamic range, and 2.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956
2.

Sony A9 Full Frame 24.0 6000 40004K/30p24.913.3351792
3.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
4.

Olympus E-P3 Four Thirds 12.2 4032 30241080/60i20.810.153651
5.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.257355
6.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
7.

Olympus E-PM1 Four Thirds 12.2 4032 30241080/60i21.010.349952
8.

Olympus E-450 Four Thirds 10.0 3648 2736none21.510.551256
9.

Olympus E-600 Four Thirds 12.2 4032 3024none21.510.354155
10.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
11.

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156
12.

Sony A7R V Full Frame 60.2 9504 63368k/24p26.514.83187100
13.

Sony A9 II Full Frame 24.0 6000 40004K/30p25.014.0343493
14.

Sony A7 III Full Frame 24.0 6000 40004K/30p25.014.7373096
15.

Sony A7R III Full Frame 42.2 7952 53044K/30p26.014.73523100
16.

Sony A7 II Full Frame 24.0 6000 40001080/60p24.913.6244990
17.

Sony A77 APS-C 24.0 6000 40001080/60p24.013.280178
padding

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the A9 provides a better video resolution than the E-5. It can shoot movie footage at 4K/30p, while the Olympus is limited to 720/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the A9 has an electronic viewfinder (3686k dots), while the E-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the A9 has a higher magnification than the one of the E-5 (0.78x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-5 and Sony A9 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-5optical Y3.0 / 920 swivel n 1/8000s 5.0/s Y Y
2.

Sony A93686 n3.0 / 1440 tilting Y 1/8000s 20.0/s n Y
3.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
4.

Olympus E-P3optional n3.0 / 614 fixed Y 1/4000s 3.0/s Y Y
5.

Olympus E-PL2optional n3.0 / 460 fixed n 1/4000s 3.0/s Y Y
6.

Olympus E-PL3optional n3.0 / 460 tilting n 1/4000s 5.5/s n Y
7.

Olympus E-PM1optional n3.0 / 460 fixed n 1/4000s 5.5/s n Y
8.

Olympus E-450optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
9.

Olympus E-600optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
10.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
11.

Olympus E-3optical Y2.5 / 230 swivel n 1/8000s 5.0/s Y Y
12.

Sony A7R V9440 n3.2 / 2100 full-flex Y 1/8000s 10.0/s n Y
13.

Sony A9 II3686 n3.0 / 1440 tilting Y 1/8000s 20.0/s n Y
14.

Sony A7 III2359 n3.0 / 922 tilting Y 1/8000s 10.0/s n Y
15.

Sony A7R III3686 n3.0 / 1440 tilting Y 1/8000s 10.0/s n Y
16.

Sony A7 II2400 n3.0 / 1230 tilting n 1/8000s 5.0/s n Y
17.

Sony A772359 Y3.0 / 921 full-flex n 1/8000s 12.0/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The E-5 has one, while the A9 does not. While the built-in flash of the E-5 is not very powerful, it can at times be useful as a fill-in light.

The E-5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the A9 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the A9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the A9 uses SDXC or Memory Stick PRO Duo cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Sony Alpha A9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-5Ystereo / ---mini2.0---
2.

Sony A9Ystereo / monoYYmicro2.0YYY
3.

Canon 60DYmono / monoY-mini2.0---
4.

Olympus E-P3Ystereo / ---mini2.0---
5.

Olympus E-PL2Ystereo / ---mini2.0---
6.

Olympus E-PL3Ystereo / ---mini2.0---
7.

Olympus E-PM1Ystereo / mono--mini2.0---
8.

Olympus E-450Y- / ----2.0---
9.

Olympus E-600Y- / ----2.0---
10.

Olympus E-620Y- / ----2.0---
11.

Olympus E-3Y- / ----2.0---
12.

Sony A7R VYstereo / monoYYfull3.2Y-Y
13.

Sony A9 IIYstereo / monoYYmicro3.1YYY
14.

Sony A7 IIIYstereo / monoYYmicro3.1YYY
15.

Sony A7R IIIYstereo / monoYYmicro3.1YYY
16.

Sony A7 IIYstereo / monoYYmicro2.0YY-
17.

Sony A77Ystereo / monoY-mini2.0---
padding

It is notable that the A9 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-5 does not provide wifi capability.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the E-5 and the A9 have been discontinued, but can regularly be found used on ebay. The A9 was replaced by the Sony A9 II, while the E-5 does not have a direct successor. Further information on the features and operation of the E-5 and A9 can be found, respectively, in the Olympus E-5 Manual (free pdf) or the online Sony A9 Manual.

ad

Review summary

So what is the bottom line? Is there a clear favorite between the Olympus E-5 and the Sony A9? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Olympus E-5:

  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Longer lasting: Can take more shots (750 versus 650) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in September 2010).

ilogo

Reasons to prefer the Sony Alpha A9:

  • More detail: Has more megapixels (24 vs 12.2MP), which boosts linear resolution by 43%.
  • Better image quality: Scores substantially higher (36 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (3.3 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (2.8 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.58x).
  • More detailed LCD: Has a higher resolution rear screen (1440k vs 920k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (20 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • More compact: Is smaller (127x96mm vs 142x117mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 200g or 23 percent) and is thus easier to take along.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 6 years and 7 months of technical progress since the E-5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the A9 is the clear winner of the contest (23 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-5 08:23 A9

How about other alternatives? Do the specifications of the Olympus E-5 and the Sony A9 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the E-5 or the A9 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-54/5....75/1004/54.5/5 Sep 2010 1,699ebay.com
2.

Sony A95/5+ +4.8/589/1005/55/5 Apr 2017 4,499ebay.com
3.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 1,399ebay.com
4.

Olympus E-P3..83/100..74/1004.5/54.5/5 Jun 2011 799ebay.com
5.

Olympus E-PL23/583/100..71/1004.5/54.5/5 Jan 2011 599ebay.com
6.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 599ebay.com
7.

Olympus E-PM1..86/100..71/1004.5/54.5/5 Jun 2011 499ebay.com
8.

Olympus E-450........4/54/5 Mar 2009 499ebay.com
9.

Olympus E-600..........4.5/5 Aug 2009 449ebay.com
10.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 699ebay.com
11.

Olympus E-3..88/100..+ +o4/5 Oct 2007 1,699ebay.com
12.

Sony A7R V5/5+ +4.5/592/100.... Oct 2022 3,899 amazon.com
13.

Sony A9 II....5/590/1005/55/5 Oct 2019 4,499 amazon.com
14.

Sony A7 III..+ +4.5/589/1005/55/5 Feb 2018 1,999 amazon.com
15.

Sony A7R III..+ +4/590/1004.5/55/5 Oct 2017 3,199ebay.com
16.

Sony A7 II5/5+4/582/1004.5/55/5 Nov 2014 1,999ebay.com
17.

Sony A775/591/100..81/100..5/5 Aug 2011 1,399ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-5 offers at
ebay.com
logo
Check A9 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Olympus E-5 vs Sony A9

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-5 Sony A9
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Four Thirds lenses Sony E mount lenses
    Launch Date September 2010 April 2017
    Launch Price USD 1,699 USD 4,499
    Sensor Specs Olympus E-5 Sony A9
    Sensor Technology CMOS Stacked BSI-CMOS
    Sensor Format Four Thirds Sensor Full Frame Sensor
    Sensor Size 17.3 x 13.0 mm 35.6 x 23.8 mm
    Sensor Area 224.9 mm2 847.28 mm2
    Sensor Diagonal 21.6 mm 42.8 mm
    Crop Factor 2.0x 1.0x
    Sensor Resolution 12.2 Megapixels 24 Megapixels
    Image Resolution 4032 x 3024 pixels 6000 x 4000 pixels
    Pixel Pitch 4.29 μm 5.94 μm
    Pixel Density 5.42 MP/cm2 2.83 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 720/30p Video 4K/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 51,200 ISO
    ISO Boost no Enhancement 50 - 204,800 ISO
    Image Processor TruePic V+ BIONZ X
    DXO Sensor Quality (score) 56 92
    DXO Color Depth (bits) 21.6 24.9
    DXO Dynamic Range (EV) 10.5 13.3
    DXO Low Light (ISO) 519 3517
    Screen Specs Olympus E-5 Sony A9
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.58x 0.78x
    Viewfinder Resolution 3686k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 920k dots 1440k dots
    LCD Attachment Swivel screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-5 Sony A9
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 5 shutter flaps/s 20 shutter flaps/s
    Shutter Life Expectancy150 000 actuations500 000 actuations
    Electronic Shutterno E-Shutterup to 1/32000s
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium CF or XD cards MS or SDXC cards
    Single or Dual Card Slots Dual card slots Dual card slots
    Connectivity Specs Olympus E-5 Sony A9
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Olympus E-5 Sony A9
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Olympus BLM-5 Sony NP-FZ100
    Battery Life (CIPA)750 shots per charge650 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 142 x 117 x 75 mm
    (5.6 x 4.6 x 3.0 in)
    127 x 96 x 63 mm
    (5.0 x 3.8 x 2.5 in)
    Camera Weight 873 g (30.8 oz) 673 g (23.7 oz)
    logo
    Check E-5 offers at
    ebay.com
    logo
    Check A9 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-5 vs Sony A9
