Olympus E-5 vs Panasonic GX80
The Olympus E-5 and the Panasonic Lumix DMC-GX80 (labelled Panasonic GX85 in some countries) are two digital cameras that were officially introduced, respectively, in September 2010 and April 2016. The E-5 is a DSLR, while the GX80 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus E-5||Panasonic GX80|
|Digital single lens reflex||Mirrorless system camera|
|Four Thirds lenses||Micro Four Thirds lenses|
|12.2 MP, Four Thirds Sensor||15.8 MP, Four Thirds Sensor|
|720/30p Video||4K/30p Video|
|ISO 100-6,400||ISO 200-25,600|
|Optical viewfinder||Electronic viewfinder (2765k dots)|
|3.0 LCD, 920k dots||3.0 LCD, 1040k dots|
|Swivel screen (not touch-sensitive)||Tilting touchscreen|
|5 shutter flaps per second||8 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Weathersealed body||not weather sealed|
|750 shots per battery charge||290 shots per battery charge|
|142 x 117 x 75 mm, 873 g||122 x 71 x 44 mm, 426 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Panasonic Lumix DMC-GX80? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

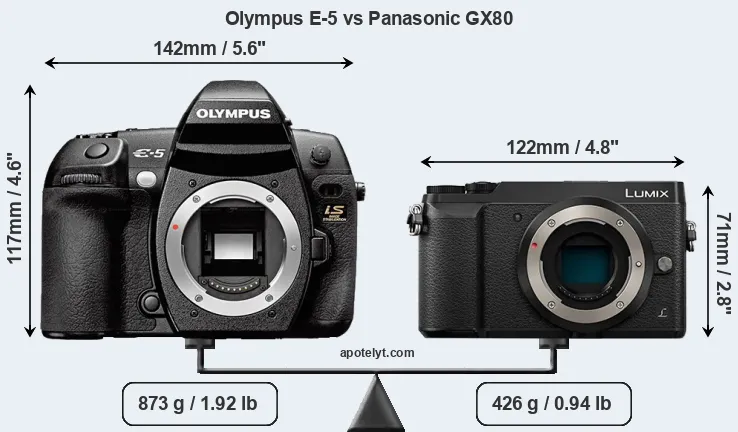

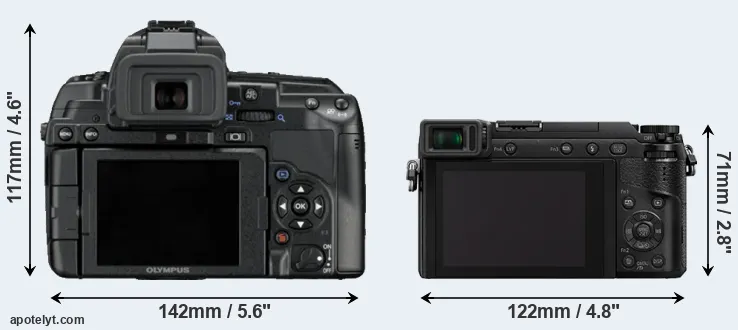

The physical size and weight of the Olympus E-5 and the Panasonic GX80 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The GX80 can be obtained in two different colors (black, silver), while the E-5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX80 is considerably smaller (48 percent) than the Olympus E-5. Moreover, the GX80 is substantially lighter (51 percent) than the E-5. It is worth mentioning in this context that the E-5 is splash and dust resistant, while the GX80 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-5) and the Micro Four Thirds Lens Catalog (GX80). Mirrorless cameras, such as the GX80, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Olympus E-5||5.6 in||4.6 in||3.0 in||30.8 oz||750||Y||Sep 2010||1,699|
|Panasonic GX80||4.8 in||2.8 in||1.7 in||15.0 oz||290||n||Apr 2016||799|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-PL1||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599|
|Olympus E-600||5.1 in||3.7 in||2.4 in||18.9 oz||500||n||Aug 2009||449|
|Olympus E-620||5.1 in||3.7 in||2.4 in||18.4 oz||500||n||Feb 2009||699|
|Olympus E-P1||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799|
|Olympus E-P2||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799|
|Olympus E-30||5.6 in||4.3 in||3.0 in||24.7 oz||750||n||Nov 2008||1,299|
|Olympus E-520||5.4 in||3.6 in||2.7 in||18.9 oz||750||n||May 2008||699|
|Olympus E-3||5.6 in||4.6 in||3.0 in||30.9 oz||750||Y||Oct 2007||1,699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Olympus E-1||5.6 in||4.1 in||3.2 in||26.0 oz||750||Y||Jun 2003||1,699|
|Panasonic GX9||4.9 in||2.8 in||1.9 in||14.4 oz||260||n||Feb 2018||849|
|Panasonic G80||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GX7||4.8 in||2.8 in||2.2 in||14.2 oz||350||n||Aug 2013||999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GX80 was launched at a markedly lower price (by 53 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

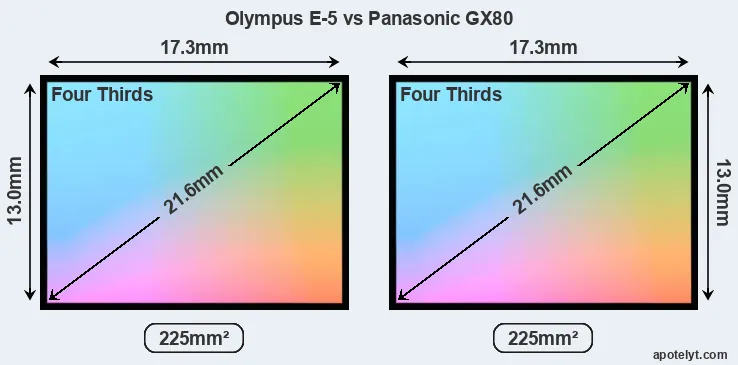

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

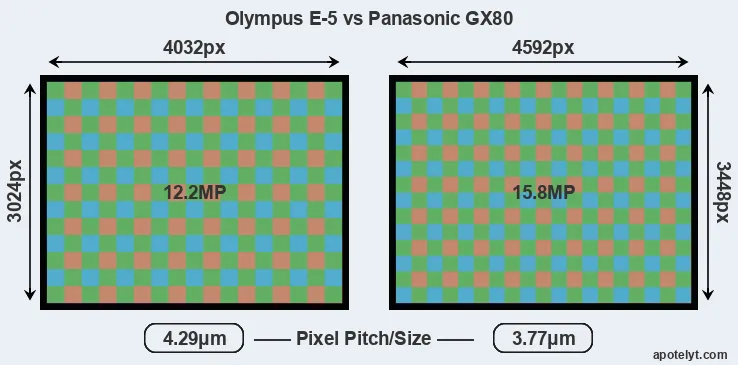

While the two cameras under review share the same sensor size, the GX80 offers a higher resolution of 15.8 megapixels, compared with 12.2 MP of the E-5. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the GX80 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.77μm versus 4.29μm for the E-5). However, it should be noted that the GX80 is much more recent (by 5 years and 6 months) than the E-5, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the GX80 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic GX80 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GX80 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Panasonic Lumix DMC-GX80 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the GX80 offers substantially better image quality than the E-5 (overall score 15 points higher). The advantage is based on 1.3 bits higher color depth, 2.1 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
|Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Olympus E-1||Four Thirds||4.9||2560||1920||none||..||..||..||..|
|Panasonic GX9||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Panasonic G80||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GX80 provides a better video resolution than the E-5. It can shoot movie footage at 4K/30p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GX80 has an electronic viewfinder (2765k dots), while the E-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the GX80 has a higher magnification than the one of the E-5 (0.70x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-5 and Panasonic GX80 along with similar information for a selection of comparators.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that is present on the E-5, but is missing on the GX80 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the GX80 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GX80 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic GX80 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the GX80 uses SDXC cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GX80 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Panasonic Lumix DMC-GX80 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the GX80 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-5 does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-5 (unlike the GX80) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The GX80 is a recent model that features in the current product line-up of Panasonic. In contrast, the E-5 has been discontinued (but can be found pre-owned on eBay). There has not been a direct replacement model for the E-5 from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.
So what is the bottom line? Which of the two cameras – the Olympus E-5 or the Panasonic GX80 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Olympus E-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in September 2010).
Advantages of the Panasonic Lumix DMC-GX80:
- More detail: Has more megapixels (15.8 vs 12.2MP), which boosts linear resolution by 14%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (15 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.1 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.58x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (122x71mm vs 142x117mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 447g or 51 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
- More modern: Reflects 5 years and 6 months of technical progress since the E-5 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the GX80 is the clear winner of the contest (20 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-5 and the Panasonic GX80 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-5 and the GX80 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus E-5||..||75/100||4/5||..||4.5/5||Sep 2010||1,699|
|Panasonic GX80||+ +||82/100||5/5||4.5/5||5/5||Apr 2016||799|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Olympus E-600||..||..||..||..||4.5/5||Aug 2009||449|
|Olympus E-620||88/100||72/100||4.5/5||o||5/5||Feb 2009||699|
|Olympus E-P1||+||66/100||4/5||4/5||4.5/5||Jun 2009||799|
|Olympus E-P2||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799|
|Olympus E-30||..||71/100||4.5/5||..||4/5||Nov 2008||1,299|
|Olympus E-520||87/100||+ +||4.5/5||4/5||4.5/5||May 2008||699|
|Olympus E-3||88/100||+ +||o||o||4/5||Oct 2007||1,699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Olympus E-1||..||+||o||o||..||Jun 2003||1,699|
|Panasonic GX9||+||84/100||4.5/5||4.5/5||4.5/5||Feb 2018||849|
|Panasonic G80||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GX7||+||79/100||5/5||4.5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 50D vs Panasonic GX80
- Canon 800D vs Olympus E-5
- Canon G9 X vs Olympus E-5
- Leica TL vs Panasonic GX80
- Nikon Coolpix A vs Olympus E-5
- Nikon D5200 vs Olympus E-5
- Nikon W300 vs Olympus E-5
- Olympus E-5 vs Olympus E-M5
- Olympus E-PM2 vs Panasonic GX80
- Panasonic FZ2000 vs Panasonic GX80
- Panasonic GX80 vs Sony A68
- Panasonic GX80 vs Sony RX100 IV
Specifications: Olympus E-5 vs Panasonic GX80
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-5||Panasonic GX80|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2010||April 2016|
|Launch Price||USD 1,699||USD 799|
|Sensor Specs||Olympus E-5||Panasonic GX80|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.8 Megapixels|
|Image Resolution||4032 x 3024 pixels||4592 x 3448 pixels|
|Pixel Pitch||4.29 μm||3.77 μm|
|Pixel Density||5.42 MP/cm2||7.04 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||720/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||TruePic V+||Venus|
|DXO Sensor Quality (score)||56||71|
|DXO Color Depth (bits)||21.6||22.9|
|DXO Dynamic Range (EV)||10.5||12.6|
|DXO Low Light (ISO)||519||662|
|Screen Specs||Olympus E-5||Panasonic GX80|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2765k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-5||Panasonic GX80|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-5||Panasonic GX80|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-5||Panasonic GX80|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||750 shots per charge||290 shots per charge|
142 x 117 x 75 mm
(5.6 x 4.6 x 3.0 in)
122 x 71 x 44 mm
(4.8 x 2.8 x 1.7 in)
|Camera Weight||873 g (30.8 oz)||426 g (15.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
