Olympus E-5 vs E-M10 II
The Olympus E-5 and the Olympus OM-D E-M10 Mark II are two digital cameras that were announced, respectively, in September 2010 and August 2015. The E-5 is a DSLR, while the E-M10 II is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-5 has a resolution of 12.2 megapixels, whereas the E-M10 II provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-5 and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

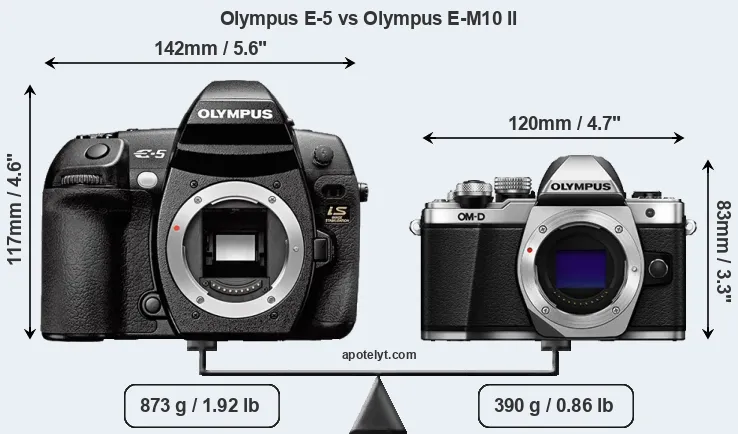

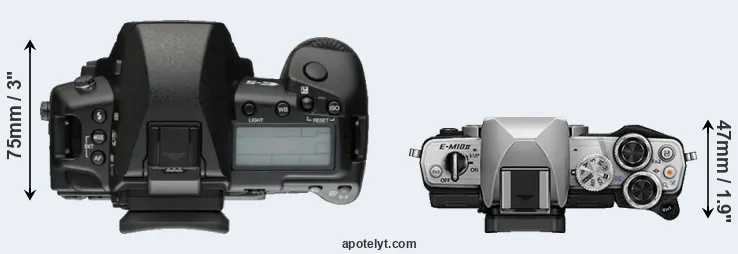

The physical size and weight of the Olympus E-5 and the Olympus E-M10 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The E-M10 II can be obtained in three different colors (black, silver, brown), while the E-5 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is considerably smaller (40 percent) than the Olympus E-5. Moreover, the E-M10 II is substantially lighter (55 percent) than the E-5. It is worth mentioning in this context that the E-5 is splash and dust resistant, while the E-M10 II does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-5) and the Micro Four Thirds Lens Catalog (E-M10 II). Mirrorless cameras, such as the E-M10 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699||ebay.com|
|2.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649||ebay.com|
|3.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399||ebay.com|
|4.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649||ebay.com|
|5.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099||ebay.com|
|6.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699||ebay.com|
|7.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599||ebay.com|
|8.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799||ebay.com|
|9.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599||ebay.com|
|10.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599||ebay.com|
|11.||Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499||ebay.com|
|12.||Olympus E-450||130 mm||91 mm||53 mm||440 g||500||n||Mar 2009||499||ebay.com|
|13.||Olympus E-600||130 mm||94 mm||60 mm||535 g||500||n||Aug 2009||449||ebay.com|
|14.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699||ebay.com|
|15.||Olympus E-3||142 mm||116 mm||75 mm||876 g||750||Y||Oct 2007||1,699||ebay.com|
|16.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799||amazon.com|
|17.||Sony A77||143 mm||104 mm||81 mm||732 g||470||Y||Aug 2011||1,399||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 II was launched at a markedly lower price (by 62 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Technology-wise, the E-M10 II uses a more advanced image processing engine (TruePic VII) than the E-5 (TruePic V+), with benefits for noise reduction, color accuracy, and processing speed.
While the two cameras under review share the same sensor size, the E-M10 II offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the E-5. This megapixels advantage translates into a 14 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M10 II has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.29μm for the E-5). However, it should be noted that the E-M10 II is much more recent (by 4 years and 11 months) than the E-5, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Olympus E-M10 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 II for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Olympus E-5 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-M10 II offers substantially better image quality than the E-5 (overall score 17 points higher). The advantage is based on 1.5 bits higher color depth, 2 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|1.||Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|2.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|4.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||23.1||12.8||1120||74|
|5.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|6.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|7.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|8.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|9.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|10.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|11.||Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|12.||Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|13.||Olympus E-600||Four Thirds||12.2||4032||3024||none||21.5||10.3||541||55|
|14.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|15.||Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|16.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M10 II provides a better video resolution than the E-5. It can shoot movie footage at 1080/60p, while the E-5 is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the E-5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the E-M10 II has a higher magnification than the one of the E-5 (0.62x vs 0.58x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-5 and Olympus E-M10 II in connection with corresponding information for a sample of similar cameras.
|1.||Olympus E-5||optical||Y||3.0 / 920||swivel||n||1/8000s||5.0/s||Y||Y|
|2.||Olympus E-M10 II||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|3.||Canon 60D||optical||Y||3.0 / 1040||swivel||n||1/8000s||5.3/s||Y||n|
|4.||Olympus E-M10 III||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.6/s||Y||Y|
|5.||Olympus E-M5 II||2360||n||3.0 / 1037||swivel||Y||1/8000s||10.0/s||n||Y|
|6.||Olympus E-M10||1440||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||Y||Y|
|7.||Olympus E-PL7||optional||n||3.0 / 1037||tilting||Y||1/4000s||8.0/s||n||Y|
|8.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0/s||Y||Y|
|9.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||Y|
|10.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5/s||n||Y|
|11.||Olympus E-PM1||optional||n||3.0 / 460||fixed||n||1/4000s||5.5/s||n||Y|
|12.||Olympus E-450||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||n|
|13.||Olympus E-600||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|14.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|15.||Olympus E-3||optical||Y||2.5 / 230||swivel||n||1/8000s||5.0/s||Y||Y|
|16.||Panasonic GX80||2765||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||Y|
|17.||Sony A77||2359||Y||3.0 / 921||full-flex||n||1/8000s||12.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the E-5, but is missing on the E-M10 II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-M10 II does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-M10 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The E-5 writes its imaging data to Compact Flash or xD Picture cards, while the E-M10 II uses SDXC cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 II only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-5 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Olympus E-5||Y||stereo / -||-||-||mini||2.0||-||-||-|
|2.||Olympus E-M10 II||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 60D||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|4.||Olympus E-M10 III||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|5.||Olympus E-M5 II||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|6.||Olympus E-M10||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|7.||Olympus E-PL7||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|8.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|9.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|10.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|11.||Olympus E-PM1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|12.||Olympus E-450||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-600||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-3||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Panasonic GX80||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|17.||Sony A77||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
It is notable that the E-M10 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-5 does not provide wifi capability.
Studio photographers will appreciate that the Olympus E-5 (unlike the E-M10 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the E-5 and the E-M10 II have been discontinued, but can regularly be found used on ebay. The E-M10 II was replaced by the Olympus E-M10 III, while the E-5 does not have a direct successor. Further information on the features and operation of the E-5 and E-M10 II can be found, respectively, in the Olympus E-5 Manual (free pdf) or the online Olympus E-M10 II Manual.
So what is the bottom line? Which of the two cameras – the Olympus E-5 or the Olympus E-M10 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus E-5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 320) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in September 2010).
Reasons to prefer the Olympus OM-D E-M10 Mark II:
- More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 14%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.5 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
- Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic V+).
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.58x).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (120x83mm vs 142x117mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 483g or 55 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
- More modern: Reflects 4 years and 11 months of technical progress since the E-5 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-M10 II is the clear winner of the contest (21 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-5 and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-5 or the E-M10 II. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-5||4/5||..||..||75/100||4/5||4.5/5||Sep 2010||1,699||ebay.com|
|2.||Olympus E-M10 II||4.5/5||+ +||..||80/100||5/5||5/5||Aug 2015||649||ebay.com|
|3.||Canon 60D||5/5||+||..||79/100||4/5||4.5/5||Aug 2010||1,399||ebay.com|
|4.||Olympus E-M10 III||..||+||5/5||80/100||4.5/5||4.5/5||Aug 2017||649||ebay.com|
|5.||Olympus E-M5 II||5/5||+ +||4.5/5||81/100||5/5||5/5||Feb 2015||1,099||ebay.com|
|6.||Olympus E-M10||4/5||..||..||80/100||5/5||5/5||Jan 2014||699||ebay.com|
|7.||Olympus E-PL7||4/5||+||..||..||5/5||4/5||Aug 2014||599||ebay.com|
|8.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799||ebay.com|
|9.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599||ebay.com|
|10.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|11.||Olympus E-PM1||..||86/100||..||71/100||4.5/5||4.5/5||Jun 2011||499||ebay.com|
|12.||Olympus E-450||..||..||..||..||4/5||4/5||Mar 2009||499||ebay.com|
|13.||Olympus E-600||..||..||..||..||..||4.5/5||Aug 2009||449||ebay.com|
|14.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699||ebay.com|
|15.||Olympus E-3||..||88/100||..||+ +||o||4/5||Oct 2007||1,699||ebay.com|
|16.||Panasonic GX80||4.5/5||+ +||..||82/100||5/5||5/5||Apr 2016||799||amazon.com|
|17.||Sony A77||5/5||91/100||..||81/100||..||5/5||Aug 2011||1,399||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 650D vs Olympus E-5
- Canon T5i vs Olympus E-5
- Leica S-E Typ 006 vs Olympus E-M10 II
- Nikon D3 vs Olympus E-5
- Nikon D50 vs Olympus E-5
- Nikon D500 vs Olympus E-5
- Nikon D5500 vs Olympus E-M10 II
- Olympus E-5 vs Sony A99 II
- Olympus E-M10 II vs Panasonic GX800
- Olympus E-M10 II vs Panasonic GX9
- Olympus E-M10 II vs Ricoh GR IIIx
- Olympus E-M10 II vs Sony NEX-7
Specifications: Olympus E-5 vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-5||Olympus E-M10 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Micro Four Thirds lenses|
|Launch Date||September 2010||August 2015|
|Launch Price||USD 1,699||USD 649|
|Sensor Specs||Olympus E-5||Olympus E-M10 II|
|Sensor Format||Four Thirds Sensor||Four Thirds Sensor|
|Sensor Size||17.3 x 13.0 mm||17.3 x 13.0 mm|
|Sensor Area||224.9 mm2||224.9 mm2|
|Sensor Diagonal||21.6 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.9 Megapixels|
|Image Resolution||4032 x 3024 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.29 μm||3.76 μm|
|Pixel Density||5.42 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||720/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||TruePic V+||TruePic VII|
|DXO Sensor Quality (score)||56||73|
|DXO Color Depth (bits)||21.6||23.1|
|DXO Dynamic Range (EV)||10.5||12.5|
|DXO Low Light (ISO)||519||842|
|Screen Specs||Olympus E-5||Olympus E-M10 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-5||Olympus E-M10 II|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF or XD cards||SDXC cards|
|Single or Dual Card Slots||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-5||Olympus E-M10 II|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Olympus E-5||Olympus E-M10 II|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||750 shots per charge||320 shots per charge|
142 x 117 x 75 mm
(5.6 x 4.6 x 3.0 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||873 g (30.8 oz)||390 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
