Olympus E-3 vs Panasonic TS7

The Olympus E-3 and the Panasonic Lumix DC-TS7 (labelled Panasonic FT7 in some countries) are two digital cameras that were revealed to the public, respectively, in October 2007 and May 2018. The E-3 is a DSLR, while the TS7 is a fixed lens compact. The cameras are based on a Four Thirds (E-3) and a 1/2.3-inch (TS7) sensor. The Olympus has a resolution of 10 megapixels, whereas the Panasonic provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-3
versus
Panasonic TS7
Olympus E-3   Panasonic TS7
Digital single lens reflex Fixed lens compact camera
Four Thirds lenses 28-128mm f/3.3-5.9
10 MP – Four Thirds sensor 20.2 MP – 1/2.3" sensor
no Video 4K/30p Video
ISO 100-3,200 ISO 80-3,200 (80 - 6,400)
Optical viewfinder Electronic viewfinder (1170k dots)
2.5" LCD – 230k dots 3.0" LCD – 1040k dots
Swivel screen (not touch-sensitive) Fixed screen (not touch-sensitive)
5 shutter flaps per second 10 shutter flaps per second
In-body stabilizationLens-based stabilization
Weathersealed bodyWaterproof body (31m)
750 shots per battery charge300 shots per battery charge
142 x 116 x 75 mm, 876 g 117 x 76 x 37 mm, 319 g
logo
Check E-3 offers at
ebay.com
logo
Check TS7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-3 and the Panasonic Lumix DC-TS7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Olympus E-3 and the Panasonic TS7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The TS7 can be obtained in three different colors (black, blue, orange), while the E-3 is only available in black.

Size Olympus E-3 vs Panasonic TS7
Compare E-3 versus TS7 top

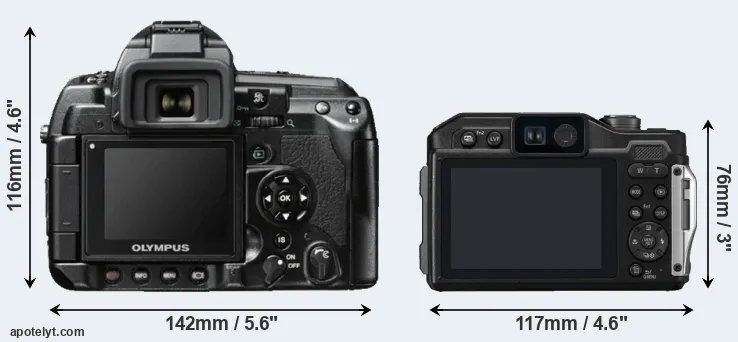

Comparison E-3 or TS7 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic TS7 is considerably smaller (46 percent) than the Olympus E-3. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the TS7 is water-proof up to 31m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TS7 has a lens built in, whereas the E-3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-3 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the E-3 gets 750 shots out of its Olympus BLM-1 battery, while the TS7 can take 300 images on a single charge of its Panasonic DMW-BCM13 power pack. The power pack in the TS7 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-3 142 mm 116 mm 75 mm 876 g 750 Y Oct 2007 1,699ebay.com
2.

Panasonic TS7 117 mm 76 mm 37 mm 319 g 300 Y May 2018 449ebay.com
3.

Canon SX730 110 mm 64 mm 40 mm 300 g 250 n Apr 2017 399ebay.com
4.

Nikon D300 147 mm 114 mm 74 mm 925 g 1000 Y Aug 2007 1,799ebay.com
5.

Olympus E-5 142 mm 117 mm 75 mm 873 g 750 Y Sep 2010 1,699ebay.com
6.

Olympus E-600 130 mm 94 mm 60 mm 535 g 500 n Aug 2009 449ebay.com
7.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 699ebay.com
8.

Olympus E-30 142 mm 108 mm 75 mm 701 g 750 n Nov 2008 1,299ebay.com
9.

Olympus E-420 130 mm 91 mm 53 mm 440 g 500 n Mar 2008 599ebay.com
10.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 699ebay.com
11.

Olympus E-410 130 mm 91 mm 53 mm 435 g 500 n Mar 2007 699ebay.com
12.

Olympus E-510 136 mm 92 mm 68 mm 538 g 750 n Mar 2007 799ebay.com
13.

Olympus E-1 141 mm 104 mm 81 mm 738 g 750 Y Jun 2003 1,699ebay.com
14.

Panasonic ZS80 112 mm 69 mm 42 mm 327 g 380 n Feb 2019 449ebay.com
15.

Panasonic ZS70 112 mm 67 mm 41 mm 322 g 380 n Apr 2017 449ebay.com
16.

Panasonic FZ80 130 mm 94 mm 119 mm 616 g 330 n Jan 2017 399ebay.com
17.

Ricoh WG-6 118 mm 66 mm 33 mm 246 g 340 Y Feb 2019 399 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The TS7 was launched at a lower price than the E-3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-3 features a Four Thirds sensor and the Panasonic TS7 a 1/2.3-inch sensor. The sensor area in the TS7 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Olympus E-3 and Panasonic TS7 sensor measures

Despite having a smaller sensor, the TS7 offers a higher resolution of 20.2 megapixels, compared with 10 MP of the E-3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.74μm for the E-3). However, it should be noted that the TS7 is much more recent (by 10 years and 6 months) than the E-3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic TS7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TS7 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-3 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-3 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DC-TS7 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.

In terms of underlying technology, the E-3 is build around a CMOS sensor, while the TS7 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-3 versus TS7 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-3 Four Thirds 10.0 3648 2736none21.610.557156
2.

Panasonic TS7 1/2.3 20.2 5184 38884K/30p20.612.1102851
3.

Canon SX730 1/2.3 20.2 5184 38881080/60p20.511.992450
4.

Nikon D300 APS-C 12.2 4288 2848none22.112.067967
5.

Olympus E-5 Four Thirds 12.2 4032 3024720/30p21.610.551956
6.

Olympus E-600 Four Thirds 12.2 4032 3024none21.510.354155
7.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
8.

Olympus E-30 Four Thirds 12.2 4032 3024none21.310.453055
9.

Olympus E-420 Four Thirds 10.0 3648 2736none21.510.452756
10.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
11.

Olympus E-410 Four Thirds 10.0 3648 2736none21.110.049451
12.

Olympus E-510 Four Thirds 10.0 3648 2736none21.210.044252
13.

Olympus E-1 Four Thirds 4.9 2560 1920none20.09.7-14544
14.

Panasonic ZS80 1/2.3 20.2 5184 38884K/30p20.712.2110352
15.

Panasonic ZS70 1/2.3 20.2 5184 38884K/30p19.110.610636
16.

Panasonic FZ80 1/2.3 18.0 4896 36724K/30p20.511.990049
17.

Ricoh WG-6 1/2.3 20.2 5184 38884K/30p20.712.2110452
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The TS7 indeed provides for movie recording, while the E-3 does not. The highest resolution format that the TS7 can use is 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the TS7 has an electronic viewfinder (1170k dots), while the E-3 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the E-3 has a higher magnification than the one of the TS7 (0.58x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-3 and Panasonic TS7 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-3optical Y2.5 / 230 swivel n 1/8000s 5.0/s Y Y
2.

Panasonic TS71170 n3.0 / 1040 fixed n 1/1300s 10.0/s Y Y
3.

Canon SX730none n3.0 / 922 tilting n 1/3200s 5.9/s Y Y
4.

Nikon D300optical Y3.0 / 922 fixed n 1/8000s 6.0/s Y n
5.

Olympus E-5optical Y3.0 / 920 swivel n 1/8000s 5.0/s Y Y
6.

Olympus E-600optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
7.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
8.

Olympus E-30optical Y2.7 / 230 swivel n 1/8000s 5.0/s Y Y
9.

Olympus E-420optical n2.7 / 215 fixed n 1/4000s 3.5/s Y n
10.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
11.

Olympus E-410optical n2.5 / 215 fixed n 1/4000s 3.0/s Y n
12.

Olympus E-510optical n2.5 / 215 fixed n 1/4000s 3.0/s Y Y
13.

Olympus E-1optical Y1.8 / 134 fixed n 1/4000s 3.0/s n n
14.

Panasonic ZS802330 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
15.

Panasonic ZS701166 n3.0 / 1040 tilting Y 1/2000s 10.0/s Y Y
16.

Panasonic FZ801166 n3.0 / 1040 fixed Y 1/2000s 10.0/s Y Y
17.

Ricoh WG-6none n3.0 / 1040 fixed n 1/4000s 1.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the E-3, but is missing on the TS7 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-3 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the TS7 does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the TS7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The E-3 writes its imaging data to Compact Flash or xD Picture cards, while the TS7 uses SDXC cards. The E-3 features dual card slots, which can be very useful in case a memory card fails. In contrast, the TS7 only has one slot.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-3 and Panasonic Lumix DC-TS7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-3Y- / ----2.0---
2.

Panasonic TS7-stereo / mono--micro2.0Y--
3.

Canon SX730-stereo / mono--micro2.0YYY
4.

Nikon D300Y- / ---mini2.0---
5.

Olympus E-5Ystereo / ---mini2.0---
6.

Olympus E-600Y- / ----2.0---
7.

Olympus E-620Y- / ----2.0---
8.

Olympus E-30Y- / ----2.0---
9.

Olympus E-420Y- / ----2.0---
10.

Olympus E-520Y- / ----2.0---
11.

Olympus E-410Y- / ----2.0---
12.

Olympus E-510Y- / ----2.0---
13.

Olympus E-1Y- / ----2.0---
14.

Panasonic ZS80-stereo / mono--micro2.0Y-Y
15.

Panasonic ZS70-stereo / mono--micro2.0Y--
16.

Panasonic FZ80Ystereo / mono--micro2.0Y--
17.

Ricoh WG-6-mono / mono--micro3.0---
padding

It is notable that the E-3 has a hotshoe, while the TS7 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Olympus E-3 (unlike the TS7) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-3 and the TS7 have been discontinued, but can regularly be found used on ebay. The E-3 was replaced by the Olympus E-5, while the TS7 does not have a direct successor. Further information on the features and operation of the E-3 and TS7 can be found, respectively, in the Olympus E-3 Manual (free pdf) or the online Panasonic TS7 Manual.

ad

Review summary

So how do things add up? Which of the two cameras – the Olympus E-3 or the Panasonic TS7 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Olympus E-3:

  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.45x).
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1300s) to freeze action.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (750 versus 300) on a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More heavily discounted: Has been available for much longer (launched in October 2007).

ilogo

Arguments in favor of the Panasonic Lumix DC-TS7:

  • More detail: Has more megapixels (20.2 vs 10MP), which boosts linear resolution by 42%.
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
  • Faster burst: Shoots at higher frequency (10 vs 5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Ready to shoot: Comes with an integrated lens, while the E-3 requires a separate lens.
  • More compact: Is smaller (117x76mm vs 142x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the E-3).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 31m).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 10 years and 6 months of technical progress since the E-3 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-3 comes out slightly ahead of the TS7 (16 : 15 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-3 16:15 TS7

How about other alternatives? Do the specifications of the Olympus E-3 and the Panasonic TS7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-3 and the TS7 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-3..88/100..+ +o4/5 Oct 2007 1,699ebay.com
2.

Panasonic TS7..+......3.5/5 May 2018 449ebay.com
3.

Canon SX730..+....4/54/5 Apr 2017 399ebay.com
4.

Nikon D300..+ +..+ +5/54.5/5 Aug 2007 1,799ebay.com
5.

Olympus E-54/5....75/1004/54.5/5 Sep 2010 1,699ebay.com
6.

Olympus E-600..........4.5/5 Aug 2009 449ebay.com
7.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 699ebay.com
8.

Olympus E-30......71/1004.5/54/5 Nov 2008 1,299ebay.com
9.

Olympus E-420..85/100..+ +4/54.5/5 Mar 2008 599ebay.com
10.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 699ebay.com
11.

Olympus E-410..86/100..+ +4/54.5/5 Mar 2007 699ebay.com
12.

Olympus E-510..89/100..+ +3.5/54.5/5 Mar 2007 799ebay.com
13.

Olympus E-1......+o.. Jun 2003 1,699ebay.com
14.

Panasonic ZS80..+ +....4.5/5.. Feb 2019 449ebay.com
15.

Panasonic ZS70..+ +....4/54/5 Apr 2017 449ebay.com
16.

Panasonic FZ80..+ +....4.5/54.5/5 Jan 2017 399ebay.com
17.

Ricoh WG-6........3.5/53.5/5 Feb 2019 399 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-3 offers at
ebay.com
logo
Check TS7 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Olympus E-3 vs Panasonic TS7

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-3 Panasonic TS7
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Four Thirds lenses 28-128mm f/3.3-5.9
    Launch Date October 2007 May 2018
    Launch Price USD 1,699 USD 449
    Sensor Specs Olympus E-3 Panasonic TS7
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Four Thirds Sensor 1/2.3" Sensor
    Sensor Size 17.3 x 13.0 mm 6.17 x 4.55 mm
    Sensor Area 224.9 mm2 28.0735 mm2
    Sensor Diagonal 21.6 mm 7.7 mm
    Crop Factor 2.0x 5.6x
    Sensor Resolution 10 Megapixels 20.2 Megapixels
    Image Resolution 3648 x 2736 pixels 5184 x 3888 pixels
    Pixel Pitch 4.74 μm 1.18 μm
    Pixel Density 4.44 MP/cm2 71.80 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability no Video 4K/30p Video
    ISO Setting 100 - 3,200 ISO 80 - 3,200 ISO
    ISO Boost no Enhancement 80 - 6,400 ISO
    Image Processor TruePic III Venus
    DXO Sensor Quality (score) 56 ..
    DXO Color Depth (bits) 21.6 ..
    DXO Dynamic Range (EV) 10.5 ..
    DXO Low Light (ISO) 571 ..
    Screen Specs Olympus E-3 Panasonic TS7
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.58x 0.45x
    Viewfinder Resolution 1170k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 2.5inch 3.0inch
    LCD Resolution 230k dots 1040k dots
    LCD Attachment Swivel screen Fixed screen
    Shooting Specs Olympus E-3 Panasonic TS7
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 5 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Image StabilizationIn-body stabilizationLens-based stabilization
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF or XD cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    Connectivity Specs Olympus E-3 Panasonic TS7
    External Flash Hotshoe no Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Body Specs Olympus E-3 Panasonic TS7
    Environmental SealingWeathersealed bodyWaterproof body (31m)
    Battery Type Olympus BLM-1 Panasonic DMW-BCM13
    Battery Life (CIPA)750 shots per charge300 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 142 x 116 x 75 mm
    (5.6 x 4.6 x 3.0 in)
    117 x 76 x 37 mm
    (4.6 x 3.0 x 1.5 in)
    Camera Weight 876 g (30.9 oz) 319 g (11.3 oz)
    logo
    Check E-3 offers at
    ebay.com
    logo
    Check TS7 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-3 vs Panasonic TS7
