Nikon Z5 vs Panasonic S1R
The Nikon Z5 and the Panasonic Lumix DC-S1R are two digital cameras that were announced, respectively, in July 2020 and February 2019. Both the Z5 and the S1R are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Nikon has a resolution of 24.2 megapixels, whereas the Panasonic provides 46.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Z5 and the Panasonic Lumix DC-S1R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Nikon Z5 and the Panasonic S1R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1R is notably larger (21 percent) than the Nikon Z5. Moreover, the S1R is substantially heavier (51 percent) than the Z5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the Z5 gets 470 shots out of its EN-EL15c battery, while the S1R can take 380 images on a single charge of its DMW-BLJ31 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon Z5||134 mm||101 mm||67 mm||675 g||470||Y||Jul 2020||1,399|
|2.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|3.||Fujifilm X-T4||135 mm||93 mm||64 mm||607 g||500||Y||Feb 2020||1,699|
|4.||Leica SL2||146 mm||107 mm||42 mm||953 g||370||Y||Nov 2019||5,999|
|5.||Nikon Z7 II||134 mm||101 mm||70 mm||705 g||420||Y||Oct 2020||2,999|
|6.||Nikon Z6 II||134 mm||101 mm||70 mm||705 g||410||Y||Oct 2020||1,999|
|7.||Nikon Z6||134 mm||101 mm||67 mm||675 g||310||Y||Aug 2018||1,999|
|8.||Nikon Z7||134 mm||101 mm||67 mm||675 g||330||Y||Aug 2018||3,399|
|9.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|10.||Olympus E-M5 III||125 mm||85 mm||50 mm||414 g||310||Y||Oct 2019||1,199|
|11.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|12.||Panasonic S1H||151 mm||114 mm||110 mm||1052 g||400||Y||May 2019||3,999|
|13.||Panasonic G9||137 mm||97 mm||92 mm||658 g||400||Y||Nov 2017||1,699|
|14.||Sony A9 II||129 mm||96 mm||76 mm||678 g||690||Y||Oct 2019||4,499|
|15.||Sony A6600||120 mm||67 mm||69 mm||503 g||810||Y||Aug 2019||1,399|
|16.||Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Z5 was launched at a markedly lower price (by 62 percent) than the S1R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

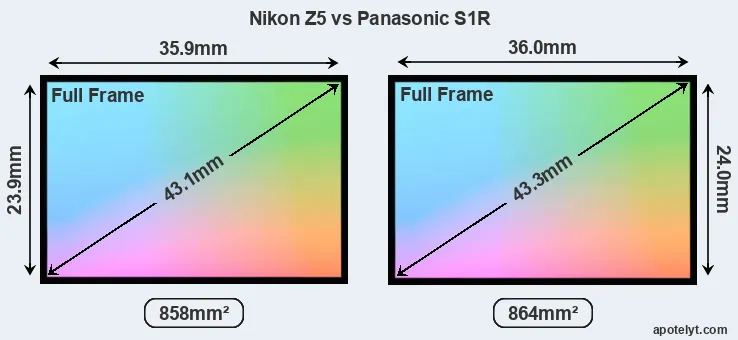

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the S1R is 1 percent bigger. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

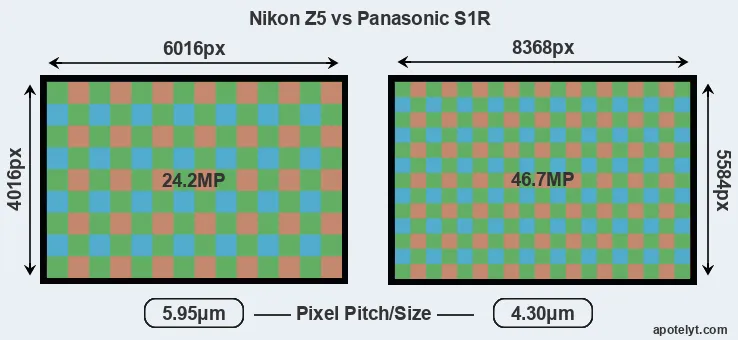

With 46.7MP, the S1R offers a higher resolution than the Z5 (24.2MP), but the S1R has smaller individual pixels (pixel pitch of 4.30μm versus 5.95μm for the Z5). It is noteworthy in this context that the Z5 is a somewhat more recent model (by 1 year and 5 months) than the S1R, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S1R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Panasonic S1R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1R for good quality output (200 dots per inch) amounts to 41.8 x 27.9 inches or 106.3 x 70.9 cm, for very good quality (250 dpi) 33.5 x 22.3 inches or 85 x 56.7 cm, and for excellent quality (300 dpi) 27.9 x 18.6 inches or 70.8 x 47.3 cm. The corresponding values for the Nikon Z5 are 30.1 x 20.1 inches or 76.4 x 51 cm for good quality, 24.1 x 16.1 inches or 61.1 x 40.8 cm for very good quality, and 20.1 x 13.4 inches or 50.9 x 34 cm for excellent quality prints.
The Z5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
Unlike the Z5, the S1R has the capacity to capture high quality composite images (187MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon Z5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Panasonic Lumix DC-S1R are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Nikon Z5||Full Frame||24.2||6016||4016||4K/30p||..||..||..||..|
|2.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|4.||Leica SL2||Full Frame||46.7||8368||5584||4K/60p||..||..||..||..|
|5.||Nikon Z7 II||Full Frame||45.4||8256||5504||4K/60p||..||..||..||..|
|6.||Nikon Z6 II||Full Frame||24.3||6048||4024||4K/60p||..||..||..||..|
|7.||Nikon Z6||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95|
|8.||Nikon Z7||Full Frame||45.4||8256||5504||4K/30p||26.3||14.6||2668||99|
|10.||Olympus E-M5 III||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|11.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|12.||Panasonic S1H||Full Frame||24.0||6000||4000||6K/30p||..||..||..||..|
|13.||Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|14.||Sony A9 II||Full Frame||24.0||6000||4000||4K/30p||25.0||14.0||3434||93|
|16.||Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S1R provides a faster frame rate than the Z5. It can shoot movie footage at 4K/60p, while the Nikon is limited to 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the S1R offers a substantially higher resolution than the one in the Z5 (5760k vs 3690k dots). The table below summarizes some of the other core capabilities of the Nikon Z5 and Panasonic S1R in connection with corresponding information for a sample of similar cameras.
|5.||Nikon Z7 II||3690||Y||3.2||2100||tilting||Y||1/8000s||10.0||n||Y|
|6.||Nikon Z6 II||3690||Y||3.2||2100||tilting||Y||1/8000s||14.0||n||Y|
|10.||Olympus E-M5 III||2360||n||3.0||1040||swivel||Y||1/8000s||10.0||n||Y|
|14.||Sony A9 II||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|16.||Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One feature that is present on the S1R, but is missing on the Z5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon Z5 and the Panasonic S1R both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The Z5 writes its imaging data to SDXC cards, while the S1R uses SDHC or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the Z5 and the S1R support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Z5 and Panasonic Lumix DC-S1R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Nikon Z7 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|6.||Nikon Z6 II||Y||stereo||mono||Y||Y||micro||3.2||Y||-||Y|
|10.||Olympus E-M5 III||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y|
|14.||Sony A9 II||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|16.||Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
Studio photographers will appreciate that the Panasonic S1R (unlike the Z5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the Z5 and the S1R are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Nikon and Panasonic. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So what conclusions can be drawn? Is the Nikon Z5 better than the Panasonic S1R or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Nikon Z5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.80x vs 0.78x).
- More compact: Is smaller (134x101mm vs 149x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 341g or 34 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (470 versus 380) on a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
- More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
- More modern: Is somewhat more recent (announced 1 year and 5 months after the S1R).
Reasons to prefer the Panasonic Lumix DC-S1R:
- More detail: Has more megapixels (46.7 vs 24.2MP), which boosts linear resolution by 39%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
- More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 3690k dots).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1040k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Faster burst: Shoots at higher frequency (9 vs 4.5 flaps/sec) to capture the decisive moment.
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been on the market for longer (launched in February 2019).
If the count of relative strengths (bullet points above) is taken as a measure, the S1R emerges as the winner of the match-up (12 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon Z5 and the Panasonic S1R place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the Z5 or the S1R. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon Z5||4/5||..||89/100||4.5/5||4/5||Jul 2020||1,399|
|2.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|3.||Fujifilm X-T4||5/5||+ +||..||5/5||5/5||Feb 2020||1,699|
|4.||Leica SL2||4/5||..||..||4.5/5||4/5||Nov 2019||5,999|
|5.||Nikon Z7 II||4.5/5||..||..||4.5/5||4.5/5||Oct 2020||2,999|
|6.||Nikon Z6 II||4.5/5||..||89/100||4.5/5||4.5/5||Oct 2020||1,999|
|7.||Nikon Z6||5/5||..||..||4.5/5||5/5||Aug 2018||1,999|
|8.||Nikon Z7||5/5||+||89/100||4.5/5||5/5||Aug 2018||3,399|
|9.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|10.||Olympus E-M5 III||5/5||+||82/100||4.5/5||4.5/5||Oct 2019||1,199|
|11.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|12.||Panasonic S1H||..||..||90/100||..||..||May 2019||3,999|
|13.||Panasonic G9||..||+ +||85/100||5/5||5/5||Nov 2017||1,699|
|14.||Sony A9 II||..||..||90/100||5/5||5/5||Oct 2019||4,499|
|15.||Sony A6600||4/5||+||83/100||4.5/5||4/5||Aug 2019||1,399|
|16.||Sony A99 II||..||..||85/100||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon Z5 vs Panasonic S1R
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon Z5||Panasonic S1R|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Nikon Z mount lenses||Leica L mount lenses|
|Launch Date||July 2020||February 2019|
|Launch Price||USD 1,399||USD 3,699|
|Sensor Specs||Nikon Z5||Panasonic S1R|
|Sensor Format||Full Frame Sensor||Full Frame Sensor|
|Sensor Size||35.9 x 23.9 mm||36.0 x 24.0 mm|
|Sensor Area||858.01 mm2||864 mm2|
|Sensor Diagonal||43.1 mm||43.3 mm|
|Sensor Resolution||24.2 Megapixels||46.7 Megapixels|
|Image Resolution||6016 x 4016 pixels||8368 x 5584 pixels|
|Pixel Pitch||5.95 μm||4.30 μm|
|Pixel Density||2.82 MP/cm2||5.41 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/60p Video|
|ISO Setting||100 - 51,200 ISO||100 - 25,600 ISO|
|ISO Boost||50 - 102,400 ISO||50 - 51,200 ISO|
|Image Processor||EXPEED 6||Venus|
|DXO Sensor Quality (score)||..||100|
|DXO Color Depth (bits)||..||26.4|
|DXO Dynamic Range (EV)||..||14.1|
|DXO Low Light (ISO)||..||3525|
|Screen Specs||Nikon Z5||Panasonic S1R|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||3690k dots||5760k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||1040k dots||2100k dots|
|LCD Attachment||Tilting screen||Fully flexible screen|
|Shooting Specs||Nikon Z5||Panasonic S1R|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||4.5 shutter flaps/s||9 shutter flaps/s|
|Shutter Life Expectancy||200 000 actuations||400 000 actuations|
|Electronic Shutter||up to 1/8000s||up to 1/8000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC or XQD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||Dual UHS-II||Dual UHS-II|
|Connectivity Specs||Nikon Z5||Panasonic S1R|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 3.2||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||Bluetooth built-in|
|Body Specs||Nikon Z5||Panasonic S1R|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||470 shots per charge||380 shots per charge|
|In-Camera Charging||USB charging||USB charging|
134 x 101 x 67 mm
(5.3 x 4.0 x 2.6 in)
149 x 110 x 97 mm
(5.9 x 4.3 x 3.8 in)
|Camera Weight||675 g (23.8 oz)||1016 g (35.8 oz)|
