Nikon Df vs Pentax 645D

The Nikon Df and the Pentax 645D are two digital cameras that were announced, respectively, in November 2013 and March 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (Df) and a medium format (645D) sensor. The Nikon has a resolution of 16.2 megapixels, whereas the Pentax provides 39.5 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon Df		Pentax 645D
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Pentax 645 mount lenses
16.2 MP – Full Frame sensor		39.5 MP – Medium Format sensor
no Video		no Video
ISO 100-12,800 (50 - 204,800)		ISO 100-1,600
Optical viewfinder		Optical viewfinder
3.2" LCD – 921k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5.5 shutter flaps per second		1.1 shutter flaps per second
Weathersealed body		Weathersealed body
1400 shots per battery charge		800 shots per battery charge
144 x 110 x 67 mm, 760 g		156 x 117 x 119 mm, 1480 g

Check Df offers at
ebay.com
Check 645D offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Df and the Pentax 645D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

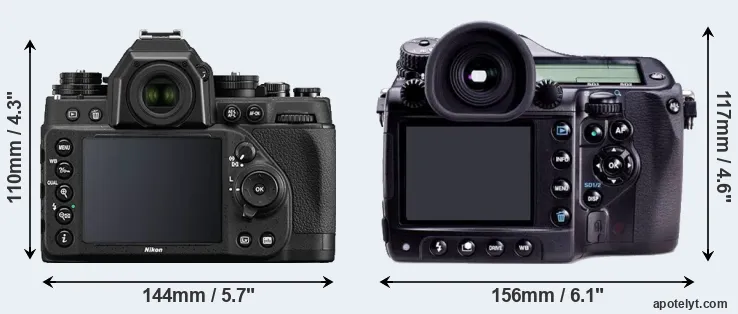

The physical size and weight of the Nikon Df and the Pentax 645D are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The Df can be obtained in two different colors (black, silver), while the 645D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645D is notably larger (15 percent) than the Nikon Df. Moreover, the 645D is substantially heavier (95 percent) than the Df. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the Df gets 1400 shots out of its Nikon EN-EL14 battery, while the 645D can take 800 images on a single charge of its Pentax D-LI90 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	2,749	ebay.com
2.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	9,995	ebay.com
3.		Canon 1D X	158 mm	168 mm	83 mm	1551 g	1120	Y	Oct 2011	6,799	ebay.com
4.		Canon 1D Mark IV	156 mm	157 mm	80 mm	1230 g	1500	Y	Oct 2009	4,999	ebay.com
5.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	21,950	ebay.com
6.		Nikon D850	146 mm	124 mm	79 mm	1005 g	1840	Y	Jul 2017	3,299	amazon.com
7.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
8.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	2,299	ebay.com
9.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	3,299	ebay.com
10.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	1,199	ebay.com
11.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	1,999	ebay.com
12.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
13.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	2,099	ebay.com
14.		Nikon D800	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	2,999	ebay.com
15.		Nikon D800E	146 mm	123 mm	82 mm	1000 g	900	Y	Feb 2012	3,299	ebay.com
16.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	5,199	ebay.com
17.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	8,499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Df was launched at a markedly lower price (by 72 percent) than the 645D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon Df features a full frame sensor and the Pentax 645D a medium format sensor. The sensor area in the 645D is 69 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 0.79. The sensor in the Df has a native 3:2 aspect ratio, while the one in the 645D offers a 4:3 aspect.

With 39.5MP, the 645D offers a higher resolution than the Df (16.2MP), but the 645D has smaller individual pixels (pixel pitch of 6.06μm versus 7.29μm for the Df). Yet, the Df is a much more recent model (by 3 years and 7 months) than the 645D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645D has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax 645D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645D for good quality output (200 dots per inch) amounts to 36.3 x 27.2 inches or 92.3 x 69.1 cm, for very good quality (250 dpi) 29.1 x 21.8 inches or 73.8 x 55.3 cm, and for excellent quality (300 dpi) 24.2 x 18.1 inches or 61.5 x 46.1 cm. The corresponding values for the Nikon Df are 24.6 x 16.4 inches or 62.6 x 41.7 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.3 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.8 cm for excellent quality prints.

The Nikon Df has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 50-204800. The corresponding ISO settings for the Pentax 645D are ISO 100 to ISO 1600 (no boost).

In terms of underlying technology, the Df is build around a CMOS sensor, while the 645D uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the Df has a notably higher overall DXO score than the 645D (overall score 7 points higher), which gives it an advantage in terms of imaging quality. 0.5 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
2.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
3.		Canon 1D X	Full Frame	17.9	5184	3456	1080/30p	23.8	11.8	2786	82
4.		Canon 1D Mark IV	APS-H	16.0	4896	3264	1080/30p	22.8	12.0	1320	74
5.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
6.		Nikon D850	Full Frame	45.4	8256	5504	4K/30p	26.4	14.8	2660	100
7.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
8.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
9.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
10.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
11.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
12.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
13.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
14.		Nikon D800	Full Frame	36.2	7360	4912	1080/30p	25.3	14.4	2853	95
15.		Nikon D800E	Full Frame	36.2	7360	4912	1080/30p	25.6	14.3	2979	96
16.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
17.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The Df and the 645D are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the Df offers a wider field of view (100%) than the one in the 645D (98%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 645D has a higher magnification (0.78x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon Df and Pentax 645D along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
2.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
3.		Canon 1D X	optical	Y	3.2 / 1040	fixed	n	1/8000s	14.0/s	n	n
4.		Canon 1D Mark IV	optical	Y	3.0 / 920	fixed	n	1/8000s	10.0/s	n	n
5.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
6.		Nikon D850	optical	Y	3.2 / 2359	tilting	Y	1/8000s	9.0/s	n	n
7.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
8.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
9.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
10.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
11.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
12.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
13.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
14.		Nikon D800	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
15.		Nikon D800E	optical	Y	3.2 / 921	fixed	n	1/8000s	4.0/s	Y	n
16.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
17.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon Df and the Pentax 645D both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the Df and the 645D write their files to SDXC cards. The 645D features dual card slots, which can be very useful in case a memory card fails. In contrast, the Df only has one slot. The Df supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the 645D cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Df and Pentax 645D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
2.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
3.		Canon 1D X	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 1D Mark IV	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
6.		Nikon D850	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
7.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
9.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
10.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
12.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
13.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
14.		Nikon D800	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Nikon D800E	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the Df and the 645D have been discontinued, but can regularly be found used on ebay. The 645D was replaced by the Pentax 645Z, while the Df does not have a direct successor. Further information on the features and operation of the Df and 645D can be found, respectively, in the Nikon Df Manual (free pdf) or the online Pentax 645D Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Nikon Df or the Pentax 645D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Nikon Df:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
• More complete view: Has a viewfinder with a larger field of view (100% vs 98%).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• Faster burst: Shoots at higher frequency (5.5 vs 1.1 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (144x110mm vs 156x117mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 720g or 49 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (1400 versus 800) on a single battery charge.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (72 percent cheaper at launch).
• More modern: Reflects 3 years and 7 months of technical progress since the 645D launch.

Advantages of the Pentax 645D:

• More detail: Has more megapixels (39.5 vs 16.2MP), which boosts linear resolution by 53%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.70x).
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in March 2010).

If the number of relative strengths (bullet points above) is taken as a guide, the Df is the clear winner of the match-up (12 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon Df and the Pentax 645D place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the Df and the 645D in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	2,749	ebay.com
2.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	9,995	ebay.com
3.		Canon 1D X	5/5	..	..	..	4.5/5	4.5/5	Oct 2011	6,799	ebay.com
4.		Canon 1D Mark IV	5/5	..	..	89/100	..	..	Oct 2009	4,999	ebay.com
5.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	21,950	ebay.com
6.		Nikon D850	4.5/5	+ +	5/5	89/100	4.5/5	5/5	Jul 2017	3,299	amazon.com
7.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
8.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	2,299	ebay.com
9.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	3,299	ebay.com
10.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	1,199	ebay.com
11.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	1,999	ebay.com
12.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
13.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	2,099	ebay.com
14.		Nikon D800	5/5	+ +	..	82/100	5/5	5/5	Feb 2012	2,999	ebay.com
15.		Nikon D800E	..	..	..	84/100	5/5	5/5	Feb 2012	3,299	ebay.com
16.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	5,199	ebay.com
17.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	8,499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
