Nikon D90 vs Olympus E-PL9
The Nikon D90 and the Olympus PEN E-PL9 are two digital cameras that were revealed to the public, respectively, in August 2008 and February 2018. The D90 is a DSLR, while the E-PL9 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D90) and a Four Thirds (E-PL9) sensor. The Nikon has a resolution of 12.2 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D90 and the Olympus PEN E-PL9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

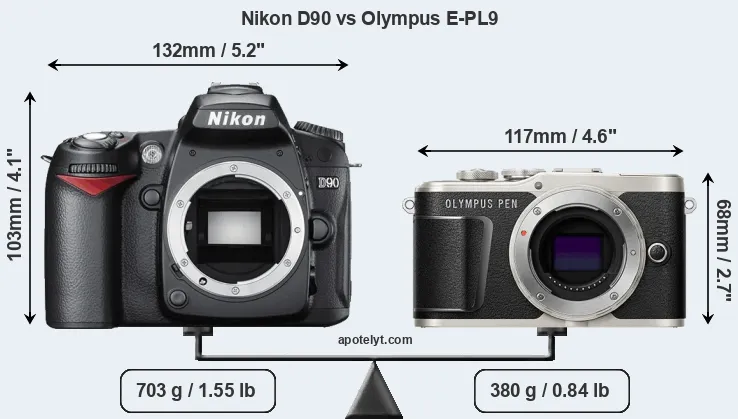

The physical size and weight of the Nikon D90 and the Olympus E-PL9 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The E-PL9 can be obtained in four different colors (black, brown, blue, white), while the D90 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL9 is considerably smaller (41 percent) than the Nikon D90. Moreover, the E-PL9 is substantially lighter (46 percent) than the D90. In this context, it is worth noting that neither the D90 nor the E-PL9 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D90) and the Micro Four Thirds Lens Catalog (E-PL9). Mirrorless cameras, such as the E-PL9, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|2.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|3.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|4.||Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|5.||Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|6.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|7.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|8.||Nikon D3000||126 mm||97 mm||64 mm||536 g||500||n||Jul 2009||599|
|9.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|10.||Nikon D60||126 mm||94 mm||64 mm||522 g||500||n||Jan 2008||629|
|11.||Nikon D40X||124 mm||94 mm||64 mm||522 g||520||n||Mar 2007||729|
|12.||Nikon D80||132 mm||103 mm||77 mm||668 g||600||n||Aug 2006||999|
|13.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|14.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|15.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|16.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|17.||Olympus E-PL6||111 mm||64 mm||38 mm||325 g||360||n||May 2013||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL9 was launched at a markedly lower price (by 54 percent) than the D90, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D90 features an APS-C sensor and the Olympus E-PL9 a Four Thirds sensor. The sensor area in the E-PL9 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D90 has a native 3:2 aspect ratio, while the one in the E-PL9 offers a 4:3 aspect.
Despite having a smaller sensor, the E-PL9 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the D90. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.53μm for the D90). However, it should be noted that the E-PL9 is much more recent (by 9 years and 5 months) than the D90, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-PL9 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL9 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Nikon D90 are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The Nikon D90 has a native sensitivity range from ISO 200 to ISO 3200, which can be extended to ISO 200-6400. The corresponding ISO settings for the Olympus PEN E-PL9 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|2.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|13.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|14.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|15.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|16.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|17.||Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL9 provides a better video resolution than the D90. It can shoot movie footage at 4K/30p, while the Nikon is limited to 720/24p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D90 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL9 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon D90, the Olympus E-PL9, and comparable cameras.
|14.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
One feature that is present on the D90, but is missing on the E-PL9 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The E-PL9 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D90 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL9 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL9 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D90 writes its imaging data to SDHC cards, while the E-PL9 uses SDXC cards. The E-PL9 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the D90 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D90 and Olympus PEN E-PL9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|14.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-PL9 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D90 does not provide wifi capability.
Both the D90 and the E-PL9 have been discontinued, but can regularly be found used on eBay. The D90 was replaced by the Nikon D7000, while the E-PL9 was followed by the Olympus E-PL10. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So how do things add up? Which of the two cameras – the Nikon D90 or the Olympus E-PL9 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D90:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (850 versus 350) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in August 2008).
Reasons to prefer the Olympus PEN E-PL9:
- More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 12%.
- Better video: Provides higher definition movie capture (4K/30p vs 720/24p).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8.6 vs 4.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (117x68mm vs 132x103mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 323g or 46 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (54 percent cheaper at launch).
- More modern: Reflects 9 years and 5 months of technical progress since the D90 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL9 is the clear winner of the contest (18 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D90 and the Olympus E-PL9 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D90 or the E-PL9. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D90||..||+ +||+ +||4/5||4.5/5||Aug 2008||1,299|
|2.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|3.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|4.||Nikon D7500||4.5/5||+ +||86/100||5/5||4.5/5||Apr 2017||1,299|
|5.||Nikon D7200||4/5||+ +||84/100||4.5/5||4.5/5||Mar 2015||1,199|
|6.||Nikon D7100||5/5||+ +||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|7.||Nikon D7000||4/5||..||80/100||4.5/5||4.5/5||Sep 2010||1,499|
|8.||Nikon D3000||..||+||72/100||4/5||4.5/5||Jul 2009||599|
|9.||Nikon D5000||..||+ +||75/100||4/5||4.5/5||Apr 2009||749|
|10.||Nikon D60||..||80/100||+ +||4/5||4.5/5||Jan 2008||629|
|11.||Nikon D40X||..||79/100||+ +||4/5||4/5||Mar 2007||729|
|12.||Nikon D80||..||+||+ +||o||4.5/5||Aug 2006||999|
|13.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|14.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|15.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|16.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|17.||Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Nikon D90 vs Olympus E-PL9
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D90||Olympus E-PL9|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2008||February 2018|
|Launch Price||USD 1,299||USD 599|
|Sensor Specs||Nikon D90||Olympus E-PL9|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.8 mm||17.3 x 13.0 mm|
|Sensor Area||372.88 mm2||224.9 mm2|
|Sensor Diagonal||28.4 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||15.9 Megapixels|
|Image Resolution||4288 x 2848 pixels||4608 x 3456 pixels|
|Pixel Pitch||5.53 μm||3.76 μm|
|Pixel Density||3.28 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||720/24p Video||4K/30p Video|
|ISO Setting||200 - 3,200 ISO||200 - 6,400 ISO|
|ISO Boost||200 - 6,400 ISO||100 - 25,600 ISO|
|Image Processor||EXPEED||TruePic VIII|
|DXO Sensor Quality (score)||73||..|
|DXO Color Depth (bits)||22.7||..|
|DXO Dynamic Range (EV)||12.5||..|
|DXO Low Light (ISO)||977||..|
|Screen Specs||Nikon D90||Olympus E-PL9|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||96%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D90||Olympus E-PL9|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||4.5 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Nikon D90||Olympus E-PL9|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D90||Olympus E-PL9|
|Battery Life (CIPA)||850 shots per charge||350 shots per charge|
132 x 103 x 77 mm
(5.2 x 4.1 x 3.0 in)
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
|Camera Weight||703 g (24.8 oz)||380 g (13.4 oz)|
