Nikon D810 vs Olympus E-500
The Nikon D810 and the Olympus Evolt E-500 are two digital cameras that were officially introduced, respectively, in June 2014 and September 2005. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D810) and a Four Thirds (E-500) sensor. The Nikon has a resolution of 36.2 megapixels, whereas the Olympus provides 8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D810 and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

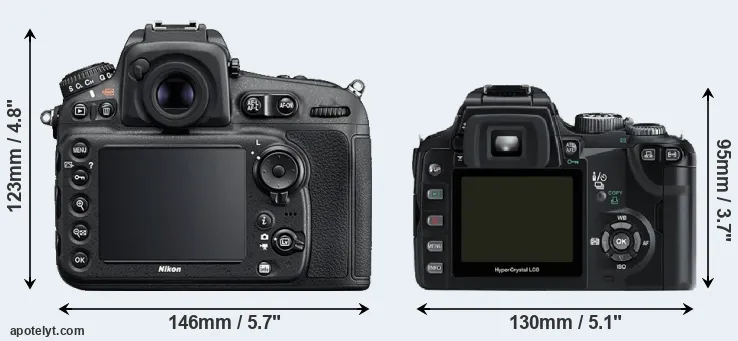

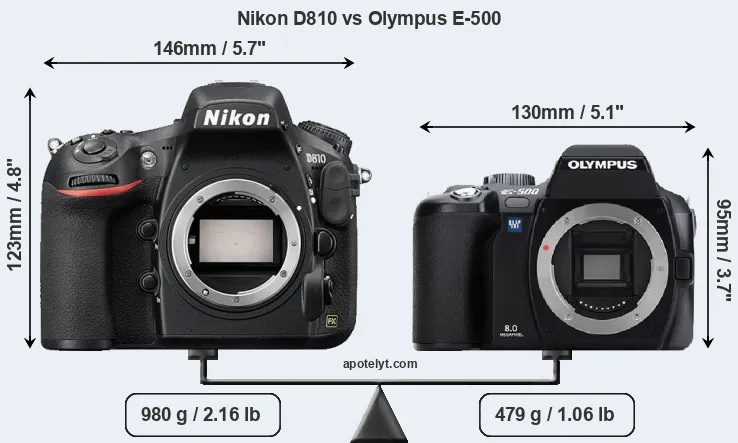

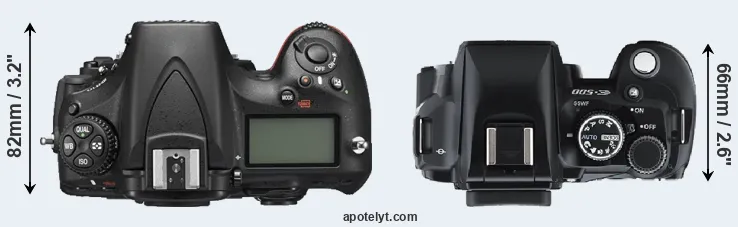

The side-by-side display below illustrates the physical size and weight of the Nikon D810 and the Olympus E-500. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is considerably smaller (31 percent) than the Nikon D810. Moreover, the E-500 is substantially lighter (51 percent) than the D810. It is worth mentioning in this context that the D810 is splash and dust resistant, while the E-500 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D810) and the Four Thirds Lens Catalog (E-500).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Nikon D810||5.7 in||4.8 in||3.2 in||34.6 oz||1200||Y||Jun 2014||3,299|
|Olympus E-500||5.1 in||3.7 in||2.6 in||16.9 oz||750||n||Sep 2005||599|
|Canon 5DS||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699|
|Nikon D850||5.7 in||4.9 in||3.1 in||35.5 oz||1840||Y||Jul 2017||3,299|
|Nikon D4S||6.3 in||6.2 in||3.6 in||47.6 oz||3020||Y||Feb 2014||6,499|
|Nikon D750||5.6 in||4.4 in||3.1 in||26.5 oz||1230||Y||Sep 2014||2,299|
|Nikon Df||5.7 in||4.3 in||2.6 in||26.8 oz||1400||Y||Nov 2013||2,749|
|Nikon D610||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Oct 2013||1,999|
|Nikon D600||5.6 in||4.4 in||3.2 in||30.0 oz||900||Y||Sep 2012||2,099|
|Nikon D800||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||2,999|
|Nikon D800E||5.7 in||4.8 in||3.2 in||35.3 oz||900||Y||Feb 2012||3,299|
|Nikon D700||5.8 in||4.8 in||3.0 in||37.9 oz||1000||Y||Jul 2008||2,999|
|Olympus E-410||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Mar 2007||699|
|Olympus E-510||5.4 in||3.6 in||2.7 in||19.0 oz||750||n||Mar 2007||799|
|Olympus E-330||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999|
|Olympus E-400||5.1 in||3.6 in||2.1 in||15.3 oz||500||n||Sep 2006||699|
|Olympus E-300||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-500 was launched at a markedly lower price (by 82 percent) than the D810, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

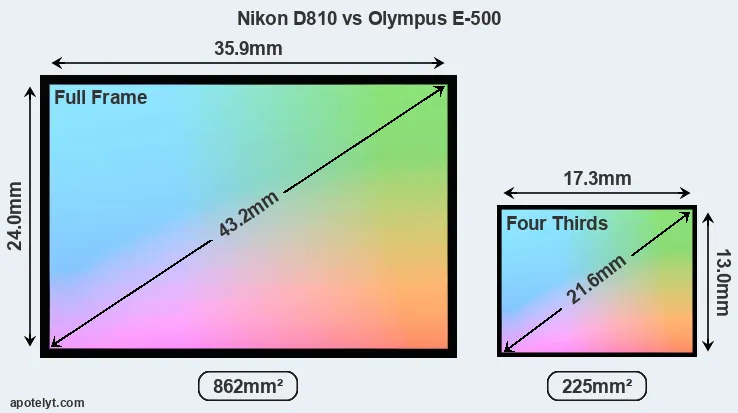

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D810 features a full frame sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D810 has a native 3:2 aspect ratio, while the one in the E-500 offers a 4:3 aspect.

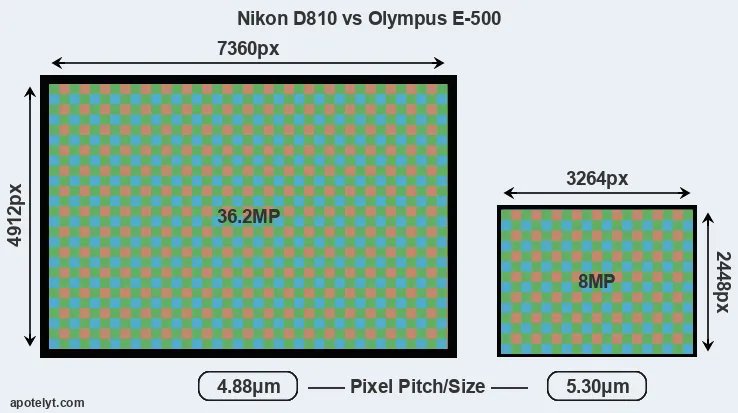

With 36.2MP, the D810 offers a higher resolution than the E-500 (8MP), but the D810 has smaller individual pixels (pixel pitch of 4.88μm versus 5.30μm for the E-500). However, the D810 is a much more recent model (by 8 years and 9 months) than the E-500, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D810 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D810 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D810 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.
The Nikon D810 has a native sensitivity range from ISO 64 to ISO 12800, which can be extended to ISO 32-51200. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|Olympus E-500||Four Thirds||8.0||3264||2448||none||..||..||..||..|
|Canon 5DS||Full Frame||50.3||8688||5792||1080/30p||24.7||12.4||2381||87|
|Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
|Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
Many modern cameras are not only capable of taking still images, but can also record movies. The D810 indeed provides movie recording capabilities, while the E-500 does not. The highest resolution format that the D810 can use is 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. The D810 and the E-500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D810 offers a wider field of view (100%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D810 has a higher magnification (0.70x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D810 and Olympus E-500 in connection with corresponding information for a sample of similar cameras.
One feature that is present on the D810, but is missing on the E-500 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D810 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D810 writes its imaging data to Compact Flash or SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D810 and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the D810 offers wifi support, while the E-500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D810 (unlike the E-500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D810 and the E-500 have been discontinued, but can regularly be found used on eBay. The E-500 was replaced by the Olympus E-510, while the D810 was followed by the Nikon D850. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So how do things add up? Is the Nikon D810 better than the Olympus E-500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Nikon D810:
- More detail: Offers more megapixels (36.2 vs 8MP) with a 117% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.45x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 215k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (1200 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 8 years and 9 months of technical progress since the E-500 launch.
Advantages of the Olympus Evolt E-500:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (130x95mm vs 146x123mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 501g or 51 percent) and is thus easier to take along.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in September 2005).
If the count of individual advantages (bullet points above) is taken as a guide, the D810 is the clear winner of the match-up (21 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D810 and the Olympus E-500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D810 or the E-500 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D810||..||86/100||5/5||4.5/5||4.5/5||Jun 2014||3,299|
|Olympus E-500||76/100||+ +||..||..||..||Sep 2005||599|
|Canon 5DS||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699|
|Nikon D850||+ +||89/100||4.5/5||5/5||5/5||Jul 2017||3,299|
|Nikon D4S||..||..||4.5/5||5/5||4.5/5||Feb 2014||6,499|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Nikon Df||..||81/100||4/5||4/5||4/5||Nov 2013||2,749|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D600||+ +||87/100||5/5||4.5/5||4.5/5||Sep 2012||2,099|
|Nikon D800||+ +||82/100||5/5||5/5||5/5||Feb 2012||2,999|
|Nikon D800E||..||84/100||5/5||4.5/5||5/5||Feb 2012||3,299|
|Nikon D700||89/100||+ +||4.5/5||5/5||4.5/5||Jul 2008||2,999|
|Olympus E-410||86/100||+ +||4/5||o||4.5/5||Mar 2007||699|
|Olympus E-510||89/100||+ +||3.5/5||o||4.5/5||Mar 2007||799|
|Olympus E-330||..||+||o||3.5/5||..||Jan 2006||999|
|Olympus E-400||85/100||..||4/5||..||4/5||Sep 2006||699|
|Olympus E-300||..||+||o||o||4.5/5||Sep 2004||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D810 vs Olympus E-500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D810||Olympus E-500|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Four Thirds lenses|
|Launch Date||June 2014||September 2005|
|Launch Price||USD 3,299||USD 599|
|Sensor Specs||Nikon D810||Olympus E-500|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||861.6 mm2||224.9 mm2|
|Sensor Diagonal||43.2 mm||21.6 mm|
|Sensor Resolution||36.2 Megapixels||8 Megapixels|
|Image Resolution||7360 x 4912 pixels||3264 x 2448 pixels|
|Pixel Pitch||4.88 μm||5.30 μm|
|Pixel Density||4.20 MP/cm2||3.55 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||64 - 12,800 ISO||100 - 400 ISO|
|ISO Boost||32 - 51,200 ISO||100 - 1,600 ISO|
|Image Processor||EXPEED 4||TruePic|
|DXO Sensor Quality (score)||97||..|
|DXO Color Depth (bits)||25.7||..|
|DXO Dynamic Range (EV)||14.8||..|
|DXO Low Light (ISO)||2853||..|
|Screen Specs||Nikon D810||Olympus E-500|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||1229k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D810||Olympus E-500|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||2.5 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Nikon D810||Olympus E-500|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Nikon D810||Olympus E-500|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1200 shots per charge||750 shots per charge|
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
130 x 95 x 66 mm
(5.1 x 3.7 x 2.6 in)
|Camera Weight||980 g (34.6 oz)||479 g (16.9 oz)|
