Nikon D800 vs Olympus E-M10 II
The Nikon D800 and the Olympus OM-D E-M10 Mark II are two digital cameras that were announced, respectively, in February 2012 and August 2015. The D800 is a DSLR, while the E-M10 II is a mirrorless interchangeable lens camera. The cameras are based on a full frame (D800) and a Four Thirds (E-M10 II) sensor. The Nikon has a resolution of 36.2 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D800 and the Olympus OM-D E-M10 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

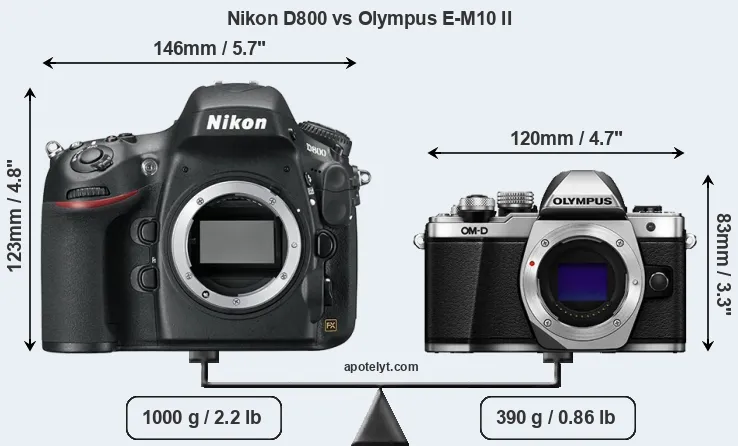

The physical size and weight of the Nikon D800 and the Olympus E-M10 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-M10 II can be obtained in three different colors (black, silver, brown), while the D800 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 II is considerably smaller (45 percent) than the Nikon D800. Moreover, the E-M10 II is substantially lighter (61 percent) than the D800. It is worth mentioning in this context that the D800 is splash and dust resistant, while the E-M10 II does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D800) and the Micro Four Thirds Lens Catalog (E-M10 II). Mirrorless cameras, such as the E-M10 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|2.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|3.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|4.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|5.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|6.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|7.||Nikon Df||144 mm||110 mm||67 mm||760 g||1400||Y||Nov 2013||2,749|
|8.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|9.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|10.||Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|11.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|12.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|13.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|14.||Olympus E-M5 II||124 mm||85 mm||45 mm||469 g||310||Y||Feb 2015||1,099|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-PL7||115 mm||67 mm||38 mm||357 g||350||n||Aug 2014||599|
|17.||Panasonic GX80||122 mm||71 mm||44 mm||426 g||290||n||Apr 2016||799|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-M10 II was launched at a markedly lower price (by 78 percent) than the D800, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D800 features a full frame sensor and the Olympus E-M10 II a Four Thirds sensor. The sensor area in the E-M10 II is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D800 has a native 3:2 aspect ratio, while the one in the E-M10 II offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 36.2MP, the D800 offers a higher resolution than the E-M10 II (15.9MP), but the D800 nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 3.76μm for the E-M10 II) due to its larger sensor. However, the E-M10 II is a much more recent model (by 3 years and 6 months) than the D800, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the E-M10 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D800 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Olympus E-M10 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Nikon D800 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Olympus OM-D E-M10 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D800 provides substantially higher image quality than the E-M10 II, with an overall score that is 22 points higher. This advantage is based on 2.2 bits higher color depth, 1.9 EV in additional dynamic range, and 1.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|1.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|2.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|3.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|4.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|5.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|6.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|7.||Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
|8.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|9.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|10.||Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|11.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|12.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|13.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|14.||Olympus E-M5 II||Four Thirds||15.9||4608||3456||1080/60p||23.0||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|17.||Panasonic GX80||Four Thirds||15.8||4592||3448||4K/30p||22.9||12.6||662||71|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-M10 II provides a faster frame rate than the D800. It can shoot movie footage at 1080/60p, while the Nikon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 II has an electronic viewfinder (2360k dots), while the D800 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D800 has a higher magnification than the one of the E-M10 II (0.70x vs 0.62x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D800 and Olympus E-M10 II along with similar information for a selection of comparators.
|2.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
|3.||Canon 5D Mark IV||optical||Y||3.2||1620||fixed||Y||1/8000s||7.0||n||n|
|4.||Canon 5D Mark III||optical||Y||3.2||1040||fixed||n||1/8000s||6.0||n||n|
|13.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|14.||Olympus E-M5 II||2360||n||3.0||1037||swivel||Y||1/8000s||10.0||n||Y|
One feature that is present on the D800, but is missing on the E-M10 II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M10 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D800 and the Olympus E-M10 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D800 writes its imaging data to Compact Flash or SDXC cards, while the E-M10 II uses SDXC cards. The D800 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 II only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D800 and Olympus OM-D E-M10 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|3.||Canon 5D Mark IV||Y||mono||mono||Y||Y||mini||3.0||Y||Y||-|
|4.||Canon 5D Mark III||Y||mono||mono||Y||Y||mini||2.0||-||-||-|
|13.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|14.||Olympus E-M5 II||Y||stereo||mono||Y||-||micro||2.0||Y||-||-|
It is notable that the D800 has a microphone port, which is missing on the E-M10 II. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Nikon D800 (unlike the E-M10 II) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D800 and the E-M10 II have been discontinued, but can regularly be found used on eBay. The D800 was replaced by the Nikon D810, while the E-M10 II was followed by the Olympus E-M10 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is there a clear favorite between the Nikon D800 and the Olympus E-M10 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D800:
- More detail: Offers more megapixels (36.2 vs 15.9MP) with a 54% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores substantially higher (22 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.2 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.9 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.62x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (900 versus 320) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in February 2012).
Advantages of the Olympus OM-D E-M10 Mark II:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (8 vs 4 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (120x83mm vs 146x123mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 610g or 61 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More modern: Reflects 3 years and 6 months of technical progress since the D800 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D800 is the clear winner of the match-up (19 : 15 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D800 and the Olympus E-M10 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D800 and the E-M10 II in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D800||5/5||+ +||82/100||5/5||5/5||Feb 2012||2,999|
|2.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|3.||Canon 5D Mark IV||4.5/5||+ +||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|4.||Canon 5D Mark III||..||+ +||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|5.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|6.||Nikon D810||5/5||..||86/100||5/5||4.5/5||Jun 2014||3,299|
|7.||Nikon Df||4/5||..||81/100||4/5||4/5||Nov 2013||2,749|
|8.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|9.||Nikon D4||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|10.||Nikon D600||4/5||+ +||87/100||5/5||4.5/5||Sep 2012||2,099|
|11.||Nikon D800E||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|12.||Nikon D700||..||89/100||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|13.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|14.||Olympus E-M5 II||5/5||+ +||81/100||5/5||5/5||Feb 2015||1,099|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-PL7||4/5||+||..||5/5||4/5||Aug 2014||599|
|17.||Panasonic GX80||4.5/5||+ +||82/100||5/5||5/5||Apr 2016||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D800 vs Olympus E-M10 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D800||Olympus E-M10 II|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2012||August 2015|
|Launch Price||USD 2,999||USD 649|
|Sensor Specs||Nikon D800||Olympus E-M10 II|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||861.6 mm2||224.9 mm2|
|Sensor Diagonal||43.2 mm||21.6 mm|
|Sensor Resolution||36.2 Megapixels||15.9 Megapixels|
|Image Resolution||7360 x 4912 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.88 μm||3.76 μm|
|Pixel Density||4.20 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/60p Video|
|ISO Setting||100 - 6,400 ISO||200 - 25,600 ISO|
|ISO Boost||50 - 25,600 ISO||100 - 25,600 ISO|
|Image Processor||EXPEED 3||TruePic VII|
|DXO Sensor Quality (score)||95||73|
|DXO Color Depth (bits)||25.3||23.1|
|DXO Dynamic Range (EV)||14.4||12.5|
|DXO Low Light (ISO)||2853||842|
|Screen Specs||Nikon D800||Olympus E-M10 II|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||921k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D800||Olympus E-M10 II|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||4 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon D800||Olympus E-M10 II|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Nikon D800||Olympus E-M10 II|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||320 shots per charge|
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
120 x 83 x 47 mm
(4.7 x 3.3 x 1.9 in)
|Camera Weight||1000 g (35.3 oz)||390 g (13.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
