Nikon D5600 vs Sony NEX-5

The Nikon D5600 and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in November 2016 and May 2010. The D5600 is a DSLR, while the NEX-5 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Nikon has a resolution of 24 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D5600		Sony NEX-5
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Sony E mount lenses
24 MP – APS-C sensor		14 MP – APS-C sensor
1080/60p Video		1080/60i Video
ISO 100-25,600		ISO 200-12,800
Optical viewfinder		Viewfinder optional
3.2" LCD – 1037k dots		3.0" LCD – 920k dots
Swivel touchscreen		Tilting screen (no touchscreen)
5 shutter flaps per second		7 shutter flaps per second
970 shots per battery charge		330 shots per battery charge
124 x 97 x 70 mm, 465 g		111 x 59 x 38 mm, 287 g

Check D5600 price at
amazon.com
Check NEX-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5600 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Nikon D5600 and the Sony NEX-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The D5600 can be obtained in two different colors (black, red), while the NEX-5 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (46 percent) than the Nikon D5600. Moreover, the NEX-5 is substantially lighter (38 percent) than the D5600. In this context, it is worth noting that neither the D5600 nor the NEX-5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5600) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the NEX-5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D5600 gets 970 shots out of its EN-EL14a battery, while the NEX-5 can take 330 images on a single charge of its NP-FW50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	amazon.com
2.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	699	ebay.com
3.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
5.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	1,999	amazon.com
6.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	499	ebay.com
7.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
8.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	499	ebay.com
9.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
10.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
11.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
12.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
13.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	749	ebay.com
14.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	599	ebay.com
15.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	699	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	599	ebay.com
17.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

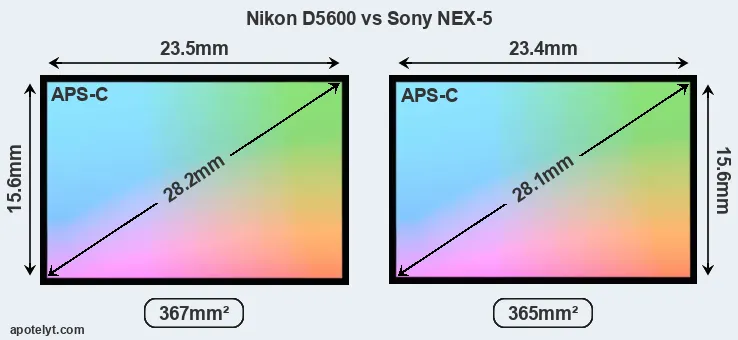

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24MP, the D5600 offers a higher resolution than the NEX-5 (14MP), but the D5600 has smaller individual pixels (pixel pitch of 3.91μm versus 5.11μm for the NEX-5). However, the D5600 is a much more recent model (by 6 years and 6 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D5600 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5600 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Sony NEX-5 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.

The Nikon D5600 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D5600 provides substantially higher image quality than the NEX-5, with an overall score that is 15 points higher. This advantage is based on 1.9 bits higher color depth, 1.8 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
2.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
3.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
5.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
6.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
7.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
8.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
9.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
10.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
11.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
12.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
13.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
14.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
15.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5600 provides a higher frame rate than the NEX-5. It can shoot video footage at 1080/60p, while the Sony is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D5600 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The adjacent table lists some of the other core features of the Nikon D5600 and Sony NEX-5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
2.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
3.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
6.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
7.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
8.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
9.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
10.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
11.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
12.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
13.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
14.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
15.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D5600 has one, while the NEX-5 does not. While the built-in flash of the D5600 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D5600 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D5600 writes its imaging data to SDXC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The D5600 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5600 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
6.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
7.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
10.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
14.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D5600 has a microphone port, which is missing on the NEX-5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The D5600 is a recent model that features in the current product line-up of Nikon. In contrast, the NEX-5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the NEX-5 was succeeded by the Sony NEX-5N. Further information on the features and operation of the D5600 and NEX-5 can be found, respectively, in the Nikon D5600 Manual (free pdf) or the online Sony NEX-5 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon D5600 and the Sony NEX-5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Nikon D5600:

• More detail: Offers more megapixels (24 vs 14MP) with a 31% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (15 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.9 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (970 versus 330) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 6 years and 6 months of technical progress since the NEX-5 launch.

Arguments in favor of the Sony Alpha NEX-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 124x97mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 178g or 38 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More heavily discounted: Has been around for much longer (launched in May 2010).

If the count of individual advantages (bullet points above) is taken as a guide, the D5600 is the clear winner of the match-up (21 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D5600 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the D5600 or the NEX-5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	amazon.com
2.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	699	ebay.com
3.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
5.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	1,999	amazon.com
6.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	499	ebay.com
7.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
8.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	499	ebay.com
9.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
10.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
11.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
12.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
13.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	749	ebay.com
14.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	599	ebay.com
15.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	699	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	599	ebay.com
17.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	599	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check D5600 price at
amazon.com
Check NEX-5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check D5600 price at
amazon.com
Check NEX-5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
