Nikon D5600 vs Olympus E-PL7

The Nikon D5600 and the Olympus PEN E-PL7 are two digital cameras that were officially introduced, respectively, in November 2016 and August 2014. The D5600 is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D5600) and a Four Thirds (E-PL7) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D5600		Olympus E-PL7
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/30p Video
ISO 100-25,600		ISO 200-25,600
Optical viewfinder		Viewfinder optional
3.2" LCD – 1037k dots		3.0" LCD – 1037k dots
Swivel touchscreen		Tilting touchscreen
5 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
970 shots per battery charge		350 shots per battery charge
124 x 97 x 70 mm, 465 g		115 x 67 x 38 mm, 357 g

Check D5600 offers at
ebay.com
Check E-PL7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5600 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

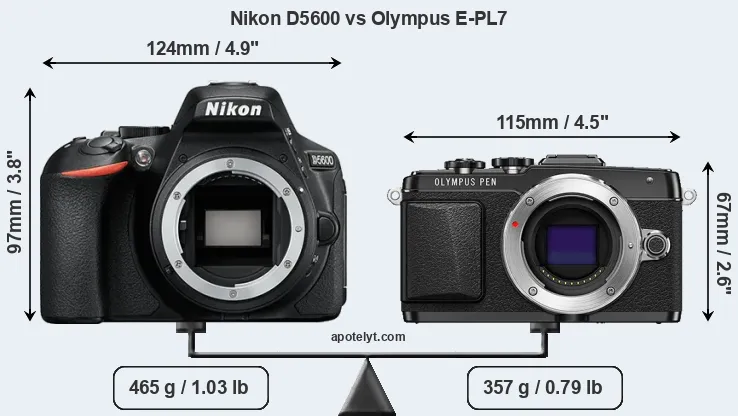

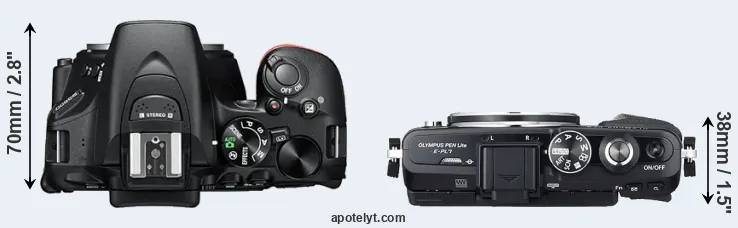

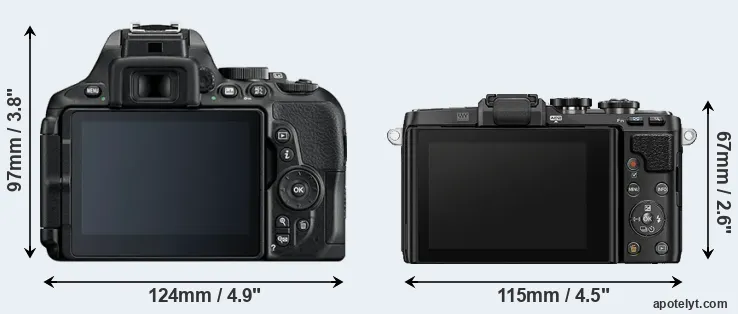

Body comparison

The physical size and weight of the Nikon D5600 and the Olympus E-PL7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The D5600 can be obtained in two different colors (black, red), while the E-PL7 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (36 percent) than the Nikon D5600. Moreover, the E-PL7 is markedly lighter (23 percent) than the D5600. In this context, it is worth noting that neither the D5600 nor the E-PL7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5600) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D5600 gets 970 shots out of its Nikon EN-EL14a battery, while the E-PL7 can take 350 images on a single charge of its Olympus BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	ebay.com
2.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
3.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	779	ebay.com
4.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
5.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
6.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	499	ebay.com
7.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	899	ebay.com
8.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	499	ebay.com
9.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	799	ebay.com
10.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	599	ebay.com
11.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	749	ebay.com
12.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	749	ebay.com
13.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	549	ebay.com
14.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	649	ebay.com
15.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
16.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
17.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PL7 was launched at a somewhat lower price (by 14 percent) than the D5600, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

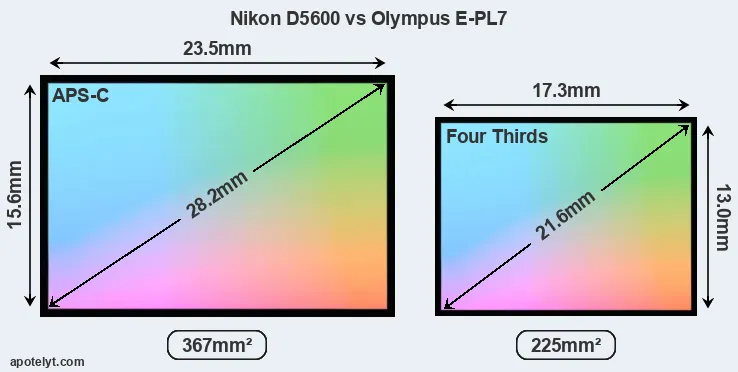

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D5600 features an APS-C sensor and the Olympus E-PL7 a Four Thirds sensor. The sensor area in the E-PL7 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D5600 has a native 3:2 aspect ratio, while the one in the E-PL7 offers a 4:3 aspect.

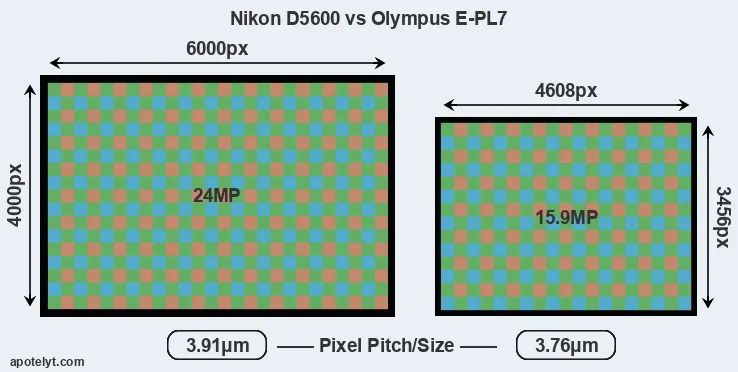

With 24MP, the D5600 offers a higher resolution than the E-PL7 (15.9MP), but the D5600 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.76μm for the E-PL7) due to its larger sensor. Moreover, the D5600 is a much more recent model (by 2 years and 2 months) than the E-PL7, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5600 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D5600 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5600 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL7 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Nikon D5600 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D5600 provides substantially higher image quality than the E-PL7, with an overall score that is 12 points higher. This advantage is based on 1.4 bits higher color depth, 1.6 EV in additional dynamic range, and 0.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
2.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
3.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
4.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
5.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
7.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
8.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
9.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
10.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
11.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
12.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
13.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
14.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
15.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
16.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
17.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D5600 provides a higher frame rate than the E-PL7. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D5600 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The adjacent table lists some of the other core features of the Nikon D5600 and Olympus E-PL7 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
2.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
4.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
7.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
8.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
9.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
10.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
11.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
12.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
13.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
16.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
17.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D5600 has one, while the E-PL7 does not. While the built-in flash of the D5600 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D5600 and the Olympus E-PL7 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D5600 and the E-PL7 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5600 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
2.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
7.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
10.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the D5600 has a microphone port, which is missing on the E-PL7. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the D5600 and the E-PL7 have been discontinued, but can regularly be found used on ebay. The E-PL7 was replaced by the Olympus E-PL8, while the D5600 does not have a direct successor. Further information on the features and operation of the D5600 and E-PL7 can be found, respectively, in the Nikon D5600 Manual (free pdf) or the online Olympus E-PL7 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Nikon D5600 or the Olympus E-PL7 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon D5600:

• More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.4 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.6 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (0.6 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Longer lasting: Can take more shots (970 versus 350) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 2 years and 2 months of technical progress since the E-PL7 launch.

Advantages of the Olympus PEN E-PL7:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (115x67mm vs 124x97mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 108g or 23 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the D5600 is the clear winner of the match-up (16 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D5600 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D5600 and the E-PL7 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	ebay.com
2.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
3.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	779	ebay.com
4.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
5.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
6.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	499	ebay.com
7.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	899	ebay.com
8.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	499	ebay.com
9.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	799	ebay.com
10.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	599	ebay.com
11.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	749	ebay.com
12.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	749	ebay.com
13.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	549	ebay.com
14.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	649	ebay.com
15.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
16.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
17.		Olympus E-PL6	..	..	..	..	..	..	May 2013	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
