Nikon D5500 vs Olympus E-PL5
The Nikon D5500 and the Olympus PEN E-PL5 are two digital cameras that were announced, respectively, in January 2015 and September 2012. The D5500 is a DSLR, while the E-PL5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D5500) and a Four Thirds (E-PL5) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5500 and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

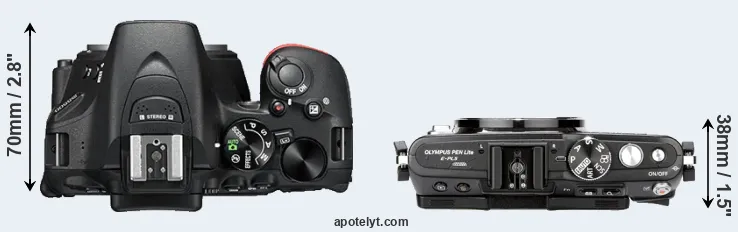

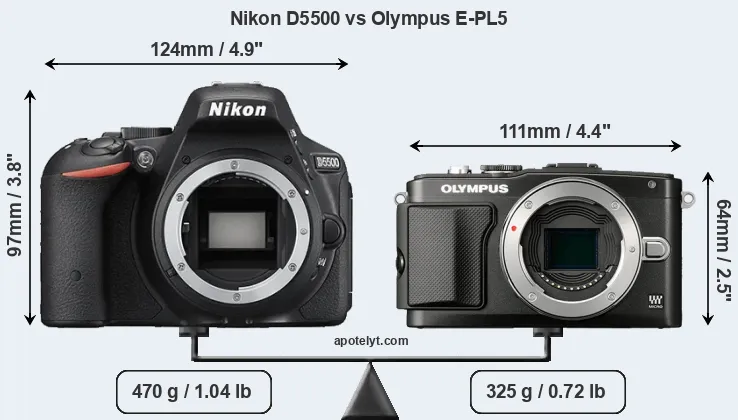

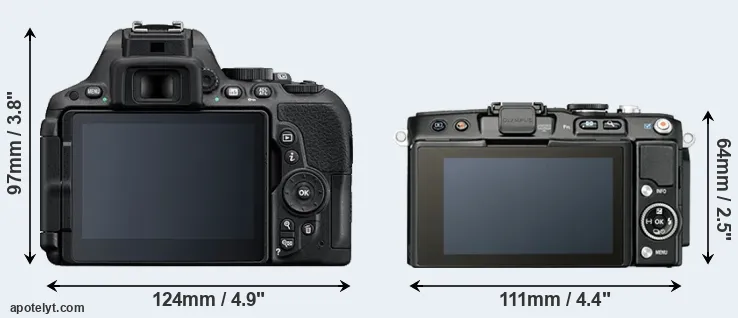

The physical size and weight of the Nikon D5500 and the Olympus E-PL5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The D5500 can be obtained in two different colors (black, red), while the E-PL5 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is considerably smaller (41 percent) than the Nikon D5500. Moreover, the E-PL5 is markedly lighter (23 percent) than the D5500. In this context, it is worth noting that neither the D5500 nor the E-PL5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5500) and the Micro Four Thirds Lens Catalog (E-PL5). Mirrorless cameras, such as the E-PL5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D5500||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
|Canon M5||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D500||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999|
|Nikon D3400||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499|
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-PL6||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599|
|Olympus E-PM2||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499|
|Olympus E-PL3||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599|
|Samsung NX30||5.0 in||3.8 in||2.3 in||13.2 oz||360||n||Jan 2014||999|
|Sony A6300||4.7 in||2.6 in||1.9 in||14.3 oz||400||Y||Feb 2016||999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-PL5 was launched at a markedly lower price (by 33 percent) than the D5500, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

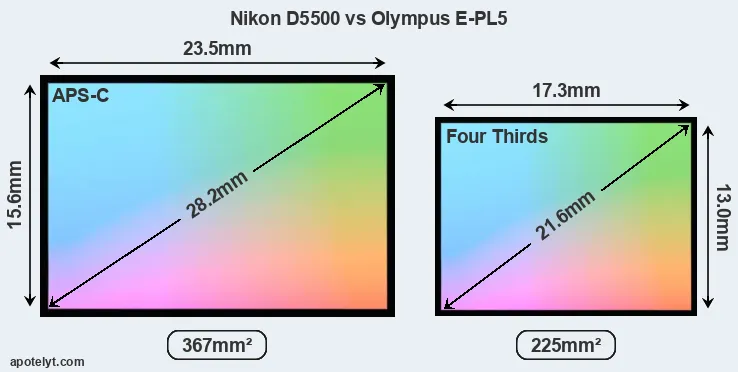

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D5500 features an APS-C sensor and the Olympus E-PL5 a Four Thirds sensor. The sensor area in the E-PL5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D5500 has a native 3:2 aspect ratio, while the one in the E-PL5 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

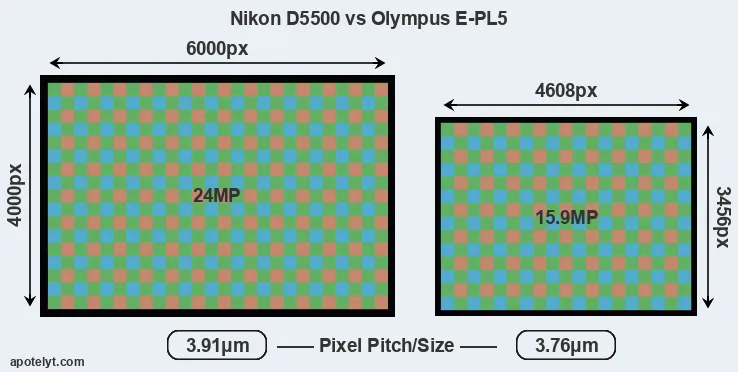

With 24MP, the D5500 offers a higher resolution than the E-PL5 (15.9MP), but the D5500 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.76μm for the E-PL5) due to its larger sensor. Moreover, the D5500 is a much more recent model (by 2 years and 3 months) than the E-PL5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PL5 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Nikon D5500 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D5500 provides substantially higher image quality than the E-PL5, with an overall score that is 12 points higher. This advantage is based on 1.3 bits higher color depth, 1.7 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D5500 provides a higher frame rate than the E-PL5. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL5 relies on live view and the rear LCD for framing. That said, the E-PL5 can be equipped with an optional viewfinder – the VF-3. The adjacent table lists some of the other core features of the Nikon D5500 and Olympus E-PL5 along with similar information for a selection of comparators.
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The D5500 has one, while the E-PL5 does not. While the built-in flash of the D5500 is not very powerful, it can at times be useful as a fill-in light.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Nikon D5500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D5500 and the E-PL5 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5500 and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the D5500 has a microphone port, which is missing on the E-PL5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the D5500 and the E-PL5 have been discontinued, but can regularly be found used on eBay. The E-PL5 was replaced by the Olympus E-PL6, while the D5500 was followed by the Nikon D5600. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is the Nikon D5500 better than the Olympus E-PL5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Nikon D5500:
- More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (820 versus 360) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 2 years and 3 months of technical progress since the E-PL5 launch.
Arguments in favor of the Olympus PEN E-PL5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x64mm vs 124x97mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 95g or 23 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in September 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the D5500 is the clear winner of the match-up (17 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5500 and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D5500 and the E-PL5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Canon M5||+||82/100||4/5||4.5/5||4/5||Sep 2016||979|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Olympus E-PM2||..||77/100||5/5||4.5/5||4.5/5||Sep 2012||499|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Samsung NX30||..||77/100||4.5/5||4/5||4.5/5||Jan 2014||999|
|Sony A6300||+||85/100||5/5||5/5||5/5||Feb 2016||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 77D vs Olympus E-PL5
- Canon XS vs Olympus E-PL5
- Fujifilm XP140 vs Nikon D5500
- Hasselblad X1D II vs Olympus E-PL5
- Leica M Typ 262 vs Nikon D5500
- Leica S2 vs Nikon D5500
- Nikon 1 V1 vs Nikon D5500
- Nikon D5500 vs Olympus E-1
- Nikon D5500 vs Panasonic GX850
- Nikon D70 vs Olympus E-PL5
- Olympus E-PL5 vs Sony NEX-3
- Olympus E-PL5 vs Sony NEX-5N
Specifications: Nikon D5500 vs Olympus E-PL5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5500||Olympus E-PL5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||January 2015||September 2012|
|Launch Price||USD 899||USD 599|
|Sensor Specs||Nikon D5500||Olympus E-PL5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||15.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||4608 x 3456 pixels|
|Pixel Pitch||3.91 μm||3.76 μm|
|Pixel Density||6.55 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 25,600 ISO|
|Image Processor||EXPEED 4||TruePic VI|
|DXO Sensor Quality (score)||84||72|
|DXO Color Depth (bits)||24.1||22.8|
|DXO Dynamic Range (EV)||14.0||12.3|
|DXO Low Light (ISO)||1438||889|
|Screen Specs||Nikon D5500||Olympus E-PL5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1037k dots||460k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Nikon D5500||Olympus E-PL5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Nikon D5500||Olympus E-PL5|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Nikon D5500||Olympus E-PL5|
|Battery Life (CIPA)||820 shots per charge||360 shots per charge|
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||420 g (14.8 oz)||325 g (11.5 oz)|
