Nikon D5500 vs Olympus E-1
The Nikon D5500 and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in January 2015 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D5500) and a Four Thirds (E-1) sensor. The Nikon has a resolution of 24 megapixels, whereas the Olympus provides 4.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5500 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

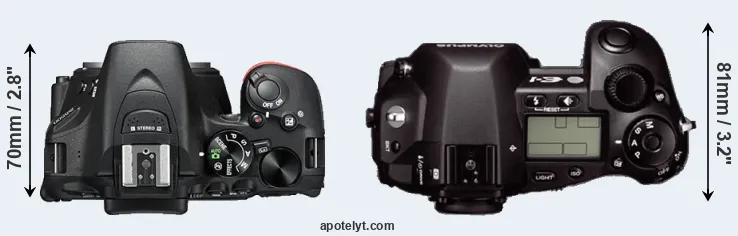

An illustration of the physical size and weight of the Nikon D5500 and the Olympus E-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.
The D5500 can be obtained in two different colors (black, red), while the E-1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (22 percent) than the Nikon D5500. Moreover, the E-1 is substantially heavier (76 percent) than the D5500. It is noteworthy in this context that the E-1 is splash and dust-proof, while the D5500 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D5500) and the Four Thirds Lens Catalog (E-1).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|Nikon D5500||4.9 in||3.8 in||2.8 in||14.8 oz||820||n||Jan 2015||899|
|Olympus E-1||5.6 in||4.1 in||3.2 in||26.0 oz||750||Y||Jun 2003||1,699|
|Canon M5||4.6 in||3.5 in||2.4 in||15.1 oz||295||n||Sep 2016||979|
|Leica Digilux 3||5.7 in||3.4 in||3.0 in||21.4 oz||750||n||Sep 2006||1,499|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D500||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999|
|Nikon D3400||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499|
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Olympus E-5||5.6 in||4.6 in||3.0 in||30.8 oz||750||Y||Sep 2010||1,699|
|Olympus E-3||5.6 in||4.6 in||3.0 in||30.9 oz||750||Y||Oct 2007||1,699|
|Olympus E-330||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999|
|Olympus E-300||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799|
|Samsung NX30||5.0 in||3.8 in||2.3 in||13.2 oz||360||n||Jan 2014||999|
|Sony A6300||4.7 in||2.6 in||1.9 in||14.3 oz||400||Y||Feb 2016||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D5500 was launched at a markedly lower price (by 47 percent) than the E-1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D5500 features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D5500 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.
With 24MP, the D5500 offers a higher resolution than the E-1 (4.9MP), but the D5500 has smaller individual pixels (pixel pitch of 3.91μm versus 6.78μm for the E-1). However, the D5500 is a much more recent model (by 11 years and 6 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D5500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.
The Nikon D5500 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|Olympus E-1||Four Thirds||4.9||2560||1920||none||..||..||..||..|
|Leica Digilux 3||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..|
|Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. The D5500 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the D5500 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The D5500 and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the D5500 (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the D5500 has a higher magnification (0.57x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D5500 and Olympus E-1 along with similar information for a selection of comparators.
|Leica Digilux 3||optical||n||2.5||207||fixed||n||1/4000s||3.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The D5500 has one, while the E-1 does not. While the built-in flash of the D5500 is not very powerful, it can at times be useful as a fill-in light.The D5500 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-1 does not have a selfie-screen.
The Nikon D5500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5500 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5500 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5500 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Leica Digilux 3||Y||stereo||mono||-||-||-||2.0||-||-||-|
It is notable that the D5500 offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Olympus E-1 (unlike the D5500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D5500 and the E-1 have been discontinued, but can regularly be found used on eBay. The E-1 was replaced by the Olympus E-3, while the D5500 was followed by the Nikon D5600. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is the Nikon D5500 better than the Olympus E-1 or vice versa? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Nikon D5500:
- More detail: Offers more megapixels (24 vs 4.9MP) with a 125% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/60p movies.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.57x vs 0.48x).
- Larger screen: Has a bigger rear LCD (3.2" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 134k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (124x97mm vs 141x104mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 318g or 43 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
- More modern: Reflects 11 years and 6 months of technical progress since the E-1 launch.
Advantages of the Olympus E-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in June 2003).
If the count of relative strengths (bullet points above) is taken as a measure, the D5500 is the clear winner of the match-up (21 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5500 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D5500 or the E-1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Olympus E-1||..||+||o||o||..||Jun 2003||1,699|
|Canon M5||+||82/100||4/5||4.5/5||4/5||Sep 2016||979|
|Leica Digilux 3||..||..||..||..||..||Sep 2006||1,499|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Olympus E-5||..||75/100||4/5||..||4.5/5||Sep 2010||1,699|
|Olympus E-3||88/100||+ +||o||o||4/5||Oct 2007||1,699|
|Olympus E-330||..||+||o||3.5/5||..||Jan 2006||999|
|Olympus E-300||..||+||o||o||4.5/5||Sep 2004||799|
|Samsung NX30||..||77/100||4.5/5||4/5||4.5/5||Jan 2014||999|
|Sony A6300||+||85/100||5/5||5/5||5/5||Feb 2016||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D5500 vs Olympus E-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5500||Olympus E-1|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Four Thirds lenses|
|Launch Date||January 2015||June 2003|
|Launch Price||USD 899||USD 1,699|
|Sensor Specs||Nikon D5500||Olympus E-1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.5 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||366.6 mm2||224.9 mm2|
|Sensor Diagonal||28.2 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||4.9 Megapixels|
|Image Resolution||6000 x 4000 pixels||2560 x 1920 pixels|
|Pixel Pitch||3.91 μm||6.78 μm|
|Pixel Density||6.55 MP/cm2||2.19 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||no Video|
|ISO Setting||100 - 25,600 ISO||100 - 800 ISO|
|ISO Boost||no Enhancement||100 - 3,200 ISO|
|Image Processor||EXPEED 4||TruePic|
|DXO Sensor Quality (score)||84||..|
|DXO Color Depth (bits)||24.1||..|
|DXO Dynamic Range (EV)||14.0||..|
|DXO Low Light (ISO)||1438||..|
|Screen Specs||Nikon D5500||Olympus E-1|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.2inch||1.8inch|
|LCD Resolution||1037k dots||134k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Nikon D5500||Olympus E-1|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Nikon D5500||Olympus E-1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Nikon D5500||Olympus E-1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||820 shots per charge||750 shots per charge|
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
|Camera Weight||420 g (14.8 oz)||738 g (26.0 oz)|
