Nikon D5300 vs Panasonic S1
The Nikon D5300 and the Panasonic Lumix DC-S1 are two digital cameras that were announced, respectively, in October 2013 and February 2019. The D5300 is a DSLR, while the S1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D5300) and a full frame (S1) sensor. Both cameras offer a resolution of 24 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5300 and the Panasonic Lumix DC-S1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

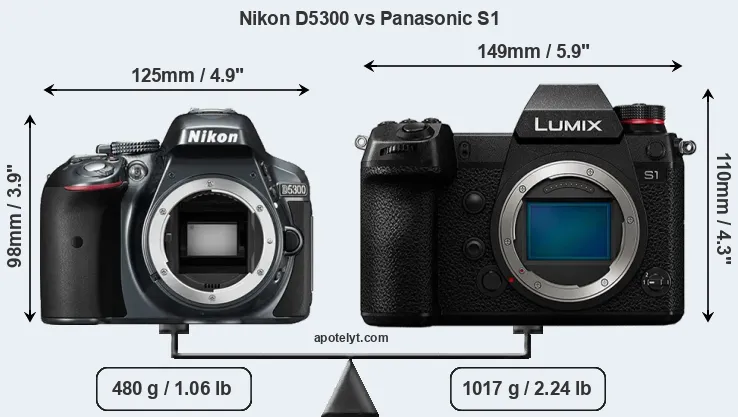

The side-by-side display below illustrates the physical size and weight of the Nikon D5300 and the Panasonic S1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The D5300 can be obtained in three different colors (black, grey, red), while the S1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1 is notably larger (34 percent) than the Nikon D5300. Moreover, the S1 is substantially heavier (112 percent) than the D5300. It is noteworthy in this context that the S1 is splash and dust-proof, while the D5300 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
Concerning battery life, the D5300 gets 600 shots out of its EN-EL14a battery, while the S1 can take 400 images on a single charge of its DMW-BLJ31 power pack. The power pack in the S1 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799|
|2.||Panasonic S1||149 mm||110 mm||97 mm||1017 g||400||Y||Feb 2019||2,499|
|3.||Canon R6||138 mm||98 mm||88 mm||680 g||360||Y||Jul 2020||2,499|
|4.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|5.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|6.||Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|7.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499|
|8.||Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|9.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599|
|10.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749|
|11.||Nikon D5100||128 mm||97 mm||79 mm||560 g||660||n||Apr 2011||749|
|12.||Nikon D5000||127 mm||104 mm||80 mm||590 g||510||n||Apr 2009||749|
|13.||Panasonic S5||133 mm||98 mm||82 mm||714 g||440||Y||Sep 2020||1,999|
|14.||Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|15.||Panasonic S1H||151 mm||114 mm||110 mm||1052 g||400||Y||May 2019||3,999|
|16.||Sony A3000||128 mm||91 mm||85 mm||411 g||470||n||Aug 2013||329|
|17.||Sony A900||156 mm||117 mm||82 mm||895 g||880||Y||Sep 2008||2,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D5300 was launched at a markedly lower price (by 68 percent) than the S1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D5300 features an APS-C sensor and the Panasonic S1 a full frame sensor. The sensor area in the S1 is 131 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Even though the S1 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S1 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.91μm for the D5300), which gives it a potential advantage in terms of light gathering capacity. In addition, the S1 is much more recent (by 5 years and 3 months) than the D5300, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
Unlike the D5300, the S1 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Nikon D5300 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S1 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the S1 offers substantially better image quality than the D5300 (overall score 12 points higher). The advantage is based on 1.2 bits higher color depth, 0.6 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
| DXO |
|2.||Panasonic S1||Full Frame||24.0||6000||4000||4K/60p||25.2||14.5||3333||95|
|3.||Canon R6||Full Frame||20.0||5472||3648||4k/60p||24.2||14.3||3394||90|
|13.||Panasonic S5||Full Frame||24.0||6000||4000||4K/60p||..||..||..||..|
|14.||Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|15.||Panasonic S1H||Full Frame||24.0||6000||4000||6K/30p||..||..||..||..|
|17.||Sony A900||Full Frame||24.4||6048||4032||none||23.7||12.3||1431||79|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S1 provides a better video resolution than the D5300. It can shoot movie footage at 4K/60p, while the Nikon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the S1 has an electronic viewfinder (5760k dots), while the D5300 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the S1 offers a wider field of view (100%) than the one in the D5300 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the S1 has a higher magnification (0.78x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5300, the Panasonic S1, and comparable cameras.
One difference between the cameras concerns the presence of an on-board flash. The D5300 has one, while the S1 does not. While the built-in flash of the D5300 is not very powerful, it can at times be useful as a fill-in light.The D5300 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the S1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D5300 and the Panasonic S1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5300 writes its imaging data to SDXC cards, while the S1 uses SDHC or XQD cards. The S1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D5300 only has one slot. The S1 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D5300 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5300 and Panasonic Lumix DC-S1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the S1 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The D5300 lacks such a headphone port.
Studio photographers will appreciate that the Panasonic S1 (unlike the D5300) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The S1 is a recent model that features in the current product line-up of Panasonic. In contrast, the D5300 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5300 was succeeded by the Nikon D5500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So how do things add up? Is the Nikon D5300 better than the Panasonic S1 or vice versa? The listing below highlights the relative strengths of the two models.
Arguments in favor of the Nikon D5300:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- More compact: Is smaller (125x98mm vs 149x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 537g or 53 percent) and hence easier to carry around.
- Longer lasting: Can take more shots (600 versus 400) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in October 2013).
Reasons to prefer the Panasonic Lumix DC-S1:
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Scores substantially higher (12 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (0.6 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/60p vs 1080/60p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.57x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (2100k vs 1037k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier travel charging: Can be conveniently charged via its USB port.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More modern: Reflects 5 years and 3 months of technical progress since the D5300 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the S1 is the clear winner of the contest (27 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5300 and the Panasonic S1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D5300 and the S1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5300||4/5||+ +||79/100||4.5/5||4.5/5||Oct 2013||799|
|2.||Panasonic S1||4.5/5||+ +||88/100||4.5/5||4/5||Feb 2019||2,499|
|3.||Canon R6||5/5||+ +||90/100||4.5/5||5/5||Jul 2020||2,499|
|4.||Nikon D5600||4/5||..||79/100||4.5/5||4/5||Nov 2016||699|
|5.||Nikon D3400||4/5||+||76/100||4/5||4.5/5||Aug 2016||499|
|6.||Nikon D5500||5/5||+||79/100||4.5/5||4.5/5||Jan 2015||899|
|7.||Nikon D3300||3/5||+||77/100||4.5/5||4.5/5||Jan 2014||499|
|8.||Nikon D7100||5/5||+ +||85/100||4.5/5||4.5/5||Feb 2013||1,199|
|9.||Nikon D3200||5/5||+ +||73/100||4.5/5||4.5/5||Apr 2012||599|
|10.||Nikon D5200||4/5||+ +||79/100||4.5/5||4.5/5||Nov 2012||749|
|11.||Nikon D5100||5/5||+ +||76/100||4.5/5||4.5/5||Apr 2011||749|
|12.||Nikon D5000||..||+ +||75/100||4/5||4.5/5||Apr 2009||749|
|13.||Panasonic S5||4.5/5||+ +||..||4.5/5||4.5/5||Sep 2020||1,999|
|14.||Panasonic S1R||4.5/5||..||89/100||4.5/5||4.5/5||Feb 2019||3,699|
|15.||Panasonic S1H||..||..||90/100||..||..||May 2019||3,999|
|16.||Sony A3000||3/5||+||..||4/5||4/5||Aug 2013||329|
|17.||Sony A900||..||+ +||+ +||4.5/5||5/5||Sep 2008||2,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Nikon D5300 vs Panasonic S1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5300||Panasonic S1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Leica L mount lenses|
|Launch Date||October 2013||February 2019|
|Launch Price||USD 799||USD 2,499|
|Sensor Specs||Nikon D5300||Panasonic S1|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.5 x 15.6 mm||35.6 x 23.8 mm|
|Sensor Area||366.6 mm2||847.28 mm2|
|Sensor Diagonal||28.2 mm||42.8 mm|
|Sensor Resolution||24 Megapixels||24 Megapixels|
|Image Resolution||6000 x 4000 pixels||6000 x 4000 pixels|
|Pixel Pitch||3.91 μm||5.94 μm|
|Pixel Density||6.55 MP/cm2||2.83 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||4K/60p Video|
|ISO Setting||100 - 12,800 ISO||100 - 51,200 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 204,800 ISO|
|Image Processor||EXPEED 4||Venus|
|DXO Sensor Quality (score)||83||95|
|DXO Color Depth (bits)||24.0||25.2|
|DXO Dynamic Range (EV)||13.9||14.5|
|DXO Low Light (ISO)||1338||3333|
|Screen Specs||Nikon D5300||Panasonic S1|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||5760k dots|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.2inch|
|LCD Resolution||1037k dots||2100k dots|
|LCD Attachment||Swivel screen||Fully flexible screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D5300||Panasonic S1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||5 shutter flaps/s||9 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Electronic Shutter||no E-Shutter||up to 1/8000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Nikon D5300||Panasonic S1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.1|
|HDMI Port||mini HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Geotagging||GPS built-in||no internal GPS|
|Body Specs||Nikon D5300||Panasonic S1|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||600 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
125 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
149 x 110 x 97 mm
(5.9 x 4.3 x 3.8 in)
|Camera Weight||480 g (16.9 oz)||1017 g (35.9 oz)|
